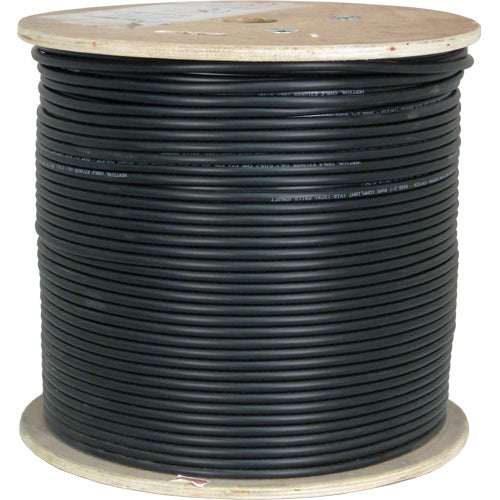

Vertical Cable 064-564/A/CMX 1000ft Cat6A Outdoor Solid Network Cable
SKU#: 064-564/A/CMX
UPC#:845643011453
Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+
Vertical Cable 064-564/A/CMX 1000ft Cat6A Outdoor Solid Network Cable
Features+
- High-Performance Data Communications Cable Capable of 10GS High-Speed Applications
- CMX UV-Rated for Outdoor Installations
- Easy to Identify Color-Striped Pairs
- Delivered on 1000ft Wooden Spool
- Exceeds ANSI EIA/TIA 568-C.2
- 15 Year Manufacturer Limited Warranty
- Please note: This item is excluded from the Free Shipping coupon.
Specs+
- Rated Temperature: 70ºC
- Rated Voltage: 30V
- Flammability Test: IEC-332-1
- Conductor Material: Solid Bare Copper
- Conductor Size: 23AWG
- Insulation Material: PE
- Insulation Diameter (±0.01mm): 1.02mm
- Insulation Separator: LPE
- Twisted Pair Diameter (±0.02mm): 2.04
- Assembly Diameter: 5.20
- Jacket Material: LLDPE
- Jacket Outer Diameter (±0.20mm): 7.60mm
- Rip Cord
- Jacket Color: Black
- Color of Pairs:
- Pair 1: Blue, White-Blue
- Pair 2: Orange, White-Orange
- Pair 3: Green, White-Green
- Pair 4: Brown, White-Brown
- Test Object: Jacket
- Test Material: LLDPE
- Before Tensile Strength (Mpa): >=10.6
- Aging Elongation: >=300
- Aging Condition (ºCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation: >=50% of unaged
- Cold Bend (-20±2ºCx4hrs): No Crack
- RoHS Compliant
- Foot Markings on Jacket
