Simply45® PROSeries All-In-One RJ45 Crimp Tool for all S45 UTP & STP Pass-Through & Standard Connectors

PROSeries All-In-One RJ45 Crimp Tool for all S45 UTP & STP Pass-Through & Standard Connectors

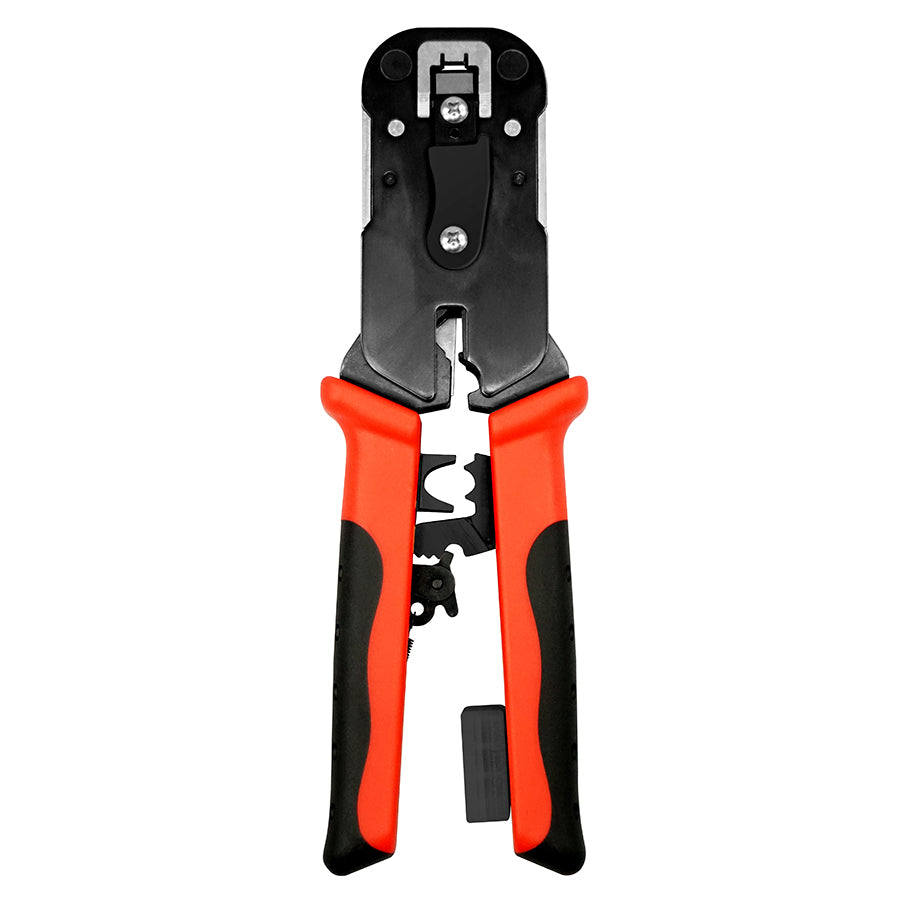

Simply45 Crimp Tools are designed to streamline the process of terminating RJ45 connectors while maintaining the quality and reliability of the terminations. The S45-C101 will crimp every RJ45 series of connectors we offer, one tool does it all. The dual ratcheting handles delivers more force for a better pin set onto the wire conductors and provides a smoother, faster, and easier crimping process. The reinforced steel wrapped head ensures tool stability during the crimping cycle. The pre-calibrated blade cartridge delivers consistent flush-to-the-plug wire trimming without deforming the wire conductor. S45-C101 Crimp Tool is a good choice for network installers, technicians, and DIY enthusiasts who want a tool that simplifies the termination process without compromising on the quality of their network connections.

Note: Unshielded and Internal Ground Shielded RJ45 modular plugs require a different crimp tool. For Standard WE/SS 8P8C Unshielded and Internal Ground Shielded RJ45 modular plugs, please use the S45-C200 RJ45 Crimp Tool.

Simply45®, the award-winning brand for innovative professional RJ45 solutions, introduces the ProSeries All-In-One RJ45 Crimp Tool for Pass-Through & Standard RJ45 modular plugs. This crimper includes features recommended by professional installers such as Click-Lock Socket, Blade Storage in Handle, External Ground Crimping Socket, and more. The S45-C101 is Simply the best RJ45 crimper available.

The S45-C101 crimps ALL Simply45® brand RJ45 modular plugs including Pass-Through, Standard WE/SS (8P8C), Shielded and Unshielded.

Crimps Both Pass-Through and Standard WE/SS Shielded RJ45 Modular Plugs.

The S45-C101 ProSeries Crimp Tool crimps both Simply45® Brand Pass-Through and Simply45® Brand Standard WE/SS shielded with external ground RJ45 modular plugs typically used with shielded 10G LAN cables and larger diameter LAN cables such as Cat6 Shielded. This tool works with Simply45® brand RJ45 plugs only. For non-Simply45 branded Standard WE/SS shielded with external ground RJ45 modular plugs, please use our Universal Crimp Tool for Standard WE/SS type part S45-C250.

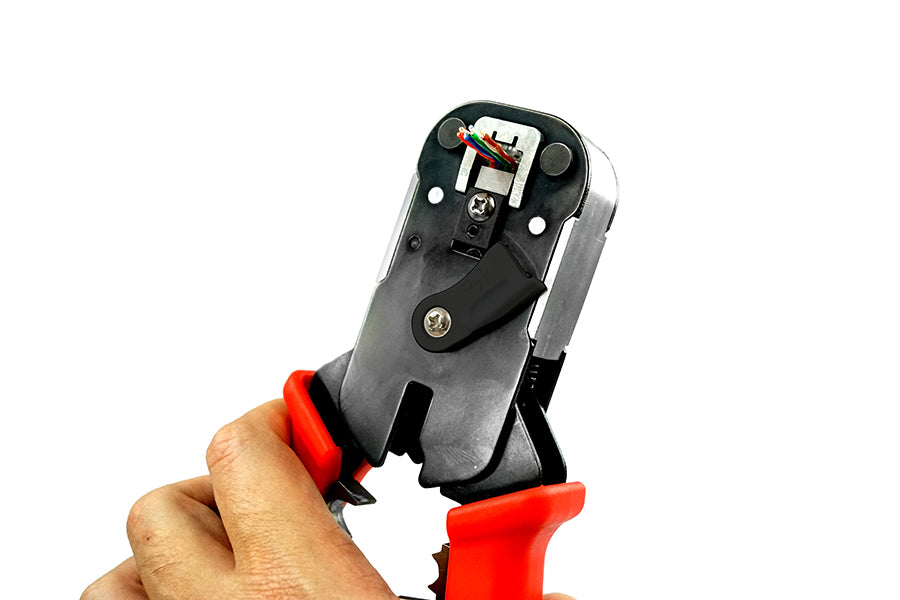

Locking Crimp Socket.

The S45-C101 ProSeries Crimp Tool features a locking socket to securely hold the RJ45 modular plug in the correct position for crimping. When you insert the Shielded with External Ground plug you will hear a click sound. This lets you know that the plug is in the proper position for termination. This is an Installer Recommended Feature.

Sliding Tool Lock.

The S45-C101 ProSeries Crimp Tool features a convenient sliding tool lock to hold the crimp tool in its closed position when not in use. This prevents the crimp tool from inadvertent opening. This is a great feature for storage in the installer’s kit. This is an Installer Recommended Feature.

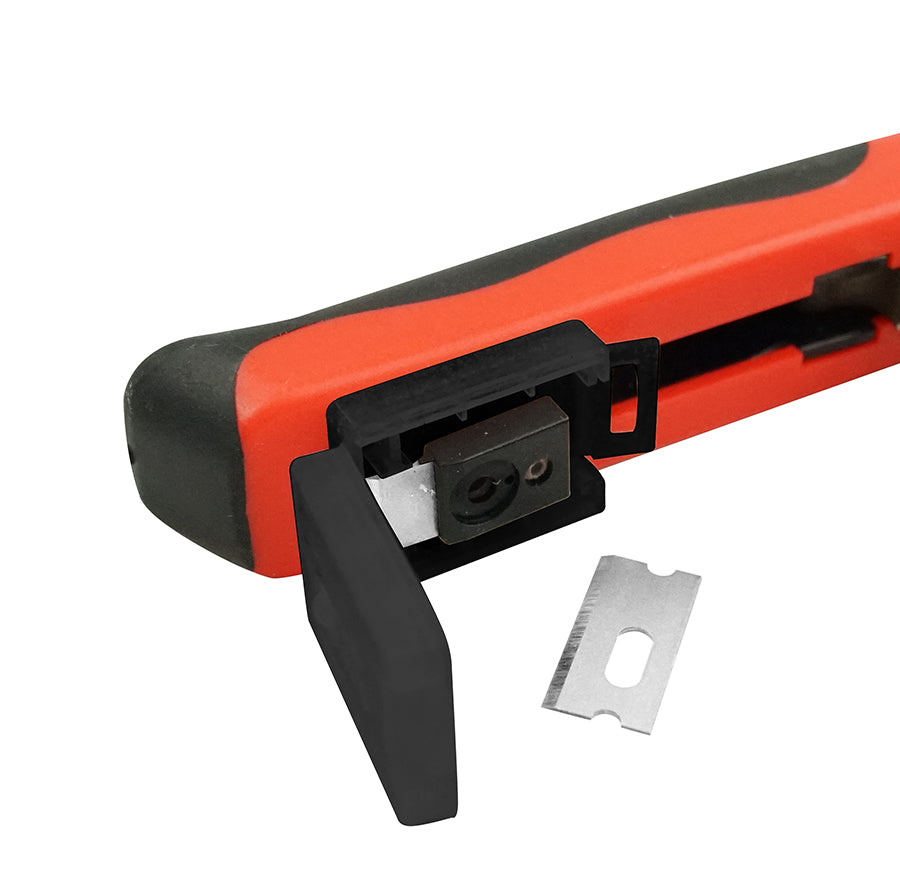

Blade Storage in the Handle.

The S45-C101 ProSeries Crimp Tool includes a convenient storage box built into the crimp tool handle. Now you can have both new trimming blades and cutting blades right with your crimp tool. This is an Installer Recommended Feature.

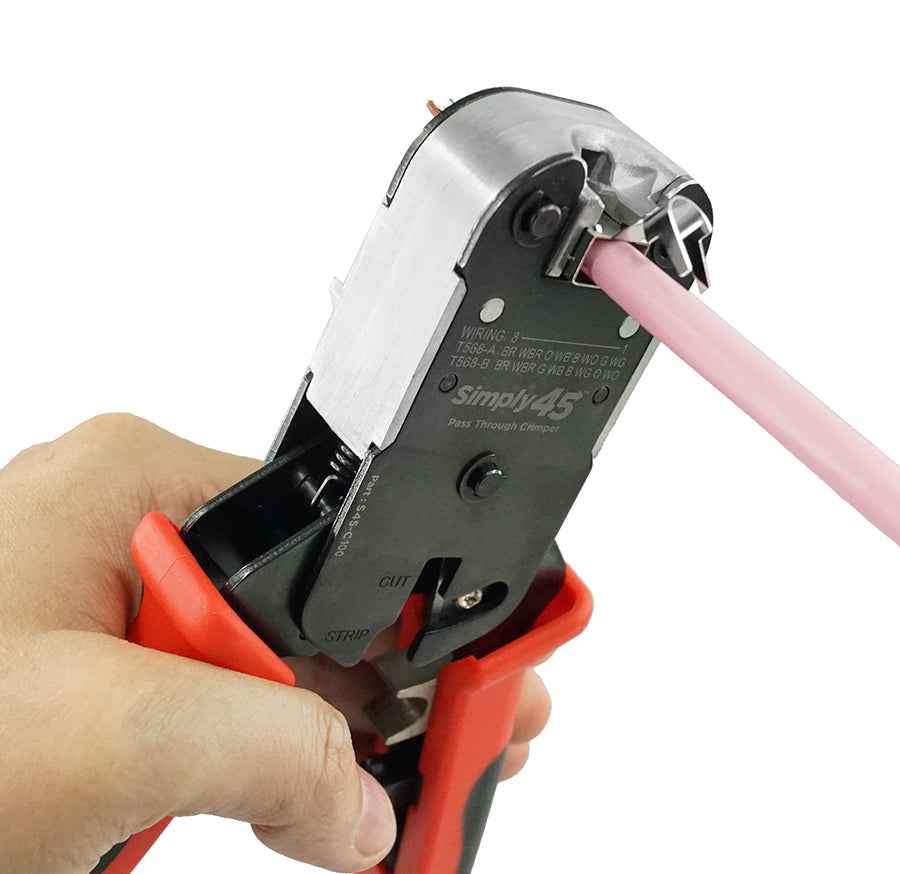

Crimping Socket for External Ground Arm.

Shielded RJ45 modular plugs with external ground have an arm that extends from the back of the plug. This arm is then crimped to the cable jacket to help secure the terminated plug permanently to the LAN cable. Most RJ45 crimp tools on the market require you to use a separate crimp tool to secure the external ground arm to the LAN cable. Not with the Simply45® S45-C101 ProSeries Crimp Tool. The S45-C101 has a built-in crimping socket for the external ground arm. This is an Installer Recommended Feature.

Ratcheted for Full Compression Cycle.

A ratcheted crimp tool requires the installer to complete the full crimping cycle. While some RJ45 brands are eliminating this feature with their crimp tools, Simply45® knows that a ratcheted crimp tool is critical to ensuring that the RJ45 pins are properly seated onto the wire conductors and the pass-through wires are properly trimmed. A ratcheted crimp tool prevents incomplete plug termination.

Synchronized Handles = More Force with Less Hand Effort.

The Simply45® S45-C101 ProSeries Crimp Tool uses synchronized handles that compress together during the crimping cycle. This synchronization delivers consistent and even force directly to the plug socket and the wire trimming. The result is a smoother, faster, and easier crimping process. The S45-C101 ProSeries Crimp Tool provides more leverage than any other RJ45 crimp tool. The tool handles open up to 4.25” (108mm). This leverage delivers more force with less hand effort during the crimping cycle. Other RJ45 crimp tools may work ok when you are crimping Cat5e, but when you start crimping Cat6 or Cat6a LAN cables, it usually takes both hands to squeeze strongly to complete the crimp cycle. This is because most other RJ45 crimp tools use only ONE handle to generate the crimping force. The Simply45® RJ45 Crimp Tool design utilizes BOTH handles working in tandem to deliver the crimping force with much less effort. Crimping Cat6 cables with one hand is easy to do. This lowers hand fatigue especially when you have many terminations to complete in a day.

Steel Reinforced for Greater Stability.

We wrapped the Simply45® S45-C101 ProSeries Crimp Tool with reinforced steel to ensure tool stability during the crimping cycle. When we analyzed other RJ45 crimp tools on the market we found that tools using various inserts introduced a lot of instability during the crimping cycle. Over time this instability causes poorer wire trims and incomplete RJ45 pin setting onto the wire conductors. Crimp tool stability results in a smoother crimping cycle, better pin sets, more consistent wire trimming, and greater durability over time. You can compare this to chefs in the kitchen. They can tell immediately if they have a good carving knife. They can truly feel the difference in the weight, the feel, the balance, the stability… compared to a cheaply made knife from China. That carving knife works smoothly with less effort. In our industry, the professional installer is the chef and RJ45 terminations are done in his kitchen. That is why professional installers should only use the best professional tools for the best professional results.

Improved Trimming Blade Design.

The Simply45® engineers spent considerable time designing a pass-through RJ45 crimp tool that would deliver consistent flush-to-the-plug wire trimming over time. The S45-C101 ProSeries Crimp Tool incorporates these engineering designs. These engineering features include: Even force delivered to the trimming blades by the synchronized crimp tool handles; a more stable crimping socket; a fixed blade position alignment requiring no adjustments; a more precise angle with no flexing on the trimming blade; and a diamond polished hardened steel trimming blade. The results are more flush and consistent wire trimming over many more termination cycles.

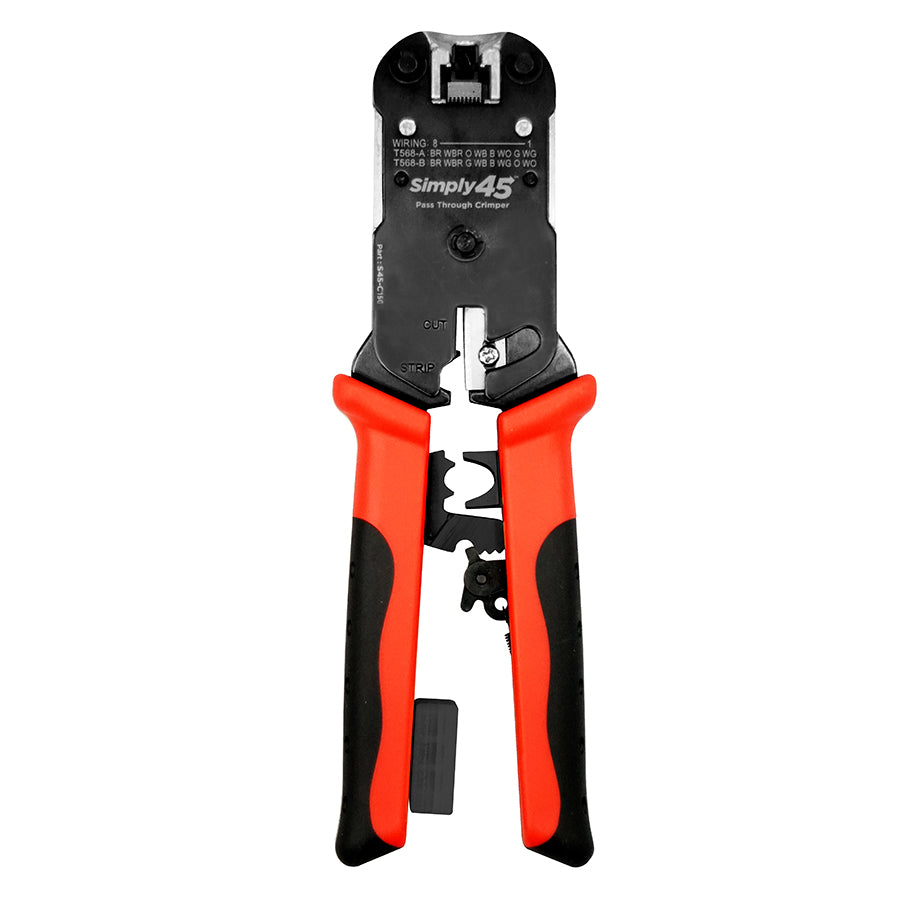

Wire Alignment Pattern Where You Need It.

Simply45® laser engraves the wire alignment patterns Type A/B right under the crimping socket. We also list the pattern to match how the RJ45 modular plug is inserted into the tool. This makes it easy to provide one last check to be sure the wires are properly aligned inside the plug before crimping. This was a feature recommended by professional installers as a final check before crimping the RJ45 modular plug. Eliminates the error of putting the wire alignment upside down into the plug.

Easy Blade Changing.

Dull and worn-out blades are one of the primary causes of improper wire trimming on pass-through RJ45 modular plugs. When we talked with professional installers one of their biggest complaints was the complexity and time-consuming process to change the trimming blades on some of these newer designed RJ45 pass-through crimp tools on the market. Not with the Simply45® S45-C101 ProSeries Crimp Tool. We make blade changing quick and easy to do. 30 seconds is all you need to change the trimming blade. No adjustments are needed. Just one screw and you changed the trimming blade. Simply45® believes that if you make changing the trimming blades very easy, installers will change the trimming blades more often.

Set Strain Reliefs / Boots During Crimping Cycle.

Simply45® offers integrated strain reliefs/boots that are crimped to the RJ45 modular plug during the crimping cycle. The process is fast and secure. Using strain reliefs (boots) is very important to protect the RJ45 modular plug termination. The Simply45® integrated strain reliefs work much better than other strain reliefs. The Simply45® integrated strain reliefs are narrow (the same width as the RJ45 modular plug). This is ideal for multi-port patch panels as you can easily insert and remove the plug from the jacks. Learn more about the Simply45® Strain Reliefs here: S45-B001 | S45-B002 | S45-B003.

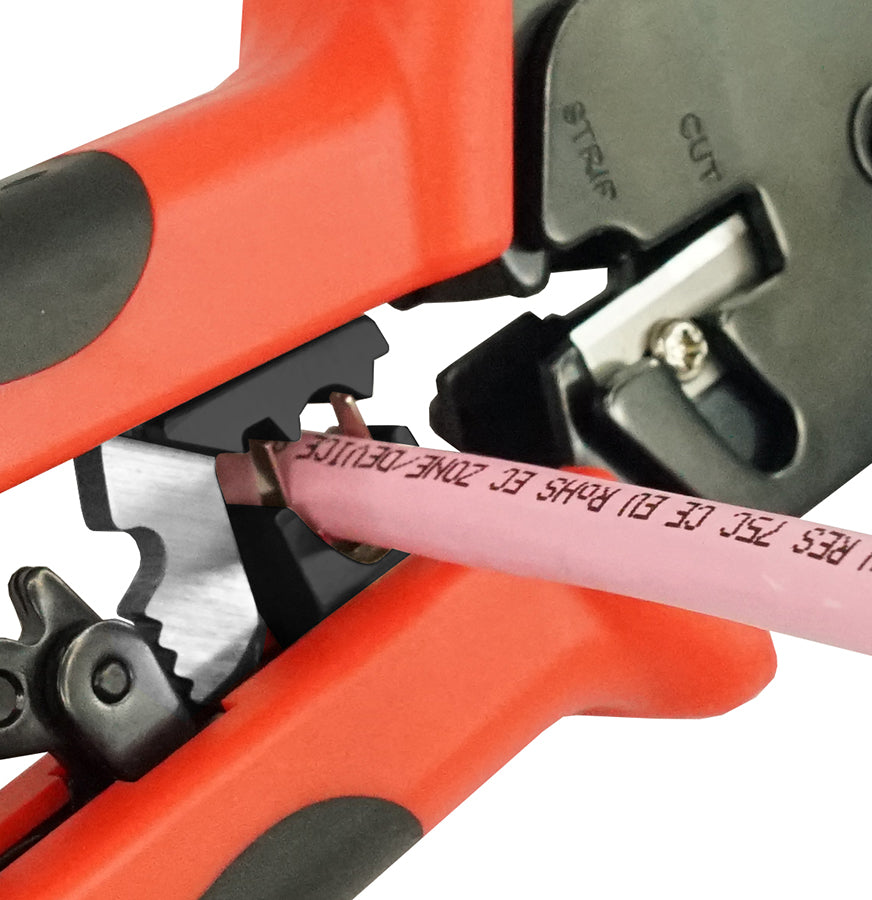

Multi-Function.

In addition to the Installer Recommended Features listed above, the S45-C101 ProSeries Crimp Tool also includes a built-in wire cutter and wire stripper. We also recommend our Adjustable LAN Cable Stripper (parts: S45-S01BL & S45-S01YL) that professionally strips ALL shielded and unshielded LAN cables from Cat7a to Cat5e.

Ergonomic Grip.

Simply45® designed the S45-C101 ProSeries Crimp Tool with an ergonomic grip that reduces hand fatigue and slippage.
