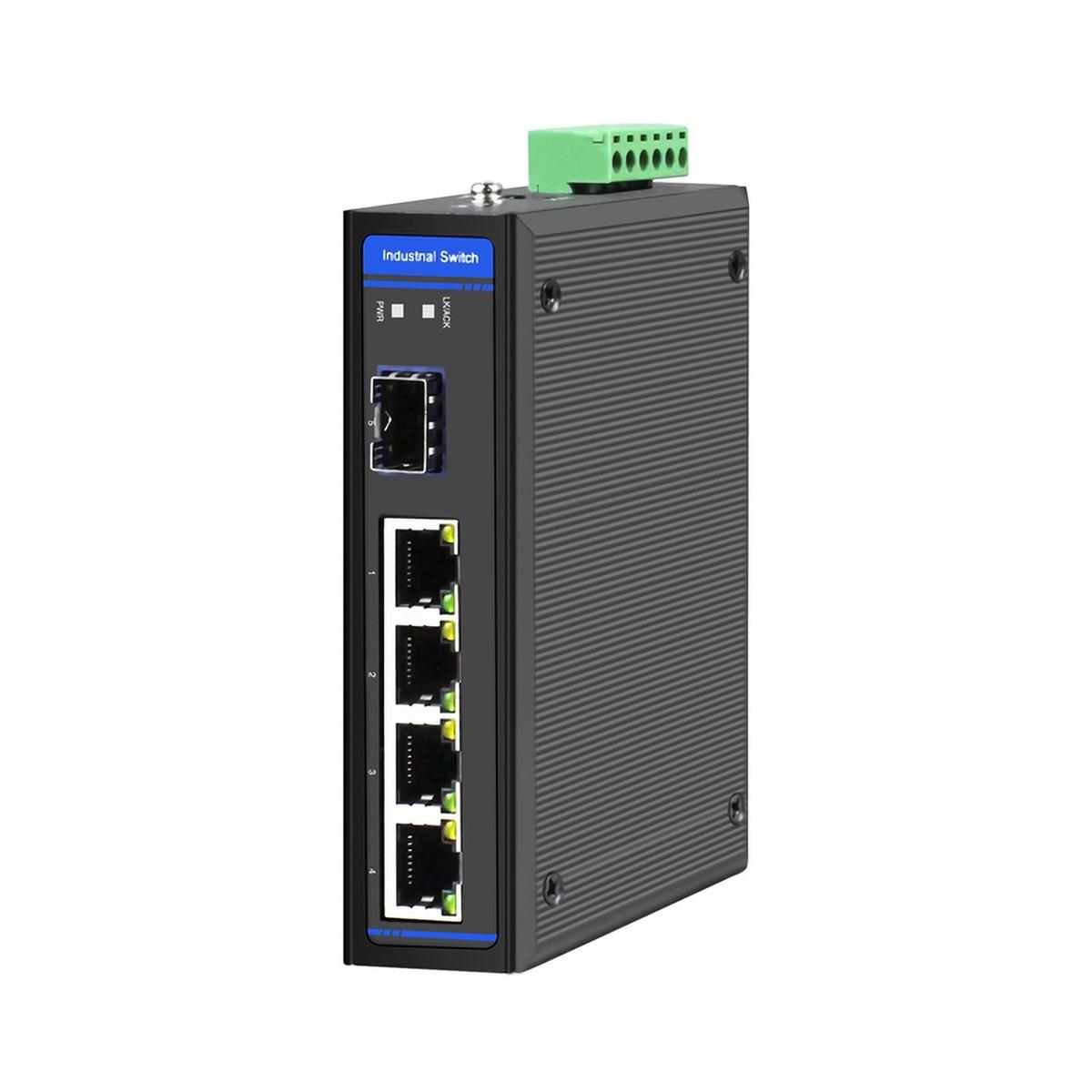

Cleerline 1 x SFP to 4 x RJ45 Industrial Gigabit Switch
SKU#: SSF-1x4-RUGGED
UPC#:672975372477
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- DC power input block 10-60V
- Extreme operating temperature: -40 to 75°C
- Rugged IP40 rated metal casing, DIN rail bracket
- Store and Forward switching mechanism
- Reversed power polarity protection
- Auto-Negotiation & Auto MDI/MDI-X on every RJ45 port
- 6kV surge protection per port
- IEEE 802.1Q Tag VLAN pass-through
- Redundant DC power inputs
- Specs+
- Reviews+
- DC power input block 10-60V
- Extreme operating temperature: -40 to 75°C
- Rugged IP40 rated metal casing, DIN rail bracket
- Store and Forward switching mechanism
- Reversed power polarity protection
- Auto-Negotiation & Auto MDI/MDI-X on every RJ45 port
- 6kV surge protection per port
- IEEE 802.1Q Tag VLAN pass-through
- Redundant DC power inputs
1 x SFP to 4 x RJ45 Industrial Gigabit Switch
The Cleerline™ SSF-1x4-RUGGED is a 1 x SFP to 4 x RJ45 Gigabit Ethernet switch designed for industrial applications, offering reliable performance in extreme environments. This non-managed switch supports 10/100/1000Base-TX to 1000Base-X connections and operates within a temperature range of -40 to 75°C. Its rugged IP40-rated metal casing and DIN rail bracket make it ideal for mechanically or electrically extreme environments. The switch features a store and forward switching mechanism, auto-negotiation, auto MDI/MDI-X on every RJ45 port and supports IEEE 802.1Q Tag VLAN pass-through.
The SSF-1x4-RUGGED switch includes strong surge protection (4kV ~ 8kV) per port and is compliant with various IEC and EN standards for industrial-grade equipment. It offers redundant DC power inputs (10-60V) for enhanced reliability and features reversed power polarity protection. With dimensions of 88 x 35 x 120mm and weighing 0.38kg, it is compact and easy to install via DIN rail or wall mounting. The switch supports a back-plane switching fabric of 10 Gbps, a MAC address table of 4K, and a packet buffer size of 1MB, making it an efficient solution for reliable data transmission in industrial settings.
External power supply required (SSF-DIN-48V15W-PS)
1 x SFP to 4 x RJ45 Industrial Gigabit Switch
The Cleerline™ SSF-1x4-RUGGED is a 1 x SFP to 4 x RJ45 Gigabit Ethernet switch designed for industrial applications, offering reliable performance in extreme environments. This non-managed switch supports 10/100/1000Base-TX to 1000Base-X connections and operates within a temperature range of -40 to 75°C. Its rugged IP40-rated metal casing and DIN rail bracket make it ideal for mechanically or electrically extreme environments. The switch features a store and forward switching mechanism, auto-negotiation, auto MDI/MDI-X on every RJ45 port and supports IEEE 802.1Q Tag VLAN pass-through.
The SSF-1x4-RUGGED switch includes strong surge protection (4kV ~ 8kV) per port and is compliant with various IEC and EN standards for industrial-grade equipment. It offers redundant DC power inputs (10-60V) for enhanced reliability and features reversed power polarity protection. With dimensions of 88 x 35 x 120mm and weighing 0.38kg, it is compact and easy to install via DIN rail or wall mounting. The switch supports a back-plane switching fabric of 10 Gbps, a MAC address table of 4K, and a packet buffer size of 1MB, making it an efficient solution for reliable data transmission in industrial settings.
External power supply required (SSF-DIN-48V15W-PS)
×
