  • TP-Link TG-3468 Gigabit PCI Express Network Adapter
  • TP-Link TG-3468 Gigabit PCI Express Network Adapter

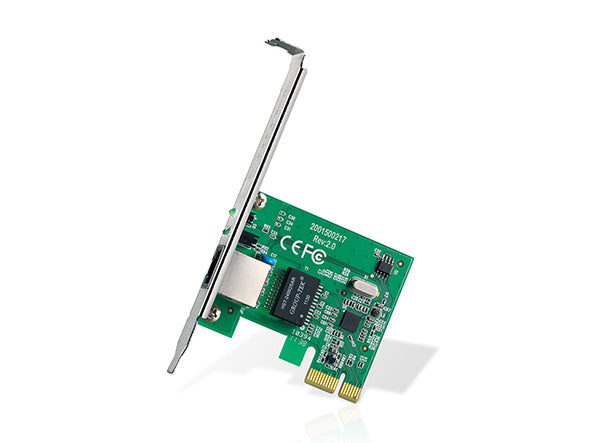

TP-Link TG-3468 Gigabit PCI Express Network Adapter

SKU#: TG-3468

UPC#: 845973001049

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: TG-3468

UPC#:845973001049
$24.40

SKU#: TG-3468

UPC#:845973001049

SKU#: TG-3468

UPC#: 845973001049

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • TP Link Gigabit PCI Network Adapter |  TG-3468

    What This Product Does

    TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

    The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

    *Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

  • Features+
    • 10/100/1000Mbps PCIe Adapter*
    • 32-bit PCIe interface, saving the finite chassis space
    • Wake-on-LAN, convenient to manage over LAN
  • Specs+
  • HARDWARE FEATURES
    Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
    Interface 32-bit PCI Express
    1 10/100/1000Mbps RJ45 port
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000Base-T: UTP category 5, 5e cable (maximum 100m)
    Data Rates 10/100/1000Mbps for Half-Duplex mode
    20/200/2000Mbps for Full-Duplex mode
    LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
    Flow Control IEEE 802.3x Flow Control (Full-Duplex)
    OTHERS
    Certification FCC, RoHS
    System Requirements Windows 10/8.1/8/7/XP/Vista (32/64bits)
    Environment Operating Temperature: 0?~40? (32?~104?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
     SPEC SHEET
  • Package Contents+
    • Gigabit PCI Express Network Adapter TG-3468
    • Resource CD
    • Quick Installation Guide
  • Reviews+
  • TP Link Gigabit PCI Network Adapter |  TG-3468

    What This Product Does

    TG-3468 10/100/1000Mbps Gigabit PCIe Network Adapter is a highly integrated and cost-effective 32-bit Gigabit PCIe Ethernet Adapter which is fully compliant with IEEE 802.3, IEEE 802.3u and IEEE 802.3ab specifications.

    The PCIe Gigabit Network Adapter TG-3468 is a high performance adapter designed for the high-speed PCI Express Bus Architecture. Designed to support 10/100/1000Mbps network speed Auto-Negotiation, 802.3x flow control and Wake-on-LAN technology. TG-3468 Gigabit PCIe Network Adapter is a highly integrated and cost-effective Gigabit Ethernet Adapter which is a good selection to upgrade your network.

    *Maximum wireless transmission rates are the physical rates derived from IEEE Standard 802.11 specifications. Range and coverage specifications are based upon test results under normal usage conditions. Actual wireless transmission rate and wireless coverage are not guaranteed, and will vary as a result of 1) environmental factors, including building materials, physical objects and obstacles, 2) network conditions, including local interference, volume and density of traffic, product location, network complexity, and network overhead and 3) client limitations, including rated performance, location, connection quality, and client condition.

    • 10/100/1000Mbps PCIe Adapter*
    • 32-bit PCIe interface, saving the finite chassis space
    • Wake-on-LAN, convenient to manage over LAN
    HARDWARE FEATURES
    Standards and Protocols IEEE 802.3, 802.3u, 802.3ab, 802.3x, 802.1q, 802.1p, CSMA/CD, TCP/IP
    Interface 32-bit PCI Express
    1 10/100/1000Mbps RJ45 port
    Network Media 10BASE-T: UTP category 3, 4, 5 cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    100BASE-TX: UTP category 5, 5e cable (maximum 100m)
    EIA/TIA-568 100Ω STP (maximum 100m)
    1000Base-T: UTP category 5, 5e cable (maximum 100m)
    Data Rates 10/100/1000Mbps for Half-Duplex mode
    20/200/2000Mbps for Full-Duplex mode
    LED Indicator 1000Mbps Link/Act, 100Mbps Link/Act, 10Mbps Link/Act
    Flow Control IEEE 802.3x Flow Control (Full-Duplex)
    OTHERS
    Certification FCC, RoHS
    System Requirements Windows 10/8.1/8/7/XP/Vista (32/64bits)
    Environment Operating Temperature: 0?~40? (32?~104?)
    Storage Temperature: -40?~70? (-40?~158?)
    Operating Humidity: 10%~90% non-condensing
    Storage Humidity: 5%~90% non-condensing
     SPEC SHEET
    • Gigabit PCI Express Network Adapter TG-3468
    • Resource CD
    • Quick Installation Guide
