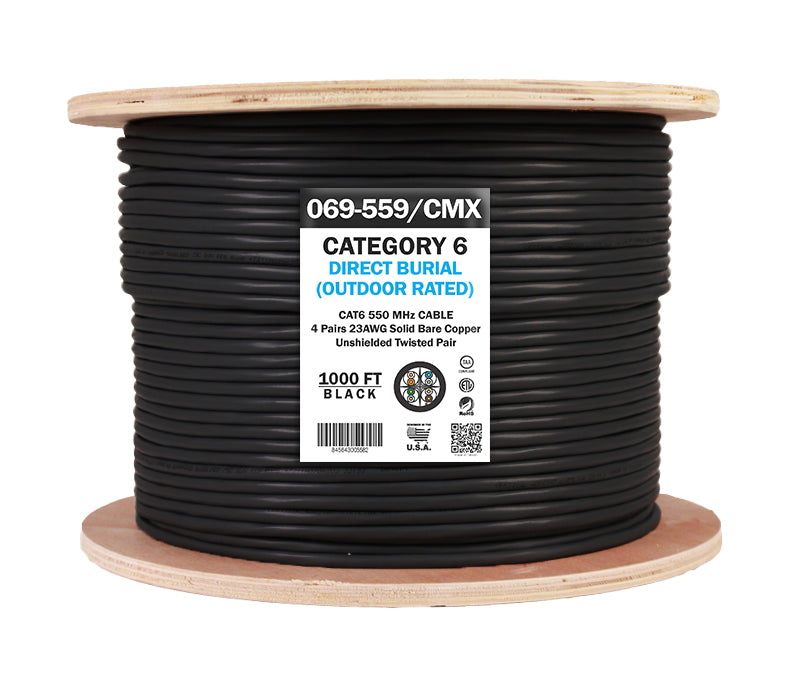

Vertical Cable 1000ft Solid Outdoor Cat6 Cable - 23AWG UTP UV Rated
SKU#: CAT6-1KCMX-BLK
UPC#:845643005582
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Outdoor IP camera installations
- Wireless access point connections
- Building-to-building Ethernet links
- Exterior LAN extensions
- Industrial and commercial outdoor networks
- Designed for long-term outdoor reliability with UV protection.
- Solid copper construction for superior performance.
- Complies with major industry standards for versatile installations.
- Features+
- Supports 10/100/1000BASE-T applications: Provides reliable performance for gigabit and standard Ethernet networks.
- Fast Ethernet and 155 Mbps TP-PMD/CDDI: Ensures compatibility with both legacy and modern networking systems.
- Outdoor UV-Resistant: Protects against sunlight damage and weather exposure for extended service life.
- 550-MHz Bandwidth Support: Handles high-data demands for voice, video, and data transmission.
- 23 AWG Solid Copper Conductors: Maximizes signal strength and minimizes attenuation.
- Identifiable Pair Insulation Colors: Simplifies cable termination and maintenance.
- Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Specifications: Meets industry performance standards.
- CAN/CSA-C22.2 No. 214, RoHS Compliant: Environmentally safe and certified for use in North America.
- ETL listed: Tested for safety and verified performance.
- Specs+
- Rated Temperature: 70ºC
- Rated Voltage: 30V
- Flammability Test: IEC-332-1

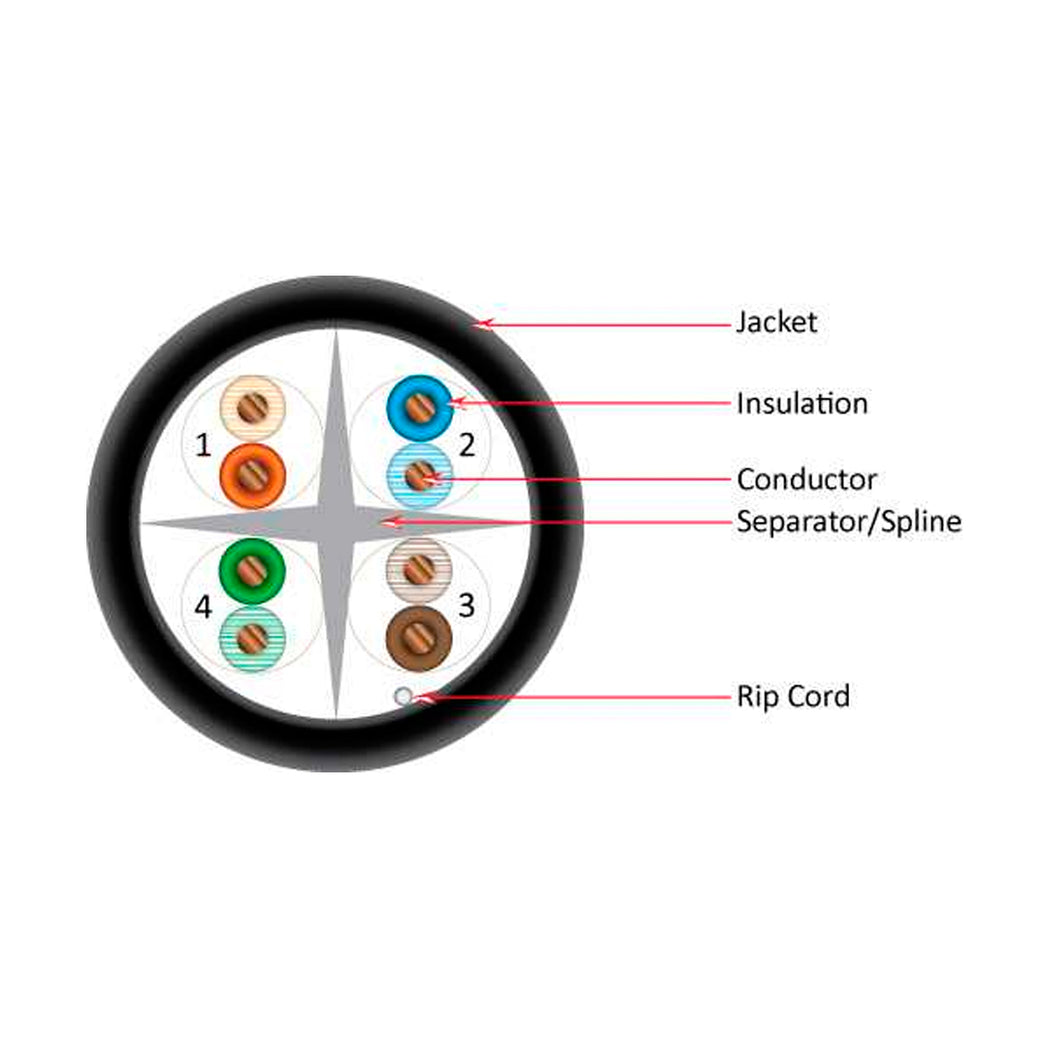

- Conductor: Solid Bare Copper
- Size: 23AWG
- Insulation: PE
- Insulation Diameter: (±0.01mm) 1.01
- Twisted Pair Diameter: (±0.02mm) 2.02
- Separator: PVC
- Assembly Diameter: 5.00
- Jacket: PVC (UV)
- Outer Diameter: (±0.30mm) 6.20
- Rip Cord
- Color: Black
- Color of Pairs: Pair 1: Blue, White-Blue; Pair 2: Orange, White-Orange; Pair 3: Green, White-Green; Pair 4: Brown, White-Brown
- Test Object: Jacket
- Test Material: PVC
- Before Tensile Strength (Mpa): >=13.8
- Aging Elongation (%): >=100
- Aging Condition (ºCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation (%): >=50% of unaged
- Cold Bend (-20±2º Cx4hrs): No Crack
- ETL Listed
- RoHS Compliant

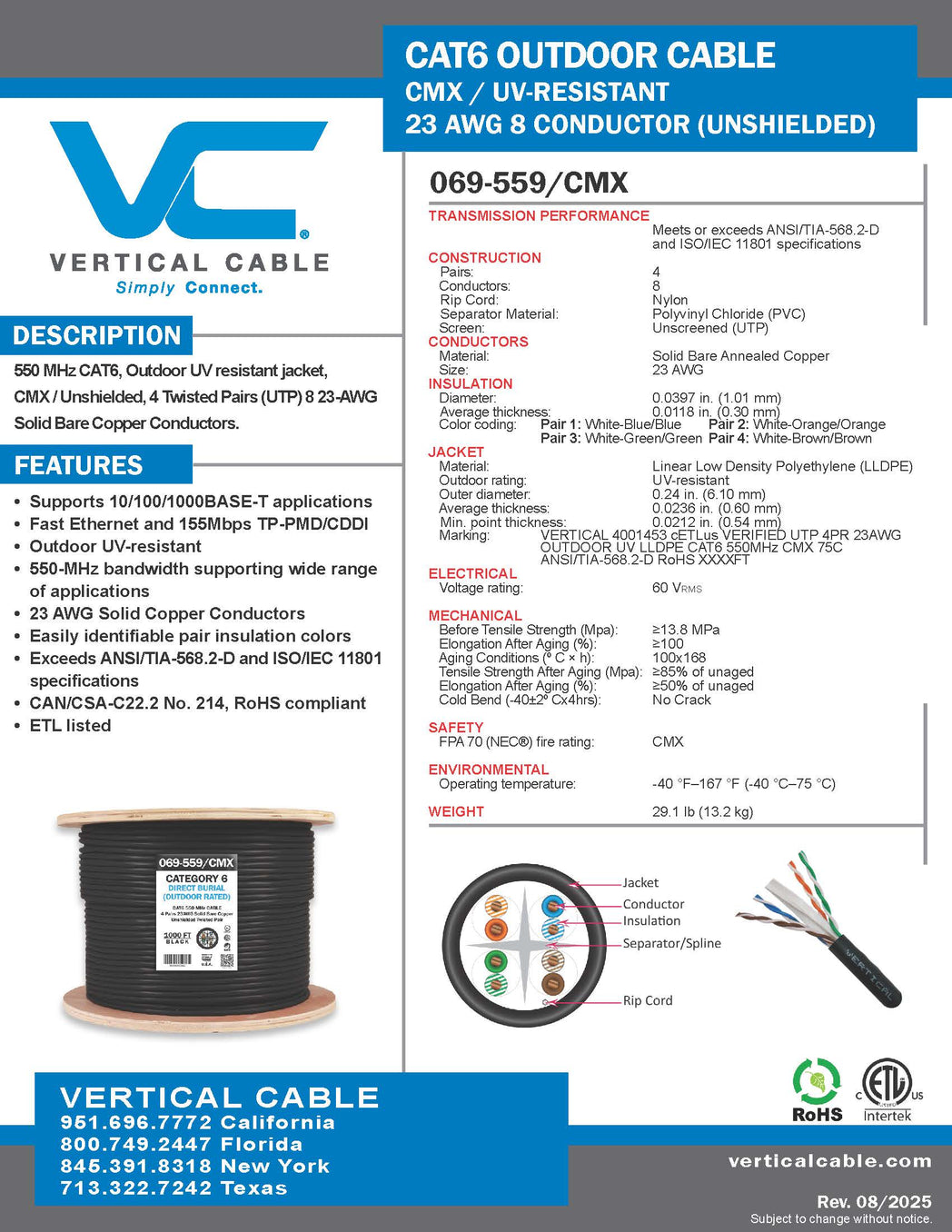

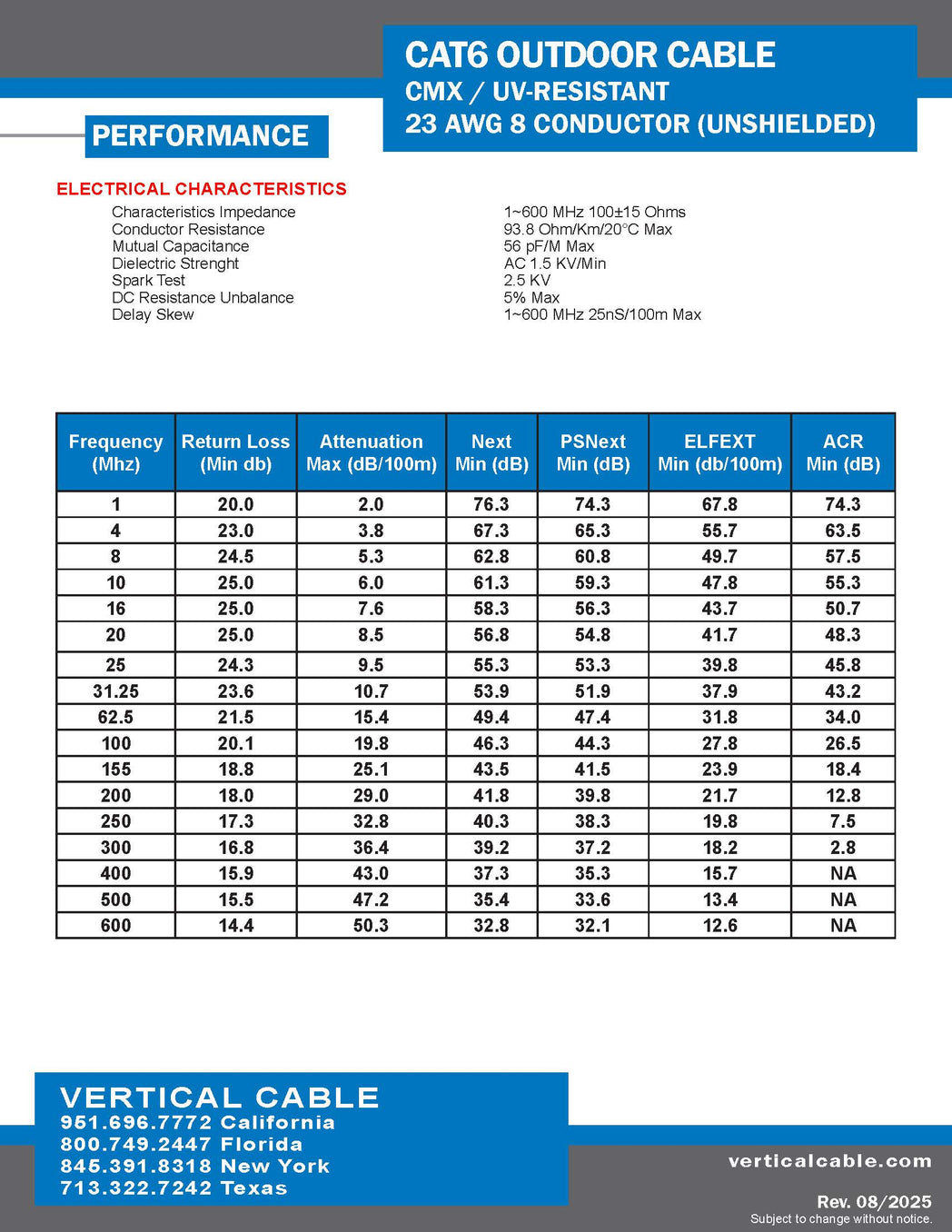

- SPEC SHEET
- Reviews+
- Outdoor IP camera installations
- Wireless access point connections
- Building-to-building Ethernet links
- Exterior LAN extensions
- Industrial and commercial outdoor networks
- Designed for long-term outdoor reliability with UV protection.
- Solid copper construction for superior performance.
- Complies with major industry standards for versatile installations.
- Supports 10/100/1000BASE-T applications: Provides reliable performance for gigabit and standard Ethernet networks.
- Fast Ethernet and 155 Mbps TP-PMD/CDDI: Ensures compatibility with both legacy and modern networking systems.
- Outdoor UV-Resistant: Protects against sunlight damage and weather exposure for extended service life.
- 550-MHz Bandwidth Support: Handles high-data demands for voice, video, and data transmission.
- 23 AWG Solid Copper Conductors: Maximizes signal strength and minimizes attenuation.
- Identifiable Pair Insulation Colors: Simplifies cable termination and maintenance.
- Exceeds ANSI/TIA-568.2-D and ISO/IEC 11801 Specifications: Meets industry performance standards.
- CAN/CSA-C22.2 No. 214, RoHS Compliant: Environmentally safe and certified for use in North America.
- ETL listed: Tested for safety and verified performance.
- Rated Temperature: 70ºC
- Rated Voltage: 30V
- Flammability Test: IEC-332-1
- Conductor: Solid Bare Copper
- Size: 23AWG
- Insulation: PE
- Insulation Diameter: (±0.01mm) 1.01
- Twisted Pair Diameter: (±0.02mm) 2.02
- Separator: PVC
- Assembly Diameter: 5.00
- Jacket: PVC (UV)
- Outer Diameter: (±0.30mm) 6.20
- Rip Cord
- Color: Black
- Color of Pairs: Pair 1: Blue, White-Blue; Pair 2: Orange, White-Orange; Pair 3: Green, White-Green; Pair 4: Brown, White-Brown
- Test Object: Jacket
- Test Material: PVC
- Before Tensile Strength (Mpa): >=13.8
- Aging Elongation (%): >=100
- Aging Condition (ºCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation (%): >=50% of unaged
- Cold Bend (-20±2º Cx4hrs): No Crack
- ETL Listed
- RoHS Compliant
- SPEC SHEET
069-559/CMX – CAT6 Outdoor Cable
The Vertical Cable 069-559/CMX is a high-performance CAT6 UTP cable designed for outdoor installations requiring durability and consistent connectivity. Its UV-resistant CMX-rated jacket withstands sunlight, moisture, and extreme temperatures for long-term reliability. Solid 23 AWG copper conductors deliver exceptional conductivity and low signal loss over long distances.
APPLICATIONS
The 069-559/CMX cable is ideal for outdoor projects requiring stable, high-speed data transmission:
WHY CHOOSE THE 069-559/CMX CAT6 OUTDOOR CABLE?
When selecting a data cable, consider the unmatched advantages of the 069-559/CMX. Here’s why it stands out:
069-559/CMX – CAT6 Outdoor Cable
The Vertical Cable 069-559/CMX is a high-performance CAT6 UTP cable designed for outdoor installations requiring durability and consistent connectivity. Its UV-resistant CMX-rated jacket withstands sunlight, moisture, and extreme temperatures for long-term reliability. Solid 23 AWG copper conductors deliver exceptional conductivity and low signal loss over long distances.
APPLICATIONS
The 069-559/CMX cable is ideal for outdoor projects requiring stable, high-speed data transmission:
WHY CHOOSE THE 069-559/CMX CAT6 OUTDOOR CABLE?
When selecting a data cable, consider the unmatched advantages of the 069-559/CMX. Here’s why it stands out:
