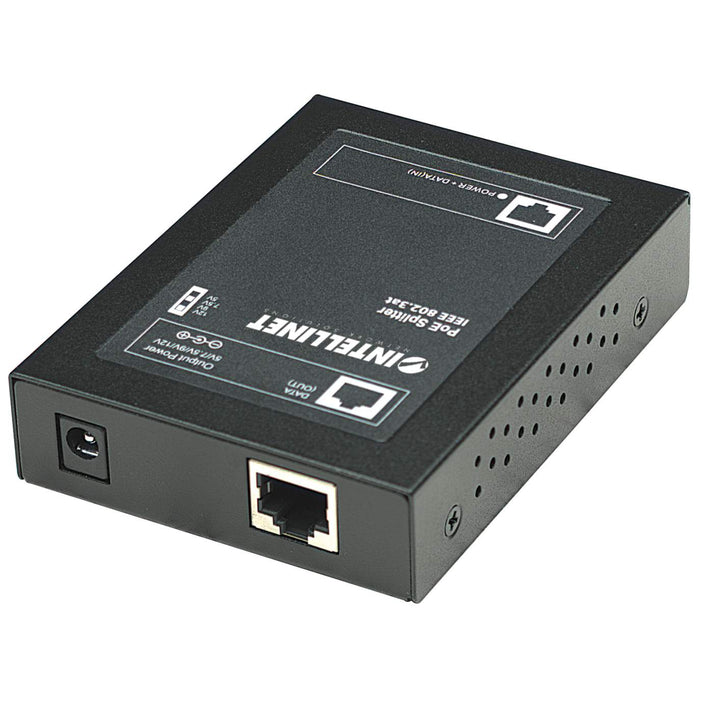

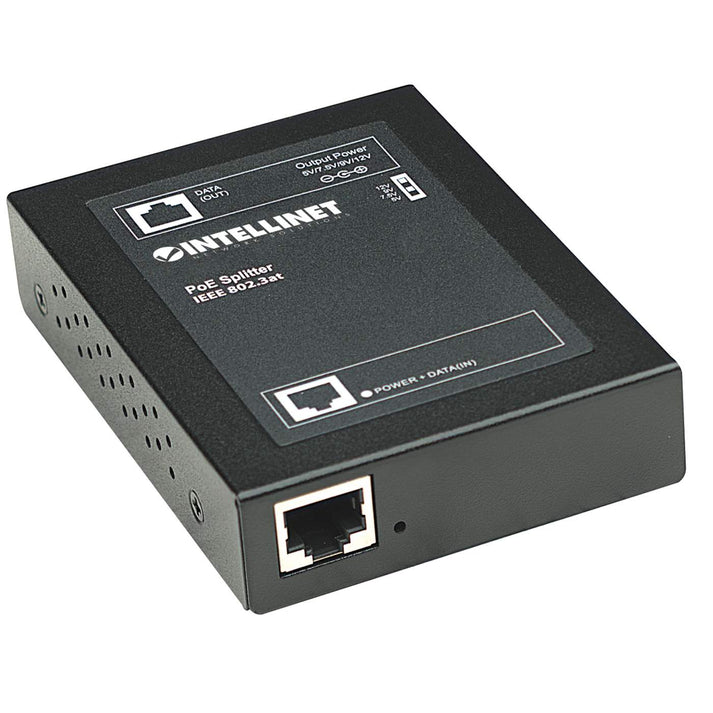

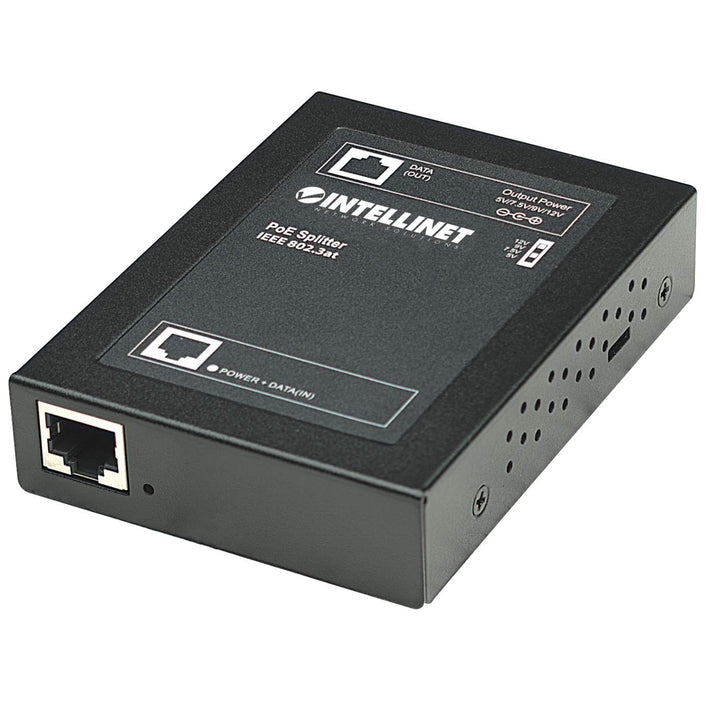

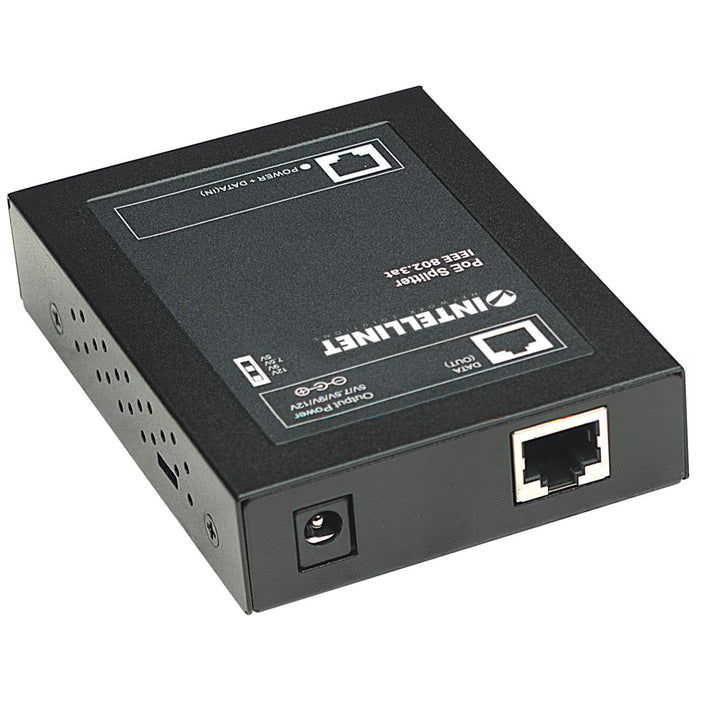

Intellinet Power over Ethernet (PoE+) Splitter, 560443

SKU#: 560443

UPC#: 766623560443

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: 560443

UPC#:766623560443
$36.99

SKU#: 560443

UPC#:766623560443

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • Intellinet Power over Ethernet (PoE+) Splitter

    IEEE802.3at, 5, 7.5, 9 or 12 V DC output voltage

    Deliver Power over Ethernet to remote devices

    The Intellinet Network Solutions PoE+ Splitter allows you to deliver both data and electrical power to non-PoE Ethernet-enabled products using the Cat5 Ethernet cable. Using the PoE Splitter, you can take advantage of Power over Ethernet and place Ethernet-enabled products, such as Network Cameras and Wireless Access Points*, where power outlets are not readily available.

    Simplify Installation for an Ethernet-based Device

    Having to manage only an Ethernet cable simplifies the physical installation of the device. Without having to worry about the availability of a power source, you can mount Ethernet-enabled products on a ceiling or outdoors, up to 100m (328 feet)** from a power source. The PoE Splitter is simple to install and requires no tools or software.

    802.3af Compliant Power over Ethernet

    The PoE Splitter can be used to complement any PoE injector unit or midspan switch to provide small to medium-sized businesses a complete end-to-end PoE solution. This unit supports 802.3af and 802.3at, ensuring compatibility with other 802.3af/t PoE-compliant injector units or PSE switches.

    Adjustable Power Output

    During the setup, the PoE Splitter can be set to power any compatible 5 V, 7.5 V, 9 V or 12 V Ethernet-enabled device via the volt selector located on the side.

    ** Maximum distance per 802.3u specifications.

  • Features+
    • Can be used to connect non-PoE IEEE 802.3af/t-compliant devices to a PoE injector or PoE switch
    • Output voltage, selectable: 5, 7.5, 9 or 12 V DC
    • Power output: 5 V / 4 A, 7.5 V / 2.7 A, 9 V / 2.3 A and 12 V / 1.7 A
    • 10/100 auto-sensing input port automatically detects optimal network speeds
    • RJ45 input port with Auto-MDIX and NWay auto-negotiation support
    • Full/half duplex operation
    • Compact metal case
    • LED for link on PoE input port
    • Fully NDAA-compliant
    • Three-Year Warranty
  • Specs+
  • - SPEC SHEET

    Standards
    - IEEE 802.3af (Power over Ethernet)
    - IEEE 802.3at (High-Power PoE+ Power over Ethernet)
    - IEEE 802.3 (10Base-T Ethernet)
    - IEEE 802.3u (100Base-TX Fast Ethernet)

    General
    - Media support:
    - 10Base-T Cat3, 4, 5 UTP/STP RJ45
    - 100Base-TX Cat5 UTP/STP RJ45
    - Ports:
    - 1 RJ45 10/100 Mbps input port for 48 V IEEE 802.3af-compliant signal
    - 1 RJ45 10/100 Mbps output port
    - 1 power output port
    - Certifications: FCC Class A, CE, UKCA, NDAA

    LEDs
    - LINK

    Power
    - Output power:
    - 5, 7.5, 9 or 12 V DC, selectable via switch
    - Maximum output: 5 V - 4 A, 7.5 V - 2.7 A, 9 V - 2.3 A, 12 V - 1.7 A
    - Polarity, outer: negative ( - ); inner: positive ( + )
    - Power consumption: 25.4 Watts (maximum)

    Environmental
    - Metal housing
    - Dimensions: 102 (L) x 74 (W) x 22 (H) mm (4.0 x 2.9 x 0.9 in.)
    - Weight: 0.24 kg (0.5 lbs.)
    - Operating temperature: 0 – 60°C (32 – 140°F)
    - Operating humidity: 10 – 90% RH, non-condensing
    - Storage temperature: -20 – 90°C (-4 – 194°F)

  • Package Contents+
    • PoE+ Splitter

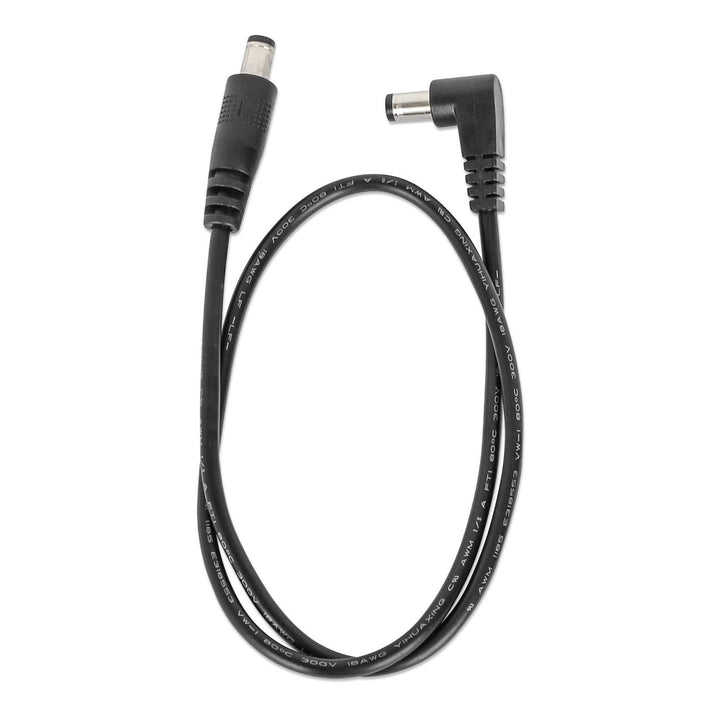

    • Power output cable
    • User manual
