Shuttle XPC X1 Gaming Nano DKA1GH5PRO Intel Kabylake i5-7300HQ, 8GB RAM, 256GB SSD, GTX 1060, Win 10
SKU#: DKA1GH5PRO
UPC#:887993600635Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- Specs+
- Reviews+
The new Shuttle X1 gaming series has a compact and stunning design powered by the latest Intel Kaby Lake-H processor with NVIDIA GeForce GTX 1060 graphics for a visually powerful gaming experience. With a low voltage of 1.2V up to DDR4-2400 32GB memory, it effectively reduces overall power consumption and delivers stunning 4K/Ultra HD video and ultra-high resolution for total immersion. Offering plenty of I/O ports, the rear panel supports up to five independent display outputs for ultimate group play. Intel Optane Memory Technology boosts the system to deliver fast, smooth, and power-efficient gaming anywhere.
NANO PC FOR GAMING EVERYWHERE
A compact and stunning design delivers 4K/Ultra HD video and Intel® Optane™ Memory support for fast and power-efficient gaming everywhere.
SUPPORTS INTEL® CORE™ PROCESSOR
Equipped with a 7th generation Intel® Core-i5 7300HQ 14nm processor, the series supports 1.2V DDR4-2400 dual channel memory with a max capacity of 32GB for the fastest play anywhere.
VIRTUAL REALITY READY
Packed with NVIDIA® GeForce® GTX 1060 graphics, the X1 delivers brilliant performance for users to immese into the virtual gaming world.
PLUG AND PLAY GAMING
Built-in HDMI 1.4 and DisplayPort outputs support three independent displays. Plug in your keyboard, mouse, and headset for gaming in an instant!
| PROCESSOR | Intel® Core® i5-7300HQ |
| MEMORY | 8GB (2 * 4GB) |
| VIDEO GRAPHICS | NVIDIA® GeForce® GTX 1060 3GB |
| VIDEO OUTPUT | HDMI + DisplayPort, Supports three independent displays |
| AUDIO | Realtek ALC269, 2 channel HD audio |
| ETHERNET | RTL8111G-CG (PCI-E interface) 10/100/1000 MB/s operation Supports Wake-on-LAN function |
| WI-FI | Intel 3165, Supports 802.11 b/g/n & 802.11 a/c M.2 2230 interface |
| STORAGE | 256GB SSD |
| STORAGE INTERFACE | On board SATA 6 GB/s connectors M.2 2280 socket (PCI-E or SATA) |
| ONBOARD CONNECTORS | (1) 2.5 inch SATA connector (1) M.2 2280 M Key connector |

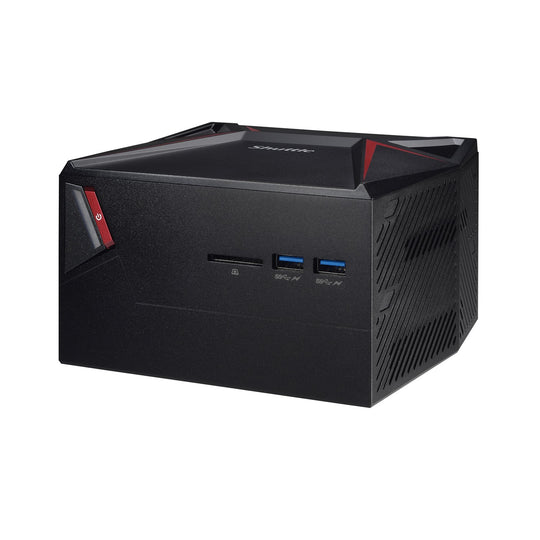

| FRONT PANEL | (1) Power Button (1) Power LED (1) SD Card Reader (2) USB 3.0 ports (Supports fast-charging under AC mode) |

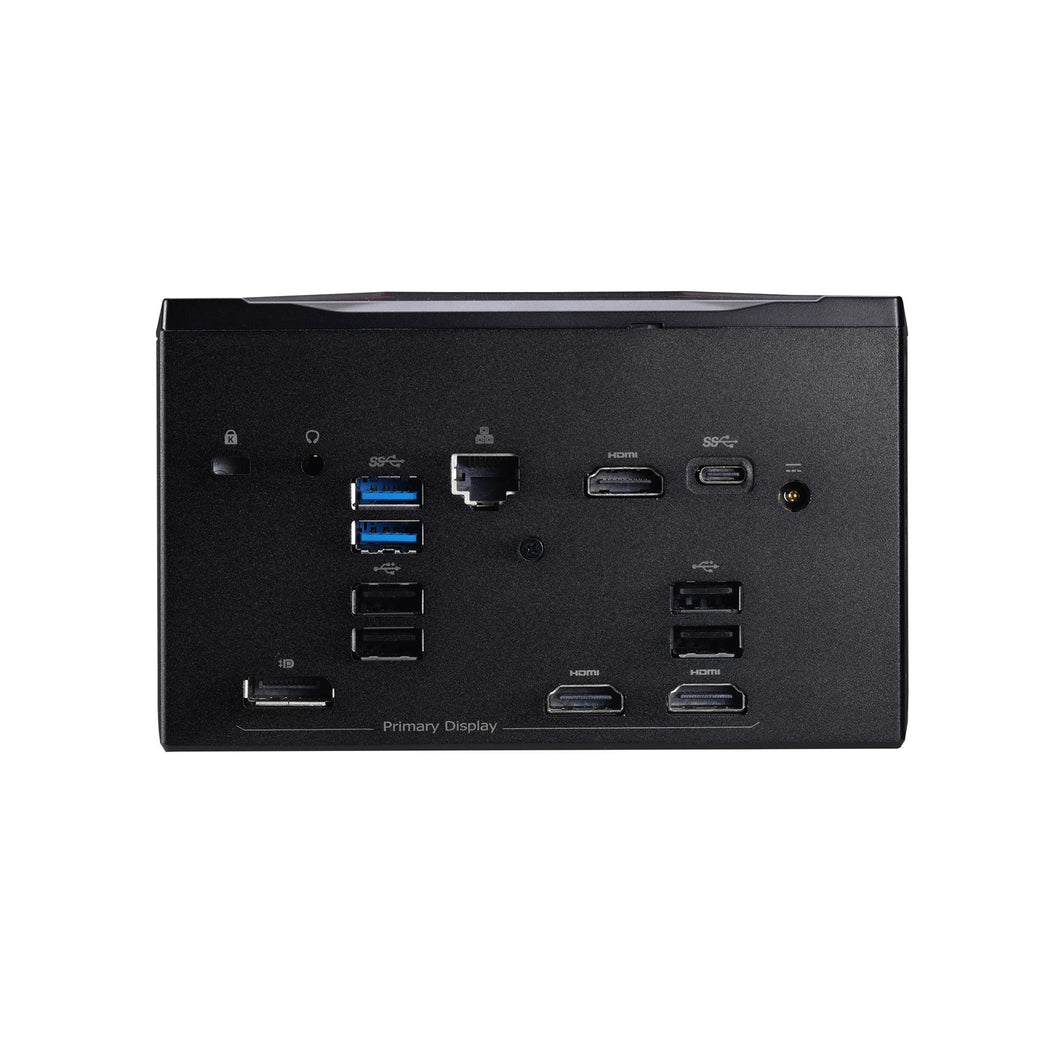

| BACK PANEL | (2) USB 3.0 ports (4) USB 2.0 ports (1) RJ45 10/100/1000 Ethernet port (1) Type-C USB 3.0 port (supports data transmission & display/audio function) (3) HDMI 1.4 ports (1) DisplayPort (1) DC in (1) Kensington Lock (1) Combo Jack 3.5mm for external microphone & headphone |
| DIMENSIONS | 5.6(L) x 5.6(W) x 3.4(H) in |
| POWER | Input: 100 - 240V AC Power Plug region specific 19V 180W Power Adapter |
| ACCESSORIES | Quick Guide Driver DVD Power Adapter Power Cord HDD cable & screws (optional) |
| EXPANSION SLOT | (1) M.2 2230 Type AE (for WLAN module) (1) M.2 2280 Type M key socket (for SSD) |
| OS SUPPORT | Windows 10 Home 64 bit |
