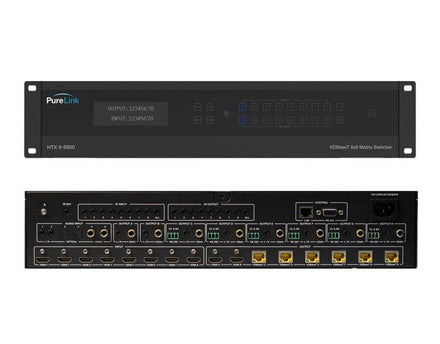

PureLink HTX II-8800 8x8 4K/60 HDMI to HDBaseT™ Matrix Switcher with PoE

SKU#: HTX II-8800

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: HTX II-8800

UPC#:
$9,999.99

SKU#: HTX II-8800

UPC#:

SKU#: HTX II-8800

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

  • Description+
  • DESCRIPTION

    The HDTools™ HTX II-8800 provides independent switching of (8) Ultra HD/4K sources to (6) remote destinations via HDBaseT™ (with HTX II receivers, sold separately) and (2) local destinations via HDMI. The HTX II-8800 also features a built-in independent audio matrix with 16 audio outputs (8 audio breakouts, 6 HDBaseT™ outputs, and 2 HDMI outputs) and 22 audio inputs (8 HDMI inputs, 8 ARC audio inputs, and 6 external audio sources) with volume/mute/delay adjustment.

    The HTX II-8800 is HDCP 2.2 compliant and offers PoE support on all HDBaseT outputs.

  • Features+
  • FEATURES

    • HDMI 2.0b (18Gbps), HDCP 2.2, HDCP 1.4, and DVI compliant
    • (8) HDMI inputs, (6) HDBaseT™ outputs, and (2) independent HDMI outputs
    • Supports resolutions up to 4K@60Hz (4:4:4) on all HDMI ports
    • Supports distances up to to 330 ft. (100 m) via CATx
    • Offers up to 7.1 channels of High Definition audio pass-through (LPCM, Dolby TrueHD, and DTS-HD Master Audio)
    • Built-in independent audio matrix with Volume, Mute, and Audio delay for lip-sync adjustment (LPCM only)
    • Supports HDR, ARC, CEC and Auto-EDID management
    • 24V PoE on all HDBaseT™ ports
    • Control via on-panel Button, IR, RS-232, LAN and Web GUI
    • 2U rack-mounted design with aluminum front panel housing
  • Specs+
  • SPECS

    TECHNICAL SPECIFICATIONS

    • Compliance: HDMI 2.0b, HDCP 2.2, HDCP 1.4
    • Video Bandwidth: 18 Gbps
    • Supported Resolutions: 4K@50/60Hz (4:4:4), 4K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz
    • Color Space: RGB, YCbCr 4:4:4, YCbCr 4:2:2,
    • Color Depth: 8-bit, 10-bit, 12-bit
    • HDMI Audio Formats (Pass-through): LPCM 2/5.1/7.1CH, Dolby Digital, DTS 5.1, Dolby Digital+, Dolby TrueHD, DTS-HD Master Audio, Dolby Atmos, DTS:X
    • Audio Formats (Audio Matrix): PCM 2.0, 32K/44.1K/48K/88.2K/96K/192K,16/20/24bit
    • Audio Volume (Audio Matrix): -20dB ~ 0dB
    • L/R Audio Formats: Analog Stereo 2CH
    • Infrared: 20KHz ~ 60KHz
    • ESD Protection: Human body model — ±8kV (air-gap discharge) & ±4kV (contact discharge)
    • CONNECTIONS:
      • Input Type/s:
        (8) HDMI Type A [19-pin female]
        (10) IR In [3.5mm Stereo Mini-jack]
        (6) RS-232 [Phoenix jack]
        (1) Ethernet [RJ45]
        (1) RS-232 [DB9]
        (2) L/R Audio In [3.5mm Stereo Mini-jack]
        (2) Optical Audio In [S/PDIF]
        (2) Coaxial Audio In [RCA]
      • Output Type/s:
        (2) HDMI Type A [19-pin female]
        (9) IR Out [3.5mm Stereo Mini-jack]
        (8) L/R Audio Out [3.5mm Stereo Mini-jack]
        (8) Coaxial Audio Out [RCA]
        (6) HDBaseT™ Out [RJ45]

    CONNECTIONS

    • Dimensions (W x D x H): 19” x 14.7” x 3.49”
    • Weight: 14.77 lbs.
    • Power Supply: Input: AC100~240V 50/60Hz
    • Max Power Consumption: 85W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
    • Relative Humidity: 20 - 90% RH (no condensation)

    ENCLOSURE

    • Dimensions (W x D x H): 19” x 14.7” x 3.49”
    • Weight: 14.77 lbs.
    • Power Supply: Input: AC100~240V 50/60Hz
    • Max Power Consumption: 85W
    • Operating Temperature: 32°F - 104°F (0°C - 40°C)
    • Storage Temperature: -4°F - 140°F (-20°C - 60°C)
      Relative Humidity: 20 - 90% RH (no condensation)
