BZBGEAR HDMI and HDBaseT Matrix Switch with Bi-directional IR and ARC Function

SKU#: BG-UM44-100M-KIT

UPC#: 850009357946

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-UM44-100M-KIT

UPC#:850009357946
$4,999.00

SKU#: BG-UM44-100M-KIT

UPC#:850009357946
Switch Ports:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+

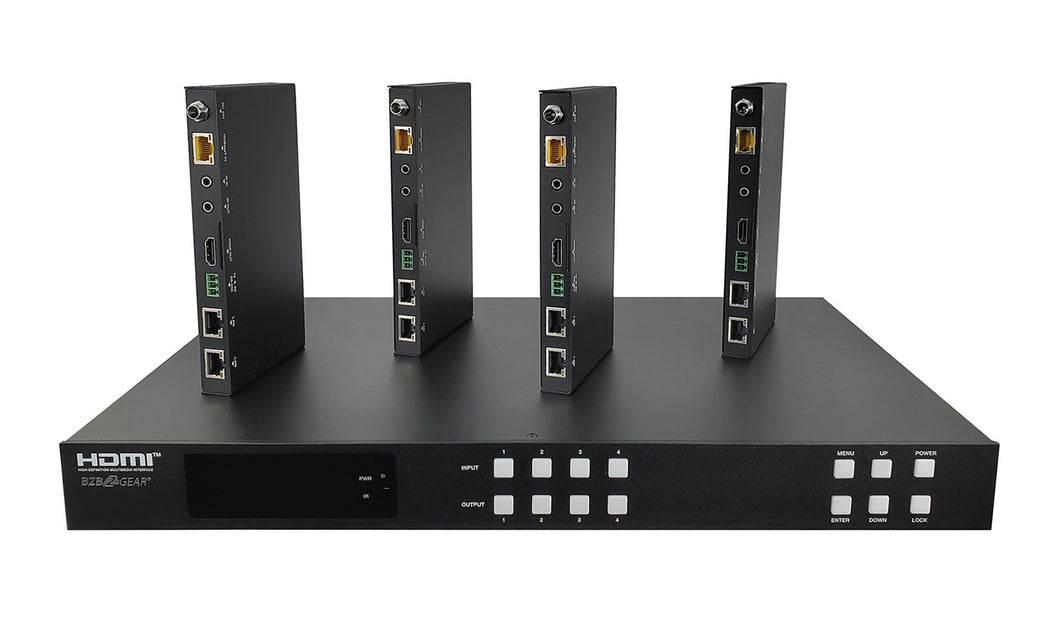

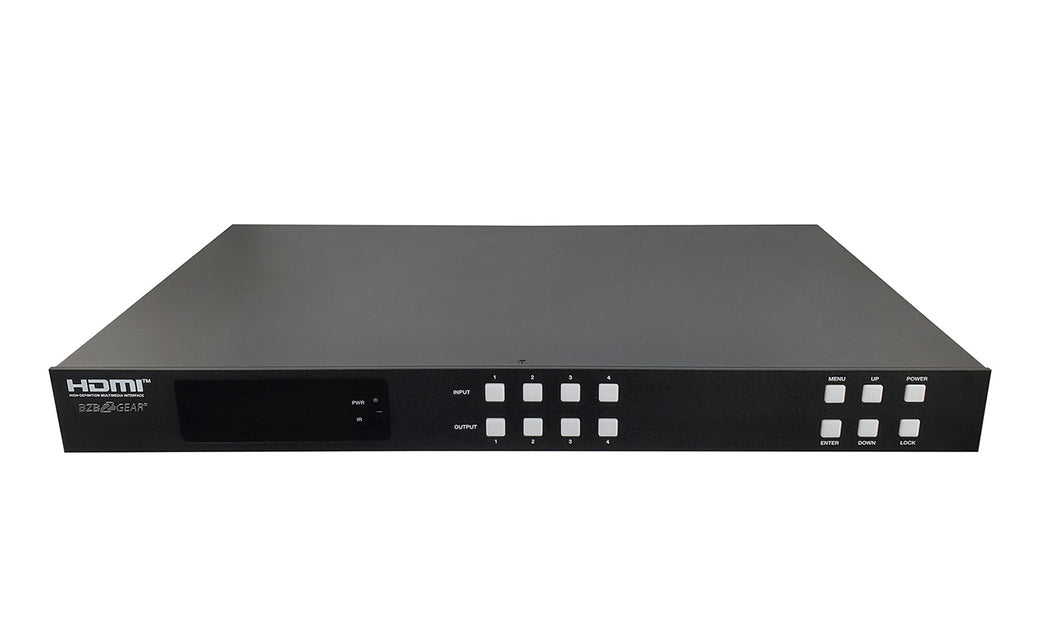

  • The 4X4 HDMI and HDBaseT Matrix Switch can connect four HDMI sources to eight displays. It features four HDMI outputs with each HDMI output mirrored to a simultaneous HDBaseT output. The HDBaseT output can extend video transmission distance up to 328ft / 100 meters via a single cat5e/6/7 cable at resolutions up to 4K@60Hz 4:4:4.
    This product performs full IR and audio matrix switching. With the ARC function, it can return the audio signal from an HDMI or HDBaseT display device to the coaxial audio output. It can also extract the audio signal from HDMI source devices to the analog audio output. Each extender features bi-directional IR, RS232, and 2 LAN ports for IP Control. The base unit has an intuitive set of front panel controls with OLED screen and also supports control using IR, RS-232, IP, and Web GUI.
    The BG-UM44-100M-KIT is loaded with all the features you need to form the core of a future-proof A/V Distribution system. Contact a friendly BZB sales engineer today to order yours!

  • Features+
    • HDCP 2.2 and HDCP 1.4 compliant
    • 4 HDMI inputs, 4 HDMI & HDBaseT mirrored outputs
    • HDMI ports transmit 18Gbps lossless uncompressed video bandwidth
    • Support 18Gbps lossless compressed HDBaseT signal transmission
    • Dolby Vision, HDR10+, HLG are supported
  • Specs+
  • Technical
    HDCP Compliance HDCP 2.2 and HDCP 1.4
    Video Bandwidth 18Gbps
    Video Resolution Up to 4K2K@50/60Hz (4:4:4)
    Color Space RGB, YCbCr 4:4:4/4:2:2/4:2:0
    Color Depth 12-bit (4K), 16-bit (1080P)
    HDMI Audio Formats (Pass-through) PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master Audio, DSD
    Coax Audio Formats PCM 2.0, Dolby Digital / Plus, DTS,
    L/R Audio Formats PCM2.0
    HDR formats 4:4:4, 4:2:2, 4:2:0(10,12bit deep color) HDR10, HDR10+, Dolby Vision, HLG
    Infrared 20KHz ~ 60KHz
    ESD Protection Human-body Model: ±8kV (Air-gap discharge), ±4kV (Contact discharge)

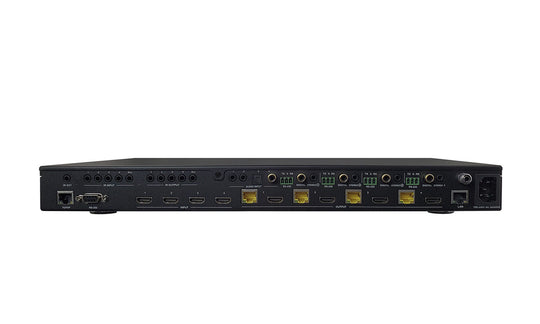

    Connection
    Matrix
    Input Ports 4xINPUT [HDMI Type A, 19-pin female]
    6xIR INPUT [3.5mm Stereo Mini-jack]
    2xStereo Audio [3.5mm Stereo Mini-jack B]
    1xSPDIF(OPTICAL) 1xSPDIF(COAX)
    Output Ports 4xHDMI OUTPUT [HDMI Type A, 19-pin female]
    4xHDBaseT port [RJ45]
    5xIR OUTPUT [3.5mm Stereo Mini-jack]
    4xRS-232 [3-pin Phoenix connector]
    4xSPDIF(COAX)
    4xStereo Audio[3.5mm Stereo Mini-jack]
    1xLAN [RJ45]
    Control Ports 1xTCP/IP [RJ45]
    1xRS-232 [D-Sub 9]

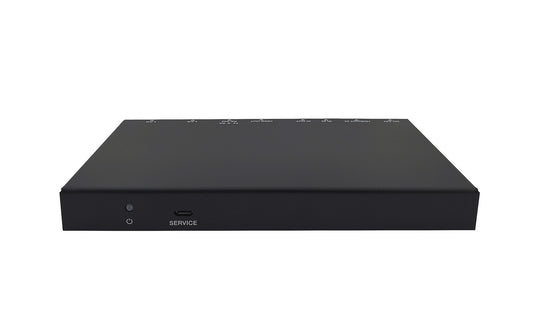

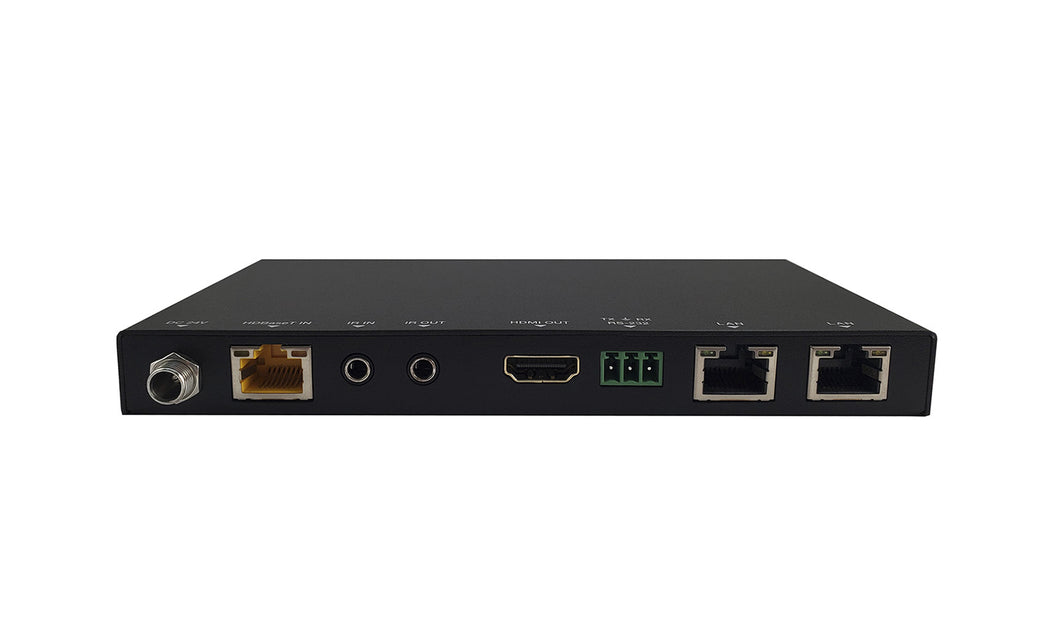

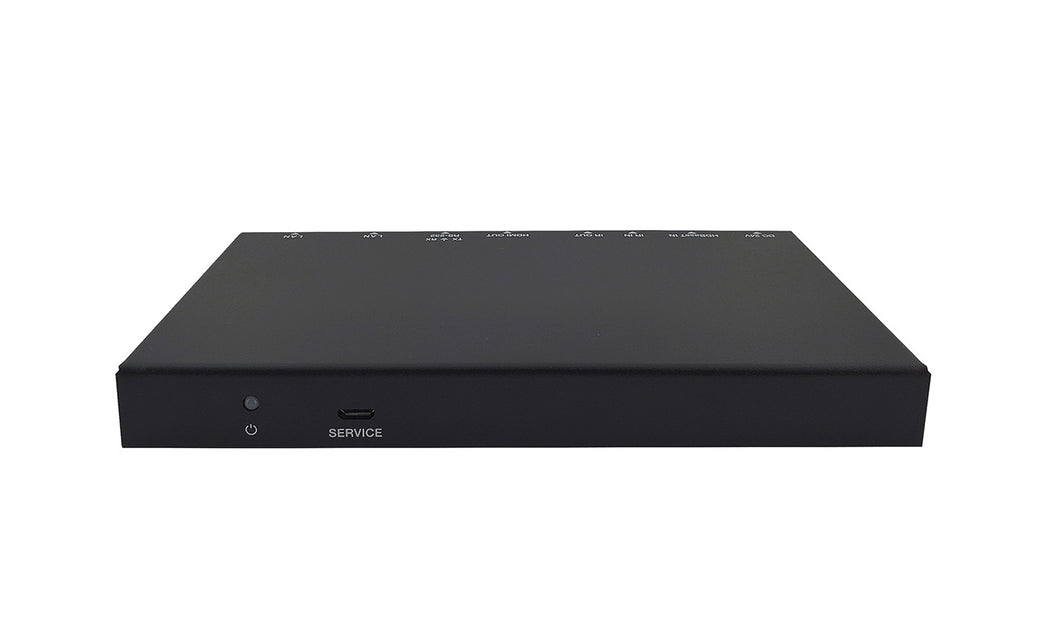

    HDBaseT Receiver
    Input Ports 1xHDBaseT IN [ RJ45] 1xIR IN [3.5mm Stereo Mini-jack]
    Output Ports 1xHDMI OUT [HDMI Type A, 19-pin female] 1xIR OUT [3.5mm Stereo Mini-jack]
    Control Ports 1xSERVICE [Micro USB, Update port] 1xRS-232 [Phoenix jack] 2xLAN [RJ45]
    Mechanical
    Housing Metal Enclosure
    Color Black
    Dimensions TX: 440mm (W)x274mm (D)x45mm (H) RX: 163mm (W)x90.3mm (D)x18mm (H)
    Weight TX: 3977g, RX: 392g
    Power Supply AC 100 - 240V 50/60Hz
    Power Consumption 70W (Max)
    Operating Temperature 0°C ~ 40°C / 32°F ~ 104°F
    Storage Temperature -20°C ~ 60°C / -4°F ~ 140°F
    Relative Humidity 20~90% RH (non-condensing)
    Resolution / Distance 4K60 - Feet / Meters
    CAT5e/6/7 328ft / 100M
    Resolution / Cable length 4K60 - Feet / Meters 4K30 - Feet / Meters 1080P60 - Feet / Meters
    HDMI IN / OUT 16ft / 5M 32ft / 10M 50ft / 15M
    The use of “Premium High Speed HDMI” cable is highly recommended.
  • Package Contents+
    • 1x 4 by 4-8 HDMI and HDBaseT Matrix Switch
    • 4x HDBaseT Receiver
    • 1x Matrix IR Remote
    • 1x 100~240V AC 50/60Hz Power cable
    • 1x RS-232 serial cable (1.5 meters, male to female head)
    • 8x 3-pin Phoenix Connector
    • 5x IR Blaster cable (1.5 meters)
    • 6x 20~60KHz IR Receiver cable (1.5 meters)
    • 10x Mounting Ear (Matrix and Receiver)
    • 1x User Manual
