  • 4x2 HDMI Matrix Switch with Audio 4K @ 30Hz
  • 4x2 HDMI Matrix Switch with Audio 4K @ 30Hz
  • 4x2 HDMI Matrix Switch with Audio 4K @ 30Hz

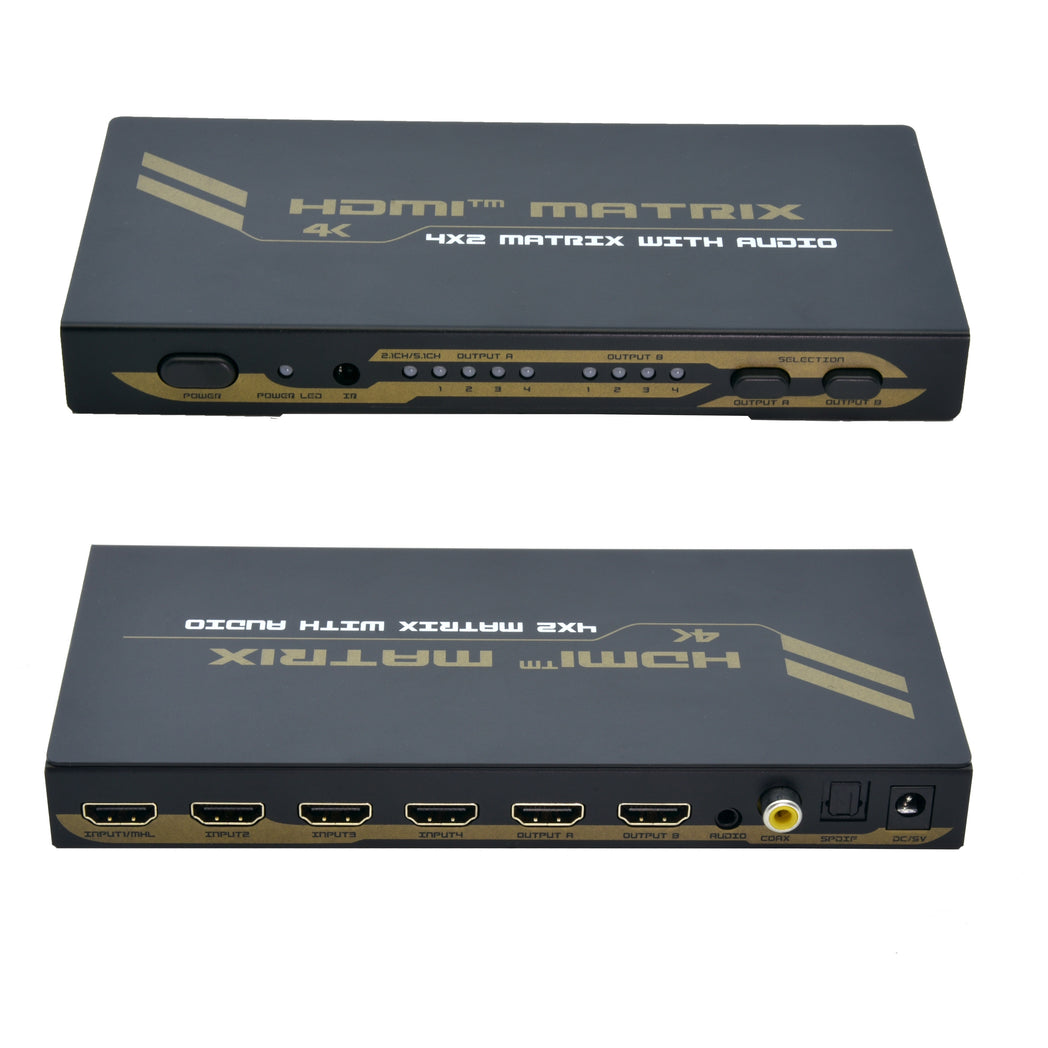

4x2 HDMI Matrix Switch with Audio 4K @ 30Hz

SKU#: HDMI-4X2-MATRIX

UPC#: 704438134749

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

SKU#: HDMI-4X2-MATRIX

UPC#:704438134749
$81.17

SKU#: HDMI-4X2-MATRIX

UPC#:704438134749

SKU#: HDMI-4X2-MATRIX

UPC#: 704438134749

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

  • Description+
  • 4x2 HDMI Matrix Switch

    The 4K HDMI Matrix Switch allows you share up to 4 distinct HDMI with audio, between 2 independent displays or projectors. This matrix switch allows each input and the corresponding audio to be switched individually, meaning that different two A/V sources can be shown on each output, or a single source can be output to two, offering maximum flexibility.

  • Features+
    • 4 HDMI inputs / 2 HDMI Outputs
    • Support audio output simultaneously Stereo, Toslink and Coaxial
    • Audio channels are select-able via remote control
    • Supports highest video resolution 4K@30Hz
    • Supports 16 bit per channel (48bit all channels) deep color
    • Plug and Play
  • Specs+
    • HDMI Version: High Speed with 3D
    • HDCP Version: 1.2
    • Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • Deep Color Support: 24/36 bit
    • Audio Support: LPCM/Dolby-AC3/DTS7.1/DSD
    • Input Video Signal: 5.0Volts P-P
    • Output Cable Distance: Max 20m (65ft) 24AWG Cable
    • Input Cable Distance: Max 20m (65ft) 24AWG Cable
    • Data Transfer Speed: 6.75Gbps
    • Operating Humidity Range: 5 to 90% RH (No Condensation)
    • Operating Temperature Range: -15 to +55°C (5 to 131°F)
    • Power Adapter Format: Input AC (50Hz, 60Hz) 100-240V
    • Power Supply: DC 5V/12V
    • CE Listed
    • RoHS Compliant
  • Package Contents+
    • Main unit
    • 5V DC Power Adapter
    • Remote Control
    • User Manual
  • Reviews+
  • Q&A+
  • Is this HDMI 2.0?

    No, this product is not HDMI 2.0.

    Is this HDCP compliant?

    Yes, this is HDCP 1.2 compliant.

    Is this made in the USA?

    No, this product is manufactured overseas.

    Can I purchase extra remotes?

    No, unfortunately the remotes for this are not sold separately.

    What does this do?

    An HDMI matrix switch allows you to connect more than one source to more than one display. It combines an HDMI splitter and a switch into one device.

    Is this 4K rated?

    No, this has a maximum resolution of 1080p.

    Can I show the same thing on all of the outputs?

    Yes, you can output the same signal to all connected displays.

    Can I show different things on all of the outputs?

    Yes, you can select different images to show on each connected display.

    How does it know what I want to show on each output?

    By using the remote or the selector buttons, you choose which input is shown on each output screen.

    Can I use this with my Apple TV?

    Due to HDCP handshake sensitivities, you may have issues using this product with Apple TV.

    Can I use this with my gaming console?

    Yes, but we do not suggest outputting longer than 25' over HDMI. Gaming consoles typically have difficulty with longer distances. Additionally, your controllers may not work if they are in a different room from the console. Please check with your equipment manufacturer for specific controller questions.

    Can I use this with a streaming media player?

    Yes, with some exceptions. We do not suggest using this cable with "stick" style streaking media players such as the FireStick or the Roku Streaming Stick because those are designed to connect directly to the television.

    Does this support 3D and ARC?

    This matrix switch supports 3D but not ARC.

    Does this have seamless switching?

    This product does not store HDCP and EDID information, so it does need to handshake every time you change the input. This can cause a 1-2 second delay.

    4x2 HDMI Matrix Switch

    The 4K HDMI Matrix Switch allows you share up to 4 distinct HDMI with audio, between 2 independent displays or projectors. This matrix switch allows each input and the corresponding audio to be switched individually, meaning that different two A/V sources can be shown on each output, or a single source can be output to two, offering maximum flexibility.

    • 4 HDMI inputs / 2 HDMI Outputs
    • Support audio output simultaneously Stereo, Toslink and Coaxial
    • Audio channels are select-able via remote control
    • Supports highest video resolution 4K@30Hz
    • Supports 16 bit per channel (48bit all channels) deep color
    • Plug and Play
    • HDMI Version: High Speed with 3D
    • HDCP Version: 1.2
    • Resolution Support: 480i, 480p, 576i, 576p, 720p, 1080i, 1080p
    • Deep Color Support: 24/36 bit
    • Audio Support: LPCM/Dolby-AC3/DTS7.1/DSD
    • Input Video Signal: 5.0Volts P-P
    • Output Cable Distance: Max 20m (65ft) 24AWG Cable
    • Input Cable Distance: Max 20m (65ft) 24AWG Cable
    • Data Transfer Speed: 6.75Gbps
    • Operating Humidity Range: 5 to 90% RH (No Condensation)
    • Operating Temperature Range: -15 to +55°C (5 to 131°F)
    • Power Adapter Format: Input AC (50Hz, 60Hz) 100-240V
    • Power Supply: DC 5V/12V
    • CE Listed
    • RoHS Compliant
    • Main unit
    • 5V DC Power Adapter
    • Remote Control
    • User Manual

    Customer Reviews

    Based on 3 reviews
    67%
    (2)
    33%
    (1)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    J
    Jon H.

    4x2 HDMI Matrix Switch with Audio 4K @ 30Hz

    y
    yourea l.
    Quick Setup and Easy to Use

    I had another hdmi matrix that was very particular. If you changed one device the other may stop working. I was not sure if it was the device or the long runs. This HDMI matrix was cheap so I thought I would try it. The setup was quick and it is working great. It does look different than the picture (see other review for more detail description). The input on the front would be annoying if I had four inputs. I am skipping it for now. Otherwise, great solution for multiple hdmi inputs and two outputs.

    E
    Erak606
    Exactly what I wanted.

    Purchased this product about 2 months ago.Easy setup, worked immediately, and has workedgreat since.Purchased for 2 TVs out. Cable, PS3, XBox360 in.Now can easily switch the in/out configuration.Can even use both TVs to view the same input!(Great for sports)Main reason is so that video games can be playedon either TV without having to switch hdmi cablesaround.The hdmi switch delivered is configured slightlydifferent than the picture shown on this page.There is 1 input on the front of the switch and3 inputs and both outputs in the back.Positive Feedback:1 - Works great.2 - Easy to use.3 - It's tiny.4 - Recessed Remote holder on the switch.5 - Single input on the front would be great ifI had a use for it.Negative Feedback:1 - No power button on the switch so the remoteis required to turn it off. (I think? I use the remoteexclusively anyway.)2 - Single input on the front would be disappointingif I want to add a fourth permanent input.

    Is this HDMI 2.0?

    No, this product is not HDMI 2.0.

    Is this HDCP compliant?

    Yes, this is HDCP 1.2 compliant.

    Is this made in the USA?

    No, this product is manufactured overseas.

    Can I purchase extra remotes?

    No, unfortunately the remotes for this are not sold separately.

    What does this do?

    An HDMI matrix switch allows you to connect more than one source to more than one display. It combines an HDMI splitter and a switch into one device.

    Is this 4K rated?

    No, this has a maximum resolution of 1080p.

    Can I show the same thing on all of the outputs?

    Yes, you can output the same signal to all connected displays.

    Can I show different things on all of the outputs?

    Yes, you can select different images to show on each connected display.

    How does it know what I want to show on each output?

    By using the remote or the selector buttons, you choose which input is shown on each output screen.

    Can I use this with my Apple TV?

    Due to HDCP handshake sensitivities, you may have issues using this product with Apple TV.

    Can I use this with my gaming console?

    Yes, but we do not suggest outputting longer than 25' over HDMI. Gaming consoles typically have difficulty with longer distances. Additionally, your controllers may not work if they are in a different room from the console. Please check with your equipment manufacturer for specific controller questions.

    Can I use this with a streaming media player?

    Yes, with some exceptions. We do not suggest using this cable with "stick" style streaking media players such as the FireStick or the Roku Streaming Stick because those are designed to connect directly to the television.

    Does this support 3D and ARC?

    This matrix switch supports 3D but not ARC.

    Does this have seamless switching?

    This product does not store HDCP and EDID information, so it does need to handshake every time you change the input. This can cause a 1-2 second delay.
