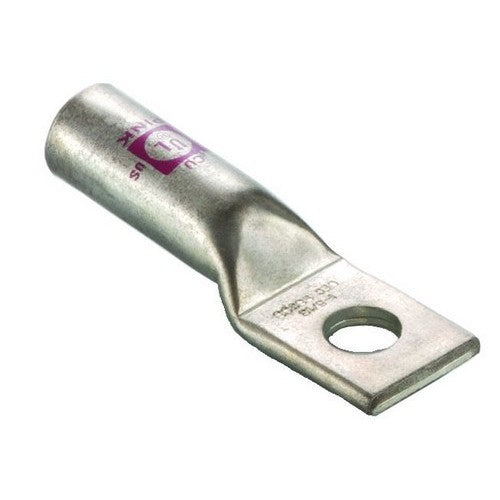

Morris 94220 Copper Long Barrel 1 Hole Compression Lugs 4 Awg - 3/8 Stud
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Single Mounting Hole
- Our One Hole Copper Compression Lugs are made of high-conductivity Seamless Electrolytic Copper
- Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and maximizes conductivity
- Crimp Marks indicate Proper Crimp Locations
- Compression Lugs are Marked with Die Index and Color Codes for easy identification
- Long Barrel Accomodates Multiple Crimps
- UL 486A Listed
- Listed for 35KV when properly installed
- cULus Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
- Specs+
- Reviews+
- Single Mounting Hole
- Our One Hole Copper Compression Lugs are made of high-conductivity Seamless Electrolytic Copper
- Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and maximizes conductivity
- Crimp Marks indicate Proper Crimp Locations
- Compression Lugs are Marked with Die Index and Color Codes for easy identification
- Long Barrel Accomodates Multiple Crimps
- UL 486A Listed
- Listed for 35KV when properly installed
- cULus Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
Copper Long Barrel 1 Hole Compression Lugs #4 Awg 3/8 Stud - One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Copper Long Barrel 1 Hole Compression Lug #4 Awg 3/8 Stud features include:
Wire Range: 4 Str.
Stud Size: 3/8
Color Code: Gray
Inside Diameter: .251
Outside Diameter: .342
Barrel Length: 1.91
Stud Size: 3/8
Color Code: Gray
Inside Diameter: .251
Outside Diameter: .342
Barrel Length: 1.91
Copper Long Barrel 1 Hole Compression Lugs #4 Awg 3/8 Stud - One Hole Copper Compression Lugs for fast reliable electrical cable terminations.
Copper Long Barrel 1 Hole Compression Lug #4 Awg 3/8 Stud features include:
Wire Range: 4 Str.
Stud Size: 3/8
Color Code: Gray
Inside Diameter: .251
Outside Diameter: .342
Barrel Length: 1.91
Stud Size: 3/8
Color Code: Gray
Inside Diameter: .251
Outside Diameter: .342
Barrel Length: 1.91
