Morris 93214 Aluminum Long Cylinder Compression Splices #2 Awg
SKU#: 93214
UPC#:60198693214160 Day Money Back Guarantee
100% Secure Shopping
1 Year Warranty
SKU#: 93214
UPC#:601986932141SKU#: 93214
UPC#:60198693214160 Day Money Back Guarantee
100% Secure Shopping
1 Year Warranty
Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.
Description+

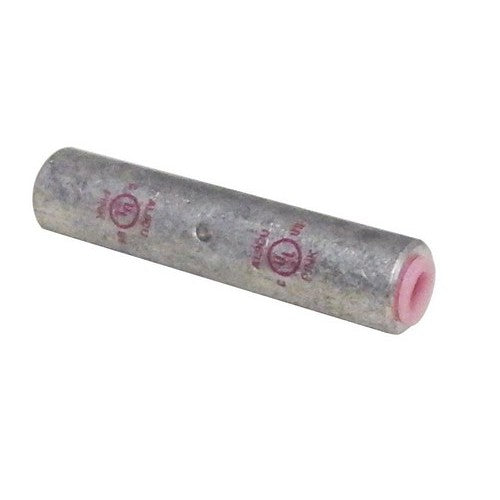

Morris Compression Splices Aluminum Long Cylinder #2 Awg
Aluminum Long Barrel Compression Splices #2 Awg - Aluminum Compression Splices are Dual Rated for use with both Copper & Aluminum Conductors.
Aluminum Long Barrel Compression Splices #2 Awg features include:
- Aluminum Compression Splices are AL9CU Dual Rated & accept both Aluminum and Copper conductors
- Connector Barrels are coated with Oxide Inhibitor & capped
- Center Stop assures Proper Cable Installation
- Made of High-Conductivity Seamless Aluminum
- Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Color Coded for Easy Identification
- Marked with Die Index
- Crimp Marks indicate Proper Crimp Locations
- Long Barrel Accomodates Multiple Crimps
- UL486B Listed AL9CU
- Listed for 35KV when properly installed
- Aluminum Compression Splices are cULus Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
Specs+
Wire Range: 2 Str.
Color Code: Pink''
Inside Diameter: .31
Outside Diameter: .53
Length: 2.38
Color Code: Pink''
Inside Diameter: .31
Outside Diameter: .53
Length: 2.38
