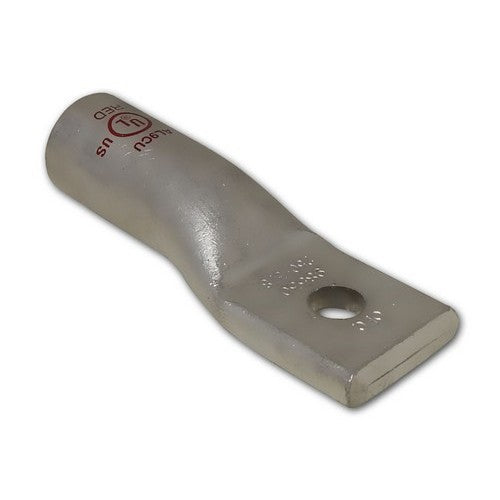

Morris 93068 Aluminum Long Barrel 1 Hole Compression Lugs 300 MCM - 3/8 Stud
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- One Hole Aluminum Compression Lugs are AL9CU Dual Rated and accept both Aluminum and Copper Conductors
- Connector Barrel is Coated with Oxide Inhibitor & capped
- Aluminum Compression Lug is made of High-Conductivity Seamless Aluminum
- Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Single Mounting Hole
- Color Coded for Easy Identification
- Marked with Die Index
- Crimp Marks indicate Proper Crimp Locations
- UL486B Listed AL9CU
- Listed for 35KV when properly installed
- cULus Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
- Specs+
- Reviews+
- One Hole Aluminum Compression Lugs are AL9CU Dual Rated and accept both Aluminum and Copper Conductors
- Connector Barrel is Coated with Oxide Inhibitor & capped
- Aluminum Compression Lug is made of High-Conductivity Seamless Aluminum
- Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity
- Single Mounting Hole
- Color Coded for Easy Identification
- Marked with Die Index
- Crimp Marks indicate Proper Crimp Locations
- UL486B Listed AL9CU
- Listed for 35KV when properly installed
- cULus Listed
- Dimension Measurements = Inches
- Order Qty of 1 = 1 Piece
Aluminum Long Barrel 1 Hole Compression Lugs 300 MCM 3/8" Stud Size - A One Hole Compression Lug for use with Copper or Aluminum Cables.
Aluminum Long Barrel 1 Hole Compression Lugs 300 MCM 3/8" Stud Size features include:
Wire Range: 300MCM
Stud Size: 3/8 ''
Color Code: Blue
Inside Diameter: .65
Outside Diameter: 1.01
Barrel Length: 4.00
Stud Size: 3/8 ''
Color Code: Blue
Inside Diameter: .65
Outside Diameter: 1.01
Barrel Length: 4.00
Aluminum Long Barrel 1 Hole Compression Lugs 300 MCM 3/8" Stud Size - A One Hole Compression Lug for use with Copper or Aluminum Cables.
Aluminum Long Barrel 1 Hole Compression Lugs 300 MCM 3/8" Stud Size features include:
Wire Range: 300MCM
Stud Size: 3/8 ''
Color Code: Blue
Inside Diameter: .65
Outside Diameter: 1.01
Barrel Length: 4.00
Stud Size: 3/8 ''
Color Code: Blue
Inside Diameter: .65
Outside Diameter: 1.01
Barrel Length: 4.00
