Morris 93039 Aluminum Long Barrel 1 Hole Compression Lugs 1/0 Awg - 1/2 Stud

SKU#: 93039

UPC#:601986930390

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

SKU#: 93039

UPC#:601986930390
$3.65

SKU#: 93039

UPC#:601986930390

SKU#: 93039

UPC#:601986930390

60 Day Money Back Guarantee

100% Secure Shopping

warranty 1 year 1

1 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

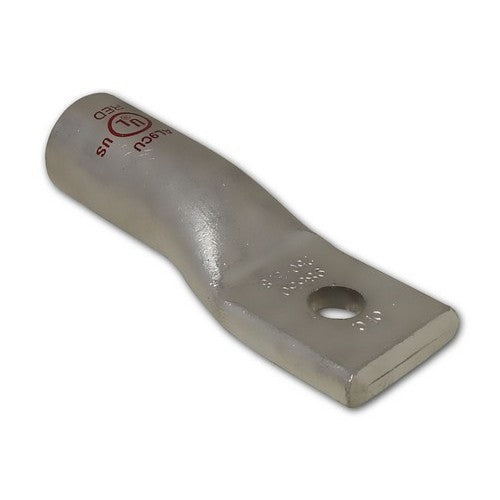

Morris 1 Hole Compression Lugs - 1/0 Awg - 1/2 Stud

Aluminum Long Barrel 1 Hole Compression Lugs 1/0 Awg 1/2" Stud Size - A One Hole Compression Lug for use with Copper or Aluminum Cables.

Aluminum Long Barrel 1 Hole Compression Lugs 1/0 Awg 1/2" Stud Size features include:

  • One Hole Aluminum Compression Lugs are AL9CU Dual Rated and accept both Aluminum and Copper Conductors
  • Connector Barrel is Coated with Oxide Inhibitor & capped
  • Aluminum Compression Lug is made of High-Conductivity Seamless Aluminum
  • Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity
  • Single Mounting Hole
  • Color Coded for Easy Identification
  • Marked with Die Index
  • Crimp Marks indicate Proper Crimp Locations
  • UL486B Listed AL9CU
  • Listed for 35KV when properly installed
  • cULus Listed
  • Dimension Measurements = Inches
  • Order Qty of 1 = 1 Piece

Specs+

Wire Range: 1/0 Str.
Stud Size: 1/2 ''
Color Code: Tan
Inside Diameter: .39
Outside Diameter: .63
Barrel Length: 2.81

Reviews+

Morris 1 Hole Compression Lugs - 1/0 Awg - 1/2 Stud

Aluminum Long Barrel 1 Hole Compression Lugs 1/0 Awg 1/2" Stud Size - A One Hole Compression Lug for use with Copper or Aluminum Cables.

Aluminum Long Barrel 1 Hole Compression Lugs 1/0 Awg 1/2" Stud Size features include:

  • One Hole Aluminum Compression Lugs are AL9CU Dual Rated and accept both Aluminum and Copper Conductors
  • Connector Barrel is Coated with Oxide Inhibitor & capped
  • Aluminum Compression Lug is made of High-Conductivity Seamless Aluminum
  • Uniform Bright Electro-Tin Plating resists corrosion, reduces contact resistance and gives you maximum conductivity
  • Single Mounting Hole
  • Color Coded for Easy Identification
  • Marked with Die Index
  • Crimp Marks indicate Proper Crimp Locations
  • UL486B Listed AL9CU
  • Listed for 35KV when properly installed
  • cULus Listed
  • Dimension Measurements = Inches
  • Order Qty of 1 = 1 Piece
Wire Range: 1/0 Str.
Stud Size: 1/2 ''
Color Code: Tan
Inside Diameter: .39
Outside Diameter: .63
Barrel Length: 2.81
