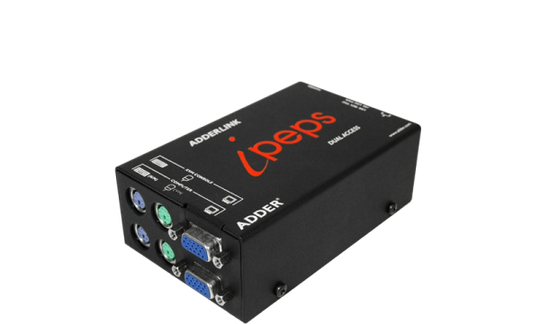

ADDER Link ipeps DA - Dual Access KVM-over-IP
SKU#: AL-IPEPS-DA
UPC#:Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Dual access: the unit can be accessed by one local user and four remote users at any one time
- User management: up tosixteen user profiles can be created with defined access rights
- In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication) from RealVNC
- Features+
- ipeps-DA model has feed through port that provides local KVM console access
- Interface powered, optional external PSU available
- Independent operation gives full control even during boot up, BIOS level or computer crash states
- USB or PS/2 keyboard and mouse connections
- Virtual media support (via USB)
- High performance video
- Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.
- 16 user profiles and access data logging
- Up to 16 units can be rack mounted in 2U of rack space
- Supports exclusive access mode or up to four simultaneous connections
- Auto sensing 10/100 Mb Ethernet port
- Specs+
- Compact case, robust metal construction.
- ipeps 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs.
- ipeps DA 120mm/4.72 (w), 42mm/1.65 (h), 75mm/2.95 (d), 0.46kg/1.02lbs.
- 16 or 8 (DA) per 2U. Rack mount kits available (X-RMK-Chassis ), Fascia Plates available MET-IPEPS-DA-FASCIA for AL-IPEPS-DA (order separately), MET-IPEPS-FASCIA for AL-IPEPS (included).
Optional power supply
100-240 VAC 50 - 60Hz
Operating temperature
0 - 40 deg C (32 to 104 deg F)
Approvals
CE, FCC
Order codes - IPEPS SINGLE: AL-IPEPS-US
- IPEPS DUAL ACCESS: AL-IPEPS-DA-US
- Single Rack Kit (supplied with product): MET-IPEPS-FASCIA
- KVM cable set (one set per connected computer, supplied with product ): VKVM-1M
- USB converter plugs (supplied with product)
- Dual Rack Kit: MET-IPEPS-DA-FASCIA
- KVM cable set (one set per connected computer, supplied with product ): VKVM-1M; VKVM-2M; VKVM-5M; VKVM-10M
- CCSUN Convertor Cable(required to connect Sun computers that use a mini-DIN port to connect their keyboard and mouse): CCSUN-2M; CCSUN-5M; CCSUN-10M
- Squid Power Cable (allows up to four IPEPS units to be powered from a single power adapter): CAB-XSERIES-4WAYPWR
- Power Adapter plus country specific power cable: Standard version power adapter capable of supplying a single IPEPS units directly or up to two IPEPS using the squid power cable : PSU-iEC-5VDC
- Heavy duty version power adapter capable of supplying up to four IPEPS units using the squid power cable: PSU-IEC-5VDC-4AM
- Package Contents+
- iPeps dual access module
- USB converter plugs
- KVM cable set
- Reviews+
- Dual access: the unit can be accessed by one local user and four remote users at any one time
- User management: up tosixteen user profiles can be created with defined access rights
- In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication) from RealVNC
- ipeps-DA model has feed through port that provides local KVM console access
- Interface powered, optional external PSU available
- Independent operation gives full control even during boot up, BIOS level or computer crash states
- USB or PS/2 keyboard and mouse connections
- Virtual media support (via USB)
- High performance video
- Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.
- 16 user profiles and access data logging
- Up to 16 units can be rack mounted in 2U of rack space
- Supports exclusive access mode or up to four simultaneous connections
- Auto sensing 10/100 Mb Ethernet port
- Compact case, robust metal construction.
- ipeps 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs.
- ipeps DA 120mm/4.72 (w), 42mm/1.65 (h), 75mm/2.95 (d), 0.46kg/1.02lbs.
- 16 or 8 (DA) per 2U. Rack mount kits available (X-RMK-Chassis ), Fascia Plates available MET-IPEPS-DA-FASCIA for AL-IPEPS-DA (order separately), MET-IPEPS-FASCIA for AL-IPEPS (included).
Optional power supply
100-240 VAC 50 - 60Hz
Operating temperature
0 - 40 deg C (32 to 104 deg F)
Approvals
CE, FCC
Order codes - IPEPS SINGLE: AL-IPEPS-US
- IPEPS DUAL ACCESS: AL-IPEPS-DA-US
- Single Rack Kit (supplied with product): MET-IPEPS-FASCIA
- KVM cable set (one set per connected computer, supplied with product ): VKVM-1M
- USB converter plugs (supplied with product)
- Dual Rack Kit: MET-IPEPS-DA-FASCIA
- KVM cable set (one set per connected computer, supplied with product ): VKVM-1M; VKVM-2M; VKVM-5M; VKVM-10M
- CCSUN Convertor Cable(required to connect Sun computers that use a mini-DIN port to connect their keyboard and mouse): CCSUN-2M; CCSUN-5M; CCSUN-10M
- Squid Power Cable (allows up to four IPEPS units to be powered from a single power adapter): CAB-XSERIES-4WAYPWR
- Power Adapter plus country specific power cable: Standard version power adapter capable of supplying a single IPEPS units directly or up to two IPEPS using the squid power cable : PSU-iEC-5VDC
- Heavy duty version power adapter capable of supplying up to four IPEPS units using the squid power cable: PSU-IEC-5VDC-4AM
- iPeps dual access module
- USB converter plugs
- KVM cable set
ADDER Link ipeps Dual Access KVM-over-IP

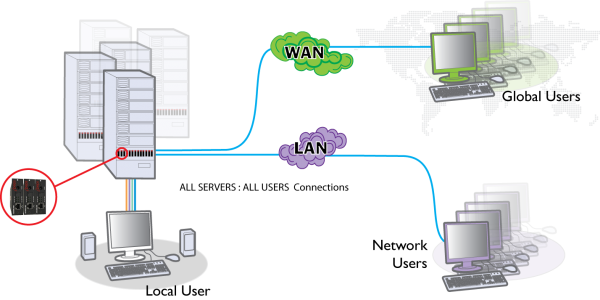

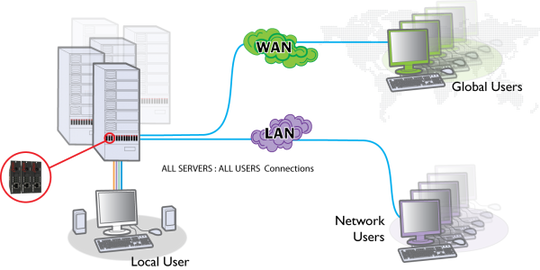

The ADDERLink ipeps Dual Access enables you to remotely access and control your critical computing hardware using your standard IP network. KVM ports are also provided for local console access. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.
Note: This product is only compatible with other Adder branded products
Video modes
Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer
Hardware compatibility
Supports PC, RS/6000, Alpha and SGI computers, Sun and Mac. USB or PS/2connections supported
O/S compatibility
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
ADDER Link ipeps to KVM/computer connection
Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)
Local console (DA model only)
Video: HDD15, Keyboard/Mouse: MiniDIN6
Connections
Ethernet: RJ45 10/100 autosensing
Physical design
Additional accessories
ADDER Link ipeps Dual Access KVM-over-IP
The ADDERLink ipeps Dual Access enables you to remotely access and control your critical computing hardware using your standard IP network. KVM ports are also provided for local console access. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.
Note: This product is only compatible with other Adder branded products
Video modes
Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer
Hardware compatibility
Supports PC, RS/6000, Alpha and SGI computers, Sun and Mac. USB or PS/2connections supported
O/S compatibility
All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.
ADDER Link ipeps to KVM/computer connection
Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)
Local console (DA model only)
Video: HDD15, Keyboard/Mouse: MiniDIN6
Connections
Ethernet: RJ45 10/100 autosensing
Physical design
Additional accessories
