  • Zigen 16x16 HDBaseT HDMI Matrix Switch - Modular, 4Kx2K, 3D
  • Zigen 16x16 HDBaseT HDMI Matrix Switch - Modular, 4Kx2K, 3D
  • Zigen 16x16 HDBaseT HDMI Matrix Switch - Modular, 4Kx2K, 3D
  • Zigen 16x16 HDBaseT HDMI Matrix Switch - Modular, 4Kx2K, 3D
  • Zigen 16x16 HDBaseT HDMI Matrix Switch - Modular, 4Kx2K, 3D

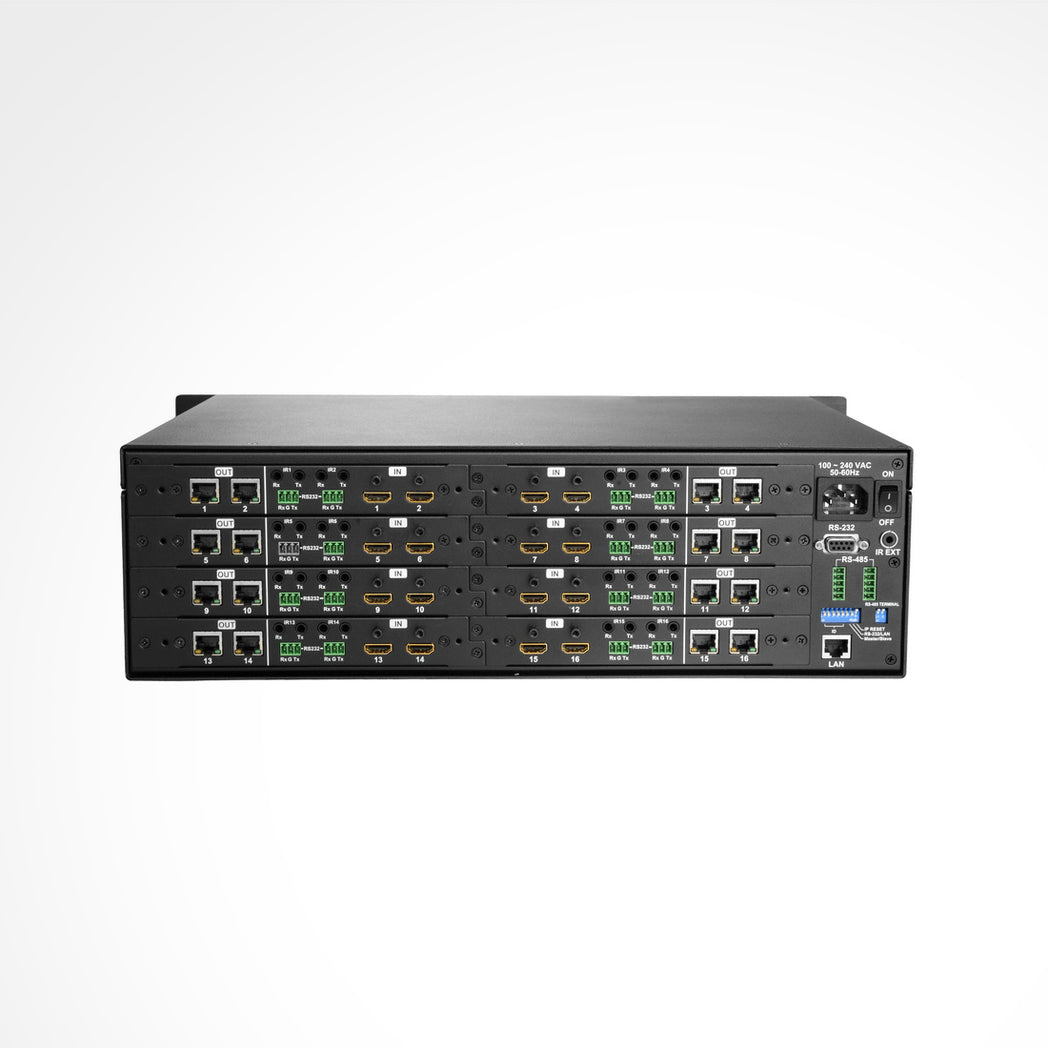

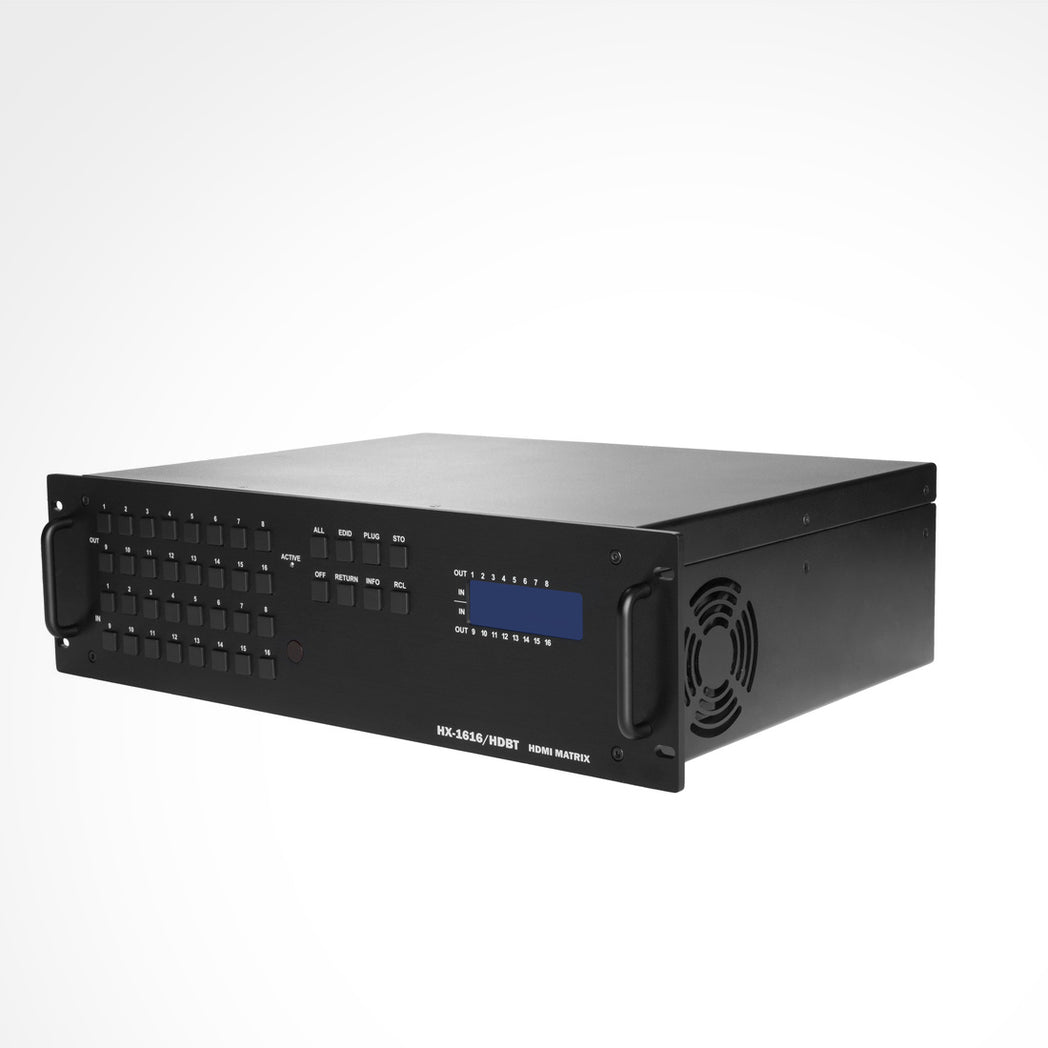

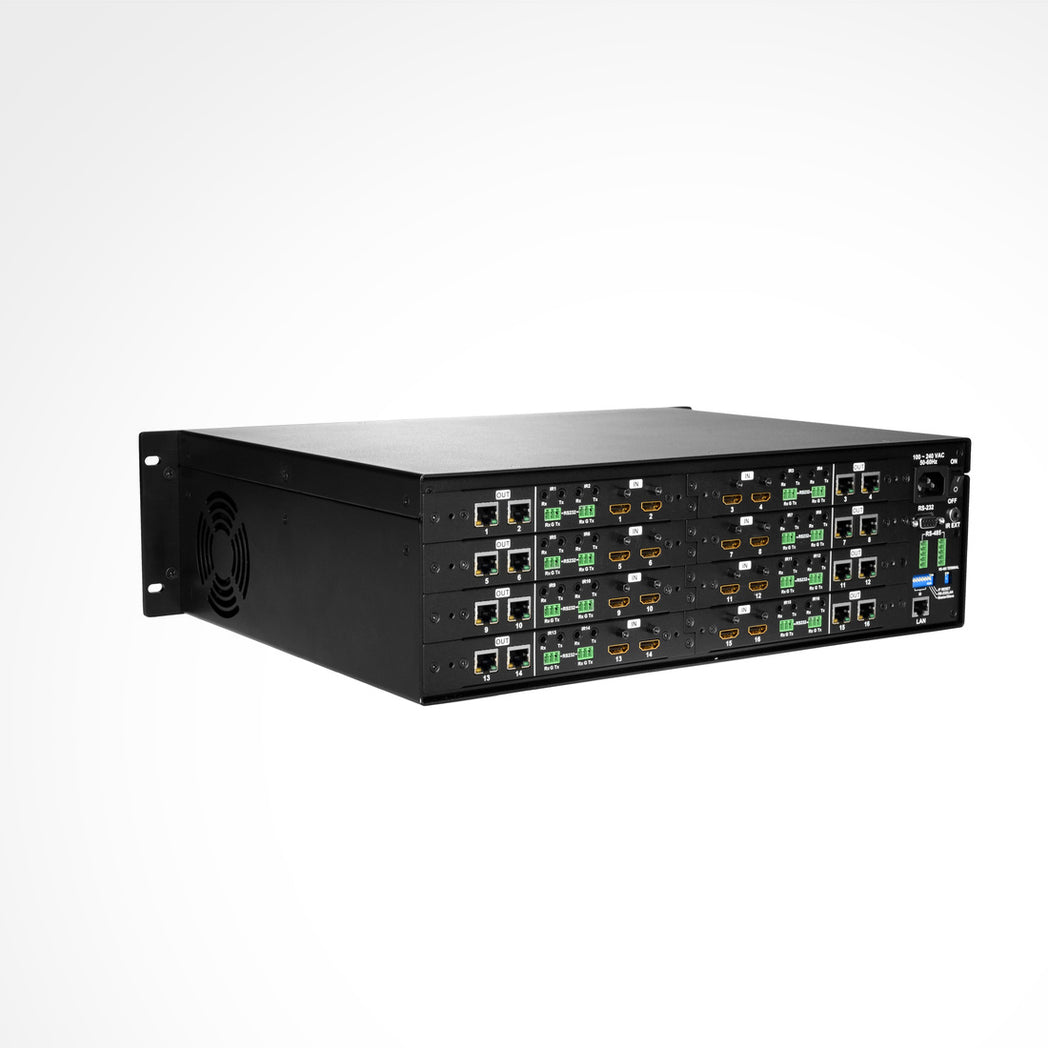

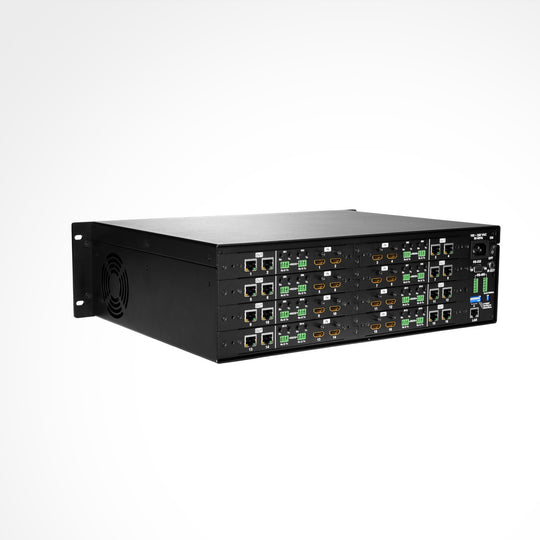

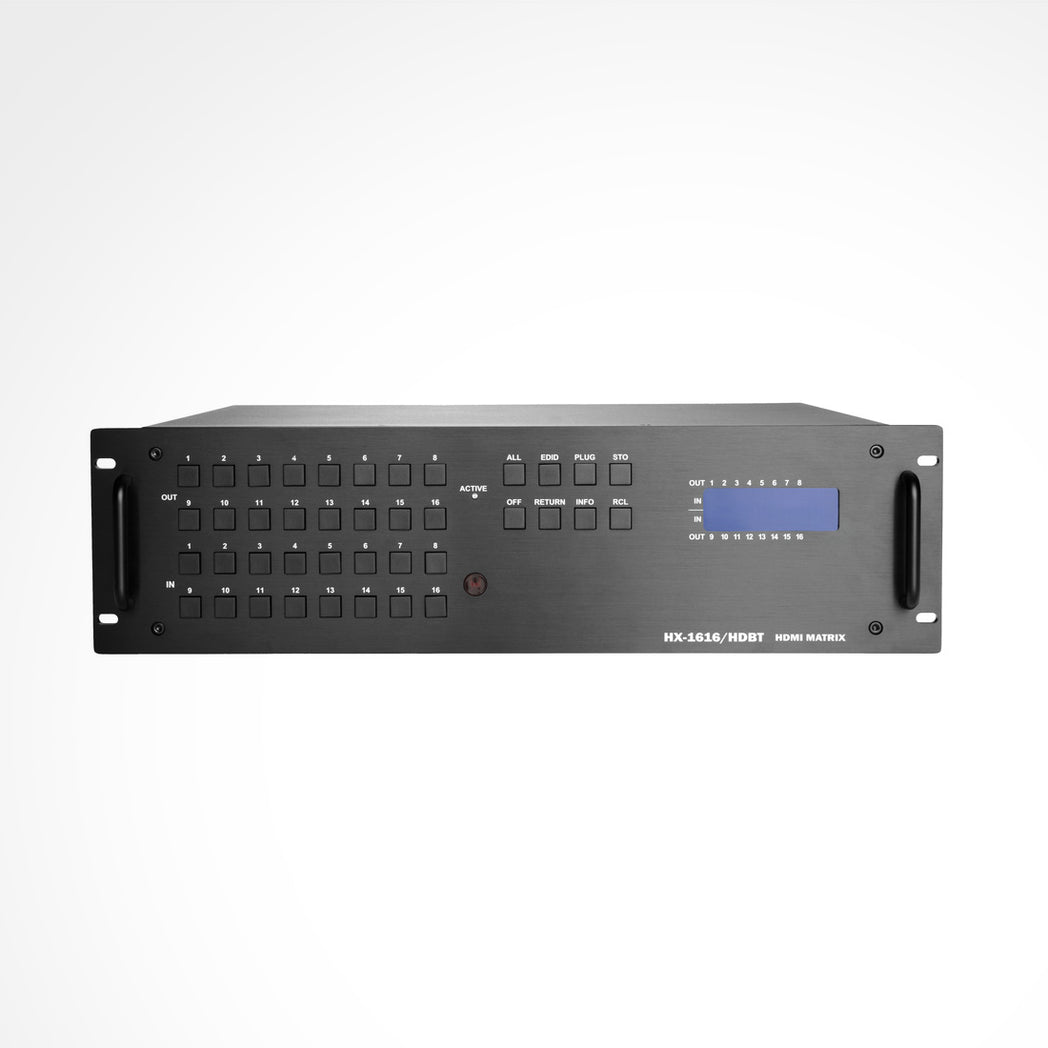

Zigen 16x16 HDBaseT HDMI Matrix Switch - Modular, 4Kx2K, 3D

SKU#: HX-1616/HDBT

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: HX-1616/HDBT

UPC#:
$7,399.99

SKU#: HX-1616/HDBT

UPC#:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • Note: This product has been discontinued.

    This HDBaseT HDMI Matrix Switch is a modular solution to your installation needs. It is field upgradable from 2x2 to 16x16. It can be easily integrated into control systems from Crestron, AMX, RTI, Control4, Bitwise, and URC.

    *Compatible Cards (Sold Separately)

    HX-HH-L

    • 2 HDMI Inputs
    • 2 HDMI Outputs
    • Fits into left side of chassis

    HX-HH-R

    • 2 HDMI Inputs
    • 2 HDMI Outputs
    • Fits into right side of chassis

    HX-70-LSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 70 Meters
    • Fits into left side of chassis

    HX-70-RSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 70 Meters
    • Fits into right side of chassis

    HX-100-LSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 100 Meters
    • Fits into left side of chassis

    HX-100-RSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 100 Meters
    • Fits into right side of chassis

    Drivers




  • Features+
    • Transmits HDMI Signal from up to 16 Sources to 16 Displays
    • Advanced EDID Management
    • Internal Power Supply
    • Can Be Integrated with Crestron, AMX, RTI, Control4, Bitwise and URC Control Systems
    • Compatible Receivers: ZIG-HVX-70R and ZIG HVX-100R
    • Compatible I/O Cards: HX-HH-L, HX-HH-R, HX-70-LSC, HX-70-RSC, HX-100-LSC, HX-100-RSC
  • Specs+
    • Ultra HD 4K Certified
    • 4Kx2K 30Hz 24bpp
    • 4Kx2K 60Hz 24bpp with 4:2:0 Pixel Format
    • Supports up to 16 HDMI Input/Output Interfaces
    • Mixed Use HDMI Cables for Input and Output Connection
    • HDCP Compliant
    • EDID Management (Copy from Each OUTPUT or Generate Internal)
    • Centralized Control Upon 32 Series Connections via RS-485
    • Memory Control up to 8 Presets
    • Support Computer Video up to 1920*1200
    • Support HDTV up to 1080p@60Hz, 12-bit
    • Support Original 3D Pass Through
    • Support High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master)
    • IR Pass-through Supports All IN and OUT Ports
    • IR Pass-through Supports All IR Frequency Bands
    • IR Pass-through Supports Duplex Transmission Between IN and OUT Ports
    • IR Pass-through Switch is Based on HDMI Switched by Controller Support IR Remote Control
    • Support IR Mini-Controller to Select the Input Channel Through Output Configuration
    • Support RS-232 Control
    • Support RS-485 Serial Control
    • Support Ethernet Control
    • Internal Universal Power Supply
    • 3U Rack Size
    • Certifications: RoHS, FCC, CE
  • Package Contents+
    • (1) HDMI Matrix Switcher
    • (1) RS-232 Communication Connected Cable
    • (1) Power Cord
    • (1) IR Receiver Cable
    • (1) IR Blaster Cable
    • (1) LAN Line
    • (2) Female 1x5 Pole Captive Screw Sockets
    • (1) Matrix Switcher Remote Controller
    • (2) AAA Batteries
    • (1) AV Matrix Software CD
    • (1) User Manual
  • Reviews+
  • Note: This product has been discontinued.

    This HDBaseT HDMI Matrix Switch is a modular solution to your installation needs. It is field upgradable from 2x2 to 16x16. It can be easily integrated into control systems from Crestron, AMX, RTI, Control4, Bitwise, and URC.

    *Compatible Cards (Sold Separately)

    HX-HH-L

    • 2 HDMI Inputs
    • 2 HDMI Outputs
    • Fits into left side of chassis

    HX-HH-R

    • 2 HDMI Inputs
    • 2 HDMI Outputs
    • Fits into right side of chassis

    HX-70-LSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 70 Meters
    • Fits into left side of chassis

    HX-70-RSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 70 Meters
    • Fits into right side of chassis

    HX-100-LSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 100 Meters
    • Fits into left side of chassis

    HX-100-RSC

    • 2 HDMI Inputs
    • 2 HDBaseT Outputs
    • 100 Meters
    • Fits into right side of chassis

    Drivers




    • Transmits HDMI Signal from up to 16 Sources to 16 Displays
    • Advanced EDID Management
    • Internal Power Supply
    • Can Be Integrated with Crestron, AMX, RTI, Control4, Bitwise and URC Control Systems
    • Compatible Receivers: ZIG-HVX-70R and ZIG HVX-100R
    • Compatible I/O Cards: HX-HH-L, HX-HH-R, HX-70-LSC, HX-70-RSC, HX-100-LSC, HX-100-RSC
    • Ultra HD 4K Certified
    • 4Kx2K 30Hz 24bpp
    • 4Kx2K 60Hz 24bpp with 4:2:0 Pixel Format
    • Supports up to 16 HDMI Input/Output Interfaces
    • Mixed Use HDMI Cables for Input and Output Connection
    • HDCP Compliant
    • EDID Management (Copy from Each OUTPUT or Generate Internal)
    • Centralized Control Upon 32 Series Connections via RS-485
    • Memory Control up to 8 Presets
    • Support Computer Video up to 1920*1200
    • Support HDTV up to 1080p@60Hz, 12-bit
    • Support Original 3D Pass Through
    • Support High Definition Audio (Dolby TrueHD, Dolby Digital Plus and DTS-HD Master)
    • IR Pass-through Supports All IN and OUT Ports
    • IR Pass-through Supports All IR Frequency Bands
    • IR Pass-through Supports Duplex Transmission Between IN and OUT Ports
    • IR Pass-through Switch is Based on HDMI Switched by Controller Support IR Remote Control
    • Support IR Mini-Controller to Select the Input Channel Through Output Configuration
    • Support RS-232 Control
    • Support RS-485 Serial Control
    • Support Ethernet Control
    • Internal Universal Power Supply
    • 3U Rack Size
    • Certifications: RoHS, FCC, CE
    • (1) HDMI Matrix Switcher
    • (1) RS-232 Communication Connected Cable
    • (1) Power Cord
    • (1) IR Receiver Cable
    • (1) IR Blaster Cable
    • (1) LAN Line
    • (2) Female 1x5 Pole Captive Screw Sockets
    • (1) Matrix Switcher Remote Controller
    • (2) AAA Batteries
    • (1) AV Matrix Software CD
    • (1) User Manual
