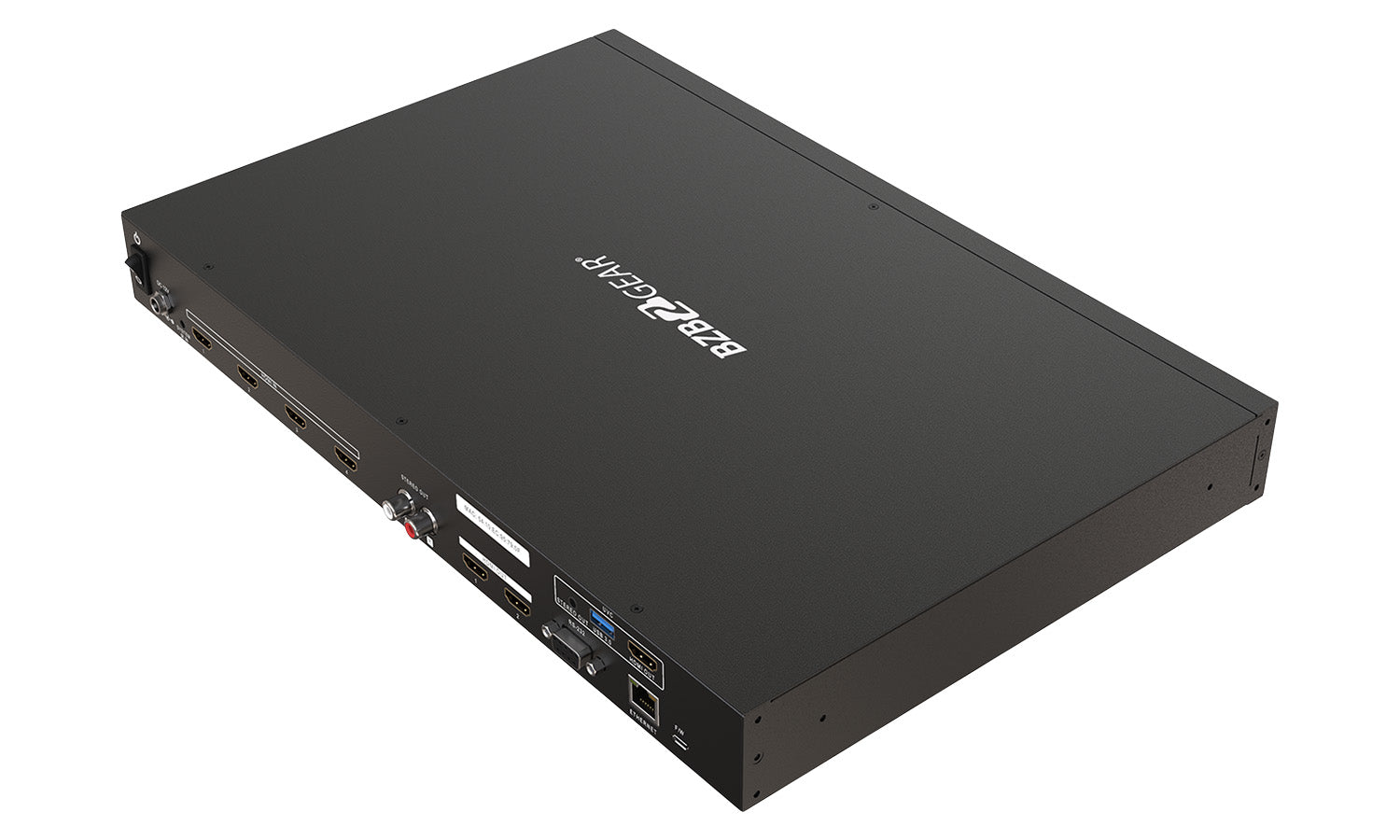

BZBGEAR 4K/UHD 4X2 Seamless Multiviewer/Presentation Switcher/Scaler with USB Capture Card

SKU#: BG-UHD-QVP-4X2

UPC#: 850009357175

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: BG-UHD-QVP-4X2

UPC#:850009357175
$2,699.00

SKU#: BG-UHD-QVP-4X2

UPC#:850009357175

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • The BG-UHD-QVP-4X2 is a 4K Quad-View/Multi-Viewer Video Processor suitable for digital signage, presentation spaces, conference rooms, and live or recorded broadcasting. The integrated USB 3.0 capture and auto-scaling outputs at resolutions up to 1080p with 2 channel for use with online conferencing apps like Skype, Zoom, vMix, or OBS Studio. The unit is capable of routing ultra-high definition video sources from four UHD HDMI input sources to the two HDMI display outputs and one HDMI loop output simultaneously while delivering resolutions up to 4K2K@60Hz 4:4:4 using HDMI 2.0a technology. It can also extract audio via the 3.5mm output.

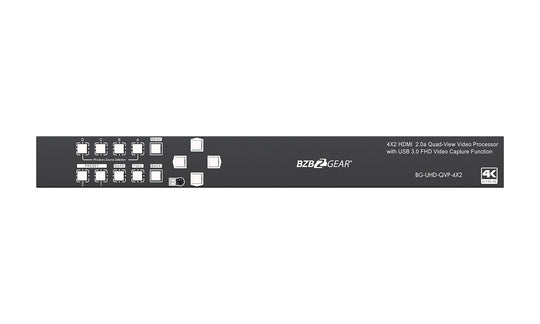

    Control options include the front panel, a built-in web interface, and third-party control via RS-232 and IR. Simply select a customizable layout, choose your inputs and route them to the desired display windows. Packed with options including PIP, PBP, fade-in/out, blend, zoom, and more the BG-UHD-QVP-4X2 gives you studio-quality results with every presentation.

  • Features+
    • 4K/60 4:4:4 Support: Supports input resolutions up to 4096x2160 @ 60Hz (4:4:4).
    • Seamless Switching: Instantaneously switch between sources with no signal interruption.
    • Control: RS-232, IR, Web interface.
    • USB Capture: Convert HDMI sources and output via USB at resolutions up to 1080P.
    • HDMI Loop Out: Monitor UVC output.
  • Specs+
  • Technical Specs
    Role of usage Multiplexer / video processor
    Background picture update Yes
    HDMI compliance HDMI 2.0a
    HDCP compliance 1.4 / 2.2
    Video bandwidth HDMI (600MHz [18Gbps])
    Output Video Support Up to 4K2K@60 (4:4:4 8bits)
    Video support Up to 1080p60
    Input Video Support Up to 4K2K@60 (4:4:4 8bits)
    Video Format Support HDMI 2.0
    Audio support Bypass
    Embedded video mixer Yes
    Input TMDS signal 1.2 Volts [peak to peak]
    Recording Mode Software Compression
    Recording Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0)
    ESD protection Human body model — ± 15kV [air-gap discharge] & ±8kV [contact discharge]

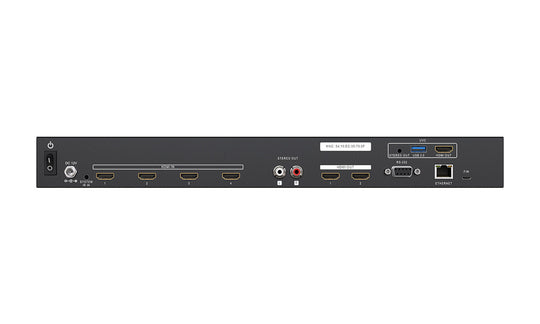

    Input 4x HDMI + 1x RS 232 + 1x RJ 45(Ethernet) + 1x 3.5mm (IR)
    Output 2x HDMI + 1x USB + 2x RCA + 1x 3.5mm
    HDMI connector Type A [19-pin female]
    USB connector USB 3.0 Type A (SuperSpeed USB)
    RS-232 connector DE-9 [9-pin D-sub female]
    RJ-45 connector WE/SS 8P8C
    Software compatibility (not complete list) (Video Capture Function) OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
    OS Support (Video Capture Function) Windows 7 /8.1 /10, Mac and Linux OS
    Mechanical
    Housing Metal enclosure
    Dimensions (L x W x H) Model 390 x 248 x 44mm [1'3" x 9.8" x 1.7"]
    Package 526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
    Carton 543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
    Weight Model 2.2 kg [5 lbs]
    Package 3.5 kg [7.8 lbs]
    Power supply 12V 5A DC
    Power Consumption 22 Watts [max]
    Power Consumption 12 Watt [max]
    Operation temperature 0~40°C [32~104°F]
    Storage temperature -20~60°C [-4~140°F]
    Relative humidity 20~90% RH [no condensation]
  • Package Contents+
    • 1xBG-UHD-QVP-4X2
    • 1xRack-mounting ear set
    • 1xIR receiver
    • 1xInstallation software CD
    • 1xDC 5V 4A
    • 1xUser Manual
    • 1xIR Remote control
  • Reviews+
  • The BG-UHD-QVP-4X2 is a 4K Quad-View/Multi-Viewer Video Processor suitable for digital signage, presentation spaces, conference rooms, and live or recorded broadcasting. The integrated USB 3.0 capture and auto-scaling outputs at resolutions up to 1080p with 2 channel for use with online conferencing apps like Skype, Zoom, vMix, or OBS Studio. The unit is capable of routing ultra-high definition video sources from four UHD HDMI input sources to the two HDMI display outputs and one HDMI loop output simultaneously while delivering resolutions up to 4K2K@60Hz 4:4:4 using HDMI 2.0a technology. It can also extract audio via the 3.5mm output.

    Control options include the front panel, a built-in web interface, and third-party control via RS-232 and IR. Simply select a customizable layout, choose your inputs and route them to the desired display windows. Packed with options including PIP, PBP, fade-in/out, blend, zoom, and more the BG-UHD-QVP-4X2 gives you studio-quality results with every presentation.

    • 4K/60 4:4:4 Support: Supports input resolutions up to 4096x2160 @ 60Hz (4:4:4).
    • Seamless Switching: Instantaneously switch between sources with no signal interruption.
    • Control: RS-232, IR, Web interface.
    • USB Capture: Convert HDMI sources and output via USB at resolutions up to 1080P.
    • HDMI Loop Out: Monitor UVC output.
    Technical Specs
    Role of usage Multiplexer / video processor
    Background picture update Yes
    HDMI compliance HDMI 2.0a
    HDCP compliance 1.4 / 2.2
    Video bandwidth HDMI (600MHz [18Gbps])
    Output Video Support Up to 4K2K@60 (4:4:4 8bits)
    Video support Up to 1080p60
    Input Video Support Up to 4K2K@60 (4:4:4 8bits)
    Video Format Support HDMI 2.0
    Audio support Bypass
    Embedded video mixer Yes
    Input TMDS signal 1.2 Volts [peak to peak]
    Recording Mode Software Compression
    Recording Video Format YUY2 (USB3.0), MJPG (USB2.0/3.0)
    ESD protection Human body model — ± 15kV [air-gap discharge] & ±8kV [contact discharge]
    Input 4x HDMI + 1x RS 232 + 1x RJ 45(Ethernet) + 1x 3.5mm (IR)
    Output 2x HDMI + 1x USB + 2x RCA + 1x 3.5mm
    HDMI connector Type A [19-pin female]
    USB connector USB 3.0 Type A (SuperSpeed USB)
    RS-232 connector DE-9 [9-pin D-sub female]
    RJ-45 connector WE/SS 8P8C
    Software compatibility (not complete list) (Video Capture Function) OBS Studio (Windows, Linux), AMCap (Windows), Potplayer (Windows)¸ VLC (OS X, Linux), XSplit Broadcast (Windows), Skype (Windows, OS X), Zoom (Windows), Hangout (Windows), TeamViewer (Windows)
    OS Support (Video Capture Function) Windows 7 /8.1 /10, Mac and Linux OS
    Mechanical
    Housing Metal enclosure
    Dimensions (L x W x H) Model 390 x 248 x 44mm [1'3" x 9.8" x 1.7"]
    Package 526 x 318 x 156mm [1'7" x 12.5" x 6.1"]
    Carton 543 x 335 x 344mm [1'8" x 13.2" x 1'1"]
    Weight Model 2.2 kg [5 lbs]
    Package 3.5 kg [7.8 lbs]
    Power supply 12V 5A DC
    Power Consumption 22 Watts [max]
    Power Consumption 12 Watt [max]
    Operation temperature 0~40°C [32~104°F]
    Storage temperature -20~60°C [-4~140°F]
    Relative humidity 20~90% RH [no condensation]
    • 1xBG-UHD-QVP-4X2
    • 1xRack-mounting ear set
    • 1xIR receiver
    • 1xInstallation software CD
    • 1xDC 5V 4A
    • 1xUser Manual
    • 1xIR Remote control
