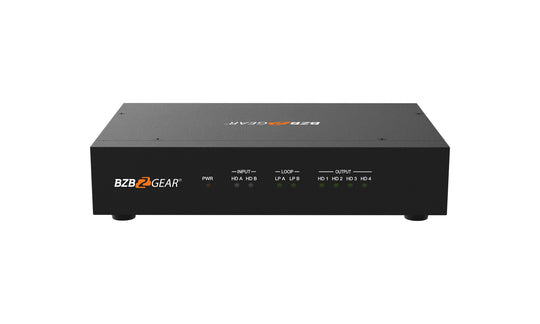

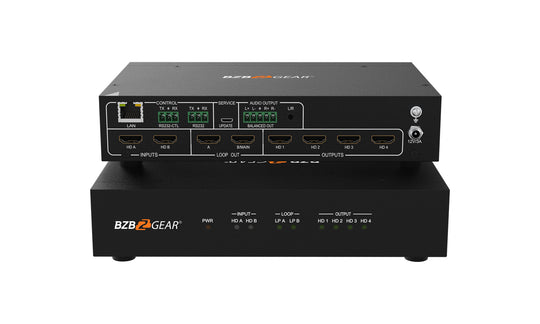

BZBGEAR 4K UHD HDMI Video Wall Processor/Switcher with IP/Audio/RS-232 for up to 4 Tvs
SKU#: BG-UHD-VW24
UPC#:850023208637
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
-

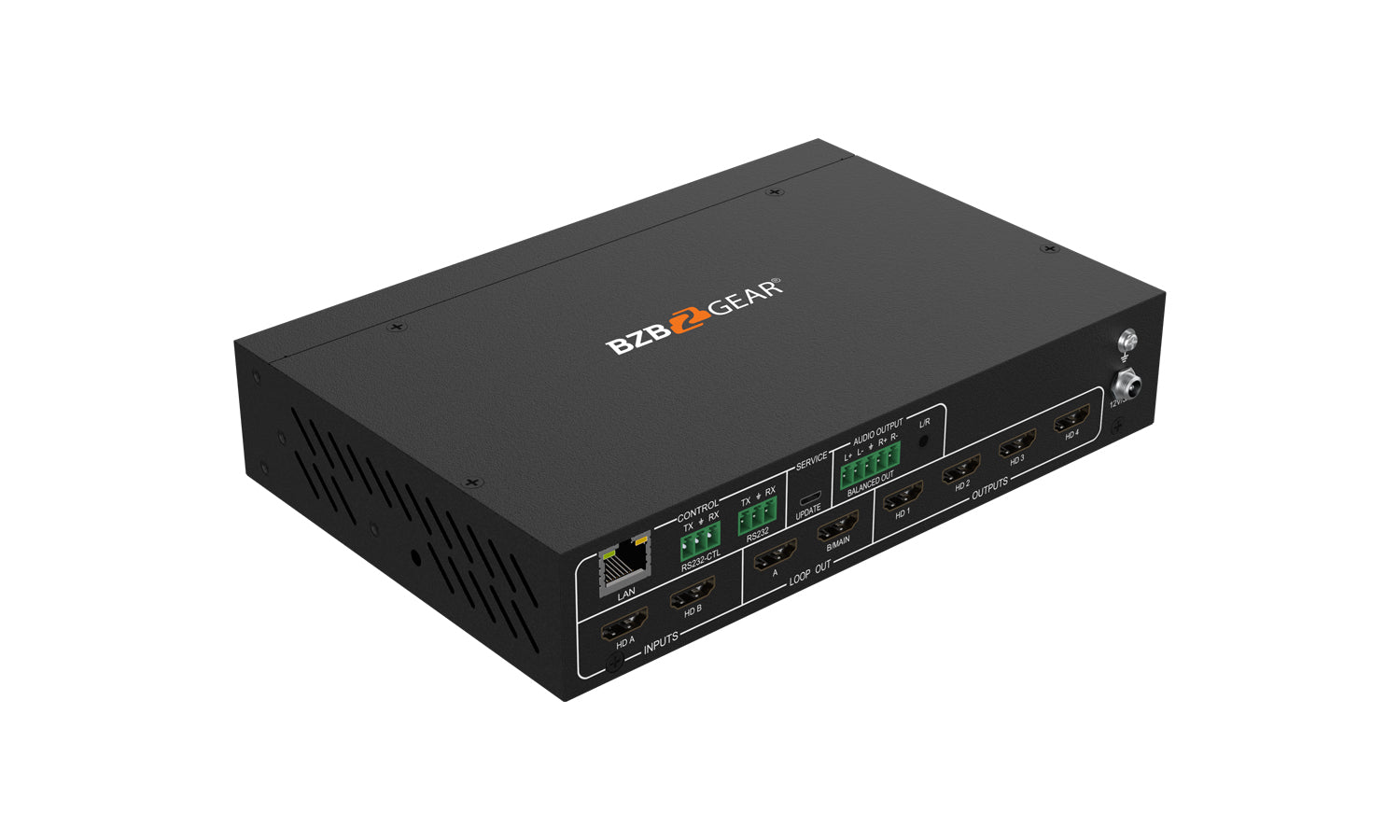

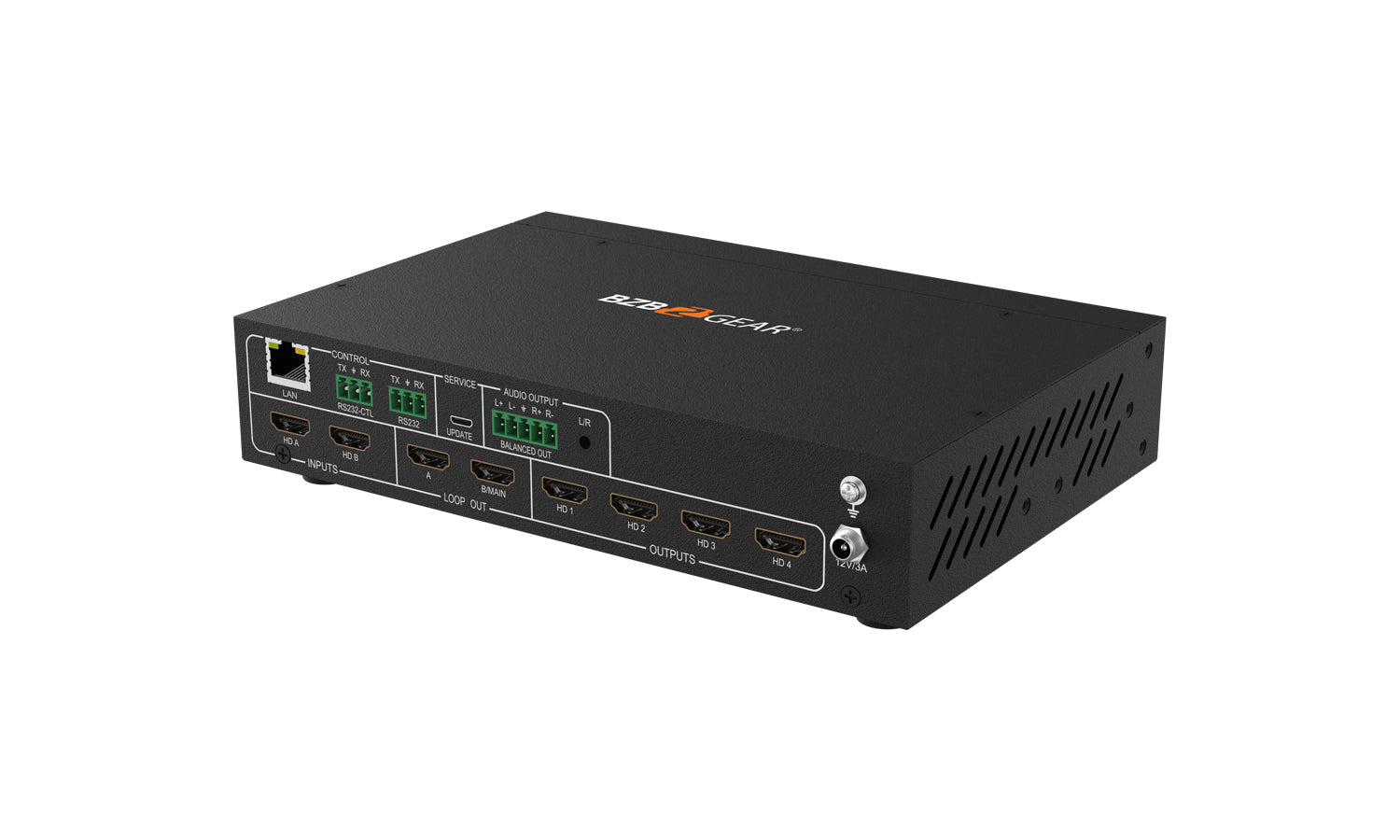

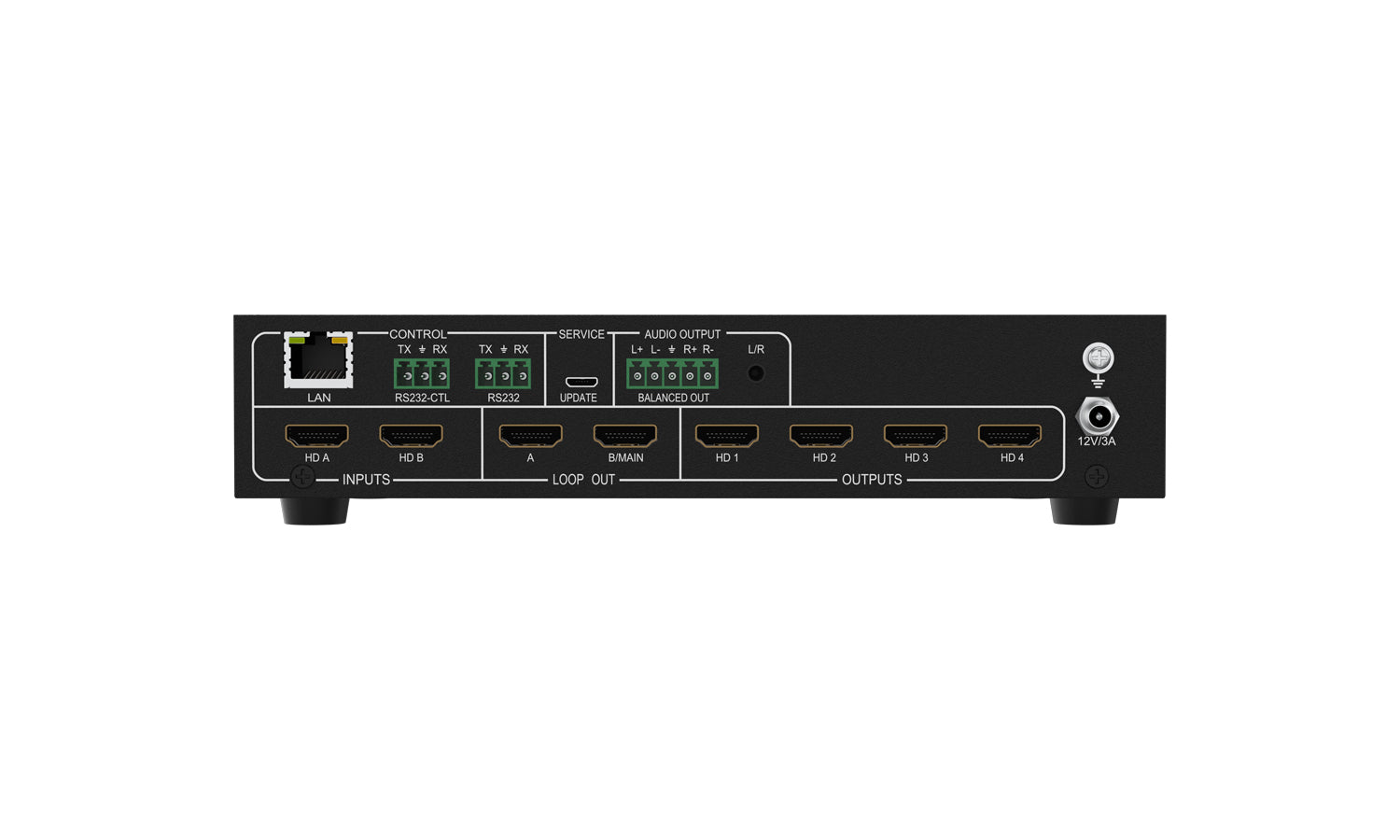

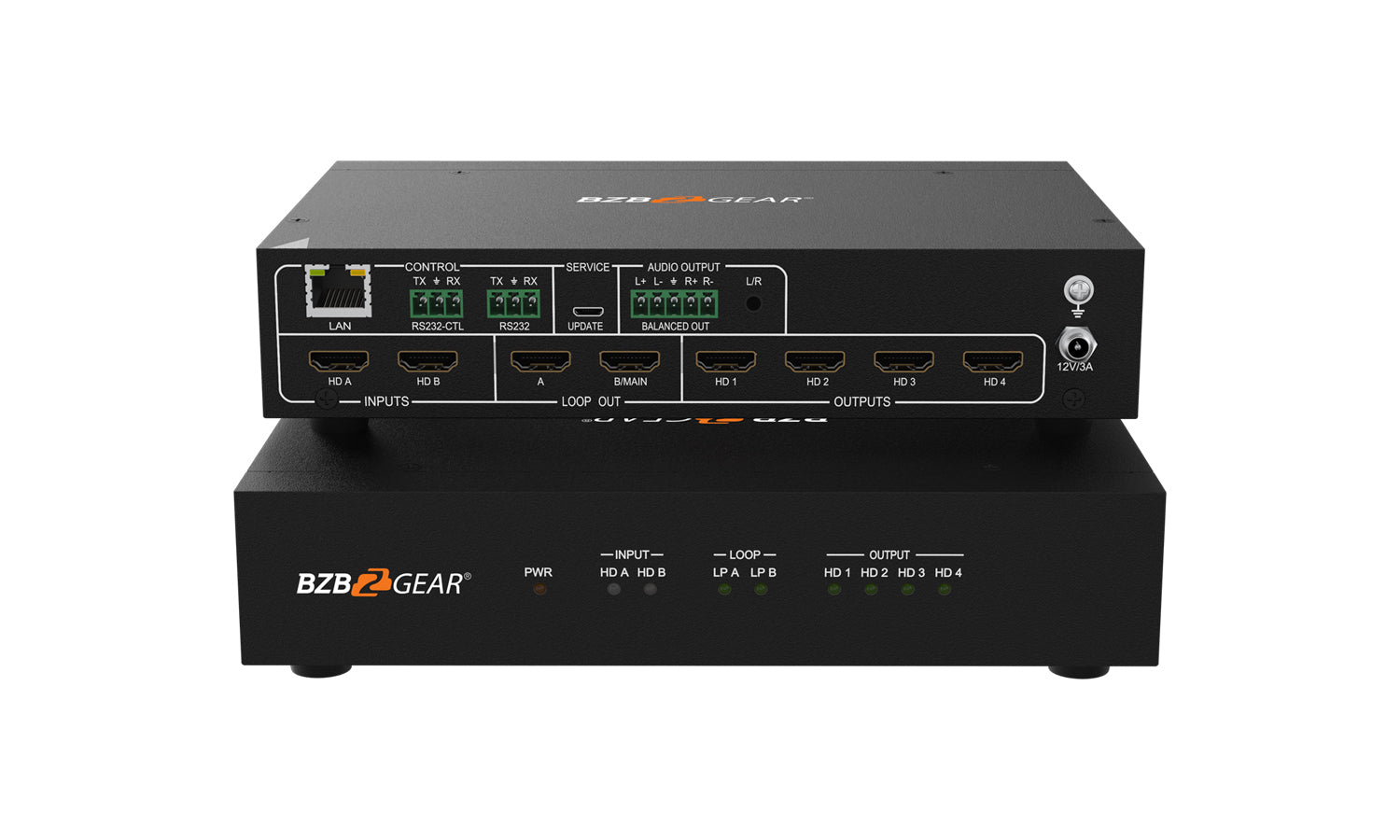

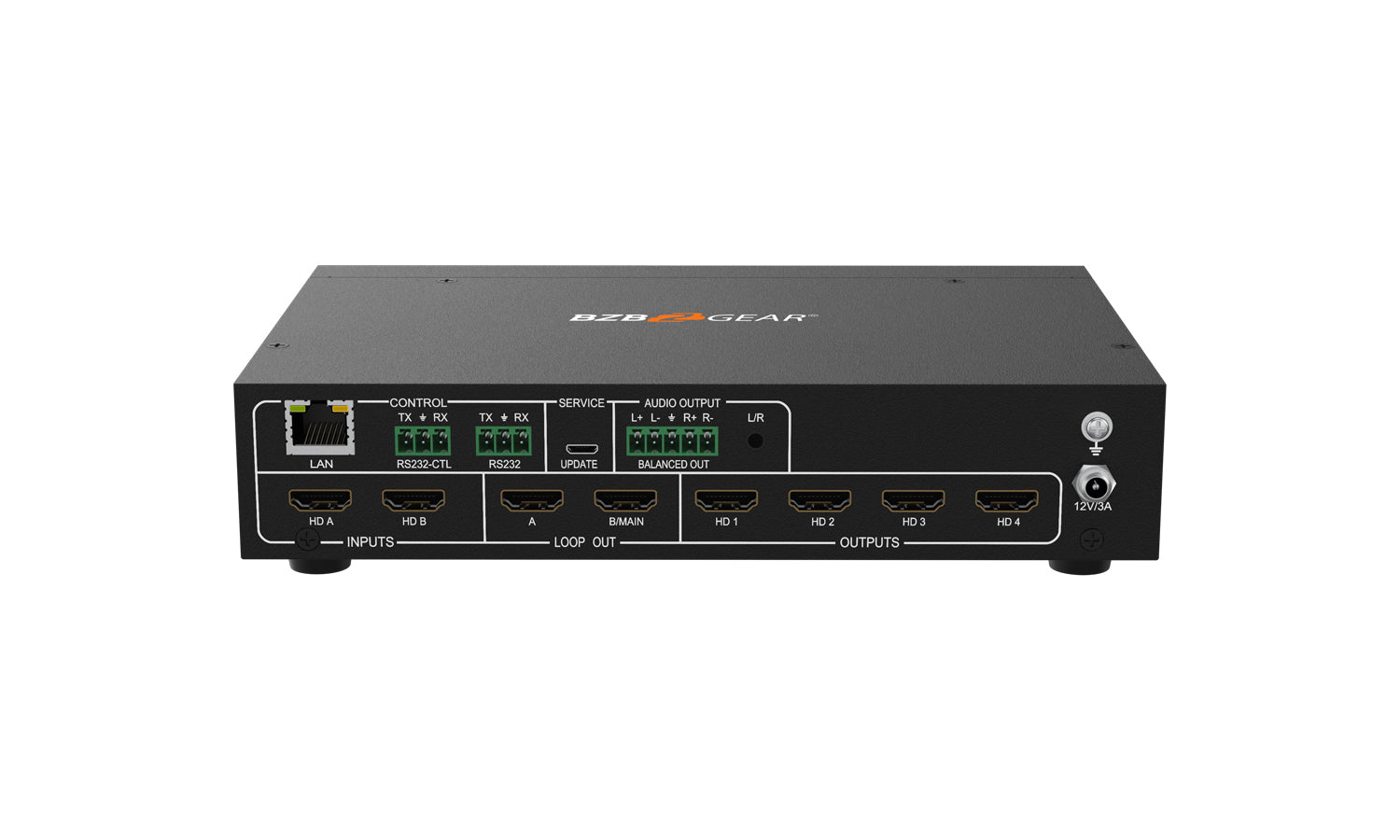

CONTROL:
RS232: Loop out RS232-CTL control command.
RS232-CTL: External RS232 control, Baud Rate: 57600, Data Bits: 8, Parity: None Stop Bits: 1.
LAN: Network port for TCP/IP control. Connect to an active Ethernet link with an RJ45 cable. -
SERVICE: Firmware update port.
-
AUDIO OUTPUTS:
Analog L/R audio output: 3.5mm Stereo Jack. 20Hz ~ 20kHz, 1.5Vrms max.
BALANCED OUT: Balanced audio output port. 5-pin phoenix connector, 20Hz ~ 20kHz, 1.5Vrms max. -
GND: Ground the product housing.
-
12V/3A: DC 12V/3A power supply port.
-
OUTPUTS: HDMI output for the video wall.
-
LOOP OUT: Loop out the HDMI A/B signal to a local display connected to each output.
-
INPUTS: Connect HDMI source devices such as a DVD player or gaming console with an HDMI cable.
-

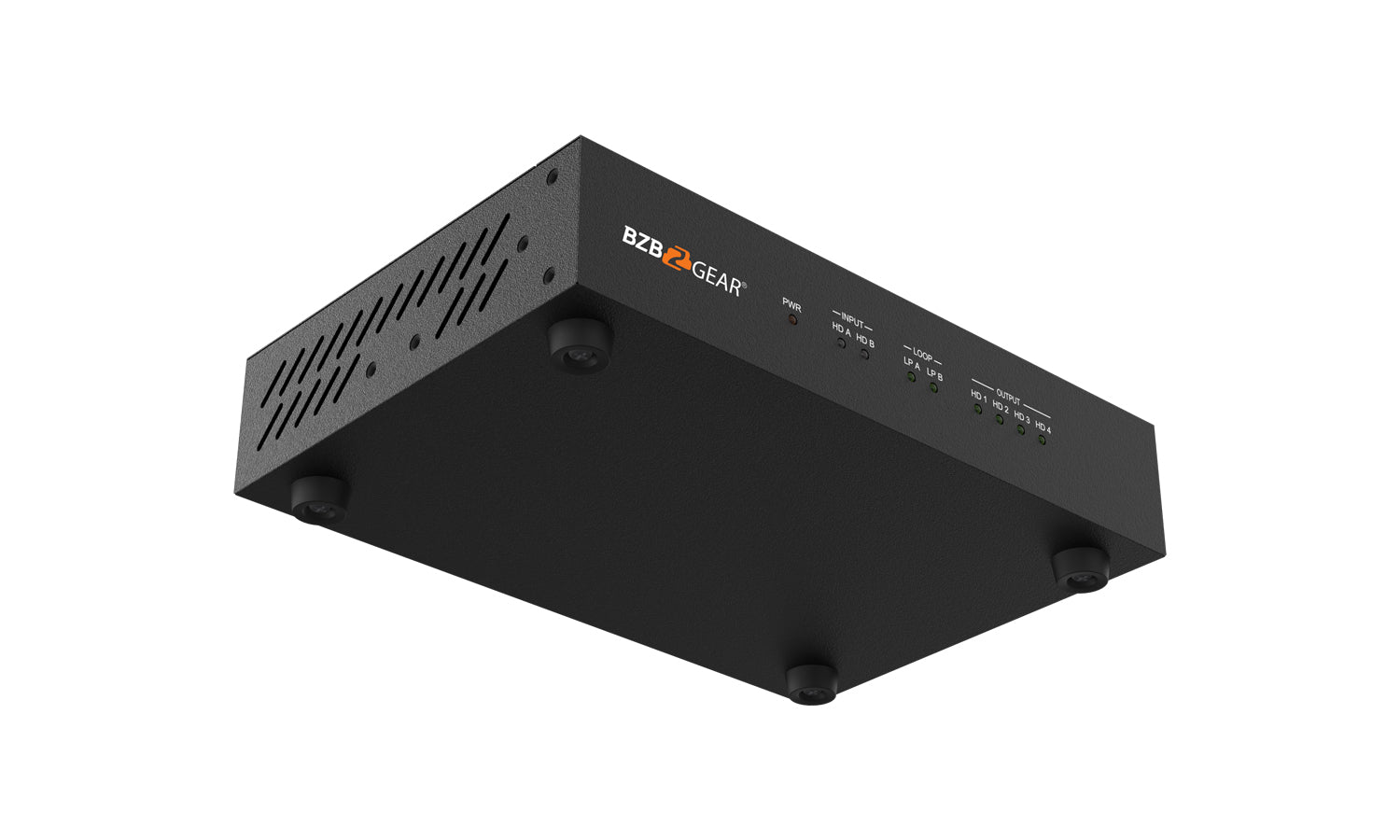

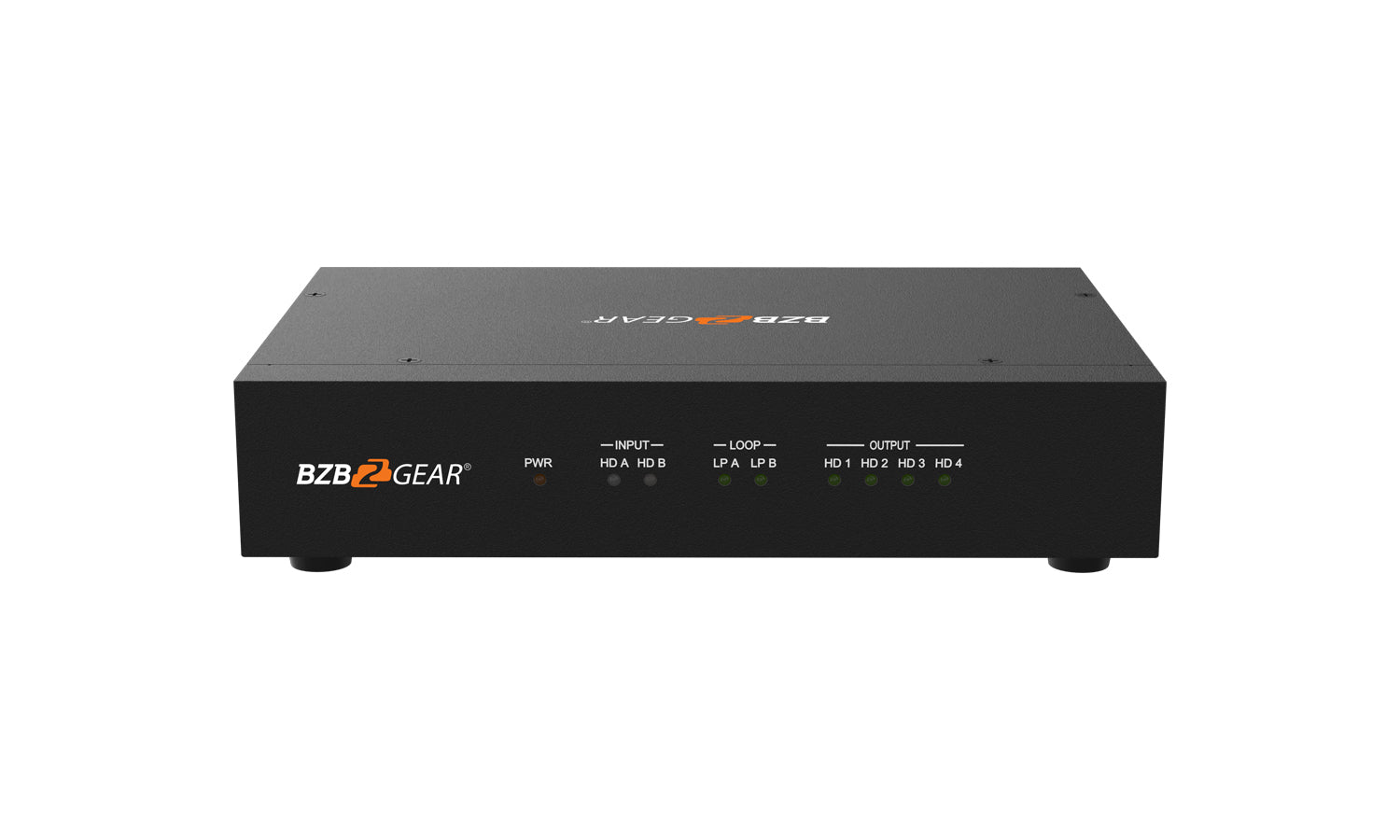

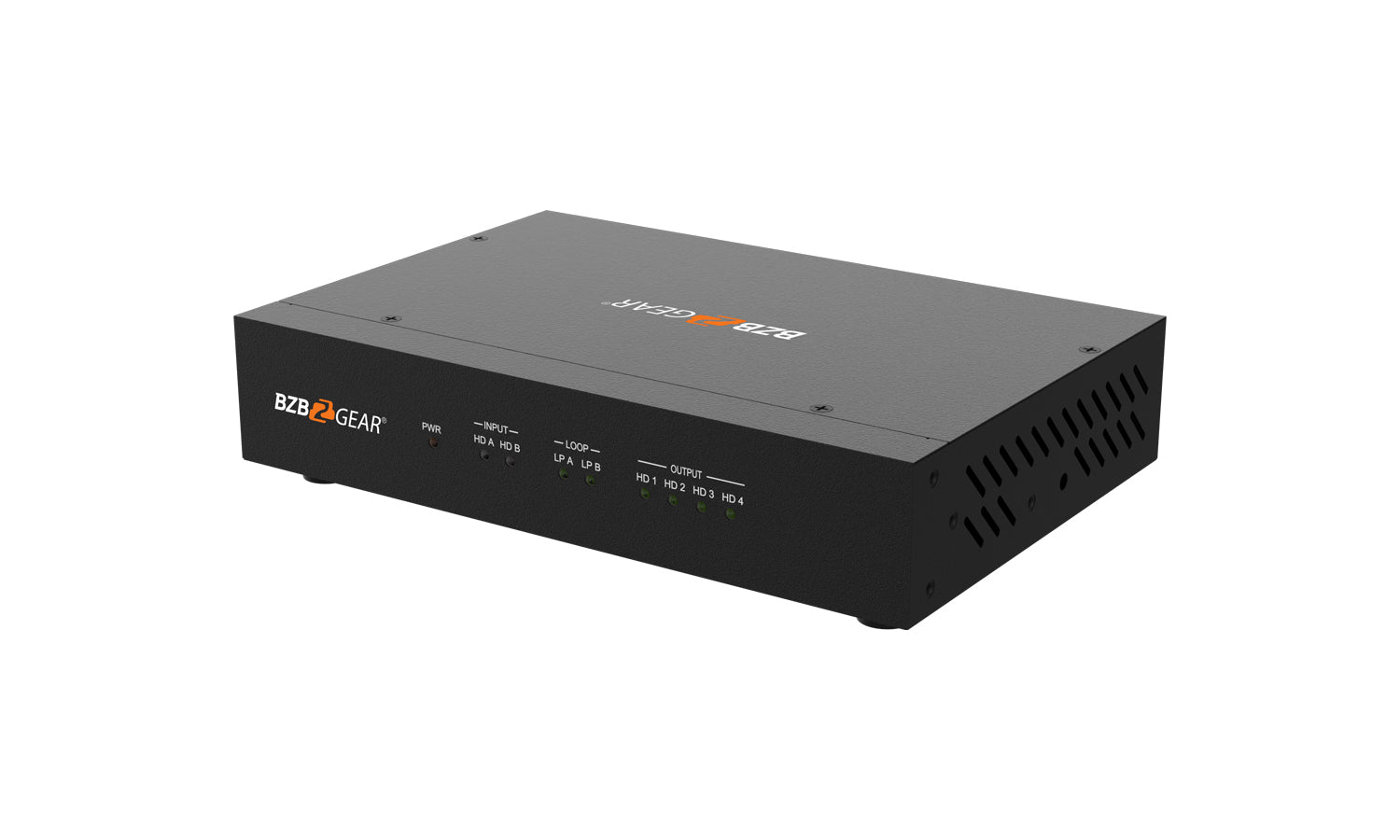

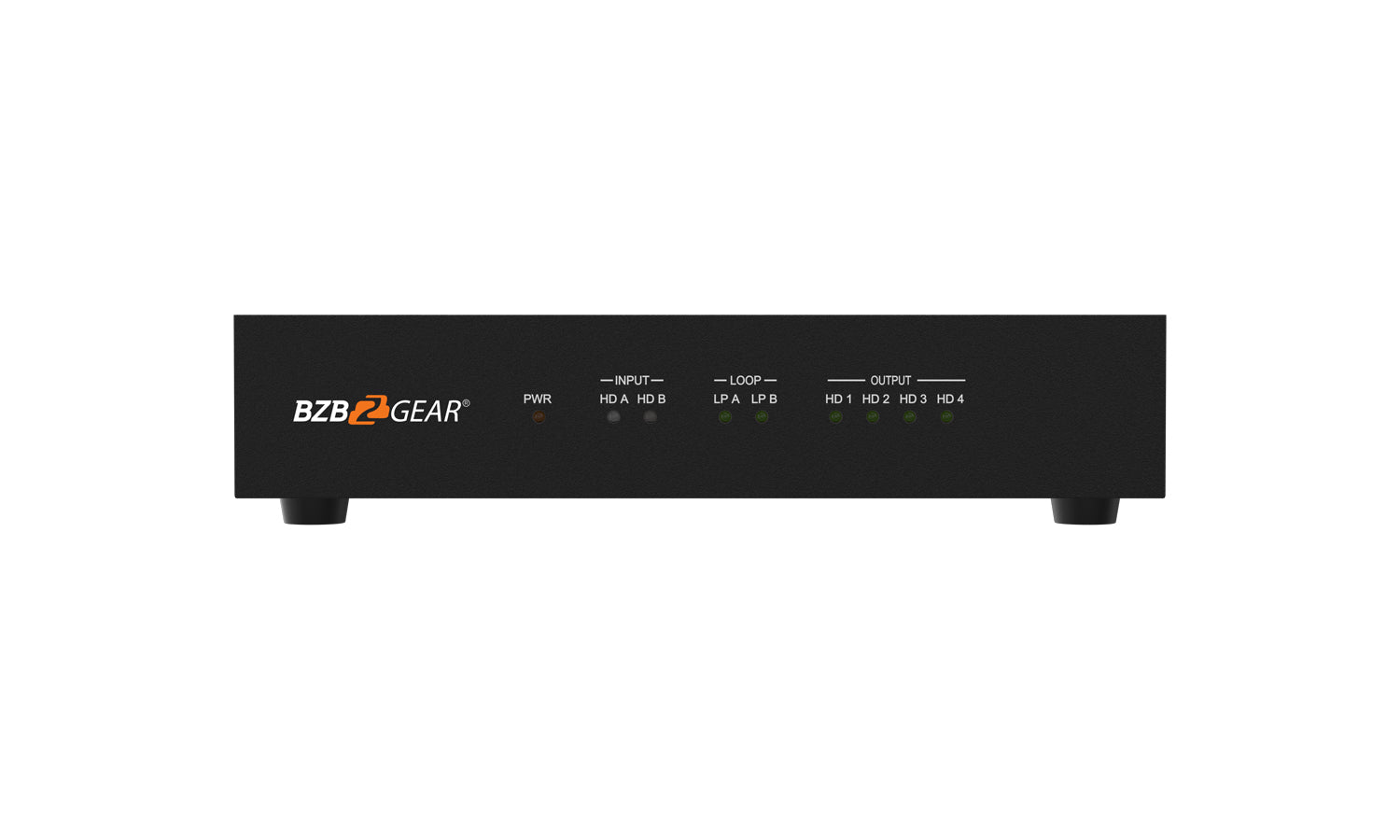

Power LED indicator: The power LED will illuminate when the unit is powered on.
-
INPUT LED indicators: The LED will illuminate when the corresponding HDMI input port is connected to an active HDMI source device.
-
LOOP LED indicators: The LED will illuminate when the corresponding LOOPOUT port is connected to an HDMI display device.
-
OUTPUT LED Indicators: The LED will illuminate when the corresponding HDMI output port is connected to an HDMI display device.
- Features+
- Dual HDMI loop outs
- Sturdy, metal case construction)
- Supports CEC control through PC Tool or line commands
- Easily upgradable firmware
- 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, and DTS audio
- Video wall resolutions up to 3840x2160@60Hz
- Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
- Loop out the HDMI A/B signal for devices connected to each output
- Specs+
- Package Contents+
- 1x Ultra HD Video Wall Processor
- 1x 12V/3A Power Adapter
- 1x 5-pin Phoenix Connector
- 2x 3-pin Phoenix Connector
- Reviews+
-
CONTROL:
RS232: Loop out RS232-CTL control command.
RS232-CTL: External RS232 control, Baud Rate: 57600, Data Bits: 8, Parity: None Stop Bits: 1.
LAN: Network port for TCP/IP control. Connect to an active Ethernet link with an RJ45 cable. -
SERVICE: Firmware update port.
-
AUDIO OUTPUTS:
Analog L/R audio output: 3.5mm Stereo Jack. 20Hz ~ 20kHz, 1.5Vrms max.
BALANCED OUT: Balanced audio output port. 5-pin phoenix connector, 20Hz ~ 20kHz, 1.5Vrms max. -
GND: Ground the product housing.
-
12V/3A: DC 12V/3A power supply port.
-
OUTPUTS: HDMI output for the video wall.
-
LOOP OUT: Loop out the HDMI A/B signal to a local display connected to each output.
-
INPUTS: Connect HDMI source devices such as a DVD player or gaming console with an HDMI cable.
-
Power LED indicator: The power LED will illuminate when the unit is powered on.
-
INPUT LED indicators: The LED will illuminate when the corresponding HDMI input port is connected to an active HDMI source device.
-
LOOP LED indicators: The LED will illuminate when the corresponding LOOPOUT port is connected to an HDMI display device.
-
OUTPUT LED Indicators: The LED will illuminate when the corresponding HDMI output port is connected to an HDMI display device.
- Dual HDMI loop outs
- Sturdy, metal case construction)
- Supports CEC control through PC Tool or line commands
- Easily upgradable firmware
- 2.0 channel, 5.1 channel, LPCM, Dolby, AC3, and DTS audio
- Video wall resolutions up to 3840x2160@60Hz
- Baud rate: 57600, data bit: 8, Stop bit: 1, no parity
- Loop out the HDMI A/B signal for devices connected to each output
- 1x Ultra HD Video Wall Processor
- 1x 12V/3A Power Adapter
- 1x 5-pin Phoenix Connector
- 2x 3-pin Phoenix Connector
4K UHD HDMI Video Wall Processor/Switcher with IP/Audio/RS-232
Introducing the BG-UHD-VW24 HDMI 2.0 video wall controller from BZBGEAR, an innovative solution for all your video wall processing needs. This powerful controller features 2 HDMI inputs and 2 HDMI loop outs, as well as 4 HDMI scaling outputs, providing seamless and efficient video processing.
With support for resolutions up to 3840x2160@60Hz, this HDMI 2.0 device ensures stunning video quality and optimal viewing experience. The BG-UHD-VW24 also supports HDCP 2.2, ensuring that it is fully compatible with the latest content protection standards.
One of the unique features of the BG-UHD-VW24 is its ability to compensate for bezels in two modes, allowing for optimal display of content across multiple displays. Ability to control resolutions of the output displays and configure the brightness, contrast, saturation, and sharpness of each output further enhancing the viewing experience. Additionally, the controller provides the flexibility of 180° display rotation.
The BG-UHD-VW24 is controllable via PC software, webGUI, and RS232, giving users the freedom to choose the most convenient control option. The device also includes a de-embedding audio feature, which allows audio to be sent to an Analog L/R audio output via 3.5mm Stereo Jack or a balanced audio output port using a 5-pin phoenix connector.
Overall, the BG-UHD-VW24 video wall controller from BZBGEAR is an excellent choice for anyone looking for a reliable, efficient, and versatile video processing solution. Whether you're in the digital signage business or require video processing to improve your entertainment systems, the BG-UHD-VW24 is the perfect choice.
INTERFACES
4K UHD HDMI Video Wall Processor/Switcher with IP/Audio/RS-232
Introducing the BG-UHD-VW24 HDMI 2.0 video wall controller from BZBGEAR, an innovative solution for all your video wall processing needs. This powerful controller features 2 HDMI inputs and 2 HDMI loop outs, as well as 4 HDMI scaling outputs, providing seamless and efficient video processing.
With support for resolutions up to 3840x2160@60Hz, this HDMI 2.0 device ensures stunning video quality and optimal viewing experience. The BG-UHD-VW24 also supports HDCP 2.2, ensuring that it is fully compatible with the latest content protection standards.
One of the unique features of the BG-UHD-VW24 is its ability to compensate for bezels in two modes, allowing for optimal display of content across multiple displays. Ability to control resolutions of the output displays and configure the brightness, contrast, saturation, and sharpness of each output further enhancing the viewing experience. Additionally, the controller provides the flexibility of 180° display rotation.
The BG-UHD-VW24 is controllable via PC software, webGUI, and RS232, giving users the freedom to choose the most convenient control option. The device also includes a de-embedding audio feature, which allows audio to be sent to an Analog L/R audio output via 3.5mm Stereo Jack or a balanced audio output port using a 5-pin phoenix connector.
Overall, the BG-UHD-VW24 video wall controller from BZBGEAR is an excellent choice for anyone looking for a reliable, efficient, and versatile video processing solution. Whether you're in the digital signage business or require video processing to improve your entertainment systems, the BG-UHD-VW24 is the perfect choice.
INTERFACES
