Vertical Cable DIN-Rail Modular LGX Optic Fiber Cassette
SKU#: 268-EZM01-1A-05
UPC#:
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
-
Industrial Control Panels: Mount directly alongside PLCs, VFDs, and automation equipment for fiber connectivity in manufacturing environments.
-
Building Automation Systems: Terminate fiber connections for BMS, HVAC controls, and building management networks.
-
Process Control: Provide reliable fiber termination in harsh industrial environments including factories, refineries, and processing plants.
-
Transportation Infrastructure: Deploy in rail, transit, and traffic control systems where DIN-rail mounting is standard.
- Data Centers: Install in equipment racks and cabinets where DIN-rail infrastructure is utilized for fiber distribution.
-
True Industrial Integration – Mounts on standard 35-mm DIN-rail alongside PLCs, terminal blocks, and automation equipment for unified panel design.
-
Fiber and Copper Ready – Accepts LGX adapter plates for fiber or keystone modules for copper, providing true hybrid connectivity.
-
Modular Serviceability – Separate bay and cassette design allows easy access for maintenance, testing, and reconfiguration without disturbing adjacent equipment.
-
Comprehensive Splice Support – Accommodates up to 24 fusion splices with removable fiber management stage for organized terminations.
- Standards Compliant – Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, and GR-769 for assured compatibility in industrial and telecom applications.
-
Select Your Adapter Plate – Choose the appropriate 264-MAP or 264-LAP Series LGX adapter plate for your connector type, or configure with keystone modules.
-
Plan DIN-Rail Space – Ensure adequate DIN-rail length (35 mm width) and clearance depth (150 mm) in your control panel or enclosure.
-
Plan Splice Requirements – If splicing is needed, add 265-HLD01-2B-00 splice holders and 265-SLV01 splice protection sleeves.
- Test After Installation – Verify optical continuity and insertion loss after termination is complete.
- Features+

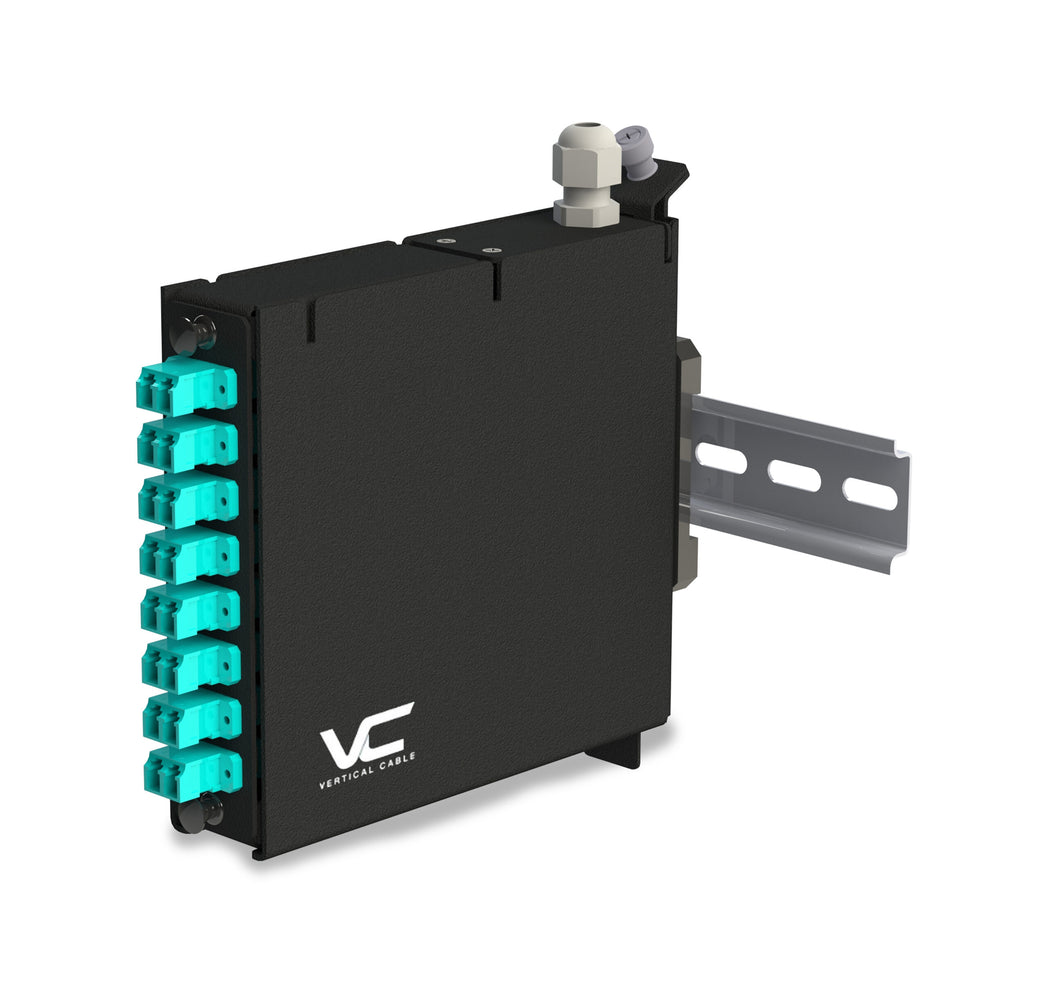

- One-Position LGX Capacity: Holds one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules.
- 35-mm DIN-Rail Mounting: Mounts directly onto standard DIN-rail alongside PLCs, terminal blocks, and automation equipment.

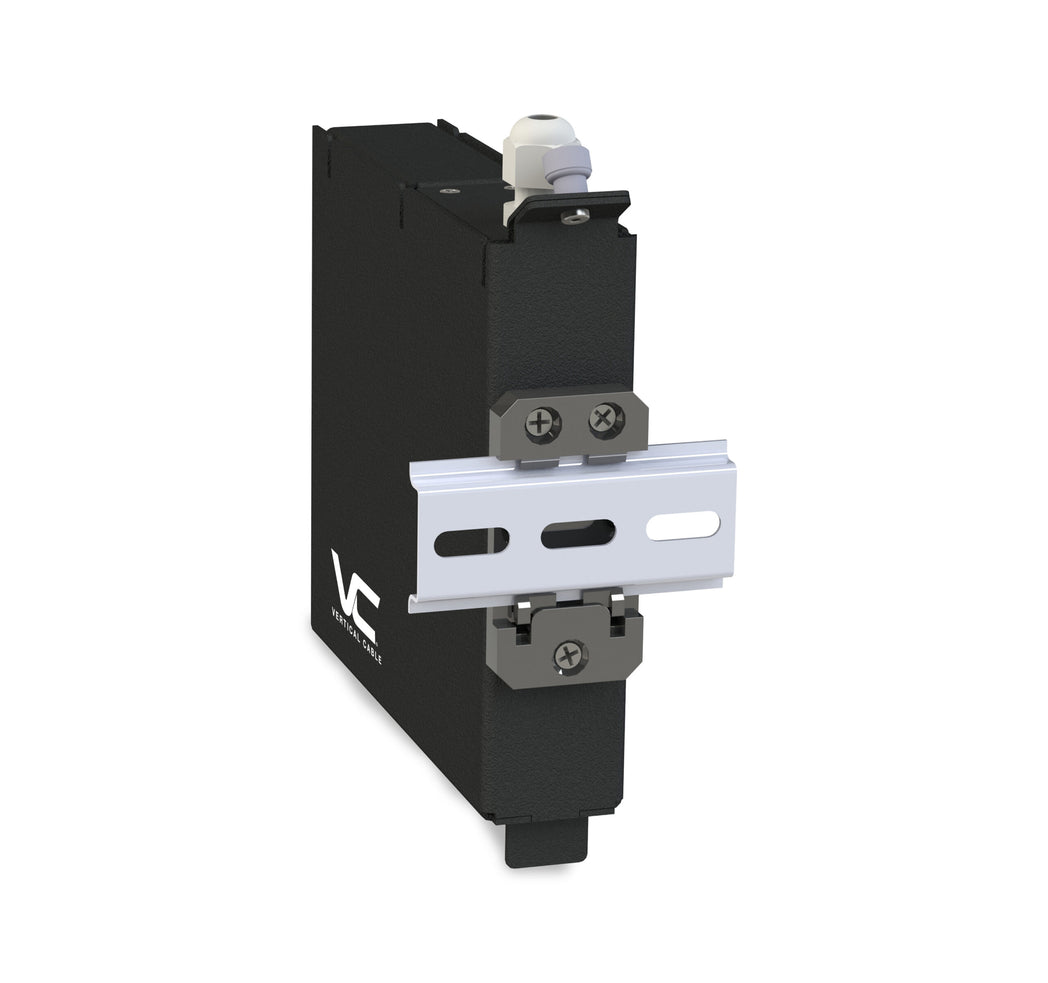

- Detachable DIN-Rail Clip: Spring-loaded latch on fiberglass-reinforced nylon 66 clip ensures secure yet removable installation.
- Durable Construction: Aluminum alloy with black powder-coated finish for lasting durability in industrial environments.

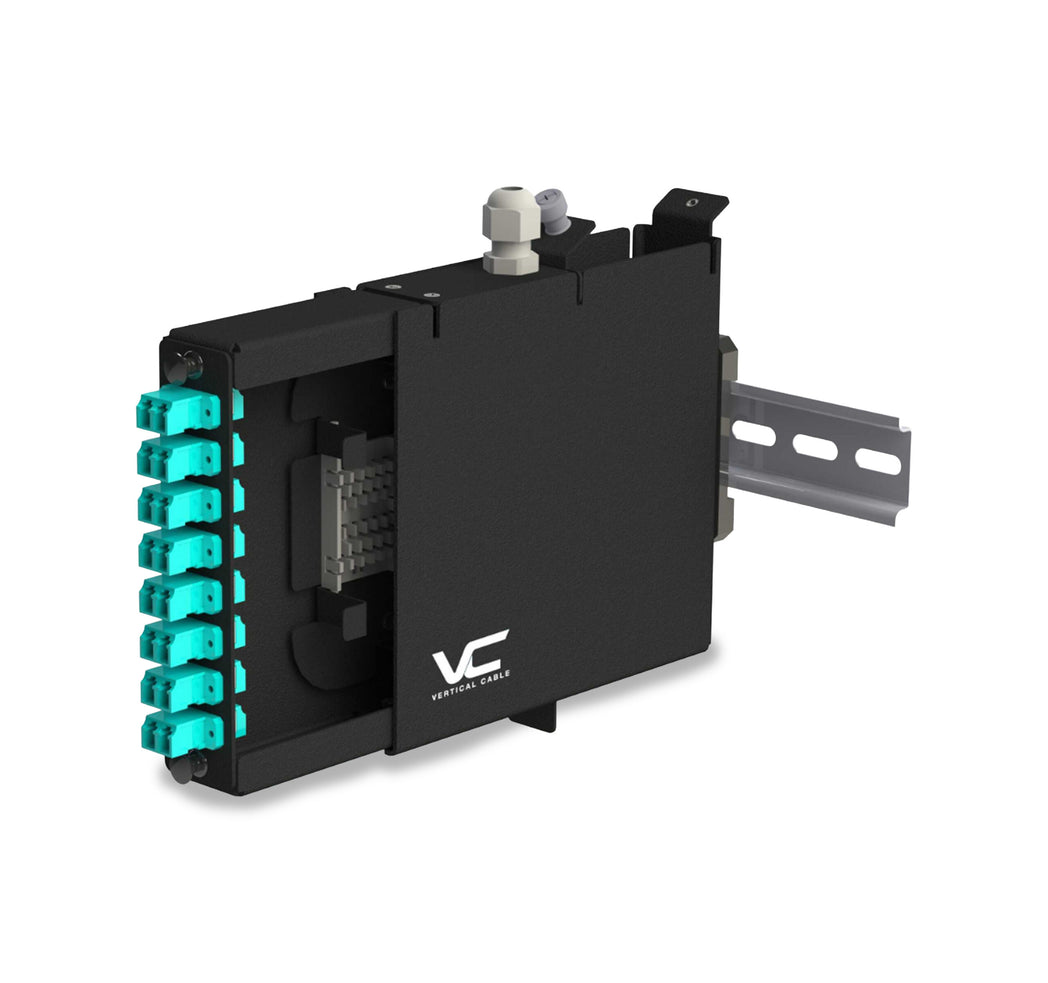

- Comprehensive Cable Management: Cable anchor points (bridge lances), removable fiber/splice management stage, and included cable ties and wraps.
- Splice Capacity: Accommodates 1 or 2 splice holders with up to 24 fibers total (12 fibers per holder).
- Flexible Cable Entry: Includes blank and grommet cable entry adapters; supports 1 or 2 entry point adapters. Other possible cable entry adapters (not included) are: pass-through, MPO, and cable grand adapter types. (Full list of cable entry adapters and corresponding part numbers are included in the spec sheet).

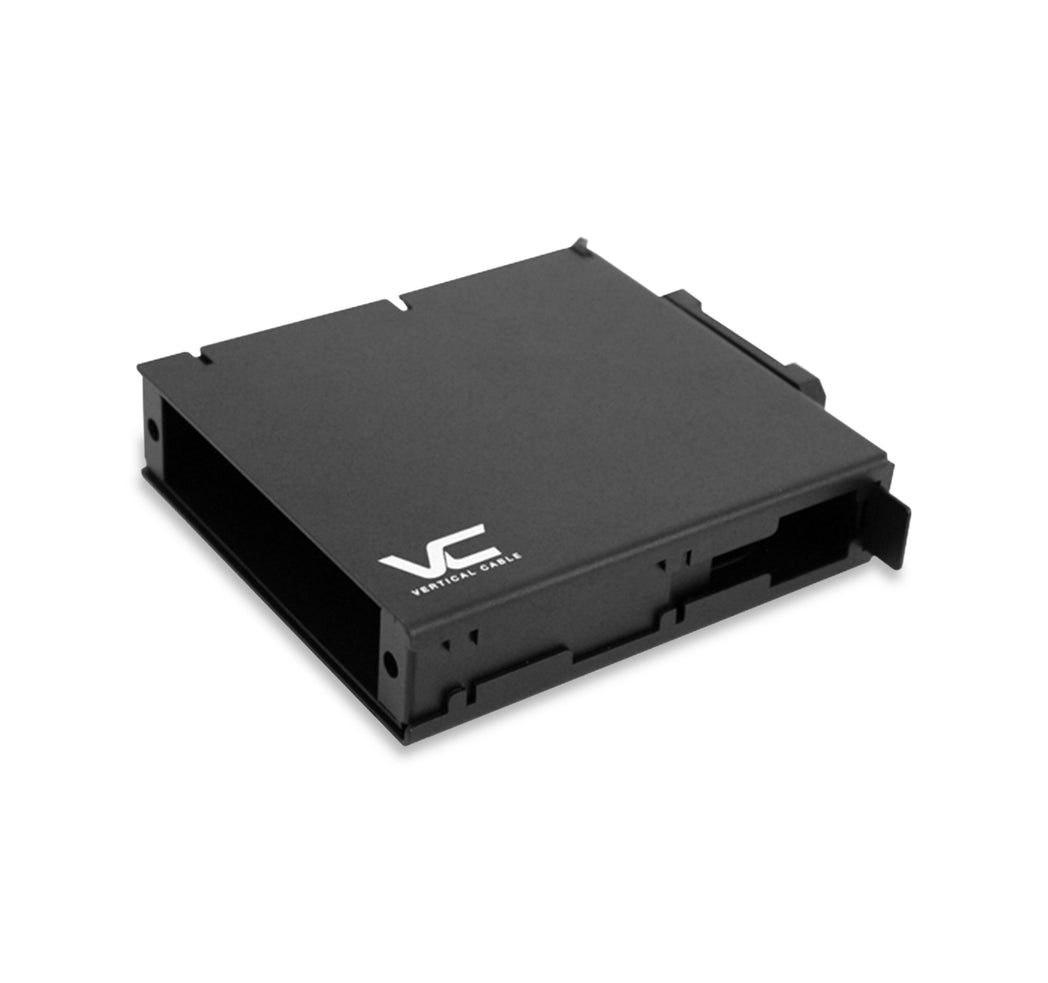

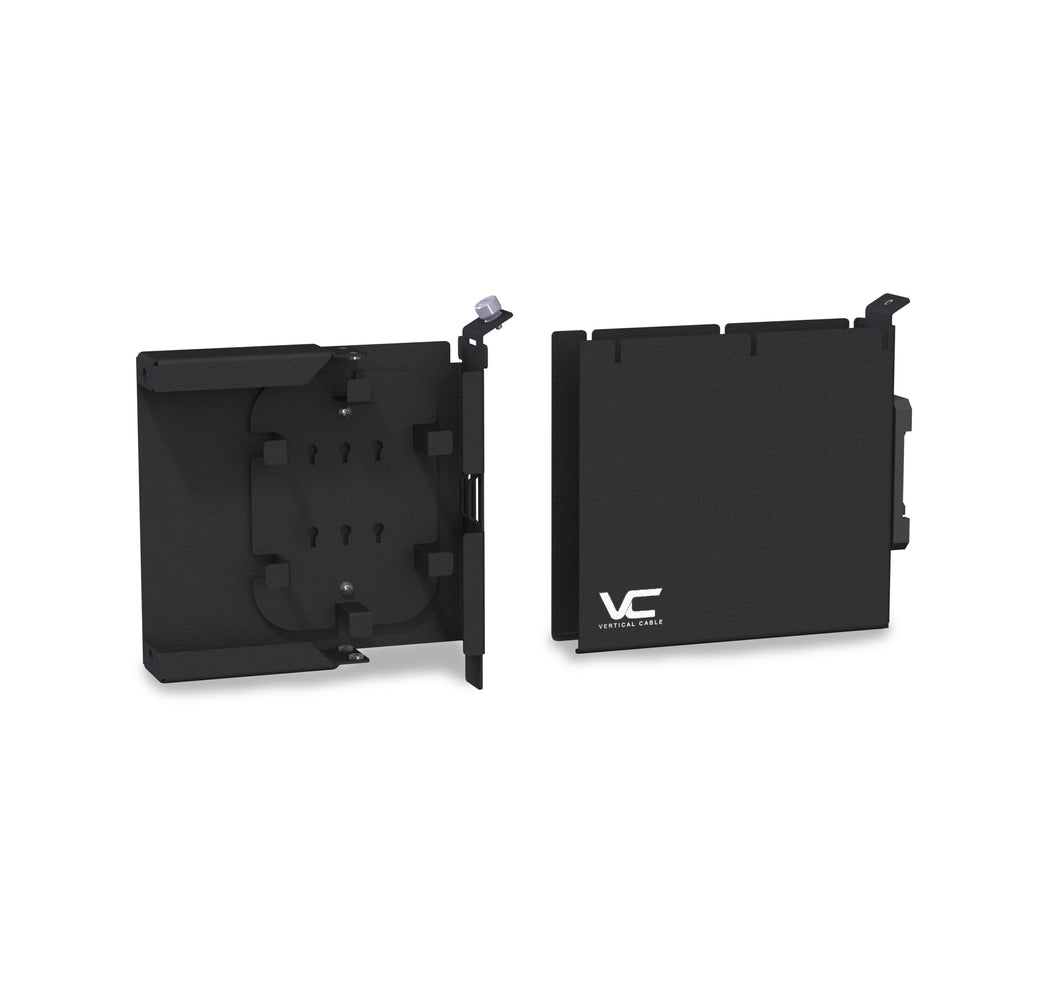

- Modular Bay and Cassette Design: Separate bay and cassette components allow easy access and maintenance.
- Wide Operating Range: Performs reliably from -10°C to +60°C (14°F to 140°F) at up to 93% RH non-condensing.
- Industry Compliant: Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, GR-769, and RoHS2 standards.
- Specs+
- Reviews+
-
Industrial Control Panels: Mount directly alongside PLCs, VFDs, and automation equipment for fiber connectivity in manufacturing environments.
-
Building Automation Systems: Terminate fiber connections for BMS, HVAC controls, and building management networks.
-
Process Control: Provide reliable fiber termination in harsh industrial environments including factories, refineries, and processing plants.
-
Transportation Infrastructure: Deploy in rail, transit, and traffic control systems where DIN-rail mounting is standard.
- Data Centers: Install in equipment racks and cabinets where DIN-rail infrastructure is utilized for fiber distribution.
-
True Industrial Integration – Mounts on standard 35-mm DIN-rail alongside PLCs, terminal blocks, and automation equipment for unified panel design.
-
Fiber and Copper Ready – Accepts LGX adapter plates for fiber or keystone modules for copper, providing true hybrid connectivity.
-
Modular Serviceability – Separate bay and cassette design allows easy access for maintenance, testing, and reconfiguration without disturbing adjacent equipment.
-
Comprehensive Splice Support – Accommodates up to 24 fusion splices with removable fiber management stage for organized terminations.
- Standards Compliant – Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, and GR-769 for assured compatibility in industrial and telecom applications.
-
Select Your Adapter Plate – Choose the appropriate 264-MAP or 264-LAP Series LGX adapter plate for your connector type, or configure with keystone modules.
-
Plan DIN-Rail Space – Ensure adequate DIN-rail length (35 mm width) and clearance depth (150 mm) in your control panel or enclosure.
-
Plan Splice Requirements – If splicing is needed, add 265-HLD01-2B-00 splice holders and 265-SLV01 splice protection sleeves.
- Test After Installation – Verify optical continuity and insertion loss after termination is complete.
- One-Position LGX Capacity: Holds one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules.
- 35-mm DIN-Rail Mounting: Mounts directly onto standard DIN-rail alongside PLCs, terminal blocks, and automation equipment.
- Detachable DIN-Rail Clip: Spring-loaded latch on fiberglass-reinforced nylon 66 clip ensures secure yet removable installation.
- Durable Construction: Aluminum alloy with black powder-coated finish for lasting durability in industrial environments.
- Comprehensive Cable Management: Cable anchor points (bridge lances), removable fiber/splice management stage, and included cable ties and wraps.
- Splice Capacity: Accommodates 1 or 2 splice holders with up to 24 fibers total (12 fibers per holder).
- Flexible Cable Entry: Includes blank and grommet cable entry adapters; supports 1 or 2 entry point adapters. Other possible cable entry adapters (not included) are: pass-through, MPO, and cable grand adapter types. (Full list of cable entry adapters and corresponding part numbers are included in the spec sheet).
- Modular Bay and Cassette Design: Separate bay and cassette components allow easy access and maintenance.
- Wide Operating Range: Performs reliably from -10°C to +60°C (14°F to 140°F) at up to 93% RH non-condensing.
- Industry Compliant: Meets IEC/EN 60715, DIN 43880, ANSI/TIA-568.3-D, GR-769, and RoHS2 standards.
DIN-Rail Modular LGX Optic Fiber Cassette
DIN-Rail Modular LGX Optic Fiber Cassette, Mountable universal cassette, compatible with standard LGX-format adapter plates
Supplied as a kit:

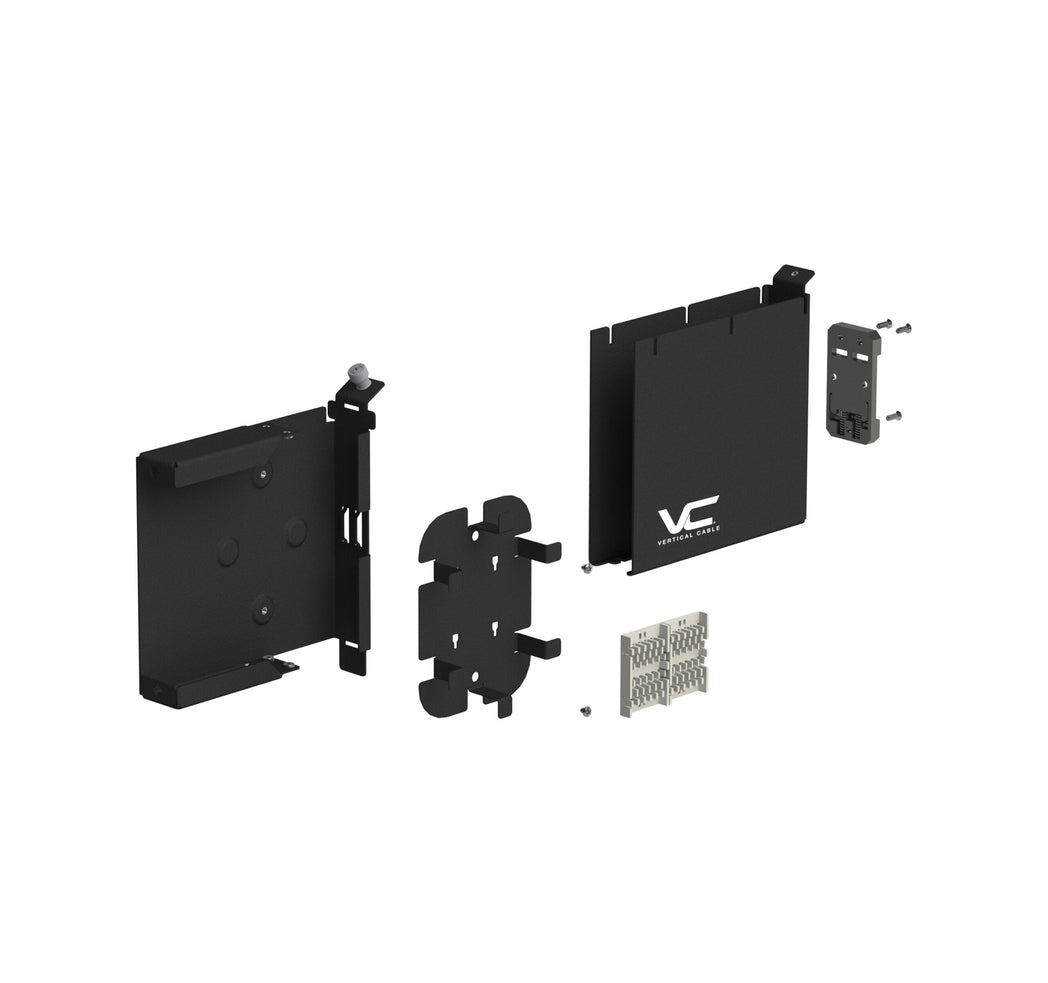

Bay x 1, Cassette x 1, FM stage x 1, DIN-Rail Clip x 1, Blank cable entry adapter x 1, Medium grommet cable entry adapter x 1, Identification label x 1, Cable Tie x 2.
Each unit is recommended to be ordered with a choice of two cable entry adapters (see accessories below), which provide specific options for cable entry, fixation, or connection.
The 268-EZM01-1A-05 is a DIN-rail modular cassette designed for fiber termination in industrial control panels, automation systems, and equipment enclosures. This din-rail modular cassette accommodates one LGX adapter plate supporting up to 24 optical fibers or up to 6 keystone modules, providing flexible connectivity options directly on standard 35-mm DIN-rail.
APPLICATIONS
The 268-EZM01-1A-05 DIN-rail modular cassette excels in industrial and commercial fiber termination scenarios:
WHY CHOOSE THE 268-EZM01-1A-05 DIN-RAIL MODULAR CASSETTE?
Professionals choose the 268-EZM01-1A-05 because it brings professional fiber termination directly into industrial control environments. Here are 5 reasons to specify it for your next project:
WHAT’S NEXT?
Once you’ve specified the 268-EZM01-1A-05 for your project:
