BZBGEAR 4K 18Gbps HDMI Extender with Bi-directional IR over a Single Cat5e/6 up to 165ft
SKU#: BG-EXH-50C
UPC#:850009357922
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps bandwidth
- Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters
- Supports one HDMI loop output
- Supports one-way IR pass-through
- Specs+
- Package Contents+
- 1xHDMI 18Gbps Extender (Transmitter)
- 1xHDMI 18Gbps Extender (Receiver)
- 1xIR Blaster cable (1.5 meters)
- 1x20~60KHz IR Receiver cable (1.5 meters)
- 1x12V/1A Locking Power adapter
- Reviews+
- HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
- Supports 18Gbps bandwidth
- Supports input and output video resolution up to 4k2k@60Hz 4:4:4, extends distance up to 164ft / 50 meters
- Supports one HDMI loop output
- Supports one-way IR pass-through
- 1xHDMI 18Gbps Extender (Transmitter)
- 1xHDMI 18Gbps Extender (Receiver)
- 1xIR Blaster cable (1.5 meters)
- 1x20~60KHz IR Receiver cable (1.5 meters)
- 1x12V/1A Locking Power adapter
Note: This product has been discontinued and replaced by BG-EXH-70C.
BG-EXH-50C provides 4K@60Hz (4:4:4) with HDR support extending your HDMI signal streaming at 18Gbps utilizing HDMI 2.0 ports along with HDCP 2.2. The Signal transmission can reach up to 165ft/50 meters via CAT5e/6 without any loss or degradation of video or audio quality.
The extender feature single direction IR and separation which considers source control and one HDMI circle yield. The unit also offers a convenient HDMI Loop out for a local display, HDMI Splitter or Switcher.
With so many valuable features, this HDMI Extender is a perfect choice for a variety of applications requiring signal extensions up to 165ft of distance as well the capability of powering either the Transmitter or Receiver for power over CAT5e/6.
| Technical | ||
| HDMI Compliance | HDMI 2.0 | |
| HDCP Compliance | HDCP 2.2 / HDCP 1.4 | |
| Video Bandwidth | 18Gbps | |
| Video Resolution | Up to 4K60Hz 4:4:4 | |
| Color Space | RGB / YCbCr 4:4:4, YCbCr 4:2:2/4:2:0, YUV 4:4:4 | |
| Color Depth | 8/10/12-bit (1080P60Hz, 4K30Hz, 4K60Hz YCbCr 4:2:2/4:2:0) 8-bit (4K60Hz 4:4:4 ) | |
| HDMI Audio Formats | LPCM 2.0/2.1/5.1/6.1/7.1, Dolby Digital, Dolby TrueHD, Dolby Digital Plus(DD+), DTS-ES, DTS HD Master, DTS HD-HRA, DTS-X | |
| ESD Protection | Human body model — ±8kV (Air-gap discharge) &±4kV (Contact discharge) | |
| Connections | ||

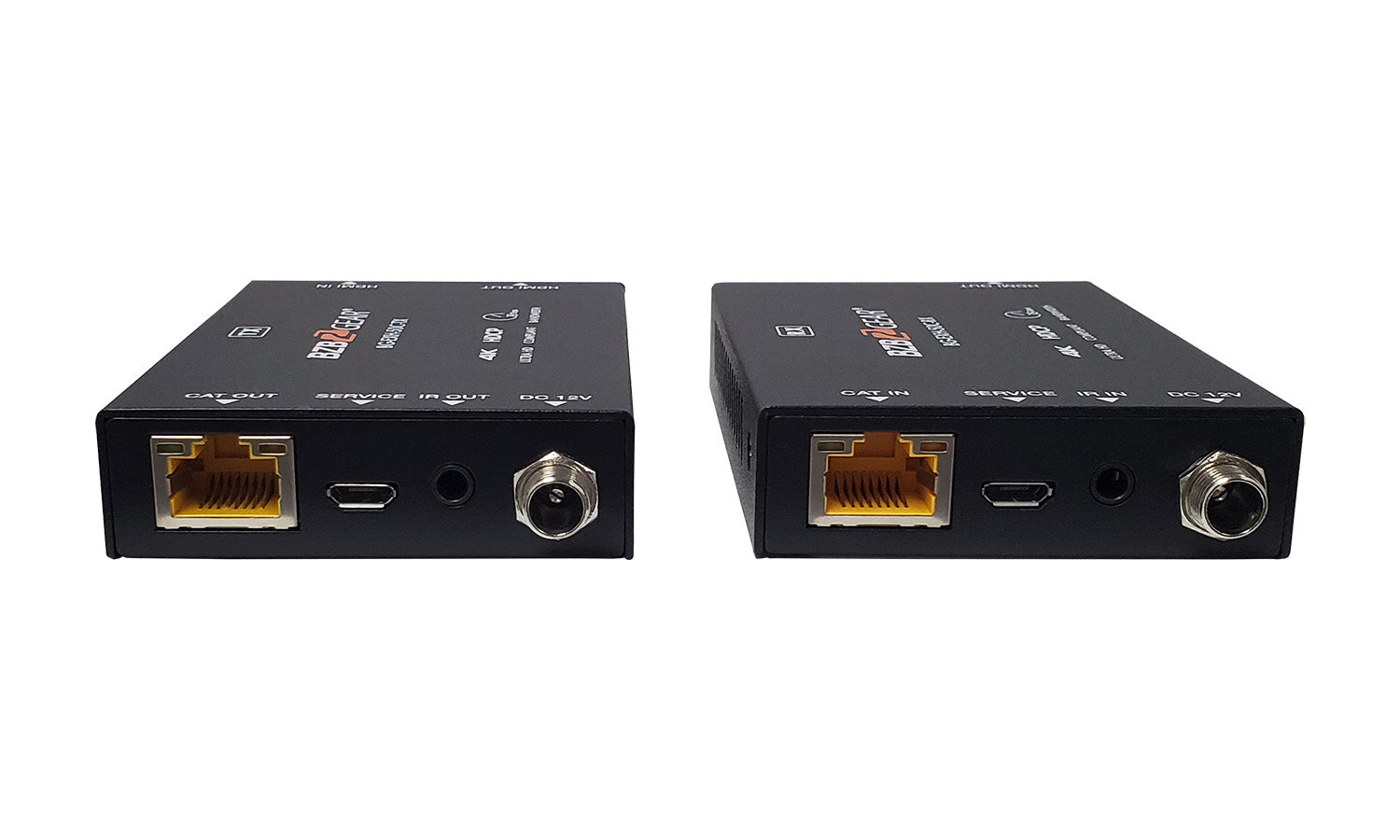

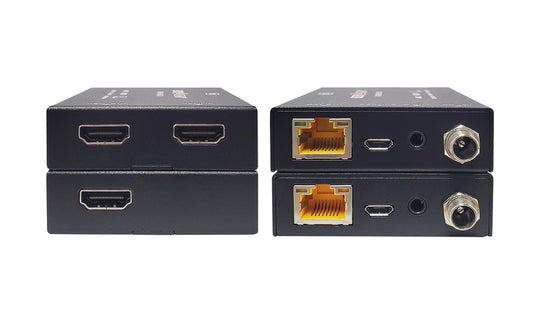

| Transmitter | Inputs: 1x HDMI Type A [19-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] 1x IR OUT [3.5mm Stereo Mini-jack] 1x CAT OUT [RJ45, 8-pin female] | |
| Receiver | Inputs: 1x IR IN [3.5mm Stereo Mini-jack] 1x CAT IN [RJ45, 8-pin female] 1x SERVICE [Micro USB, Update port] Outputs: 1x HDMI Type A [19-pin female] | |
| Mechanical | ||
| Housing | Metal Enclosure | |
| Color | Black | |
| Dimensions | Transmitter / Receiver: 61mm [W] x 88mm [D] x 18mm [H] | |
| Weight | Transmitter: 160g, Receiver: 155g | |
| Power Supply | Input: AC 100 - 240V 50/60Hz Output: DC 12V/1A | |
| Power Consumption | 3.84 W | |
| Operating Temperature | 32 - 104°F / 0 - 40°C | |
| Storage Temperature | -4 - 140°F / -20 - 60°C | |
| Relative Humidity | 20 - 90% RH (no condensation) | |
| Resolution / Distance | 4K60 - Feet / Meters | 4K30 / 1080P - Feet / Meters |
| CAT5e | 164ft / 50M | 164ft / 50M |
| CAT6/6a/7 | 197ft / 60M | 230ft / 70M |
| HDMI IN/OUT | 10ft / 3M | 30ft / 10M |
| The use of “Premium High Speed HDMI” cable is highly recommended. | ||
