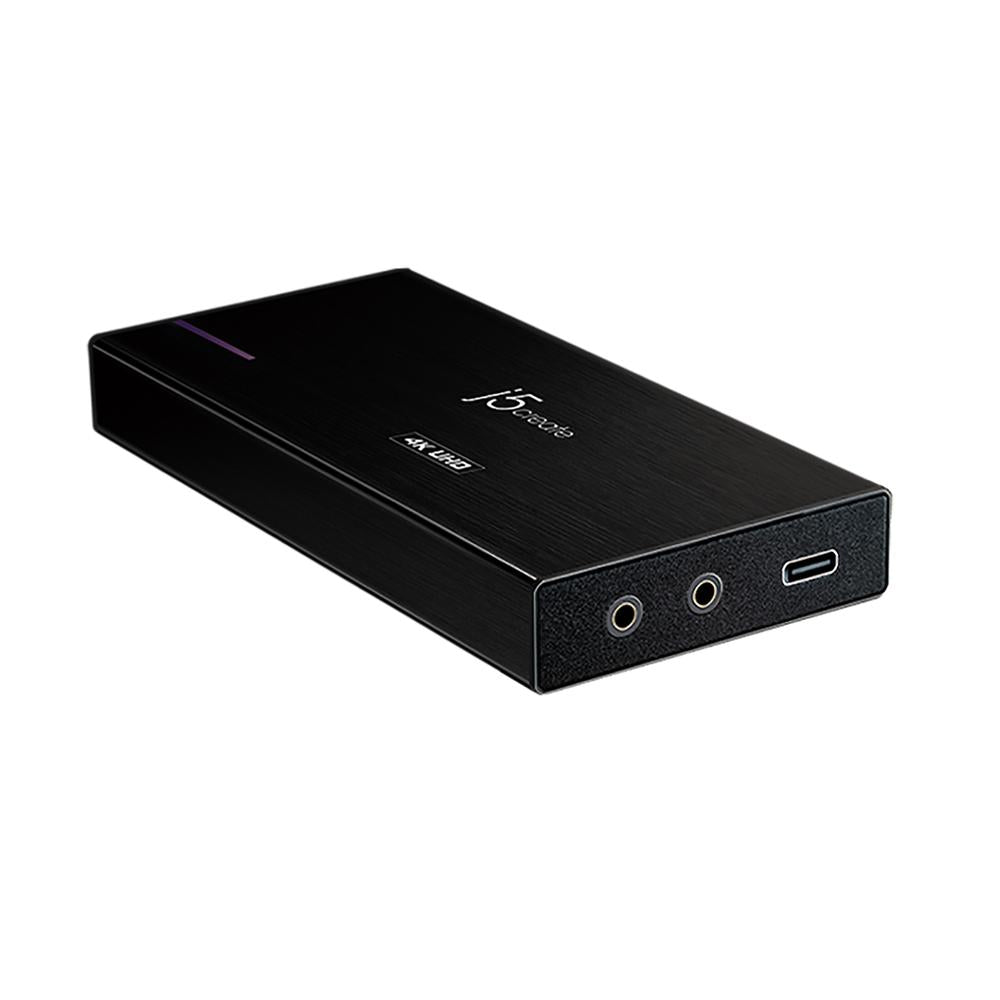

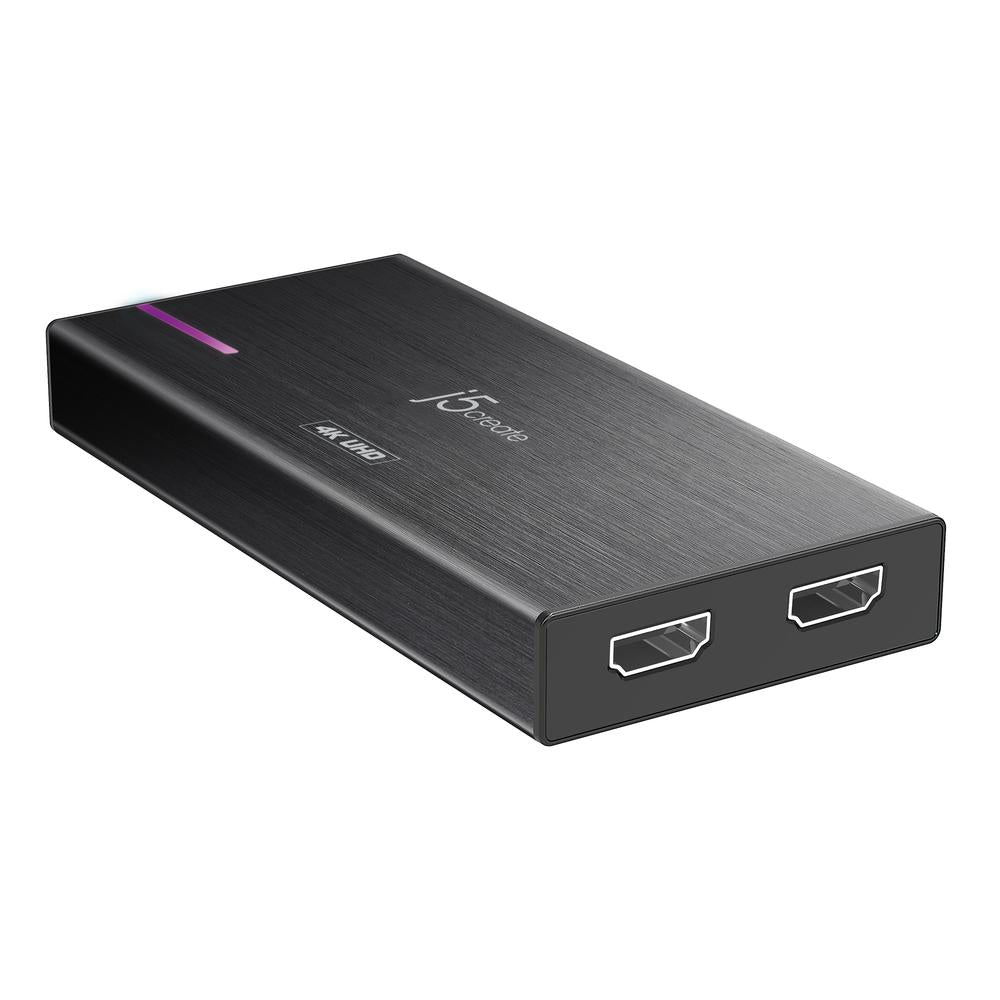

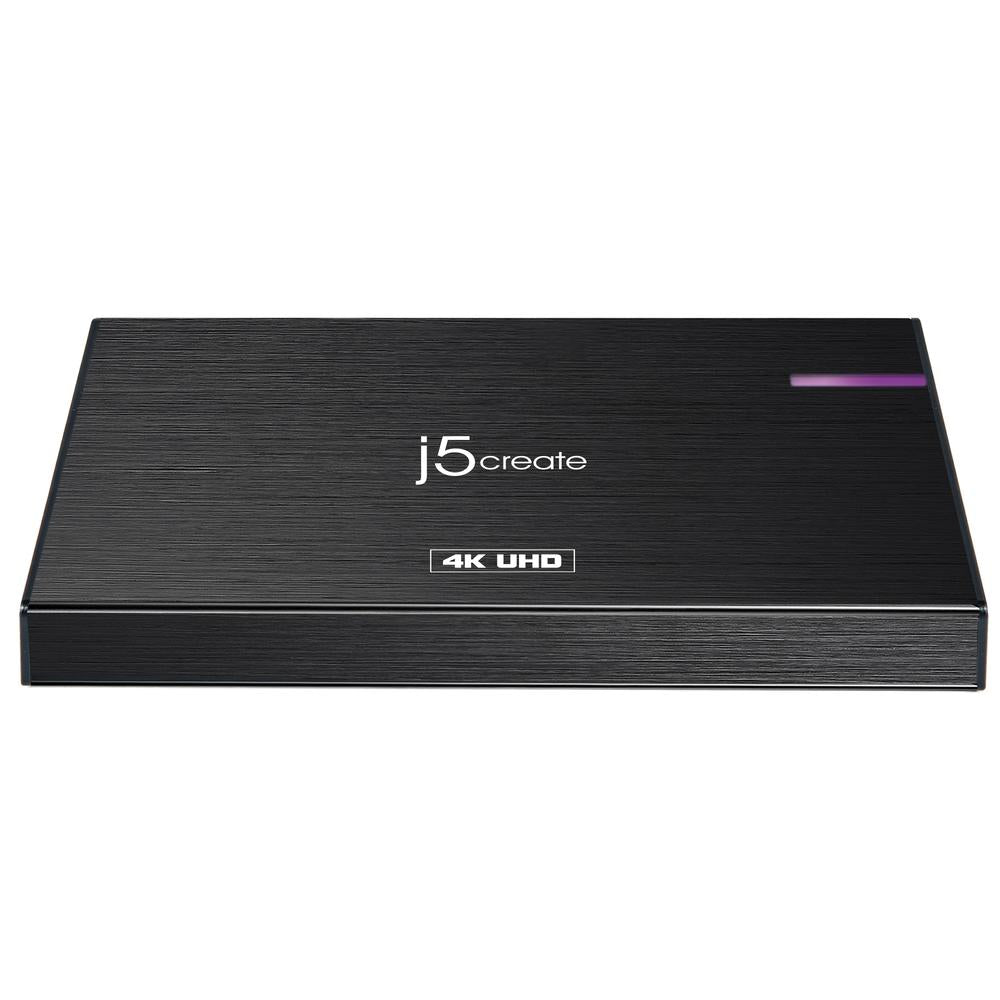

j5create JVA04 HDMI to USB Type-C Game Capture Station

SKU#: JVA04

UPC#: 847626003011

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: JVA04

UPC#:847626003011
$149.99

SKU#: JVA04

UPC#:847626003011

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

  • Description+
  • j5create HDMI to USB Type-C Game Capture Station

    The j5create Game Capture Station, the JVA04, supports 1080p @ 60 fps Full HD video capturing with 4K @ 60 fps input and pass-through. Easily run on your Windows or Mac OS laptop/desktop with no driver needed.

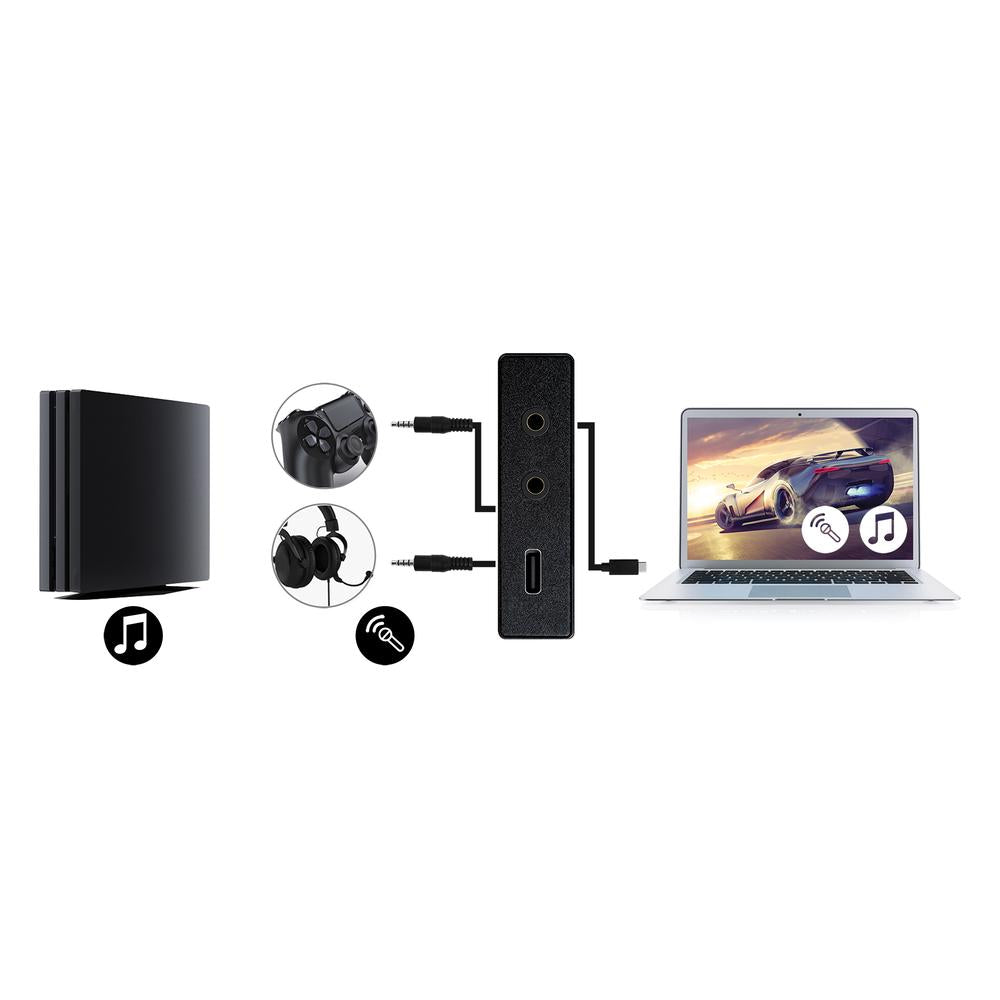

    Supports live commentary streaming and party chat voice mix from PS4/PS4 Pro or Xbox One/Xbox One X and Mic in. It is compatible with OBS and other video editing software, perfect for assisting quick, live video editing.

    System Requirements

    • Available USB-C® port (USB™ 3.1/3.0 is recommended)
    • Windows® 7 or later (Driver installation is required on Windows® 7)
    • macOS® X 10.10 or later
    • Linux® Ubuntu 14.04 or later
    • Android™ 7.0 and higher
    • CPU: Intel® Core™ i5 Gen 4, 3 GHz & above
    • CPU: Intel® Core™ i7 Gen 4 & above
    • RAM: 4 GB memory or higher (8 GB is recommended)
  • Features+
    • 4K pass-through support (4K @ 60 fps)
    • Capture resolution up to 1080p @ 60 fps
    • Audio recording mixed – 3.5 mm Aux and Mic-in
    • Supports party chat voice for newer consoles
    • Driver free on Windows® and macOS®
    • Low power consumption with high performance
    • Free j5create capture software allows you to capture and stream games on your PC or notebook
    • Aluminum design and LED light
  • Specs+
    • Audio Input: 1 - 3.5mm AUX
    • Audio Output: 1 - 3.5mm AUX
    • Audio SwitcherN/AHost Connector: 1 - USB-C® 3.1 Female

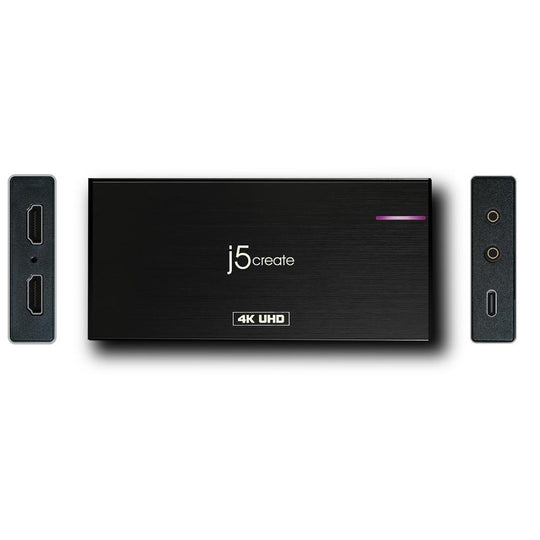

    • Ports:
      • 1 - USB-C® 3.1 Gen 1
      • 1 - HDMI™ Input
      • 1 - HDMI™ Output
      • 1 - Audio In (3.5 mm)
      • 1 - Mic In (3.5 mm)
    • Power Source: Bus-powered
    • Video Input: 1 - HDMI™ Female
    • Video Output: 1 - HDMI™ Female
    • Video Switcher: N/A
    • Performance: Audio Channel2.1 via HDMI™
    • Audio Frequency: 48 kHz
    • Compressions:
      • USB™ 3.0: MJPEG/YUV 4:2:2
      • USB™ 2.0: MJPEG
    • Encode Format: MP4, MJPEG, H.264 / AVC + AACX
    • Hdr Supported: No
    • Headset: 2.1 Stereo
    • Max Display Refresh Rate: 60 Hz
    • Microphone: Stereo microphone supported 24-bit sigma-delta ADC
    • Supported Resolution - Input: 1920 x 1080
    • Supported Resolution - Output: 3840 x 2160
  • Package Contents+
    • JVA04 HDMI to USB Type-C Game Capture Station
    • USB Type-C to Type A 3.0 cable 3.3 ft/1m
    • Audio cable 4.9 ft/1.5m
    • HDMI 2.0 cable 3.3 ft/1m
    • Quick Installation Guide
  • Reviews+
  • j5create HDMI to USB Type-C Game Capture Station

    The j5create Game Capture Station, the JVA04, supports 1080p @ 60 fps Full HD video capturing with 4K @ 60 fps input and pass-through. Easily run on your Windows or Mac OS laptop/desktop with no driver needed.

    Supports live commentary streaming and party chat voice mix from PS4/PS4 Pro or Xbox One/Xbox One X and Mic in. It is compatible with OBS and other video editing software, perfect for assisting quick, live video editing.

    System Requirements

    • Available USB-C® port (USB™ 3.1/3.0 is recommended)
    • Windows® 7 or later (Driver installation is required on Windows® 7)
    • macOS® X 10.10 or later
    • Linux® Ubuntu 14.04 or later
    • Android™ 7.0 and higher
    • CPU: Intel® Core™ i5 Gen 4, 3 GHz & above
    • CPU: Intel® Core™ i7 Gen 4 & above
    • RAM: 4 GB memory or higher (8 GB is recommended)
    • 4K pass-through support (4K @ 60 fps)
    • Capture resolution up to 1080p @ 60 fps
    • Audio recording mixed – 3.5 mm Aux and Mic-in
    • Supports party chat voice for newer consoles
    • Driver free on Windows® and macOS®
    • Low power consumption with high performance
    • Free j5create capture software allows you to capture and stream games on your PC or notebook
    • Aluminum design and LED light
    • Audio Input: 1 - 3.5mm AUX
    • Audio Output: 1 - 3.5mm AUX
    • Audio SwitcherN/AHost Connector: 1 - USB-C® 3.1 Female
    • Ports:
      • 1 - USB-C® 3.1 Gen 1
      • 1 - HDMI™ Input
      • 1 - HDMI™ Output
      • 1 - Audio In (3.5 mm)
      • 1 - Mic In (3.5 mm)
    • Power Source: Bus-powered
    • Video Input: 1 - HDMI™ Female
    • Video Output: 1 - HDMI™ Female
    • Video Switcher: N/A
    • Performance: Audio Channel2.1 via HDMI™
    • Audio Frequency: 48 kHz
    • Compressions:
      • USB™ 3.0: MJPEG/YUV 4:2:2
      • USB™ 2.0: MJPEG
    • Encode Format: MP4, MJPEG, H.264 / AVC + AACX
    • Hdr Supported: No
    • Headset: 2.1 Stereo
    • Max Display Refresh Rate: 60 Hz
    • Microphone: Stereo microphone supported 24-bit sigma-delta ADC
    • Supported Resolution - Input: 1920 x 1080
    • Supported Resolution - Output: 3840 x 2160
    • JVA04 HDMI to USB Type-C Game Capture Station
    • USB Type-C to Type A 3.0 cable 3.3 ft/1m
    • Audio cable 4.9 ft/1.5m
    • HDMI 2.0 cable 3.3 ft/1m
    • Quick Installation Guide
