Description+

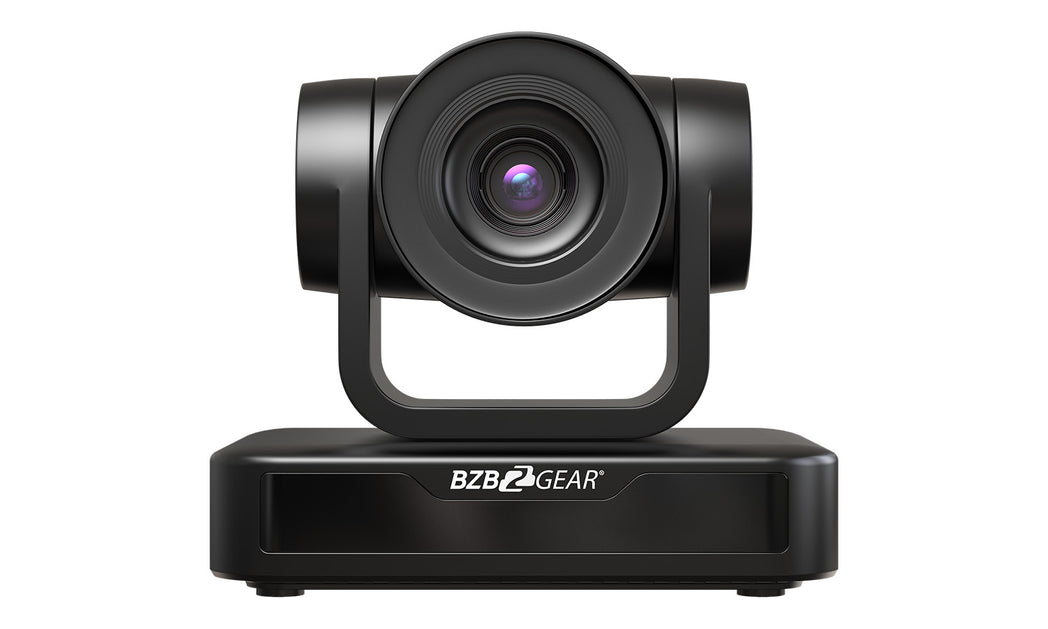

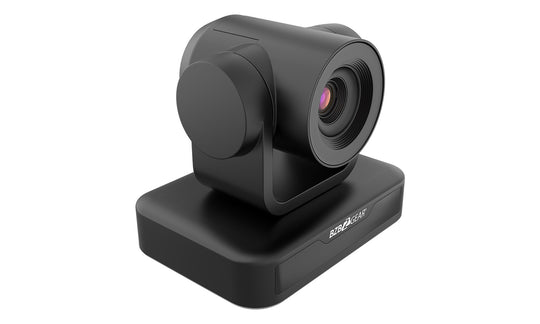

BZBGEAR BG-BPTZ camera combines a high-quality lens with an advanced ISP processing algorithm to provide high-quality video and smooth motion. BG-BPTZ supports H.264/H.265 encoding, which keeps motion video fluid and clear even under low bandwidth conditions.
BG-BPTZ is ideal for any meeting spaces and conference rooms. It offers simple, clean connectivity from the back of the camera to PCs at the meeting table. The camera is universally compatible with any PC using the standard USB video driver.
The BG-BPTZ is ideal for distance learning and collaboration, as well as recording lectures.
Features+
- Full HD Image: 1/2.8 inch high quality CMOS sensor. Resolution is up to 1920x1080 with frame rate up to 30fps
- Superb Auto Focus: Latest auto focusing algorithms resulting in quick, accurate, and stable focus
- Control: Cascadable RS232/485 (VISCA/Pelco) + 255 preset positions
- Extremely Quiet PTZ: Step drive motor mechanism and precision motor drive controller ensure PTZ works smoothly with no noise
- Zoom: Available in 3x/10x Optical zoom + 10x Digital
Specs+
| Model Number |
BG-BPTZ-3XU |
BG-BPTZ-10XU |
| View Angle |
34.1° ~ 85° |
8.8° ~ 66° |
| F Value |
f=3.35mm ~ 10.05mm |
f=4.34mm ~ 41.66mm |
| AV |
F1.7 ~ 3.0 |
F1.85 – F2.43 |
| Optical Zoom |
3X |
10X |
| Camera Parameters |
| Image Sensor |
1/2.9 Inch High Quality CMOS Sensor |
| Effective Pixels |
2.07MP, 16:9 |
| Video Format |
1920×1080P@30 fps/25fps; 1280×720P@30fps/25fps; 1024×576P@30fps/25fps; 960×540P@30fps/25fps; 800×448P@30fps/25fps; 640×360P@30fps/25fps; 320×176P@30fps/25fps |
| Low Illumination |
0.5Lux (F1.8, AGC ON) |
| DNR |
2D&3DDNR |
| White Balance |
Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus |
Auto/Manual/One Push |
| Electronic Shutter |
Auto/Manual |
| BLC |
On/Off |
| WDR |
OFF/Dynamic Level Adjustment |
| Video Adjustment |
Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |
| SNR |
>55dB |
| Interface and Protocol |
| Video Output |
USB2.0. Type A |
| Video Compression |
H.265, H.264, MJPG |
| Control Port |
RS232 in & out, RS485 |
| Control Protocol |
VISCA/Pelco-D/Pelco-P |
| Power Supply |
HEC3800 Outlet (DC12V) |
| USB characteristics |
| Support operating system |
Windows 7, Windows8, Windows10, Mac OS, Linux |
| Video Compression |
H.265, H.264, MJPG |
| USB communication protocol |
UVC |
| PTZ Parameter |
| Pan/Tile Rotation |
-170° ~ +170° / -30° ~ +30° |
| Pan/Tile Controller Speed |
0.1 ~ 60°/Second, 0.1 ~ 30°/Second |
| Preset Speed |
Pan: 60°/Second, Tilt: 30°/Second |
| Preset Numbers |
255 Presets (10 presets on IR Remote) |
| Other Parameter |
| Working Voltage |
12V |
| Working current |
0.25A(max) |
| Power Consumption |
2.5W(max) |
| Storage Temperature |
-10°C ~ +60°C , 20% ~ 95% |
| Working Temperature |
-10°C ~ +50°C, 20% ~ 80% |
| Dimension |
156.8mm×112.6mm×139.5mm |
| Weight |
1KG |
| Usage |
Indoor Only |
| Package |
12V/1.5A Power supply, Remote Controller, Manual, USB2.0 Cable |
| Accessories Optional |
Mount (Extra Cost) |
Package Contents+
- 1x Camera
- 1x 12V/1.5A Power supply
- 1x Remote Control
- 1x USB2.0 Cable
- 1x User Manual
