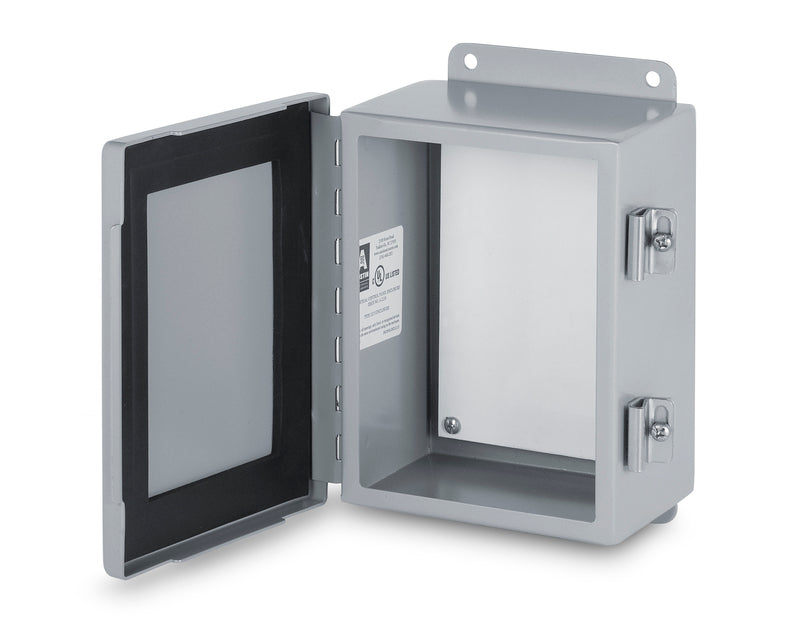

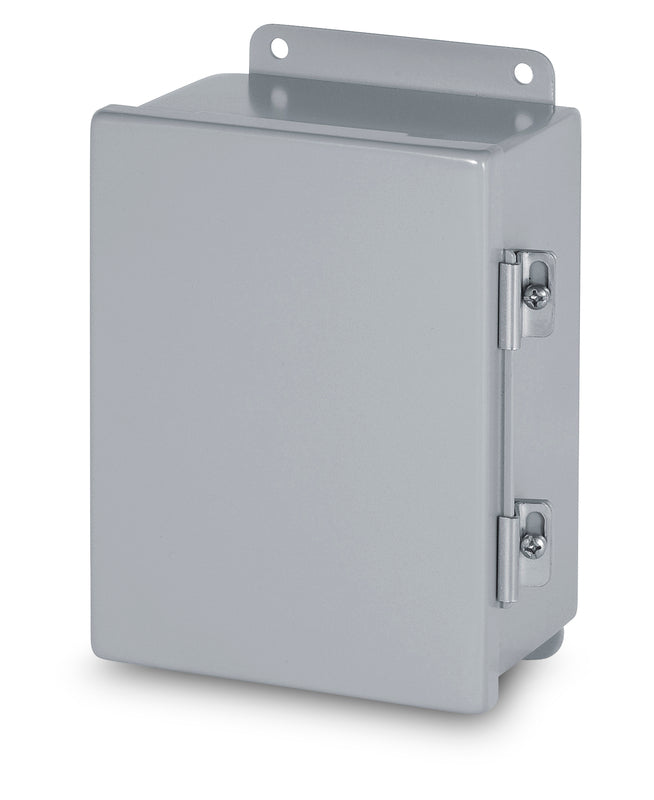

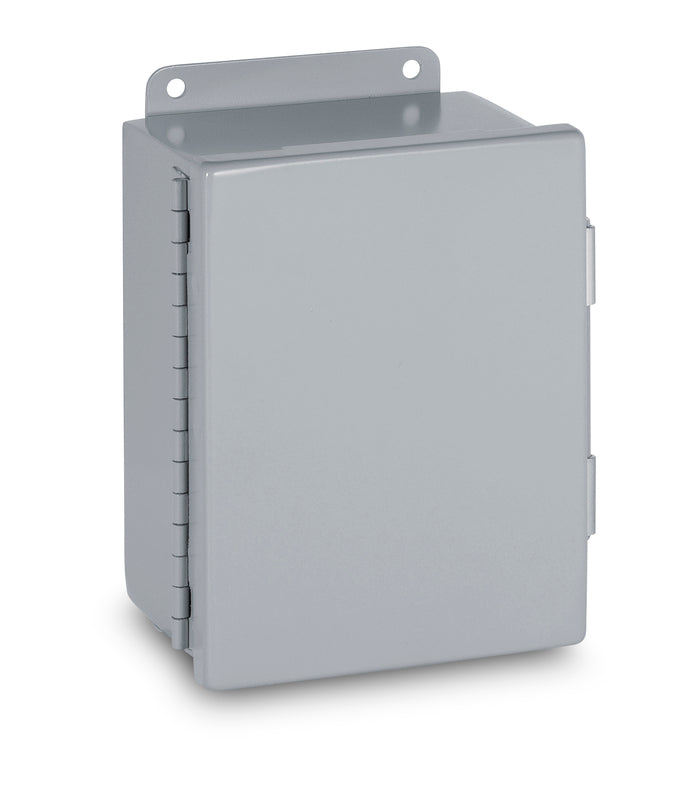

Austin AB-12126JH 12x12x6 Type 12 JIC Continuous Hinge Box - Painted ANSI 61 Gray

SKU#: AB-12126JH

UPC#:707353007020

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: AB-12126JH

UPC#:707353007020
$118.27

SKU#: AB-12126JH

UPC#:707353007020

SKU#: AB-12126JH

UPC#:707353007020

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Description

Austin JIC Continuous Hinge (JH) boxes are Underwriters Laboratories Listed and are designed for use as electrical junction boxes, terminal wiring boxes, and instruments housing. They provide a degree of protection against dust, dirt, spraying of water, oil, and noncorrosive liquids.

Finish

Austin JIC Continuous Hinge boxes are provided standard with an ANSI 61 gray polyester powder coating. Optional panels are painted white.

Construction

Fabricated in accordance with UL specifications from 14 gauge steel. Continuously welded seams ground smooth. Neoprene gasket attached to cover with oil resistant adhesive. Cover held in place by continuous hinge on one side and stainless steel external screw clamps on opposite side. External mounting feet. Enclosures that are 6x4x3 and over have stand-offs provided for mounting optional panel or terminal kit.

Features+

  • Special finishes
  • Custom size or construction

Specs+

Reviews+

Description

Austin JIC Continuous Hinge (JH) boxes are Underwriters Laboratories Listed and are designed for use as electrical junction boxes, terminal wiring boxes, and instruments housing. They provide a degree of protection against dust, dirt, spraying of water, oil, and noncorrosive liquids.

Finish

Austin JIC Continuous Hinge boxes are provided standard with an ANSI 61 gray polyester powder coating. Optional panels are painted white.

Construction

Fabricated in accordance with UL specifications from 14 gauge steel. Continuously welded seams ground smooth. Neoprene gasket attached to cover with oil resistant adhesive. Cover held in place by continuous hinge on one side and stainless steel external screw clamps on opposite side. External mounting feet. Enclosures that are 6x4x3 and over have stand-offs provided for mounting optional panel or terminal kit.

  • Special finishes
  • Custom size or construction
