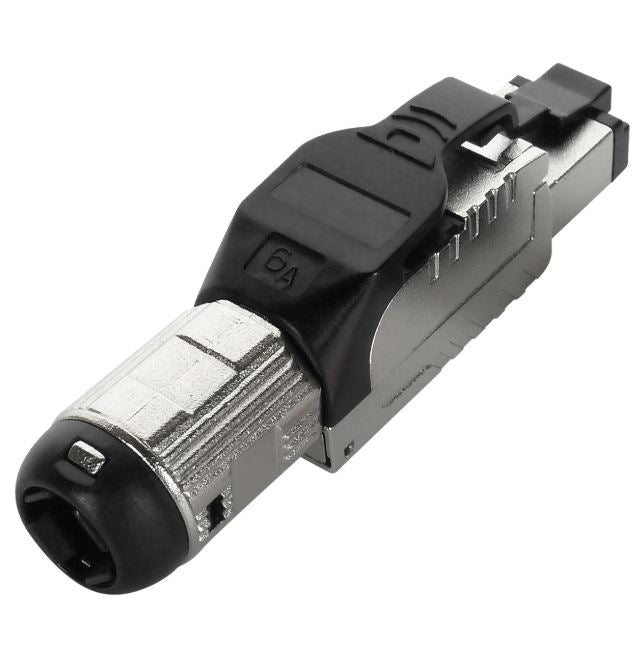

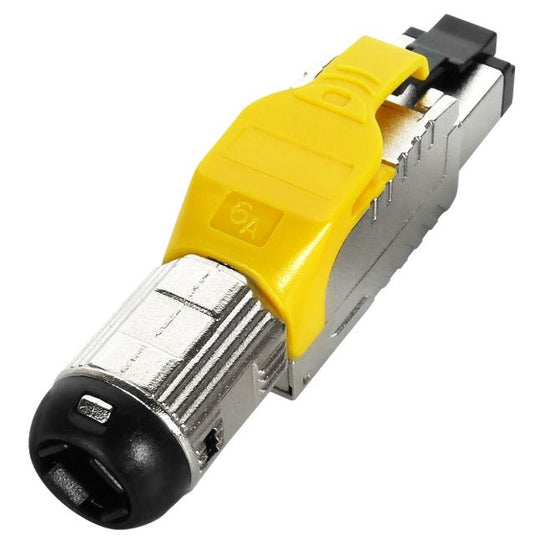

Cat6a Field Terminable Plug for Solid / Stranded Wire Cable, 23-26AWG, 6.0-7.5mm OD

SKU#: CAT6A-FLD-PLUG-BLK

UPC#: 683828992339

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: CAT6A-FLD-PLUG-BLK

UPC#:683828992339
$8.90

SKU#: CAT6A-FLD-PLUG-BLK

UPC#:683828992339
Color:

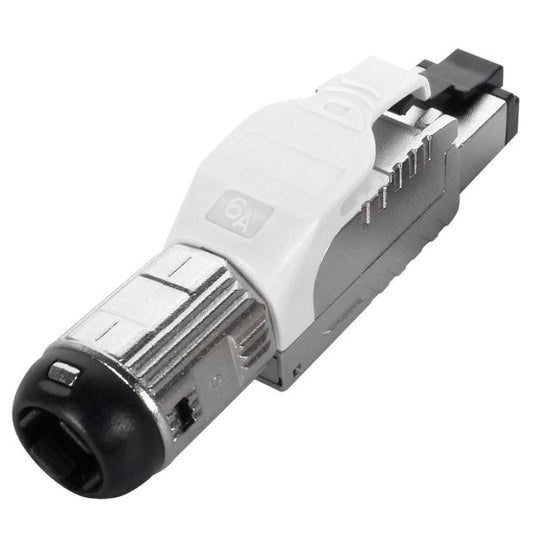

Black

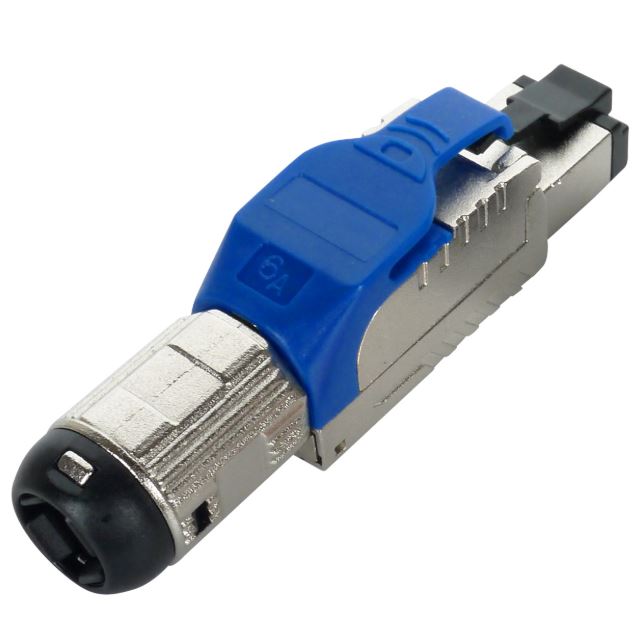

Blue

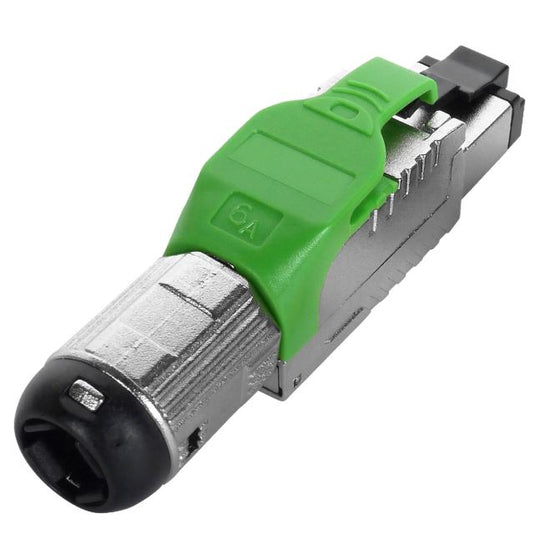

Green

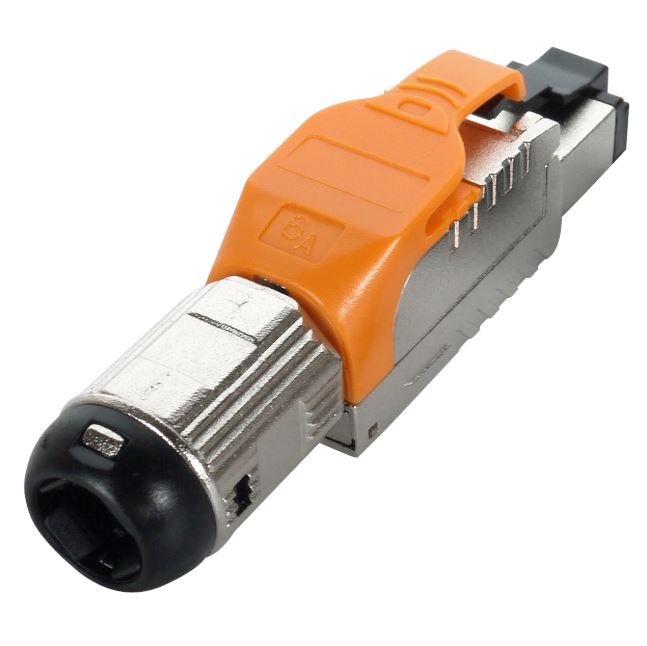

Orange

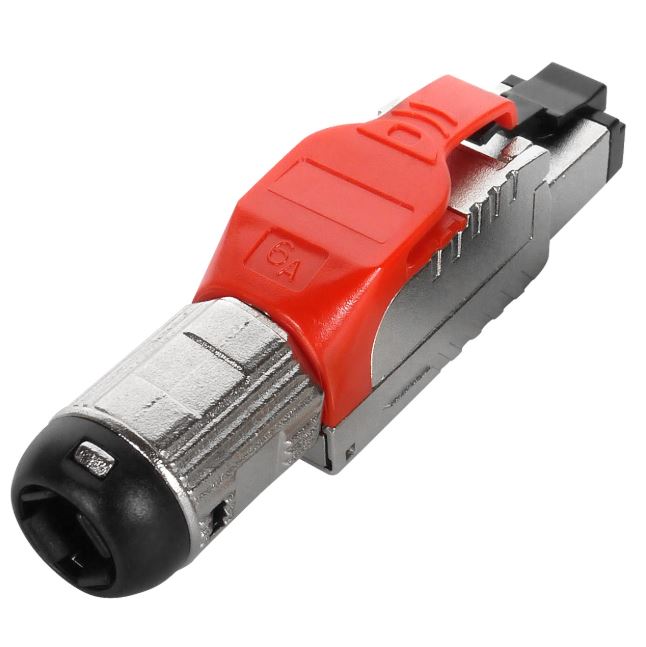

Red
White
Yellow

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • Cat6a Field Terminable Plugs

    With demand for high bandwidth IP enabled devices growing, such as those used in network video surveillance, IP surveillance cameras, and data centers that require custom length transmissions up to 10Gbps, our Cat6a field terminable plugs provide an efficient and simple solution to terminate Cat6a cables.

    Our field terminable plugs are fully shielded and come with a 25 year warranty when used as an end-to-end copper cabling install. The modular plug supports wire gauges from 23-26AWG and is TAA compliant to meet the U.S. Government's Trade Agreements Act (TAA).

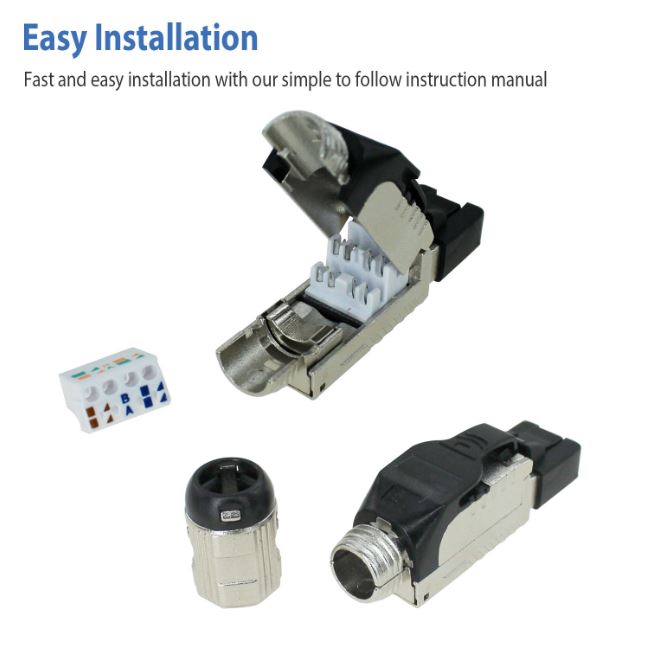

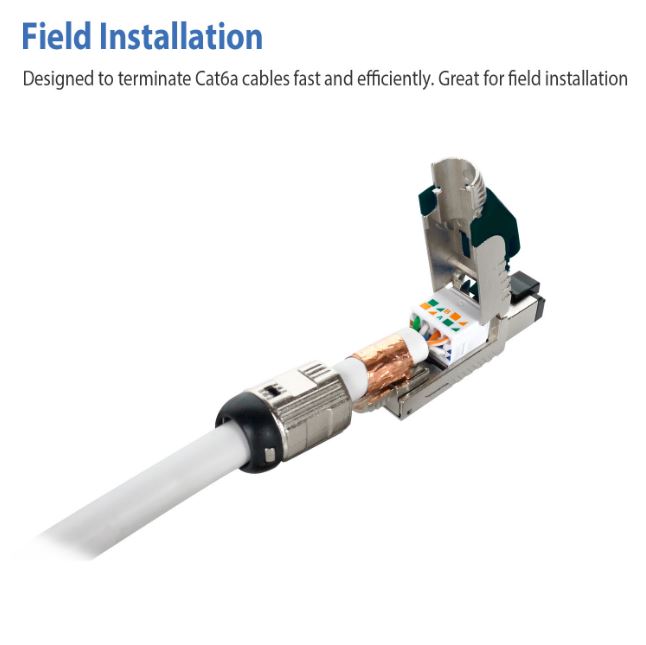

    Hassle Free Termination

    Installation is easy. Insert the Cat6a cable into the boot. Use the copper foil tape and wrap it around the ground wire if necessary. Insert the wires into the wire manager and then into the plug housing to terminate. When used in conjunction with our field terminable crimping tool, the result is a secure and terminated connection that complies with ANSI/TIA-568-C.2 standards.

    Metal Housing

    Metal housing for durability. Different colors available for color coding during field installation.

    23-26AWG, 6.0 to 7.5mm OD

    Supports wire gauges from 23-26AWG with an outer diameter from 6.0 - 7.5mm.

  • Features+
    • For use in 10 Gigabit applications

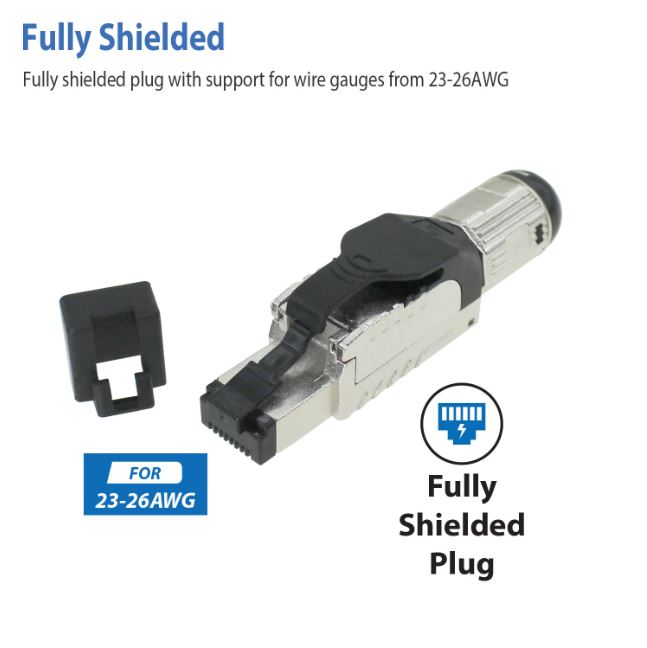

    • Fully shielded with zinc alloy housing
    • Supports wire gauges from 23-26AWG
    • Cable outer diameter: 6.0 to 7.5mm
    • Works with PoE+ (IEEE 802.3at) applications
    • 750 mating cycles
    • Temperature range: 14°F-140°F
    • Complies with ANSI/TIA-568-C.2 standards
  • Specs+
  • Material

    The field terminable plug consists of:

    • Extractor: PC, UL 94V-2
    • Housing: Zinc die-cast with nickel plating
    • RJ45 Plug
    • Cover: Zinc die-cast with nickel plating
    • Wire Management Bar: PC, white color, UL 94V-2
    • IDC
    • Grounding Contact
    • Boot
    • PCB, UL 94V-V0
    • Copper foil tape
    Connector Type Cat6a
    Wiring T568A / T568B wiring
    Wire Gauge 23AWG to 26AWG
    Wire Solid / Stranded
    Cable Outer Diameter 6.0 to 7.5mm
    Housing Zinc die-cast with nickel plating
  • Reviews+
  • Cat6a Field Terminable Plugs

    With demand for high bandwidth IP enabled devices growing, such as those used in network video surveillance, IP surveillance cameras, and data centers that require custom length transmissions up to 10Gbps, our Cat6a field terminable plugs provide an efficient and simple solution to terminate Cat6a cables.

    Our field terminable plugs are fully shielded and come with a 25 year warranty when used as an end-to-end copper cabling install. The modular plug supports wire gauges from 23-26AWG and is TAA compliant to meet the U.S. Government's Trade Agreements Act (TAA).

    Hassle Free Termination

    Installation is easy. Insert the Cat6a cable into the boot. Use the copper foil tape and wrap it around the ground wire if necessary. Insert the wires into the wire manager and then into the plug housing to terminate. When used in conjunction with our field terminable crimping tool, the result is a secure and terminated connection that complies with ANSI/TIA-568-C.2 standards.

    Metal Housing

    Metal housing for durability. Different colors available for color coding during field installation.

    23-26AWG, 6.0 to 7.5mm OD

    Supports wire gauges from 23-26AWG with an outer diameter from 6.0 - 7.5mm.

    • For use in 10 Gigabit applications
    • Fully shielded with zinc alloy housing
    • Supports wire gauges from 23-26AWG
    • Cable outer diameter: 6.0 to 7.5mm
    • Works with PoE+ (IEEE 802.3at) applications
    • 750 mating cycles
    • Temperature range: 14°F-140°F
    • Complies with ANSI/TIA-568-C.2 standards

    Material

    The field terminable plug consists of:

    • Extractor: PC, UL 94V-2
    • Housing: Zinc die-cast with nickel plating
    • RJ45 Plug
    • Cover: Zinc die-cast with nickel plating
    • Wire Management Bar: PC, white color, UL 94V-2
    • IDC
    • Grounding Contact
    • Boot
    • PCB, UL 94V-V0
    • Copper foil tape
    Connector Type Cat6a
    Wiring T568A / T568B wiring
    Wire Gauge 23AWG to 26AWG
    Wire Solid / Stranded
    Cable Outer Diameter 6.0 to 7.5mm
    Housing Zinc die-cast with nickel plating
