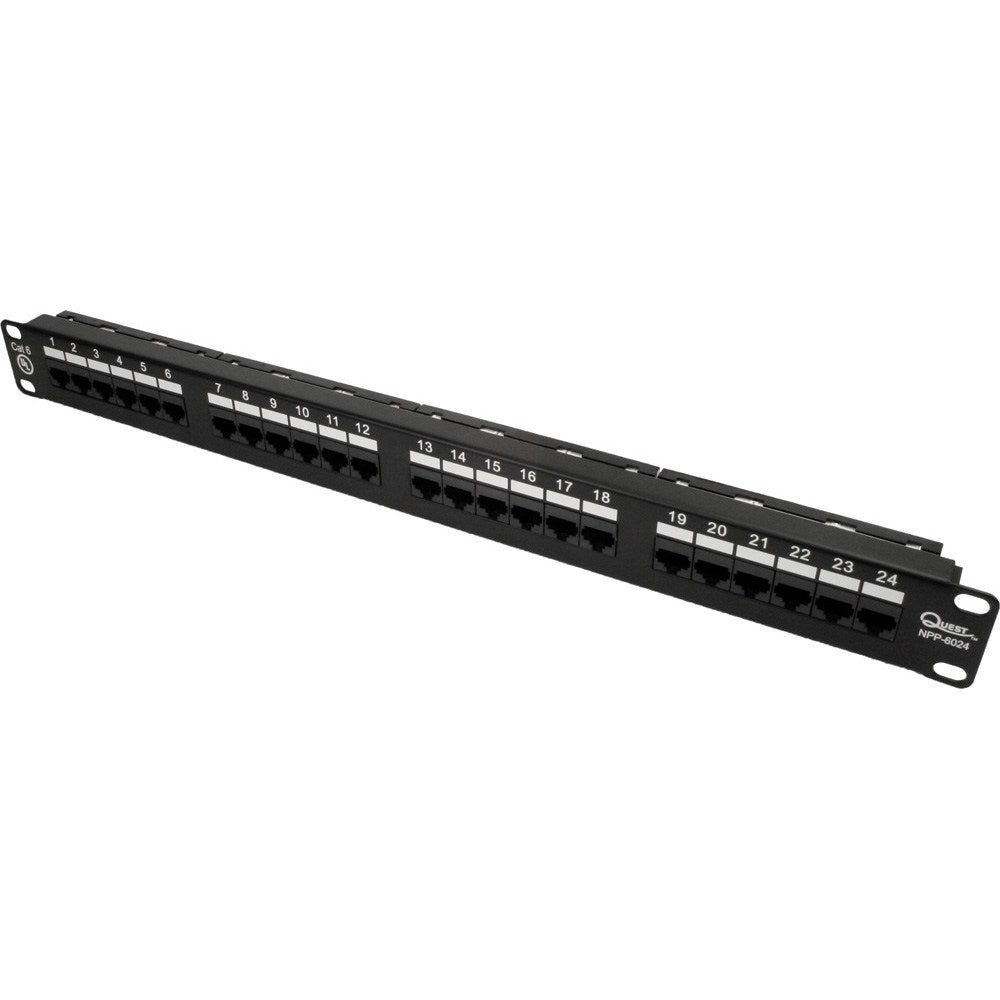

Quest NPP-6024 Cat6 UTP Patch Panel , 24-Port, 19" Rack Mount, 1U

SKU#: NPP-6024

UPC#:800118053673

60 Day Money Back Guarantee

100% Secure Shopping

SKU#: NPP-6024

UPC#:800118053673
$55.08

SKU#: NPP-6024

UPC#:800118053673

SKU#: NPP-6024

UPC#:800118053673

60 Day Money Back Guarantee

100% Secure Shopping

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Description+

Quest Cat6 UTP patch panels are designed for 110 IDC termination of RJ45 UTP jacks wired to ANSI/TIA 568A/B standards. Quest offers rack mount panels in 16, 24 and 48 port versions, a 12-port wall mount with an 89D braket, and high density versions. The Cat6 High-Density patch panels are available in 24-port and 48-port versions, and are designed for the customer with limited rack space allowing up to twice as many ports to be terminated in a a single 1U space.

Features+

  • Built-in Cat6 RJ45 Jacks
  • Available in 16, 24 and 48-port 19ʺ rack mount models, and a 12-port wall mount panel includes 89D wall mount bracket
  • 110 IDC termination to RJ45 UTP jacks wired to ANSI/TIA 568A/B standards

Specs+

Category Cat6
Styles Rack Mount; Wall Mount; High Density Rack Mount
Termination 110 IDC, RJ45 8P8C
Jack Housing Poly Butylene Terephthalare resin high-impact UL94V-2
IDC Housing Polycarbonate resin high-impact UL94V-2
Insertion Life 750 mating cycles
Contact Force 100 grams
Plug Retention Force 11 lbs. min
Durability 200 termination cycles
Contact compatibility 22 to 26 AWG solid / 24 AWG stranded
Compliance UL, RoHS, FCC
Color Black
