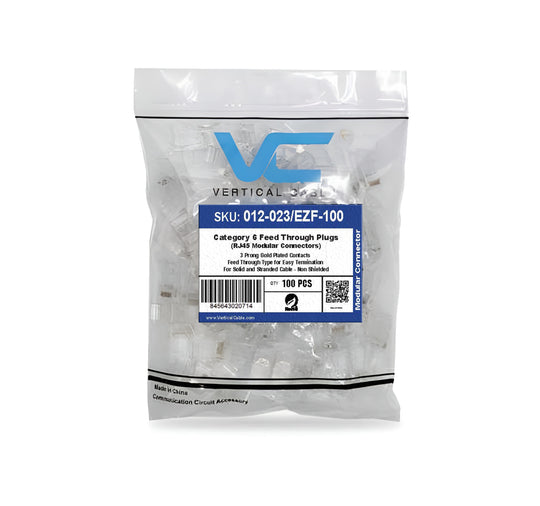

  • Cat6 Feed Through Plugs in Bag
  • Vertical Cable Cat6 RJ45 Modular Feed Through Plug
  • Vertical Cable

Vertical Cable 012-023/EZF-100 Cat6 RJ45 Modular Feed Through Plug

SKU#: 012-023/EZF-100

60 Day Money Back Guarantee

100% Secure Shopping

15-year-warranty15

15 Year Warranty

$45.99

60 Day Money Back Guarantee

100% Secure Shopping

15-year-warranty15

15 Year Warranty

Same Day Shipping on orders placed in the next 00 hours 00 minutes 00 seconds.

Local Pickup May Be Available in Concord, North Carolina for more information..

Description+

The Vertical Cable 012-023/EZF-100 Cat6 RJ45 Modular Feed Through Plug features a fast and easy feed-through design. It's easy to terminate and offers easier sequence verification than with standard RJ45 plugs. Gold plated terminal contacts offer corrosion resistance and optimal signal integrity. Available in bags of 100 pieces.

Features+

  • CAT6 COMPATIBLE. For round solid or stranded Cat6 networking cable.
  • SAVES TIME. Fast and easy to terminate with easier sequence verification than with standard plugs.
  • GOLD PLATED. Terminal contacts are gold-plated, offering corrosion-resistance and increased signal integrity.
  • A YEAR OF REASSURANCE. Comes with the Vertical Cable 1 Year Manufacturer Warranty against defects in workmanship.

Specs+

  • Voltage Rating: 250 VAC RMS
  • Current Rating: 2 Amps
  • Termination Resistance: 35m Ω Max
  • Insulation Resistance: 500m Ω Min. @500V DC
  • Cable to Plug Tensile Strength: 20 lbs
  • Durability: 500 Cycles Min.
  • Housing: Polycarbonate UL94V-2
  • Contact Blade: Gold Plated (3 Prong)
  • Conductor Type: Solid or Stranded Wire
  • Conductor Size: 23AWG
  • Insulation Size: 1.10mm Max
  • 100 Pieces Per Bag
  • UL Listed
  • SPEC SHEET
