Vertical Cable 069-564/A/CMX 1000ft Cat6A Outdoor Solid Network Cable
SKU#: 069-564/A/CMX
UPC#:845643011453
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
-
Outdoor Wireless Access Point Connections
-
IP Security Camera Systems
-
Residential and Commercial Ethernet Networks
- Industrial Outdoor Data Lines
-
Weather-Resistant Build: CMX-rated jacket protects against UV, moisture, and physical wear.
-
High Bandwidth Support: Handles demanding data environments with 10G support over standard lengths.
-
Trusted Performance: Solid bare copper conductors ensure maximum performance and compliance.
-
Flexible Deployment: Suitable for various outdoor applications, including burial, conduit, and pole mount.
-
Efficient Installation: 1000 ft spool saves time on-site and reduces waste.
-
Add Shielded or Unshielded Patch Panels – Complete your network with compatible termination options.
-
Use Outdoor-Rated RJ45 Connectors – Maintain protection from elements and signal integrity.
- Pair with PoE Devices – Power IP cameras or APs without separate power lines.
- Features+
- High-Performance Data Communications Cable Capable of 10GS High-Speed Applications
- CMX UV-Rated for Outdoor Installations
- Easy to Identify Color-Striped Pairs

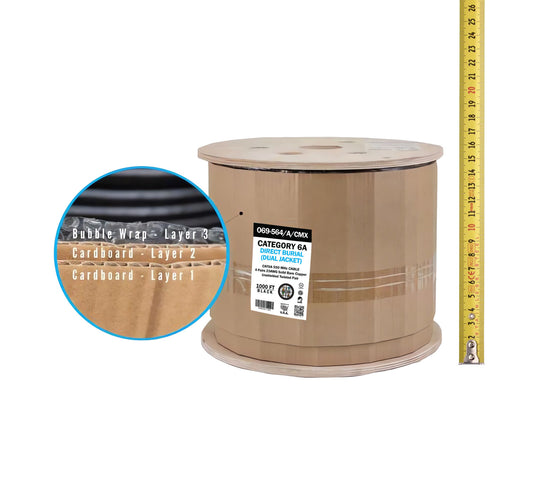

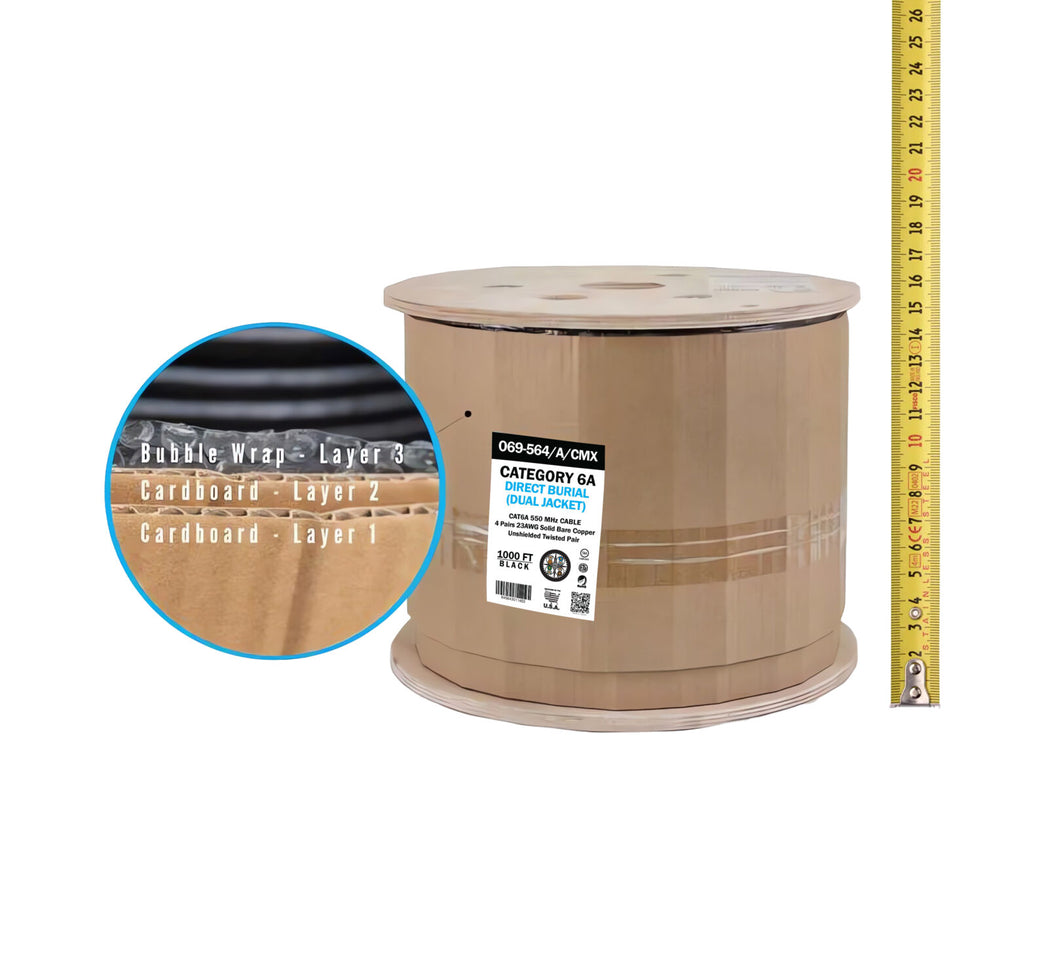

- Delivered on 1000ft Wooden Spool
- Exceeds ANSI EIA/TIA 568-C.2
- 15 Year Manufacturer Limited Warranty
- Please note: This item is excluded from the Free Shipping coupon.
- Specs+
- Rated Temperature: 70oC
- Rated Voltage: 30V
- Flammability Test: IEC-332-1
- Conductor Material: Solid Bare Copper
- Conductor Size: 23AWG
- Insulation Material: PE
- Insulation Diameter (±0.01mm): 1.02mm
- Insulation Separator: LPE
- Twisted Pair Diameter (±0.02mm): 2.04
- Assembly Diameter: 5.20
- Jacket Material: LLDPE
- Jacket Outer Diameter (±0.20mm): 7.60mm
- Rip Cord
- Jacket Color: Black
- Color of Pairs:
- Pair 1: Blue, White-Blue
- Pair 2: Orange, White-Orange
- Pair 3: Green, White-Green
- Pair 4: Brown, White-Brown
- Test Object: Jacket
- Test Material: LLDPE
- Before Tensile Strength (Mpa): >=10.6
- Aging Elongation: >=300
- Aging Condition (oCxhrs): 100x168
- After Tensile Strength (Mpa): >=85% of unaged
- Aging Elongation: >=50% of unaged
- Cold Bend (-20±2oCx4hrs): No Crack
- RoHS Compliant
- Foot Markings on Jacket

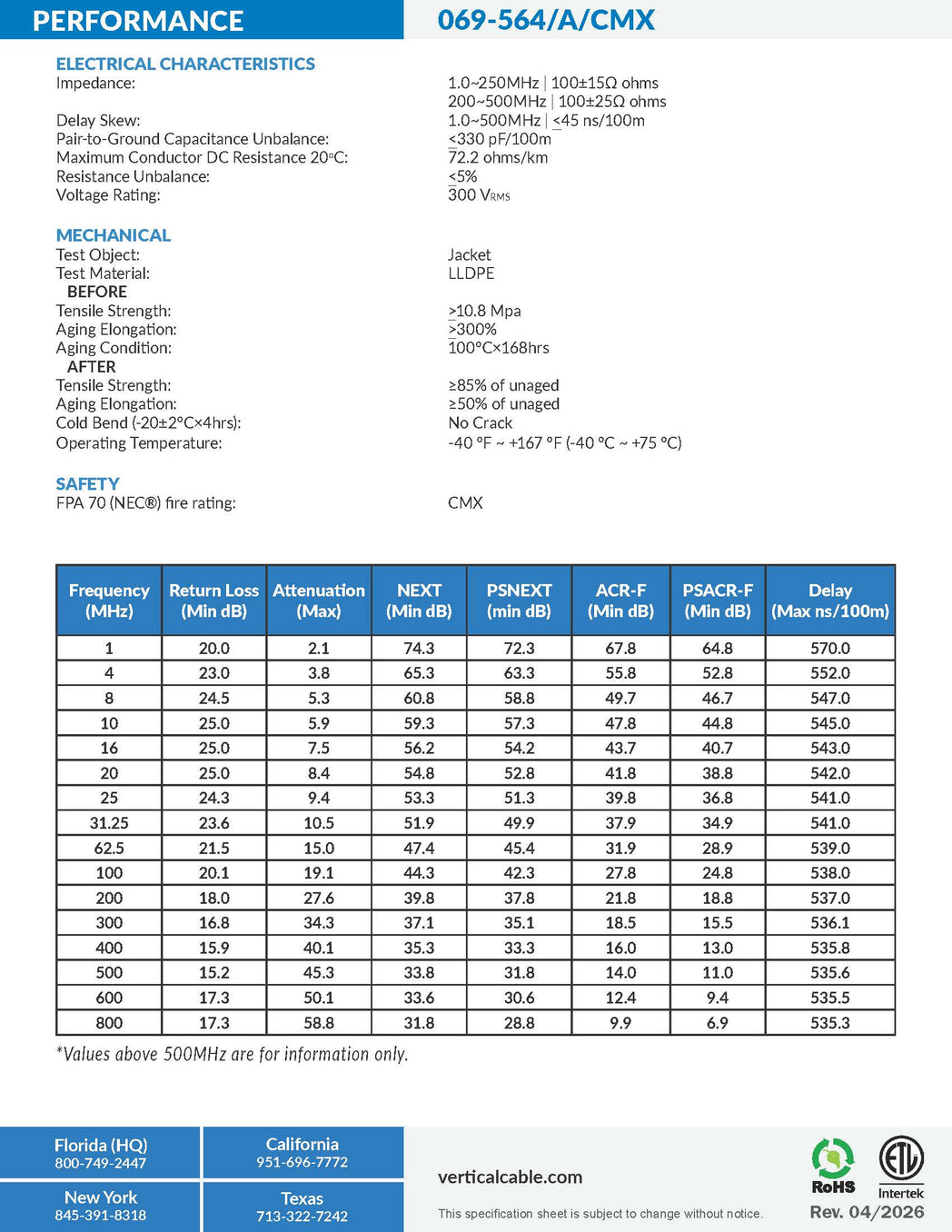

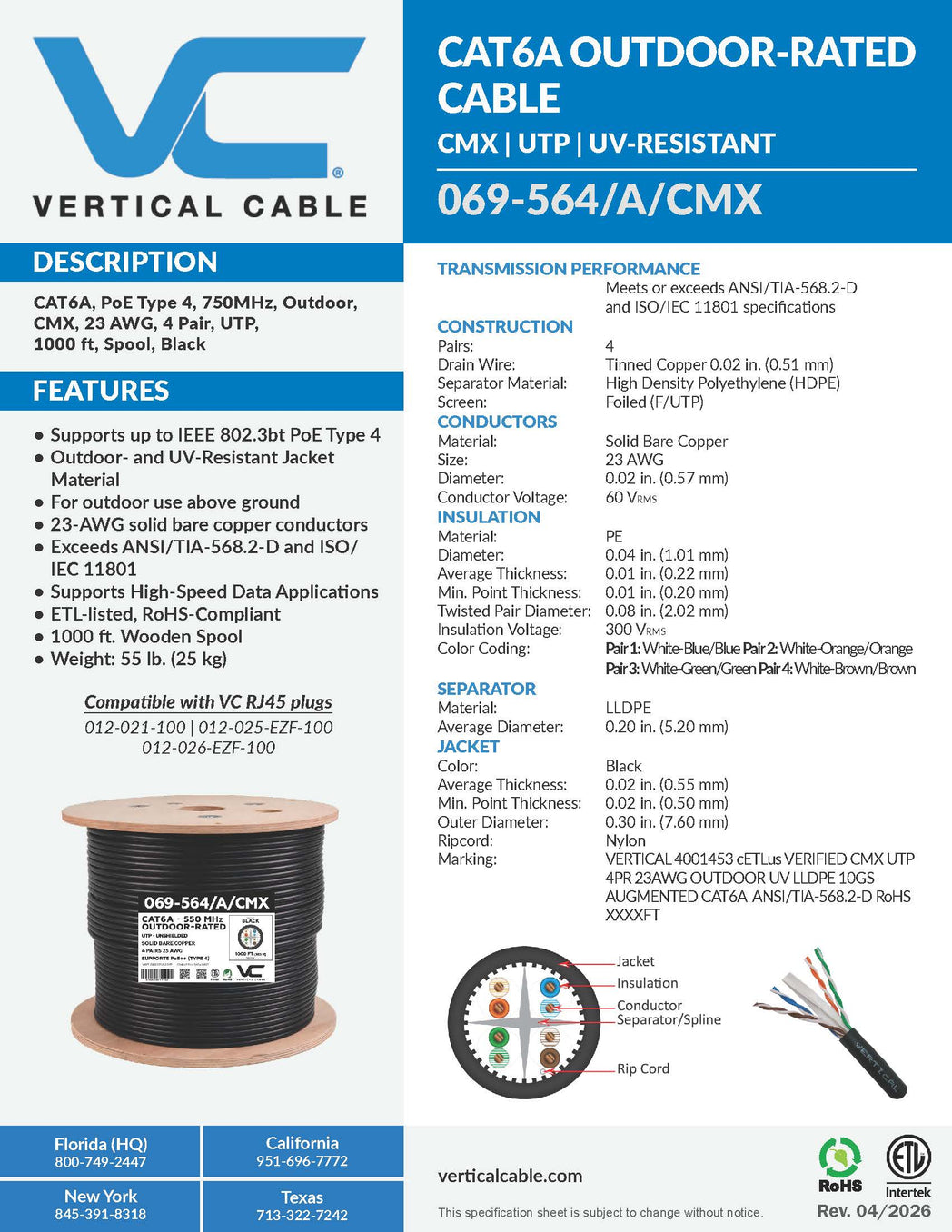

- SPEC SHEET
