- Description+
- Features+
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps1 with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS anthentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
- Specs+

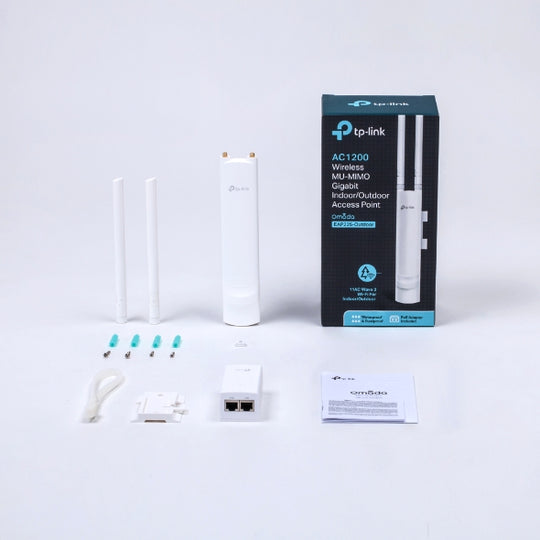

- Package Contents+
- AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
- Passive PoE Injector
- Power Cord
- Mounting Kits
- Installation Guide
- Waterproof Rubber Insert
- Waterproof Antenna
- Reviews+
- Durable, weatherproof enclosure for outdoor Wi-Fi applications
- Up to 1200Mbps1 with 2×2 MIMO technology
- Omada Mesh Technology enables wireless connectivity between APs for extended range, making wireless deployments more flexible and convenient
- Supports Seamless Roaming to smooth the video playbacks and voice calls when moving between locations
- High transmission power and high gain antennas provide a long-range coverage area
- Free cloud centralized management and Omada app for ultra convenience and easy management
- Captive portal provides a convenient method for guest authentication
- Facebook Wi-Fi and SMS anthentication help to boost your business
- 802.3af/Passive PoE (PoE Adapter Included) compatible and simple mounting design allow for flexible deployment and convenient installation
- AC1200 Wireless MU-MIMO Gigabit Indoor/Outdoor Access Point
- Passive PoE Injector
- Power Cord
- Mounting Kits
- Installation Guide
- Waterproof Rubber Insert
- Waterproof Antenna
AC1200 Wave 2 with Mesh Technology for Unlimited Business Wi-Fi
Seamless Roaming
802.11k and 802.11v help client select access point automatically with the best signal to facilitate seamless transitions when move. This allows streaming communication like VoIP and video conferences uninterrupted.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Cloud Centralized Management - Anytime, Anywhere
Omada cloud controller software is the built-in OC200 for easy deployment and can be installed on Windows or Linux computers for large wireless networks. Cloud service connects everything together so you can monitor and control your system from anywhere at any time.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1x Gigabit Ethernet RJ-45 port |
| Button | Reset |
| Power Supply | 802.3af PoE and 24 Passive PoE(PoE injector included) |
| Power Consumption | 10.5W |
| Dimensions (W x D x H) | 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) |
| Antenna | 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall mount (mounting kit included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | Multiple SSIDs?Up to 16 SSIDs, 8 for each band? Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control ?Adjust Transmit Power on dBm? QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | 23dBm, max. (2.4GHz) 22dBm, max. (5GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | FCC RoHS |
| Environment | Operating Temperature: -30?~70? (-22?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
AC1200 Wave 2 with Mesh Technology for Unlimited Business Wi-Fi
Seamless Roaming
802.11k and 802.11v help client select access point automatically with the best signal to facilitate seamless transitions when move. This allows streaming communication like VoIP and video conferences uninterrupted.
Specially Designed Weatherproof Enclosure for Outdoor Environment
Rated as IP65 during Ingress Protection testing, a resilient weatherproof enclosure protects the access points against the harsh outdoor condition.
Excellent Hardware Designs
With special design of its antenna, appearance, power options and installation methods, EAP225-Outdoor can perfectly fit for different scenarios both indoors and outdoors.
Cloud Centralized Management - Anytime, Anywhere
Omada cloud controller software is the built-in OC200 for easy deployment and can be installed on Windows or Linux computers for large wireless networks. Cloud service connects everything together so you can monitor and control your system from anywhere at any time.
Easy Management with the Omada App
Follow configuration instructions on the free Omada app to get set up in minutes. Omada lets you configure settings, monitor the network status and manage clients, all from the convenience of a smartphone or tablet.
| HARDWARE FEATURES | |
|---|---|
| Interface | 1x Gigabit Ethernet RJ-45 port |
| Button | Reset |
| Power Supply | 802.3af PoE and 24 Passive PoE(PoE injector included) |
| Power Consumption | 10.5W |
| Dimensions (W x D x H) | 8.5 × 1.8 × 1.1in. (215 × 46 × 27 mm) |
| Antenna | 2.4GHz: 2 × 3dBi 5GHz: 2 × 4dBi |
| Weatherproof Enclosure | IP65 |
| Mounting | Pole/Wall mount (mounting kit included) |
| WIRELESS FEATURES | |
|---|---|
| Wireless Standards | IEEE 802.11a/b/g/n/ac |
| Frequency | 2.4GHz, 5GHz |
| Signal Rate | 802.11ac: 5G:6.5 Mbps to 867Mbps(MCS0-MCS9,NSS = 1 to 2 VHT20/40/80) 2.4G:78Mbps to 300Mbps (MCS8-MCS9 VHT20/40, NSS=1 to 3) 802.11n: 6.5 Mbps to 300 Mbps (MCS0-MCS15, VHT 20/40) 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps 802.11b: 1, 5.5, 11Mbps 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps |
| Wireless Functions | Multiple SSIDs?Up to 16 SSIDs, 8 for each band? Enable/Disable Wireless Radio Automatic Channel Assignment Transmit Power Control ?Adjust Transmit Power on dBm? QoS(WMM) MU-MIMO Airtime Fairness Beamforming Band Steering Load Balance Rate Limit Reboot Schedule Wireless Schedule Wireless Statistics based on SSID/AP/Client |
| Wireless Security | Captive Portal Authentication Access Control Wireless Mac Address Filtering Wireless Isolation Between Clients SSID to VLAN Mapping Rogue AP Detection 802.1X Support |
| Transmission Power | 23dBm, max. (2.4GHz) 22dBm, max. (5GHz) |
| MANAGEMENT | |
|---|---|
| Omada App | Yes |
| Omada Cloud Controller | Yes |
| Omada Controller Software | Yes |
| Cloud Access | Yes |
| Email Alerts | Yes |
| Management MAC Access Control | Yes |
| SNMP | v1, v2c |
| System Logging Local/Remote Syslog | Yes |
| SSH | Yes |
| Web-based Management | Yes |
| L3 Management | Yes |
| Multi-site Management | Yes |
| Management VLAN | Yes |
| OTHERS | |
|---|---|
| Certification | FCC RoHS |
| Environment | Operating Temperature: -30?~70? (-22?~158?) Storage Temperature: -40?~70? (-40?~158?) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing |
