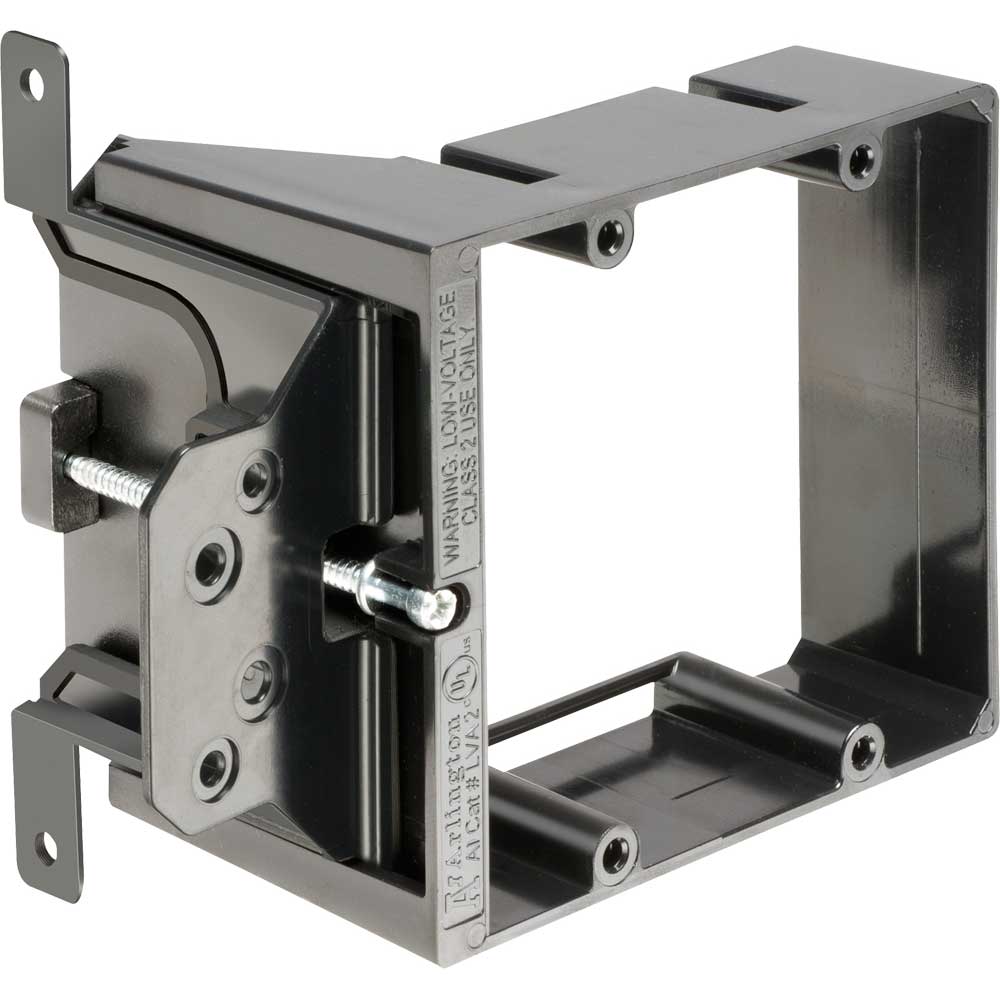

Arlington LVA2 Adjustable Depth Mounting Bracket, Dual Gang

LVA2 Bracket

Arlington’s LVA2 is a two-gang low voltage bracket with an adjustable depth to accommodate a wall width up to 1.5 inches. These non-metallic brackets are lightweight, sturdy, and versatile. Used primarily for new construction, they are ideal for installations in which the final wall thickness may not be known or when changes to the wall finish may be made in the future. They mount directly to both wood and metal studs and include side tabs for extra in-wall stabilization.

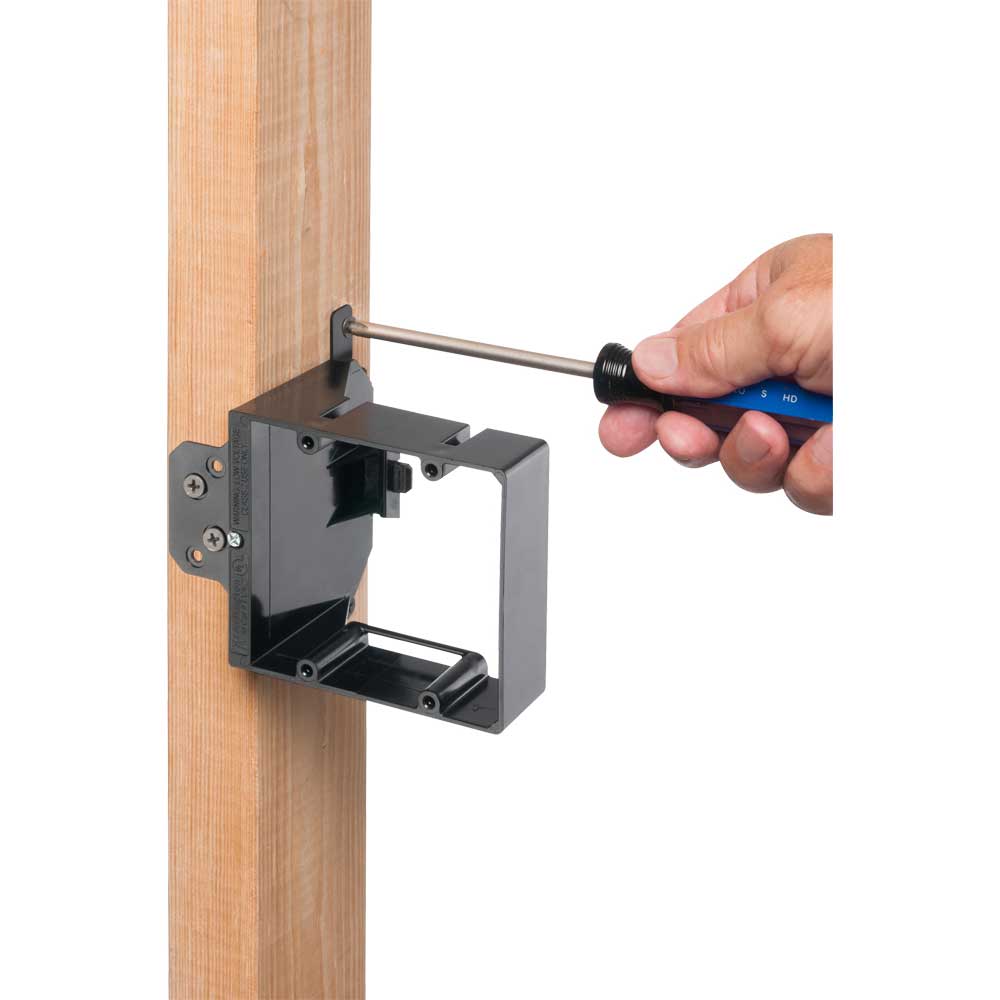

Adjustments can be made to the LVA2’s depth before or after the final wall finish is complete. The adjustment screw is flush with the bracket but readily accessed by simply removing the wall plate, allowing for changes at any time. Changes can be made with any Phillips head screwdriver. These Class 2 low voltage brackets are compatible with any standard dual gang wall plate and will arrive to you pre-set at a typical half-inch depth.

• Great for Installations Where Final Wall Thickness is Unknown
• Accommodates Finished Wall up to 1.5" Thick

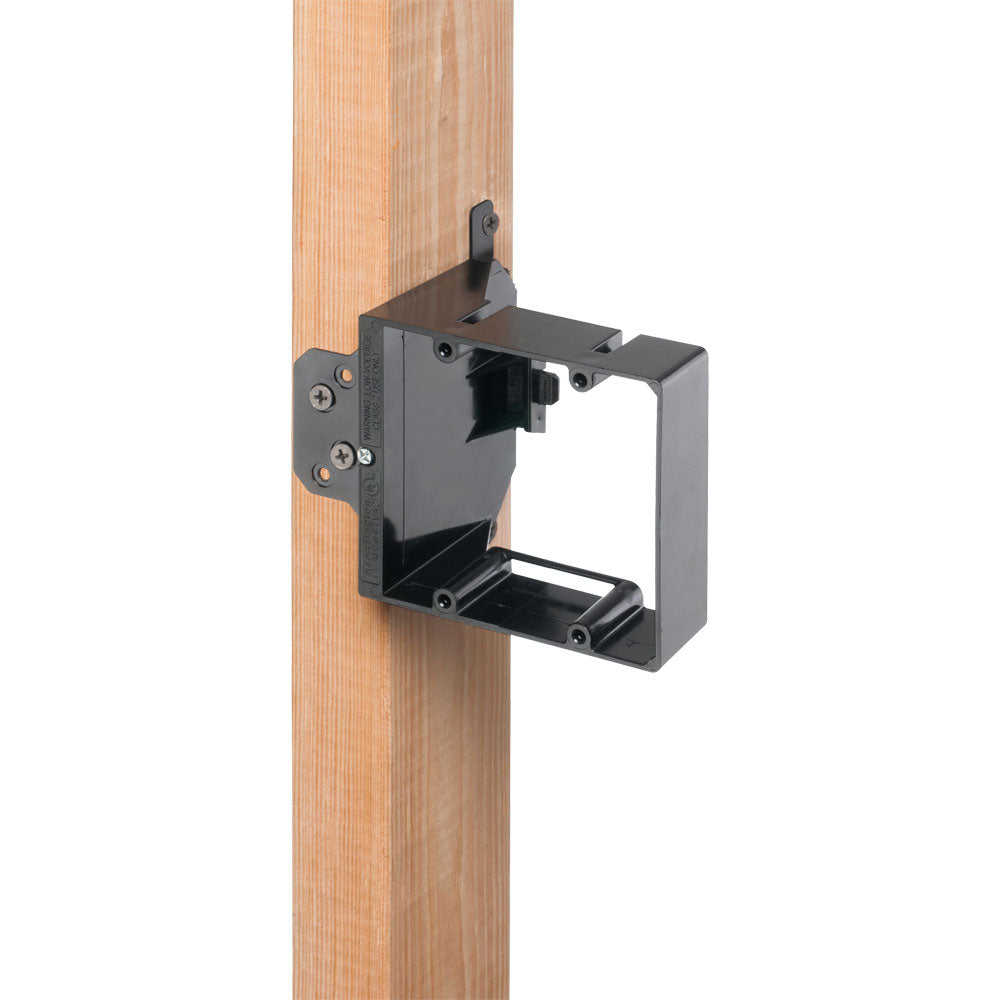

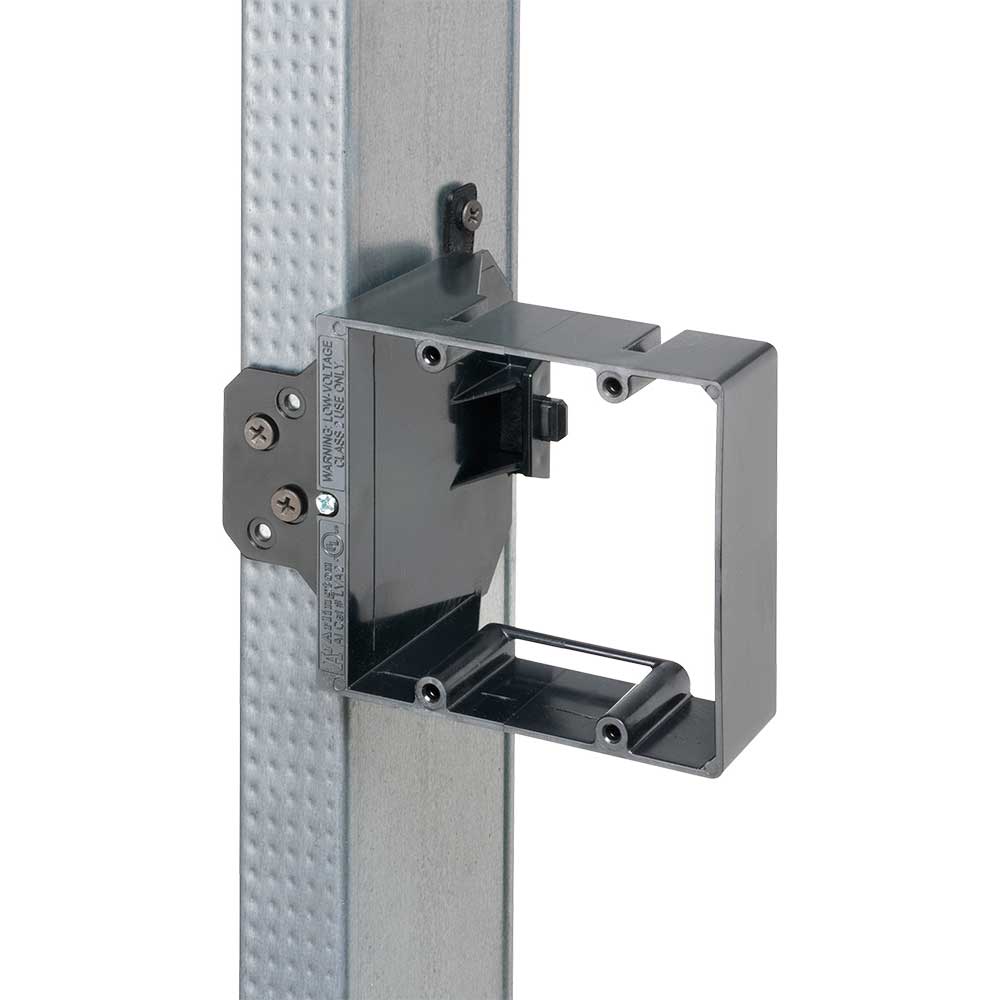

• Works with Wood or Metal Studs
• Support Tabs for Extra Secure Mounting in New Construction
• Made in the USA

• Depth: Adjusts from 1/2" to 1.5"
• Compatibility: Wood or Metal Studs
• Size: 2 Gang
• Wire Type: Class 2 Low Voltage
• Construction: Plastic
• Certifications: UL Listed
• Color: Black
