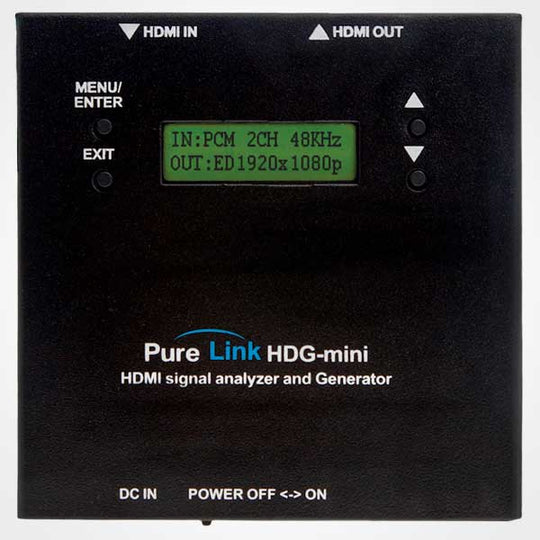

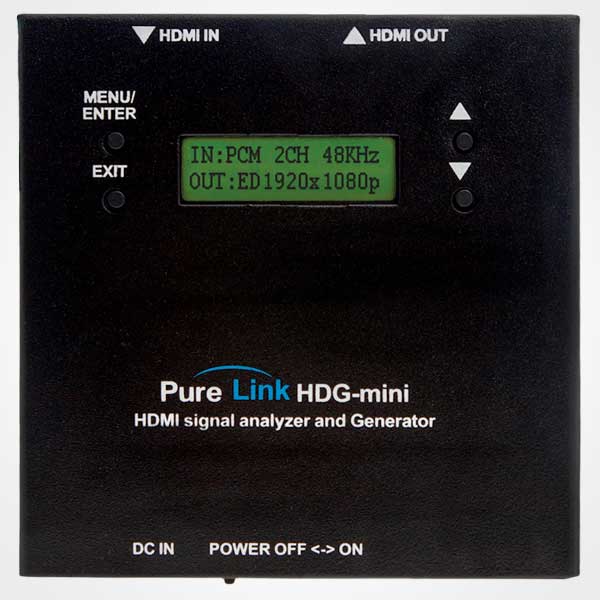

PureLink HDG-mini HDMI Signal Generator

The The PureLink HDG-mini HDMI Signal Generator helps verify basic technical specifications of a connected source device for troubleshooting. It can generate an image from up to five different test pattern still images and transmit that image to the DVI or HDMI monitor.

• Offers 5 Different Test Pattern Still Images
• Input Signal Analyzing Capability
• Enhanced EDID Management with Built-in Library
• Compact, Portable Design Makes Transportation Easy

• Input Signal: DVI / HDMI (TMDS)
• Output Signal: DVI / HDMI (TMDS)
• Supported Built-in Timing Chart: 720 X 480p @60Hz, 1024 X 768 @60Hz, 1280 X 720p @60Hz, 1920 X 1080p @60Hz, 1920 X 1200 @60Hz
• Supported Resolutions: VGA ~ WUXGA up to 1920x1200 @ 60Hz, 480i ~ 1080p
• HDCP Compliant

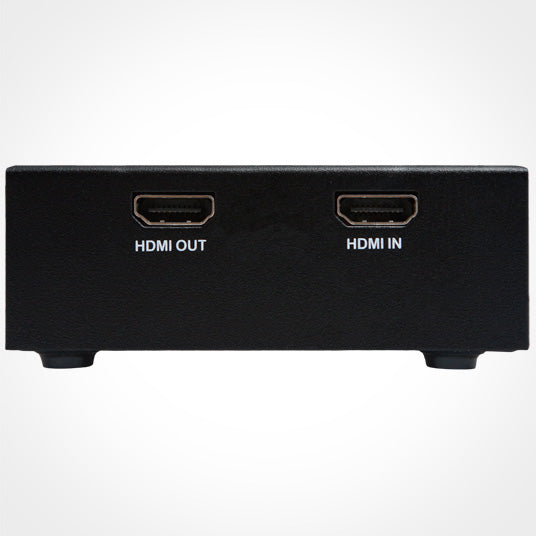

• Connector Type: HDMI Female (Rx, Tx) (Rx for source), (Tx for monitor)
• Certifications: HDMI 1.3

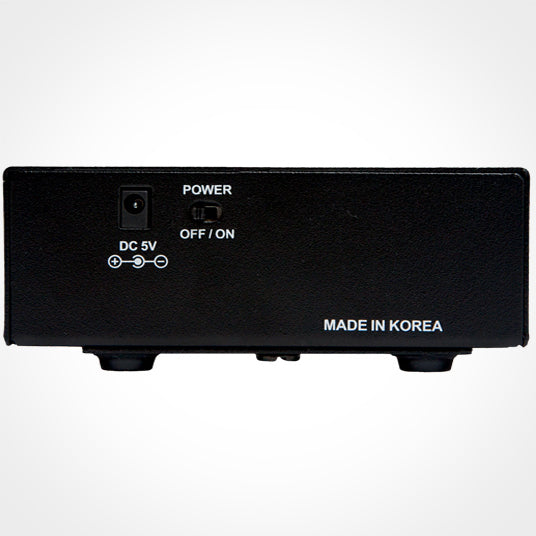

• Power Rating: DC +5V, Use 3 Watts Max
• Dimensions: 4.7 x 3.5 x 0.8"
• Operating Temperature: 50F ~ 104F (10℃~ 40℃)
• Operating Humidity: 10% ~ 80%
• Operating Altitude: 3,000m Max
• Transit Temperature: -13F ~ 140F (-25℃~ 60℃)
• Transit Humidity: 5% ~ 95%
• Transit Altitude: 15,000 Max
• Storage Temperature: -4F ~ -49F (-20℃~ 45℃)
• Storage Humidity: 5% ~ 95%
• Storage Altitude: 3,000m Max
• MTBF: 90% at over 50,000 hours aging test
• Manual

• (1) HDG-mini
• (1) 5V DC Power Supply Adapter
• (1) Owner's Manual
