Techlogix Networx Fiber-based Media Converter - 1 SFP & 2 RJ45

Techlogix Networx Fiber-based Media Converter - 1 SFP & 2 RJ45

TechLogix media converters adapt fiber signals to a variety of different formats and/or cable types.

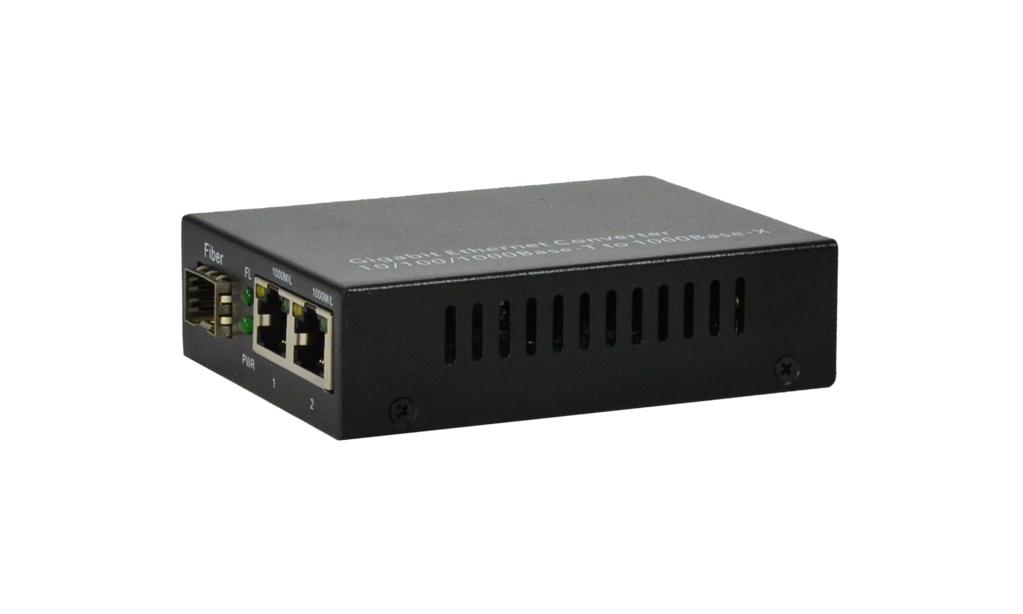

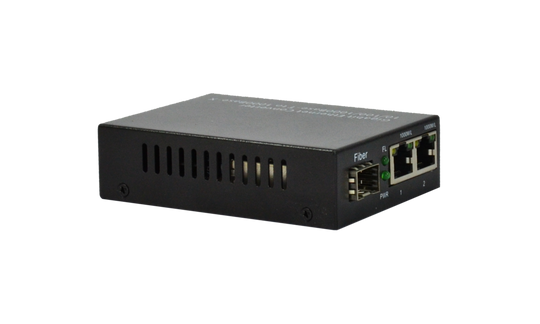

The TL-MC-1S2R features one SFP port (SFP module sold separately) and two RJ45 twisted pair ports, effectively adapting twisted pair-based devices to fiber for longer transmission distances. The MC-1S2R supports multimode fiber when paired with a multimode SFP module and single mode fiber when paired with a single mode SFP module.

Two TL-MC-1S2R media converters are required for most applications -- one for each end of the cable run.

• Convert signals from twisted pair to fiber and vice versa

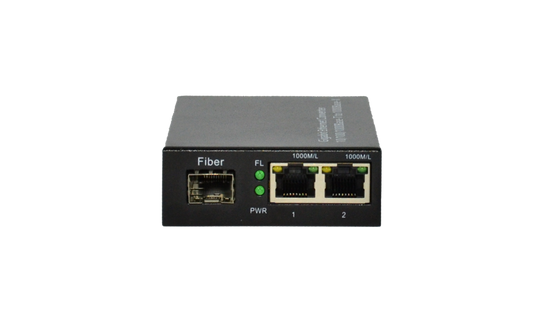

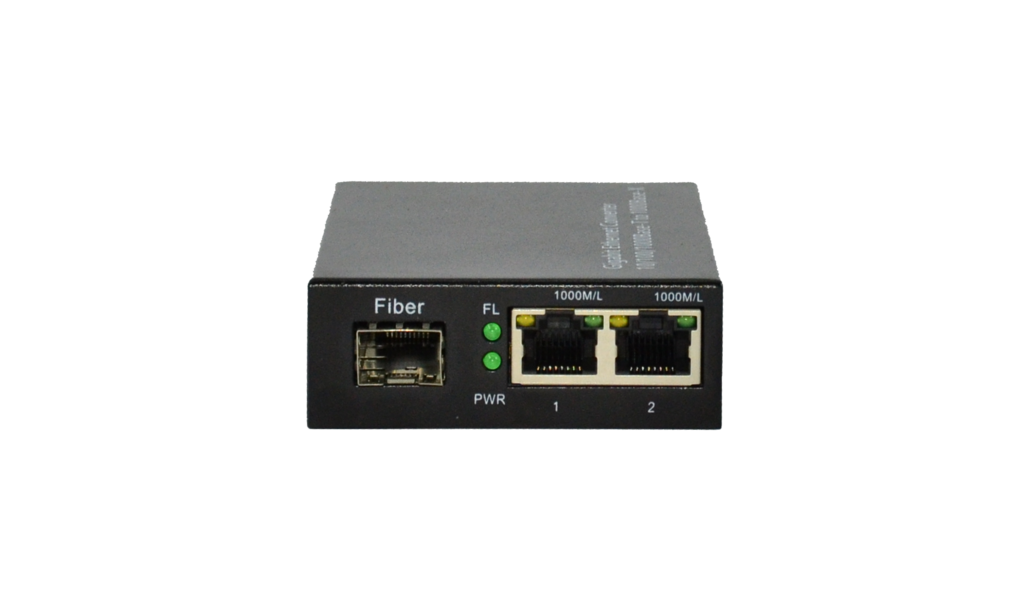

• One SFP (fiber) port and two RJ45 (twisted pair) ports
• 10/100/1000M data rate
• 850nm/1310nm/1550nm supported wavelengths
• Single mode and multimode fiber compatible (SFP module dependent)
• SFP module sold separately
• Suggested multimode module: TL-1GSFP-MM550
• Multimode max distance: 550m (1,805 ft.)
• Suggested single mode module: TL-1GSFP-SM20K
• Single mode max distance: 20km (12.4 miles)
• 0 degree to 60 degree C operating temperature
• 1.0"" x 2.75"" x 3.6"" (26mm x 70mm x 93mm)

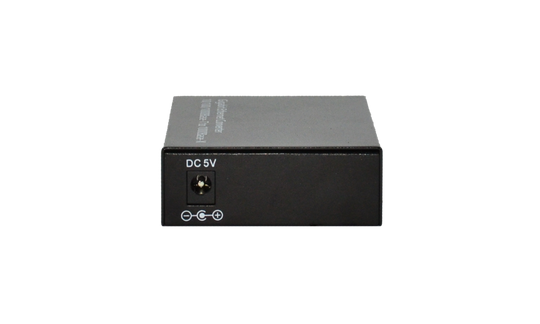

• 5V power supply (included)
• IEEE 802.3z & 802.3ab compliant
• MDI/MDIX auto-crossover
• Jumbo frame (64-9216 byte)
• Voltage monitor support
• Diagnostic LEDs
• Plug-and-play compliant
