- Description+
- Features+
- Isolate Signal Transmission Between Video Source and Display
- Safe Solution for High-Security Environments
- Acts as Signal Repeater for Single-Link DVI-D Signals
- Eliminates Noise and Correct Distortion at Source Output
- 3 Year Manufacturer Limited Warranty
- Specs+
- Input: Digital RGB (DVI Single Link)
- Output: Digital RGB (DVI Single Link)
- Input Audio: 3.5mm Mini Jack, Analog Stereo Audio
- Output Audio: 3.5mm Mini Jack, Analog Stereo Audio
- Connectors: 29 Pin DVI-I, 3.5mm Mini Stereo Jack
- Resolution Support: VGA 640x480 up to WUXGA 1920x1200, HDTV up to 1080p @ 60 Hz
- Maximum Distance: 165ft
- Power Supply: External Adapter - Input 100-240 VAC, 50-60Hz, Output 5VDC, 1A
- Dimensions: 2.7 x 1 x 2.2"
- Package Contents+
- (1) DVI-DOC Module
- (1) DC 5V Power Supply
- (1) User Manual
- Reviews+
- Isolate Signal Transmission Between Video Source and Display
- Safe Solution for High-Security Environments
- Acts as Signal Repeater for Single-Link DVI-D Signals
- Eliminates Noise and Correct Distortion at Source Output
- 3 Year Manufacturer Limited Warranty
- Input: Digital RGB (DVI Single Link)
- Output: Digital RGB (DVI Single Link)
- Input Audio: 3.5mm Mini Jack, Analog Stereo Audio
- Output Audio: 3.5mm Mini Jack, Analog Stereo Audio
- Connectors: 29 Pin DVI-I, 3.5mm Mini Stereo Jack
- Resolution Support: VGA 640x480 up to WUXGA 1920x1200, HDTV up to 1080p @ 60 Hz
- Maximum Distance: 165ft
- Power Supply: External Adapter - Input 100-240 VAC, 50-60Hz, Output 5VDC, 1A
- Dimensions: 2.7 x 1 x 2.2"
- (1) DVI-DOC Module
- (1) DC 5V Power Supply
- (1) User Manual

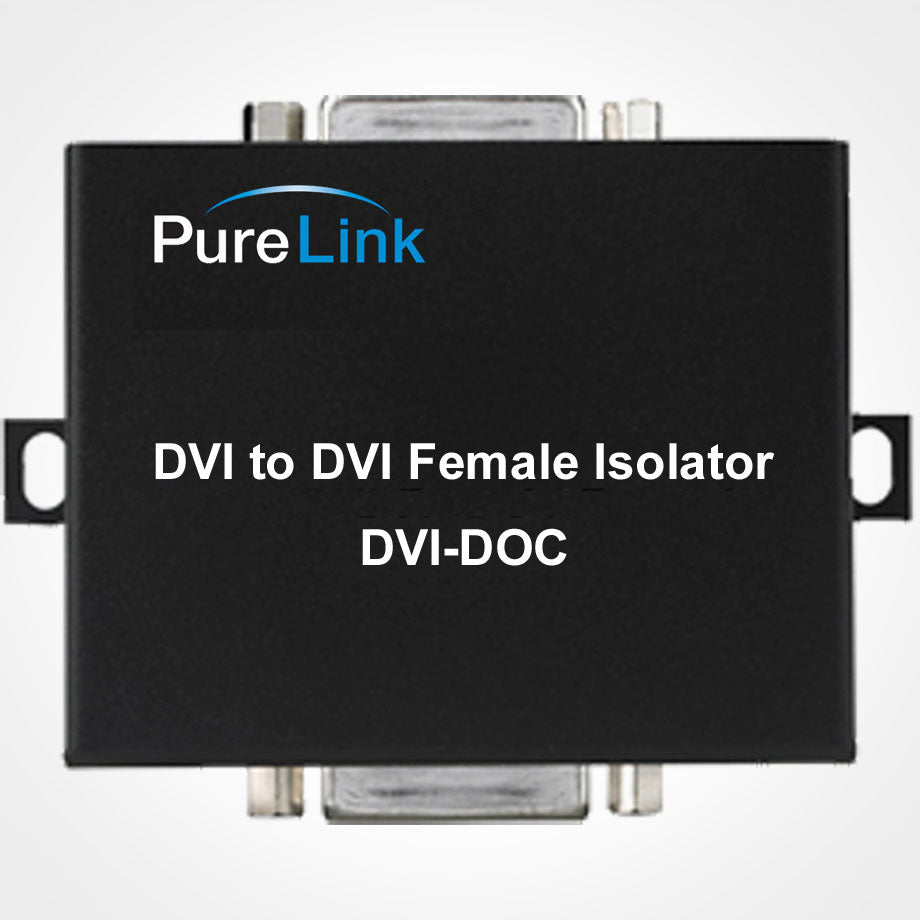

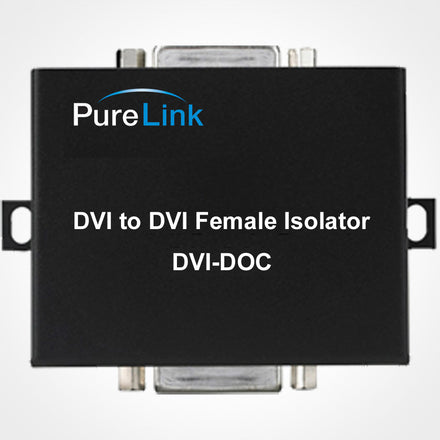

The DVI-DOC Digital Signal Isolator from PureLink AV offers a secure way to isolate the transmission signal between video source and display for single-link DVI signals. It acts as a repeater for single-link DVI-D signals, extending the distance they can travel.
The DVI-DOC Digital Signal Isolator from PureLink AV offers a secure way to isolate the transmission signal between video source and display for single-link DVI signals. It acts as a repeater for single-link DVI-D signals, extending the distance they can travel.
