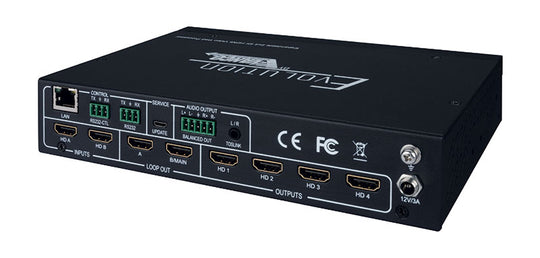

Evolution Expandable 4K 2×4 HDMI Video Wall Processor
SKU#: EVSP24VW
UPC#:741835115216
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- 4K 2×4 HDMI Video Wall Processor
- Allows for 16 rows and columns of displays in any video wall configuration up to 16×16
- Two HDMI loop-outs to cascade into other units for larger video walls or to monitor sources locally
- Two HDMI inputs allow for multiple source video wall configurations, or to switch one source across the entire video wall display
- Passes up to 4K@60Hz with HDR
- Able to scale output resolutions
- HDMI 2.0 and HDCP 2.2 compliant
- Customizable options for bezel adjustment
- Supports 180° screen rotation
- Able to be controlled over RS232 and TCP/IP via product software or 3rd party control systems
- Larger video wall configurations requiring multiple units can ONLY be setup and controlled via RS-232
- When multiple units need to be connected for larger video wall configurations, once the device is given a Device ID of 2 or greater is provided to the unit, it will need to be connected to the first unit in order to be controlled or accessed through the software
- Please ensure your source input resolution are set to a resolution OTHER than 720P/1280×720 when creating a video wall
- Specs+
- Dimensions: 8.5” W x 5.7” D x 1.7” H
- Package Contents+
- 2×4 Video Wall Processor
- 5-pin Phoenix Connector
- (2) 3-pin Phoenix Connector
- RS232-Phoenix Connector Adapter Cable
- Digital Audio Optical Adapter
- 12V/3A Power Supply
- Product Manual
