- Description+
- Features+
- Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio
- Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
- Connect with other units to extend your signal over long distances
- Specs+
- Package Contents+
- 1x BG-3GSH 3G SDI to HDMI Converter
- 5V DC Power Supply Adaptor
- 1x User Manual
- Reviews+
- Operation at 2.970Gbit/s, 1.485Gbit/s and 270Mbits/s
- Supports SMPTE 425M, SMPTE 424M, SMPTE 292M, SMPTE 259M-C
- Equalized and re-clocked loop output Integrated audio de-embedder for a maximum of 8 channel, 48 KHz Audio
- Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4:2:2 10-bit
- Connect with other units to extend your signal over long distances
- 1x BG-3GSH 3G SDI to HDMI Converter
- 5V DC Power Supply Adaptor
- 1x User Manual

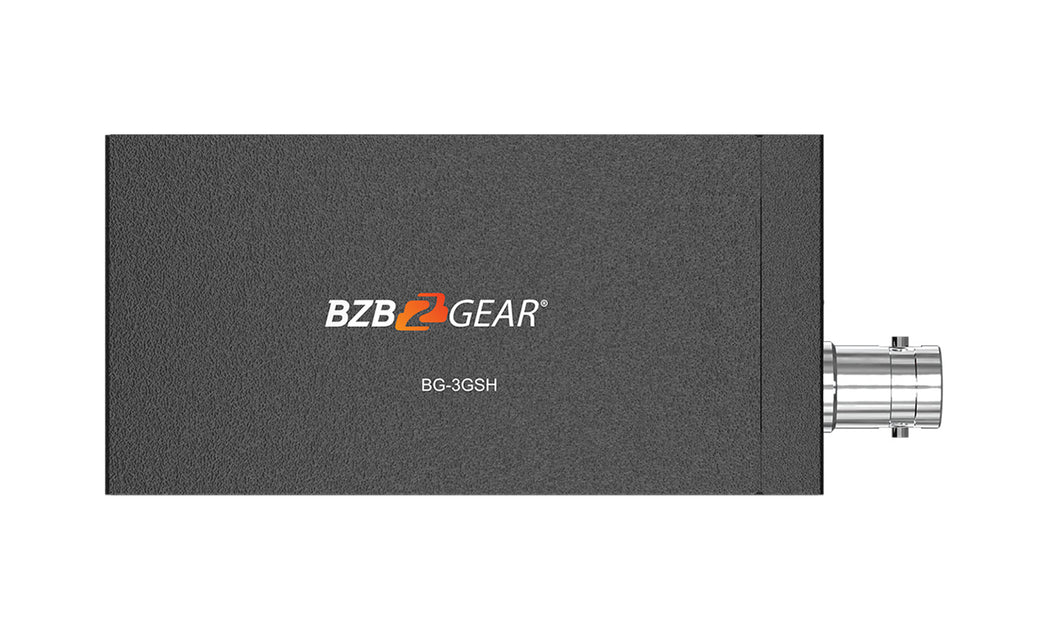

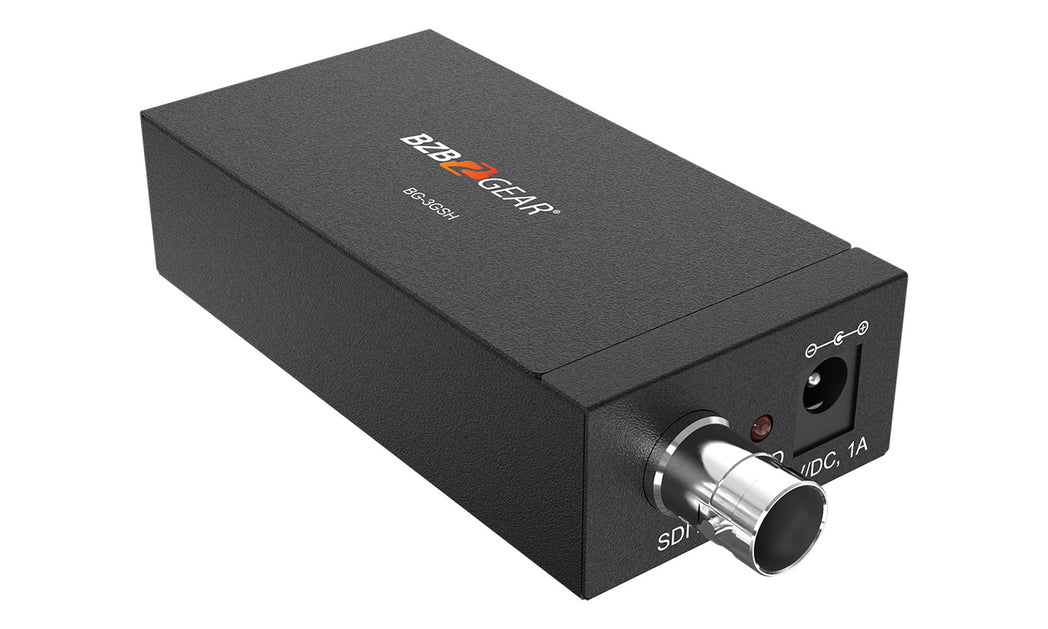

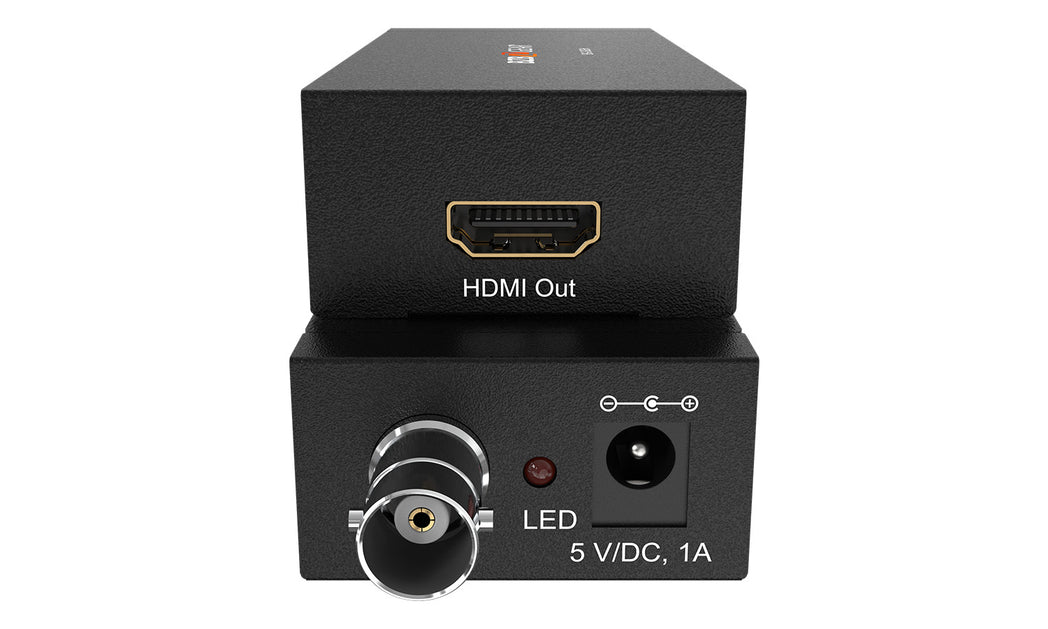

The BG-3GSH is a compact 3G SDI to HDMI Converter. Its convenient size makes it an easy accessory to include in your gear bag. Allowing resolutions up to 1080P60, it is the perfect complement to your video production equipment. Providing an easy method to view your 3G SDI content on HDMI displays, this little unit is a great problem solver.

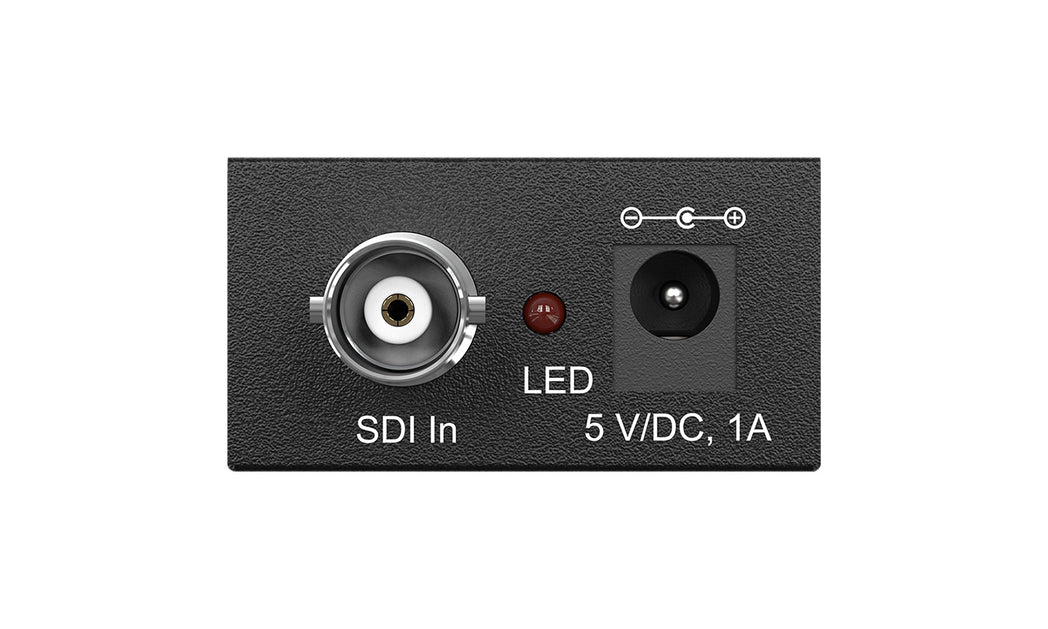

| Input Port | 1 x BNC (SDI/HD-SDI/3G-SDI) |

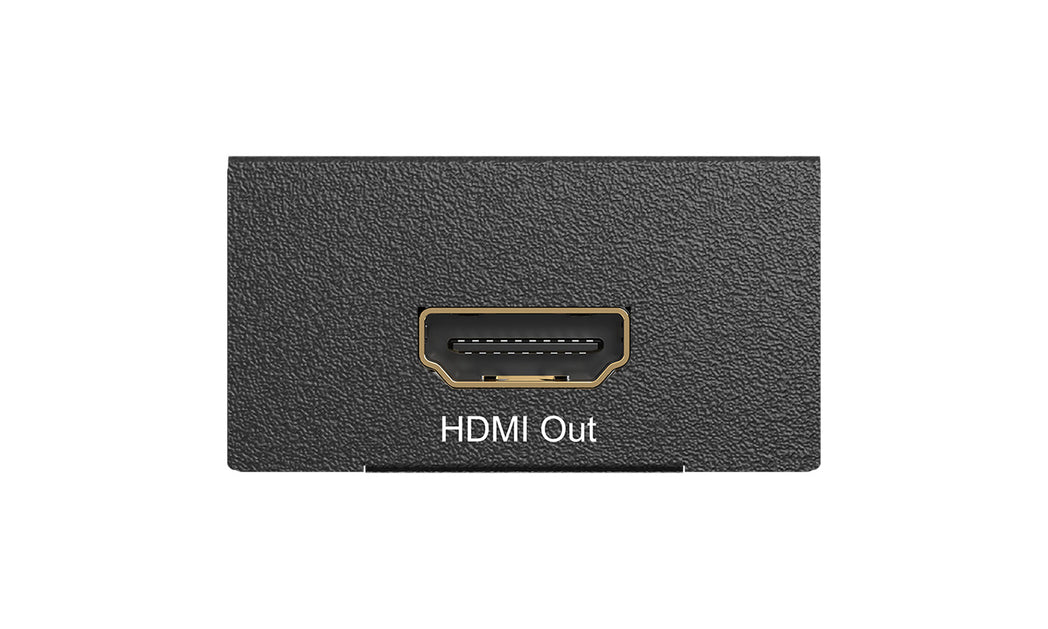

| Output Port | 1 x HDMI |
| SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution |
480i, 576i, 720p@50/59.94,60, 720p@50/59.94,60, 1080i@50/59.94/60, 1080p@23.97/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V - 12V |
| ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
| Dimension | 80mm x 41mm x 25mm |
| Weight | 150g |
| Operating Temperature |
0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
