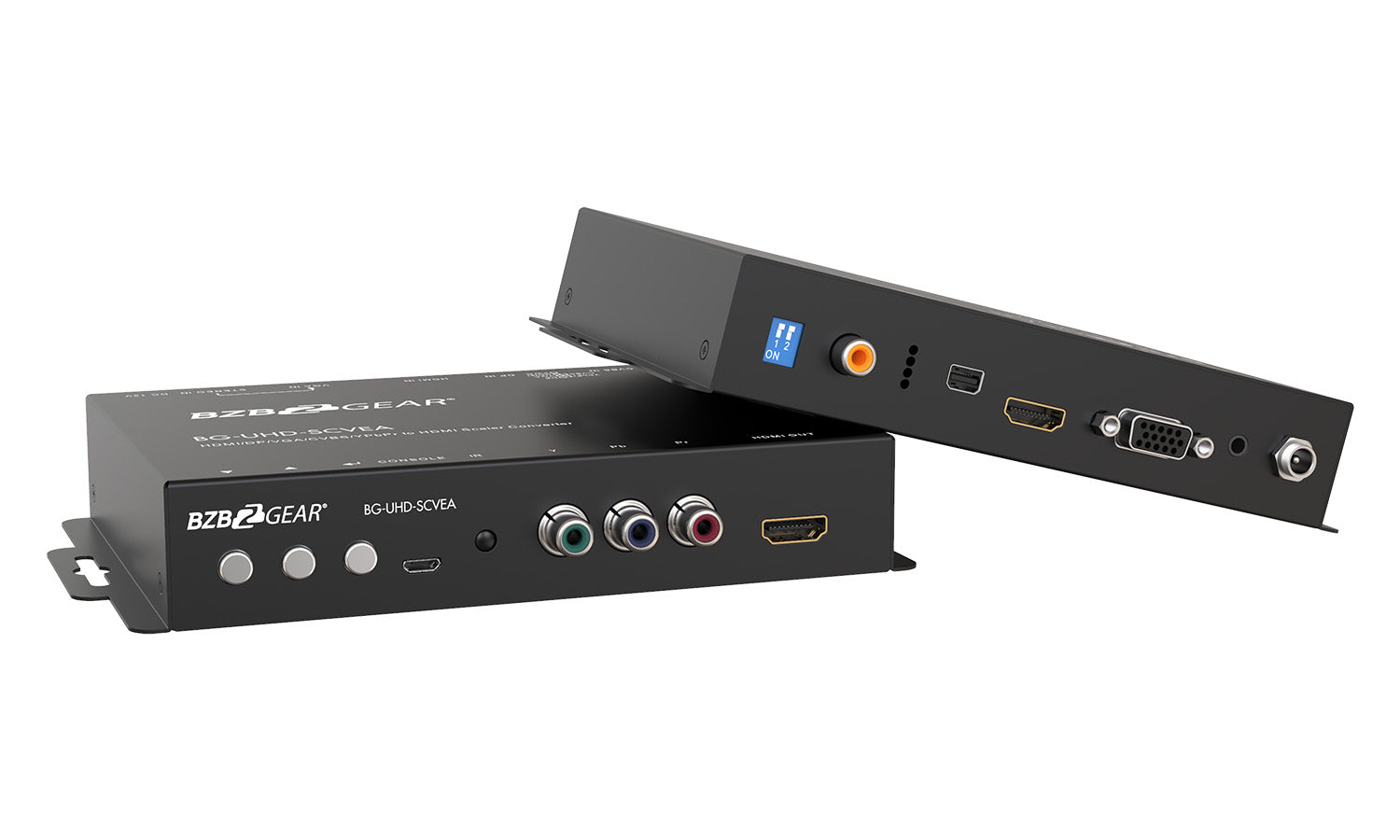

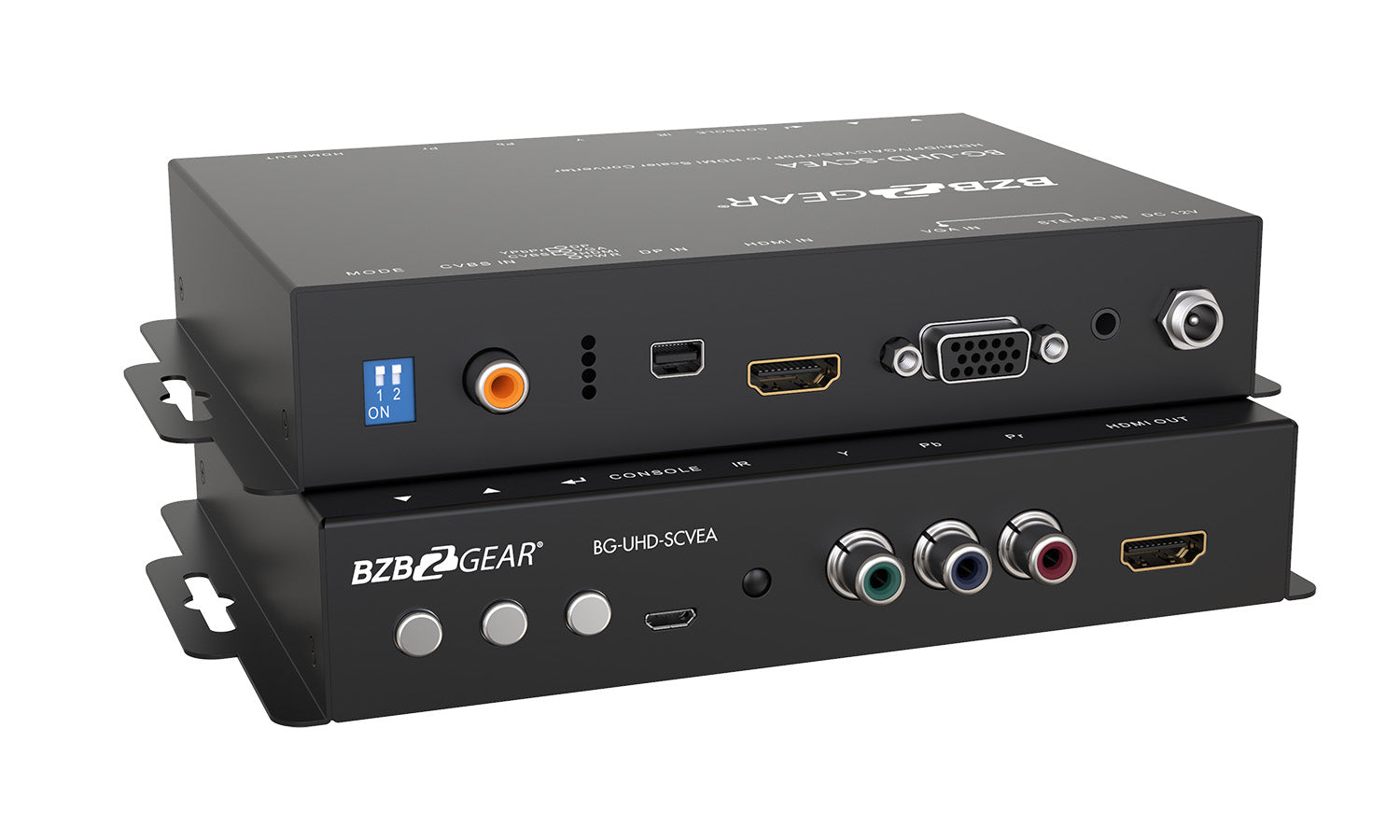

BZBGEAR Multi-format 4K UHD Scaler Converter HDMI/DP/VGA/CVBS/YPbPr to HDMI
SKU#: BG-UHD-SCVEA
UPC#:850023208057
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
- Description+
- Features+
- Supports Input HDMI1.4 /DP1.1/ VGA/CVBS/YPbPr
- IR remote control
- Input maximum pixel rate: 165MHz
- Output resolution up to 4K/30 4:4:4
- Supports multiple VESA resolutions
- Specs+
- Package Contents+
- 1xBG-UHD-SCVEA
- 1x12V/2A power supply unit
- 1xIR Remote control
- 1xUser Manual
- 1xInstallation software CD
- Reviews+
- Supports Input HDMI1.4 /DP1.1/ VGA/CVBS/YPbPr
- IR remote control
- Input maximum pixel rate: 165MHz
- Output resolution up to 4K/30 4:4:4
- Supports multiple VESA resolutions
- 1xBG-UHD-SCVEA
- 1x12V/2A power supply unit
- 1xIR Remote control
- 1xUser Manual
- 1xInstallation software CD
Upgrading every device in your A/V setup can be costly and time consuming. Retaining legacy equipment can save you the cost and hassle of buying new gear. With the BG-UHD-SCVEA scaler converter, you can bridge the gap between old and new technologies by converting your dependable analog source to high-resolution HDMI. This unit supports video conversion and scaling from a variety of analog and digital signals to HDMI. Embed audio to HDMI from your analog source. With the BG-UHD-SCVEA, dealing with inconvenient video formatting issues will be a thing of the past.
| Technical | |||||||
| Role of usage | HDMI/DP/VGA/CVBS/YPbPr to HDMI Converter | ||||||
| HDMI standards | HDMI1.4 | ||||||
| Input Video Maximum Pixel Rate | 165MHz | ||||||
| Output Video bandwidth | 10.2Gbps | ||||||
| Output Video support | up to 4K2K@30 4:4:4 | ||||||
| Audio support | PCM 2 (32KHz - 192KHz Fs sample rate) | ||||||
| ESD protection | [1] Human body model ±19kV [air-gap discharge] & ±12kV [contact discharge) [2] Core chipset ±2kV | ||||||
| PCB stack-up | 4-layer board [impedance control -differential 100Ω; single 50Ω) | ||||||
| Firmware update | Feasible via USB Port | ||||||
| CEC Channel | N/A | ||||||

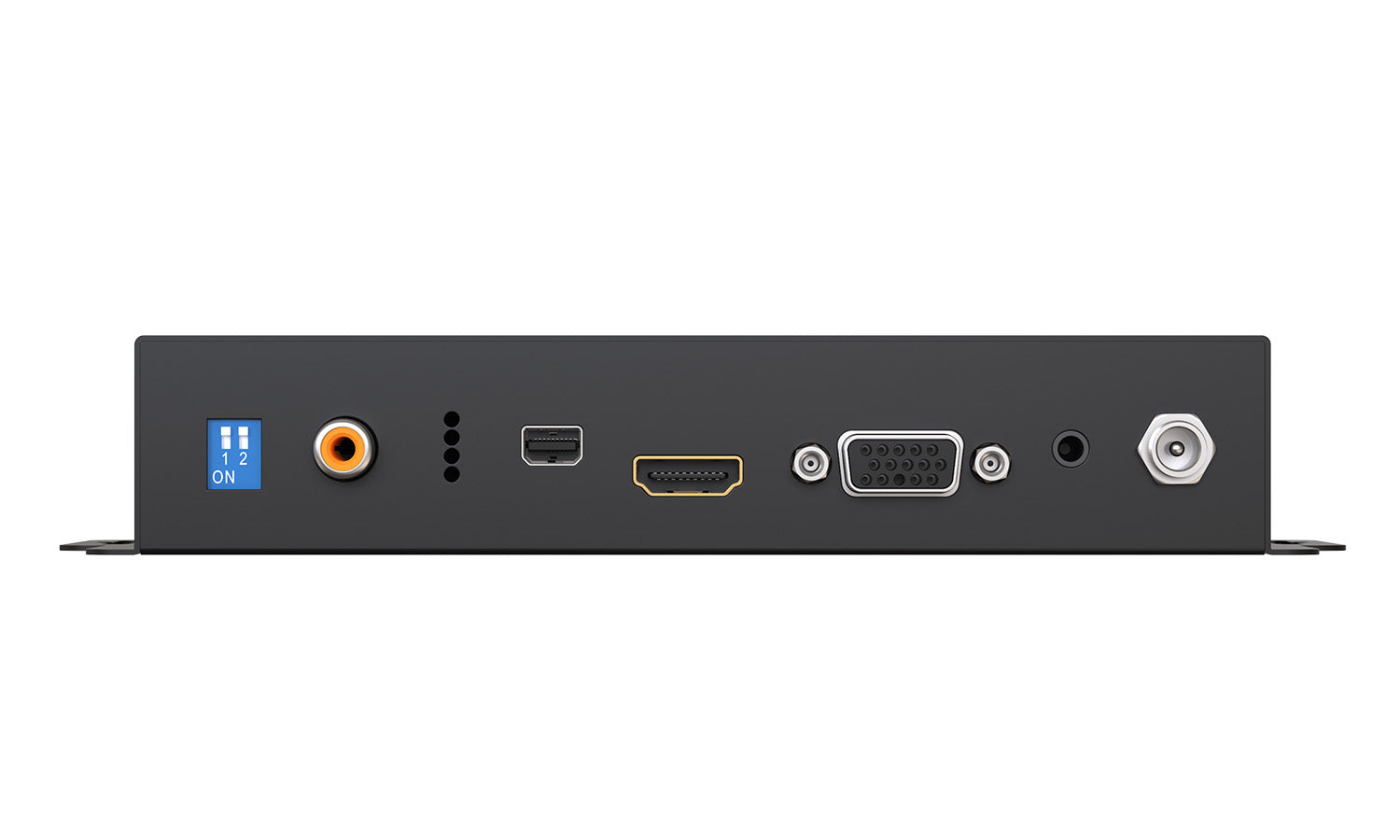

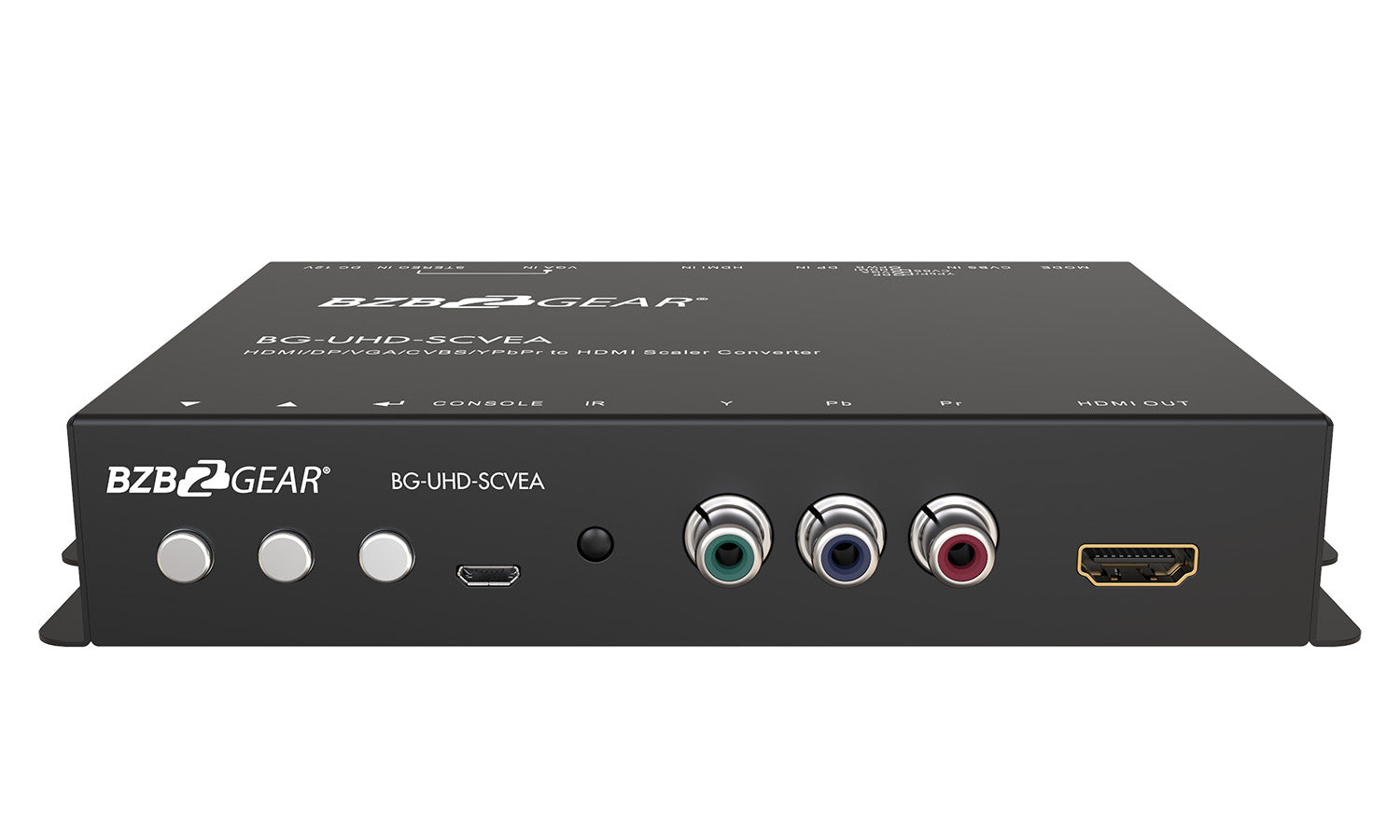

| Input | 1x HDMI + 1x VGA + 1x DP+1x RCA + 1x YPbPr + 1x stereo (for VGA) | ||||||
| Output | 1x HDMI | ||||||
| HOMI connector | Type A [19-pin female) | ||||||
| USB connector | Micro USB | ||||||
| Housing | Metal enclosure | ||||||
| Dimensions [L x D x H) | Model | 144 x 113 x 30mm (5.6" x 4.4" x 1" ) | |||||
| Package | 264 x 170 x 77mm (10.3" x 6.7" x 3") | ||||||
| Carton | 430 x 358 x 291mm (1'4" x 1'2" x 11.5") | ||||||
| Weight | Model | 264g (9.3 oz) | |||||
| Package | 724g (1.6 lbs) | ||||||
| Fixedness | Wall-mounting case with screws | ||||||
| Power supply | 12V 2A DC | ||||||
| Power consumption | 6 Watts (max) | ||||||
| Operation temperature | 0~40°C (32-104°F) | ||||||
| Storage temperature | -20~60°C (-4-140°F) | ||||||
| Relative humidity | 20-90% RH (no condensation) | ||||||
