- Description+
- Features+
- Shows HDMI source on SDI display
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
- Specs+
- Package Contents+
- 1x BG-H3GS HDMI to 3G SDI Converter
- 1x 5V1A DC Power Supply Adaptor
- 1x User Manual
- Reviews+
- Shows HDMI source on SDI display
- Supports SDI output distance up to 100 meters (3G-SDI), 200 meters (HD-SDI), or 300 meters (SD-SDI)
- 1x BG-H3GS HDMI to 3G SDI Converter
- 1x 5V1A DC Power Supply Adaptor
- 1x User Manual

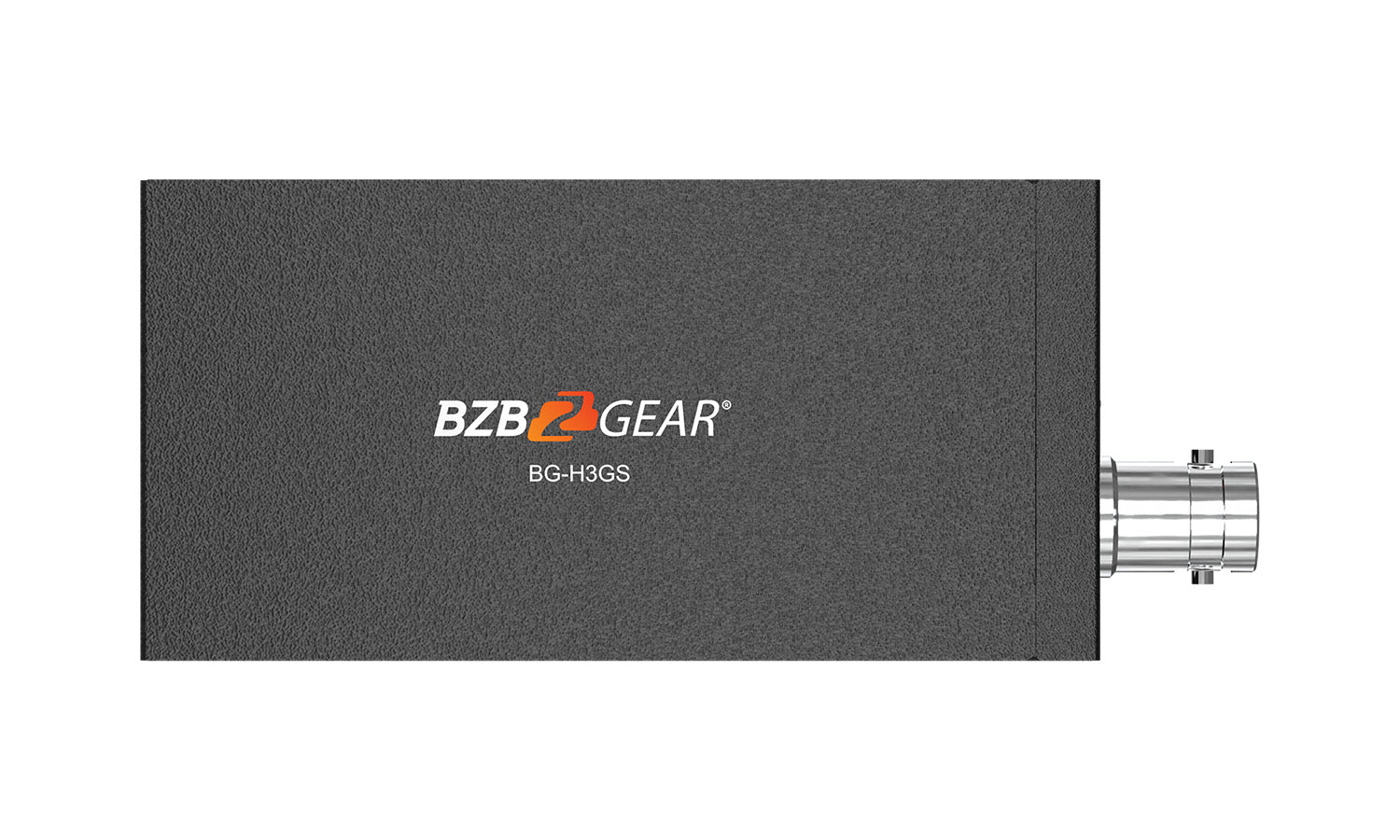

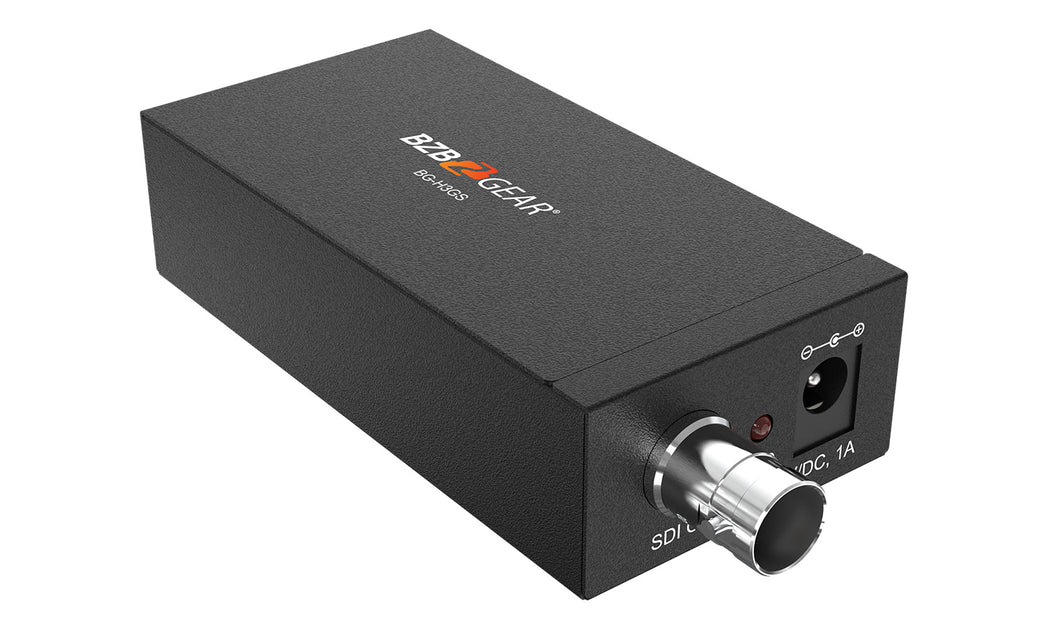

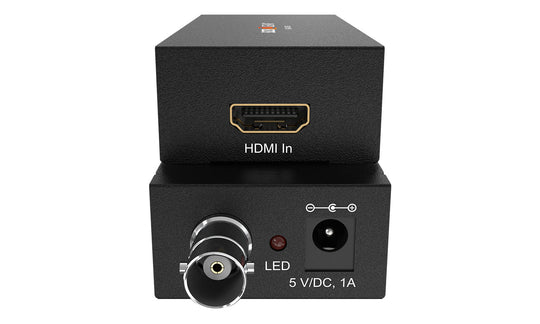

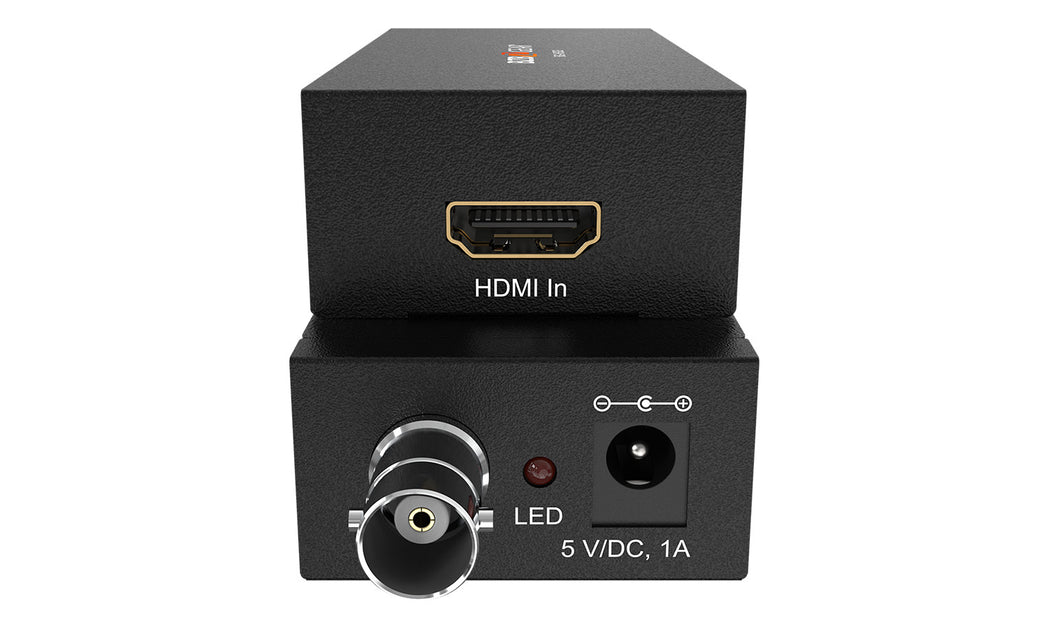

The BG-H3GS mini HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you a high-resolution signal without any loss. For professionals, this means that it is now easier to convert your 1080P HDMI signal for the long-distance transmission capabilities and durable cabling of SDI. This unit supports resolutions up to 1080p60 at distances up to 100 meters over 3G-SDI.

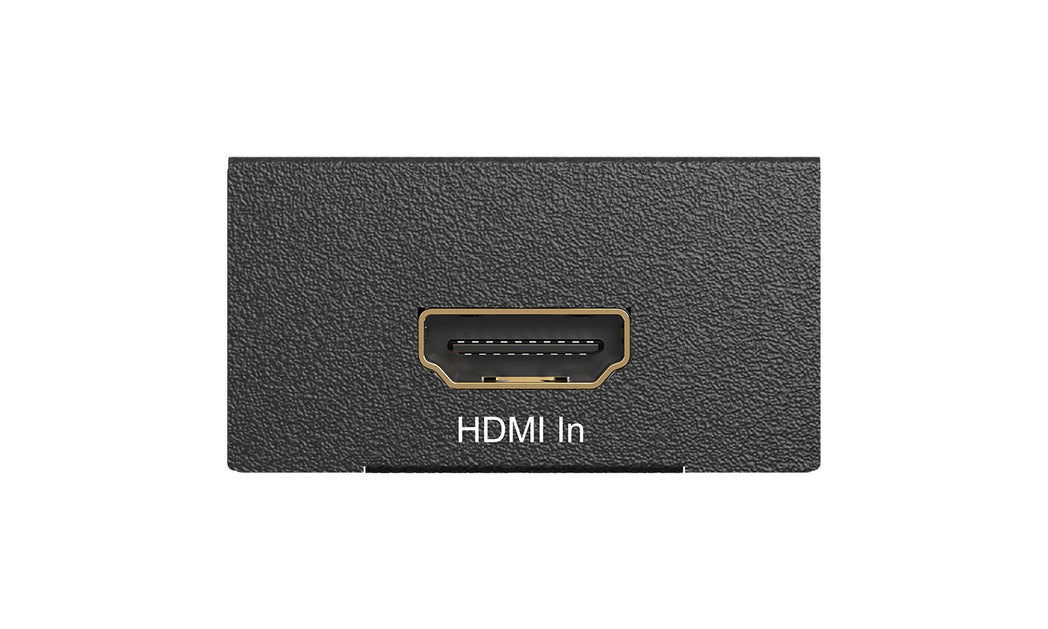

| Input Port | 1 x HDMI |

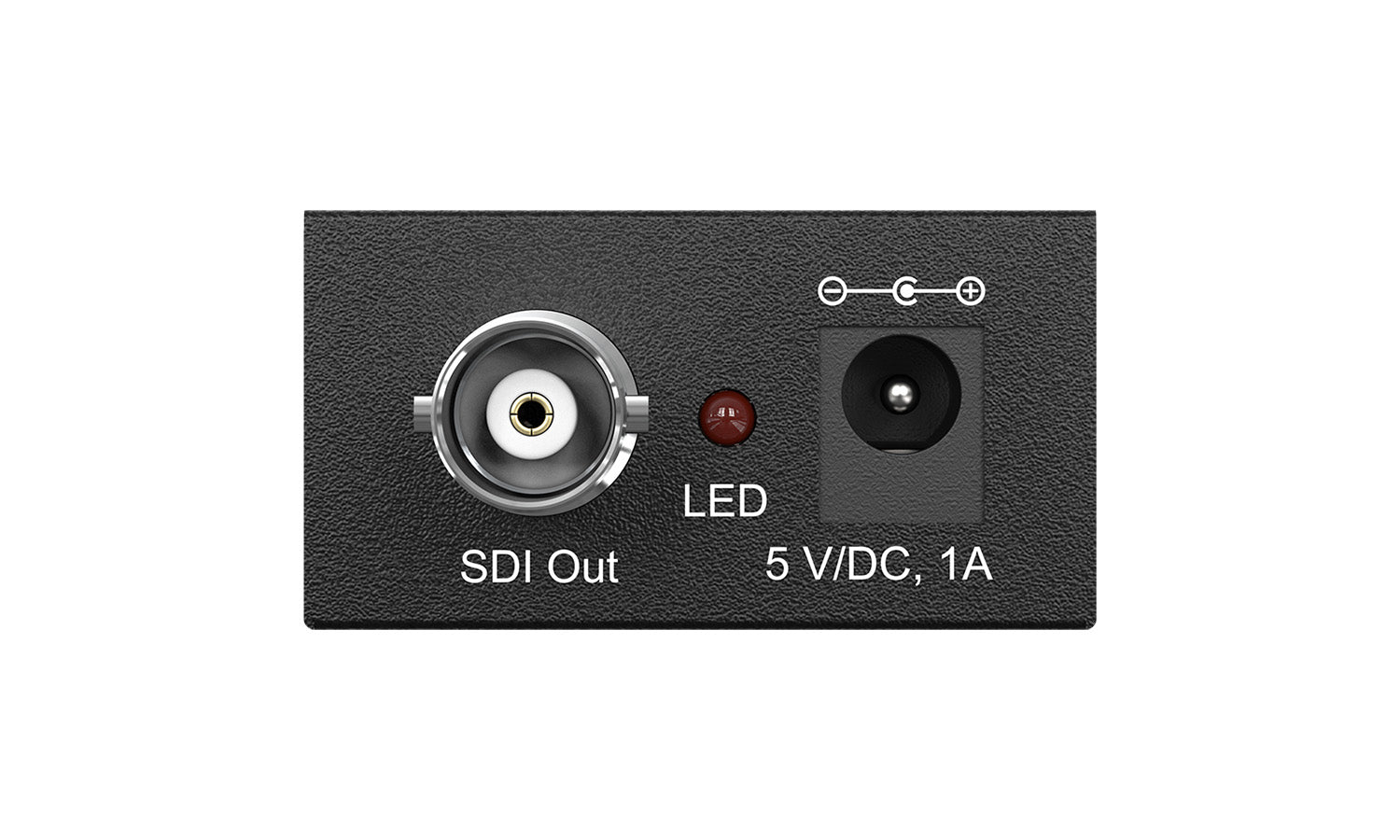

| Output Port | 1 x BNC (SDI/HD-SDI/3G-SDI) |
| SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60,
1080p@23.97/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V -12V |
| ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
| Dimension | 80mm x 41mm x 25mm |
| Weight | 150g |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
The BG-H3GS mini HDMI to SDI Converter allows HDMI signals to be shown on SDI display while ensuring high bit rates of 2.970 Gbit/s to give you a high-resolution signal without any loss. For professionals, this means that it is now easier to convert your 1080P HDMI signal for the long-distance transmission capabilities and durable cabling of SDI. This unit supports resolutions up to 1080p60 at distances up to 100 meters over 3G-SDI.
| Input Port | 1 x HDMI |
| Output Port | 1 x BNC (SDI/HD-SDI/3G-SDI) |
| SDI Transmission Rates |
2.970 Gbit/s and 2.970/1.001 Gbit/s |
| In/Output Resolution | 480i, 576i, 720p@50/59.94,60, 1080i@50/59.94/60,
1080p@23.97/24/25/29.97/30/50/59.94/60 |
| Power Supply | DC 5V -12V |
| ESD Protection Human body model |
±8kV (air-gap discharge) ±4kV (contact discharge) |
| Dimension | 80mm x 41mm x 25mm |
| Weight | 150g |
| Operating Temperature | 0°C ~ 40°C / 32°F ~ 104°F |
| Storage Temperature | -20°C ~ 60°C / -4°F ~ 140°F |
| Relative Humidity | 20 ~ 90% RH (Non-condensing) |
| Power Consumption (Max) | 5W |
