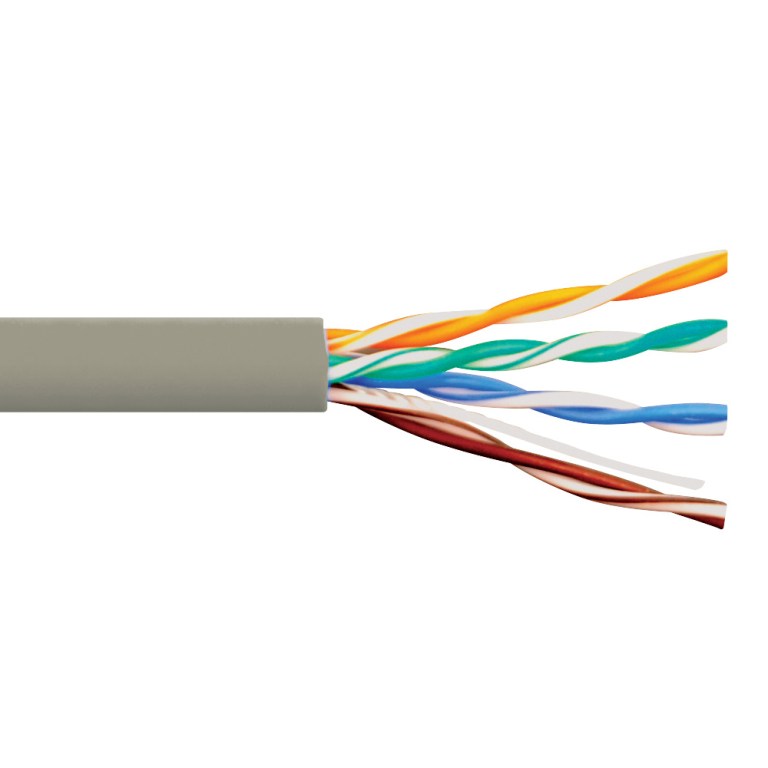

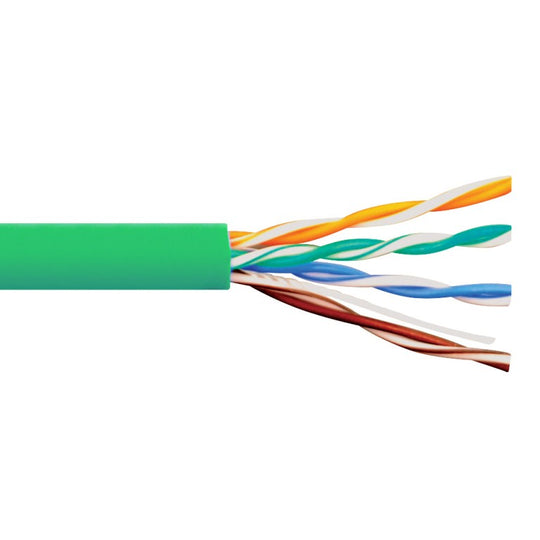

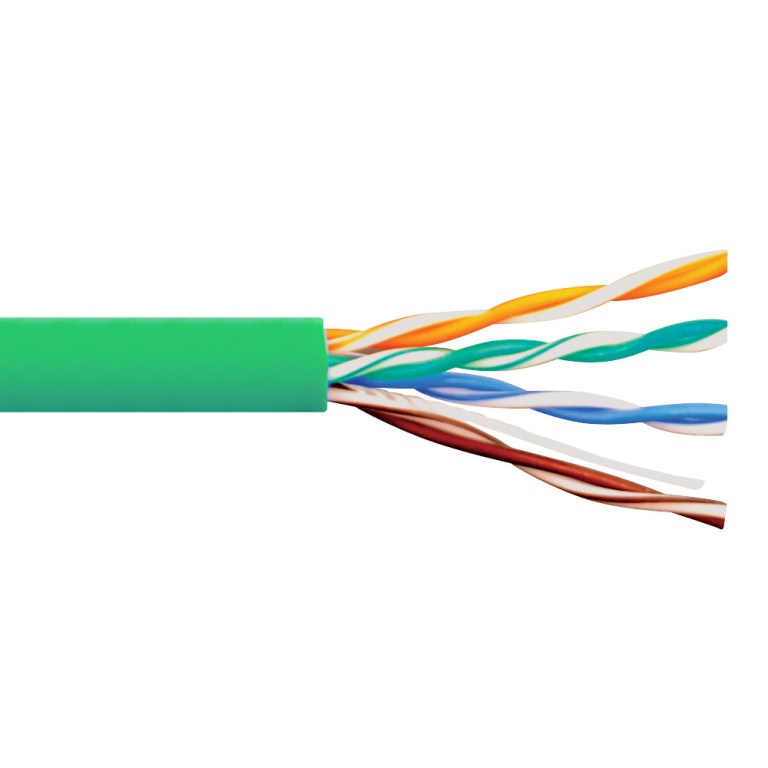

ICC 350Mhz CAT5e Bulk Cable with 24 AWG UTP Solid Wires, CMP Jacket, 1000ft Box

ICC CAT5e Bulk Cable With UTP Solid Wires CMP Jacket

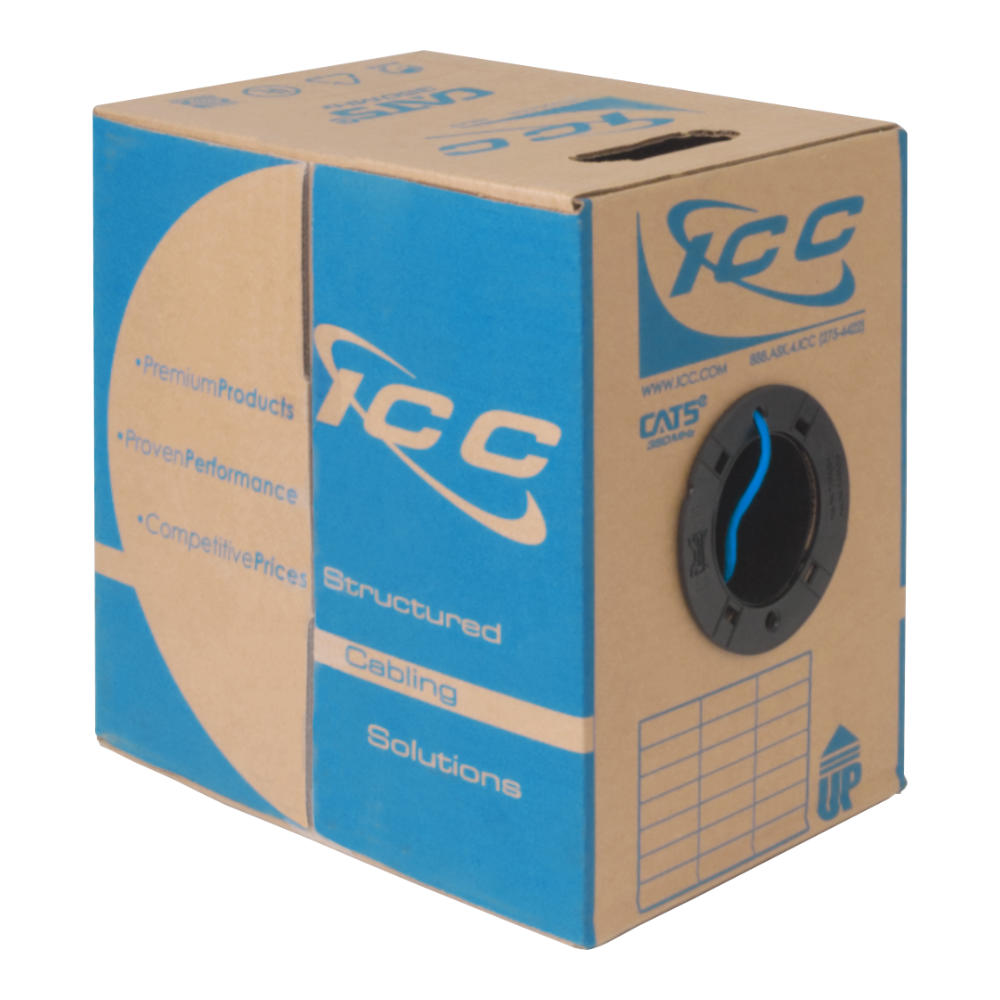

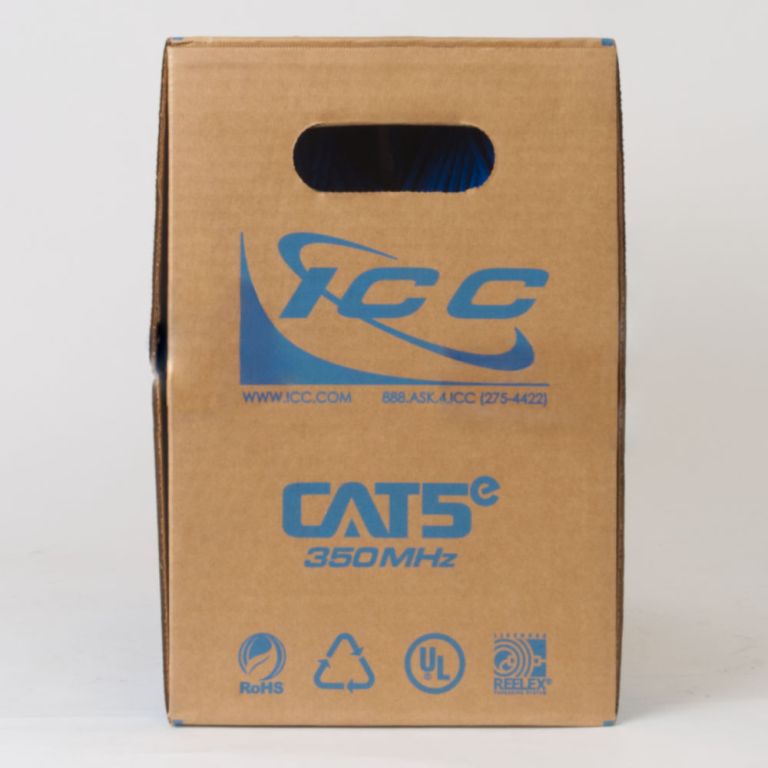

ICC’s CMP UTP Solid cables are manufactured based on the TIA 568-C.2 industry standard and are UL and cUL listed and verified. Available in spools of 1000 feet in a convenient EZ pull dispensing carton. Constructed with sequential footage markings on the outer jacket for easy-to-measure usage tracking. These cables offer a competitive solution designed to provide the ultimate performance necessary for today’s demanding voice, data, video, and security applications in commercial and residential installations.

• TIA 568-C.2 Category 5e.
• UL Type CM for non-plenum.
• UL Type CMP for plenum.
• UL 444.

Standard:

• ANSI/TIA 568 C.2
• ANSI/TIA 862
• ISO/IEC 11801 Ed 2.0
• ICEA S-90-661
• NEC/CEC Type CMP
• ROHS Compliant Directive 2002/95/EC
• UL 444

Construction:

• Conductor: 24 AWG, Solid Bare Copper

Jacket:

• Material: Low Smoke, Flame Retardant PVC
• Diameter: .180
• Insulation: Fluoropolymer/dual layer polyolefin

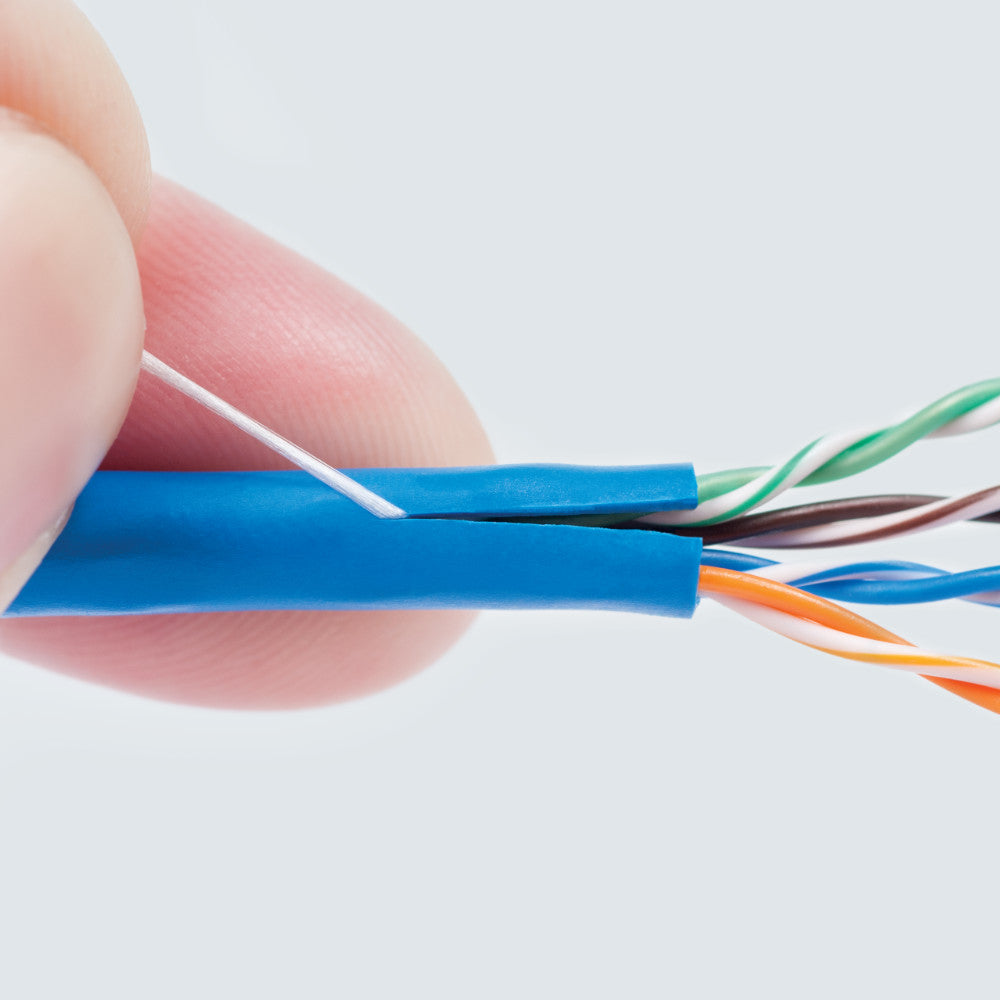

RIP Cord:

• Material: Polyester
• 10 Base-T
• 100Base-T (IEEE 802.3u)
• 1000 Base-T
• High Definition Video
• Digital Broadcast Video/IP Video/VoIP
• ISDN/ADSL
• 155Mbps ATM
• CAT 5e 350 MHz CMP (Plenum) Rated
• Conductor: 24AWG Bare Solid Copper for CAT5e

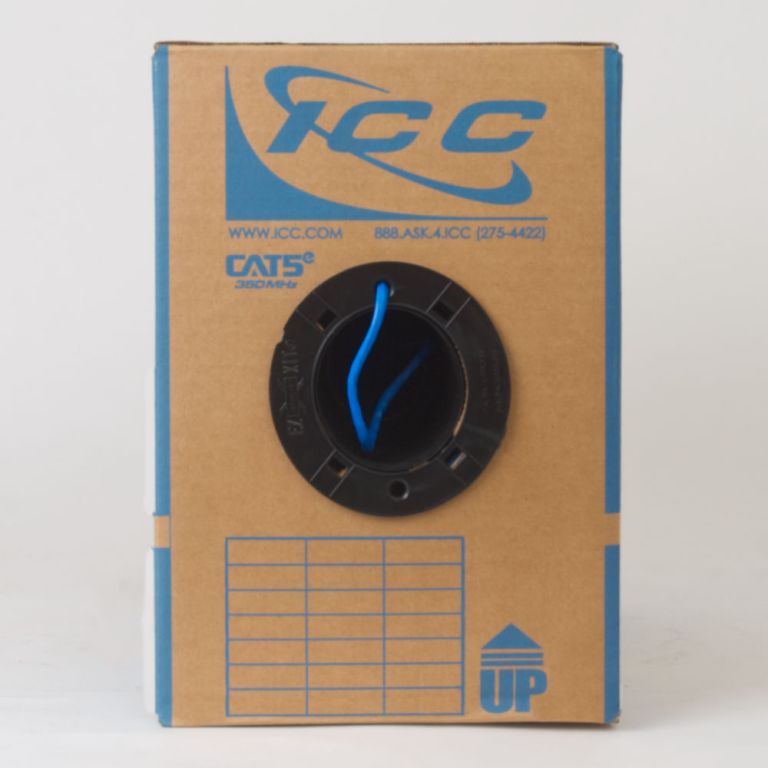

• Convenient dispensing via EZ Pull (CAT5e)

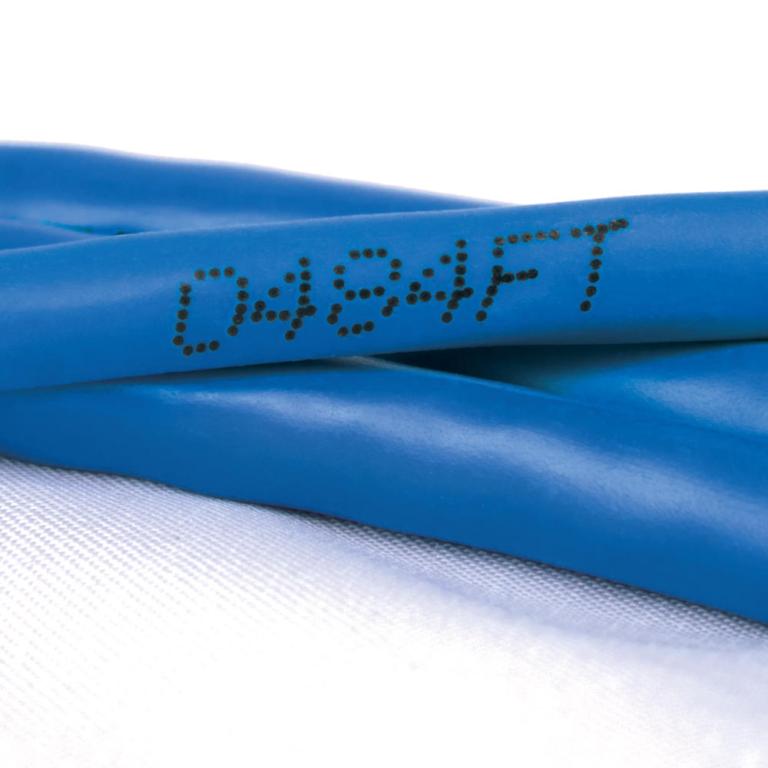

• Sequential footage marking for easy usage tracking
• ETL Verified for TIA 568-B.2
• ROHS Compliant

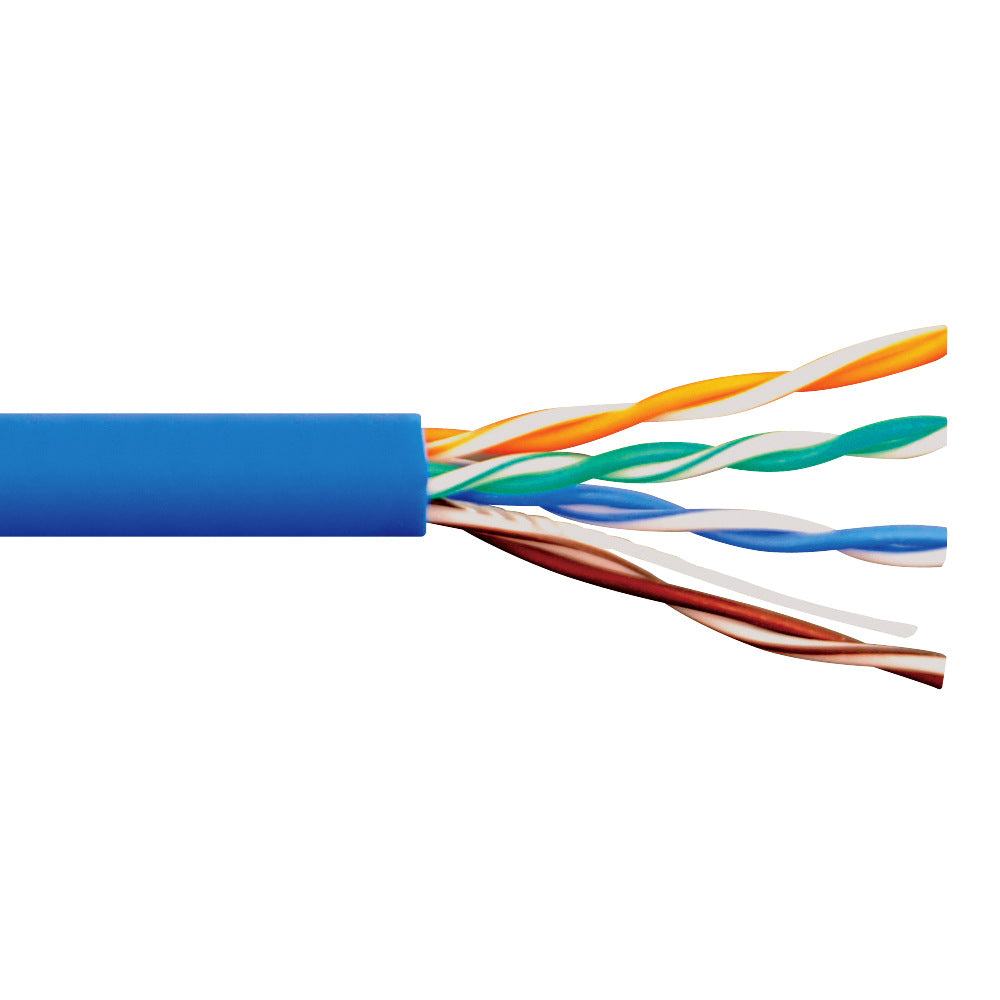

• Available jacket color: Blue

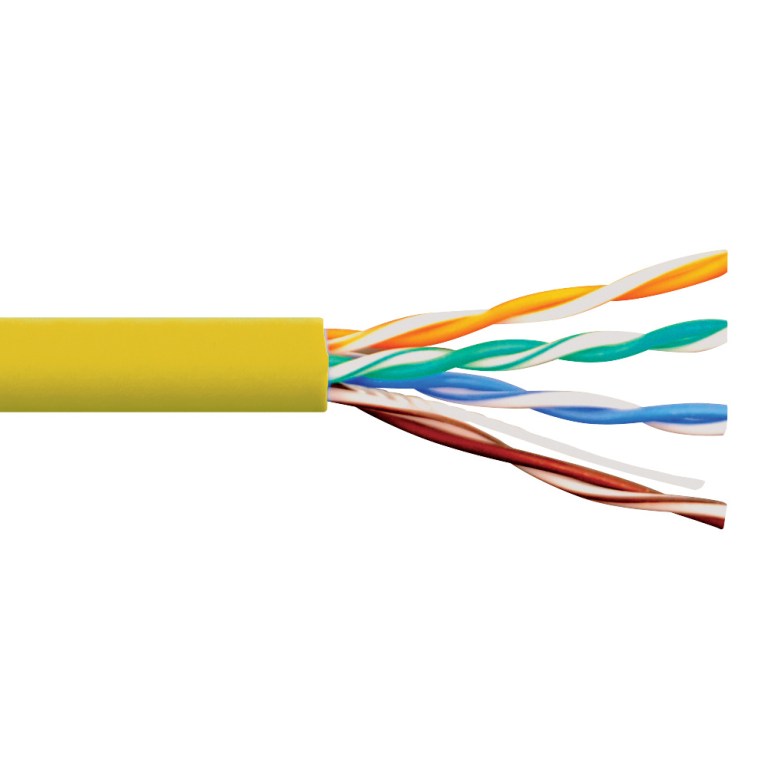

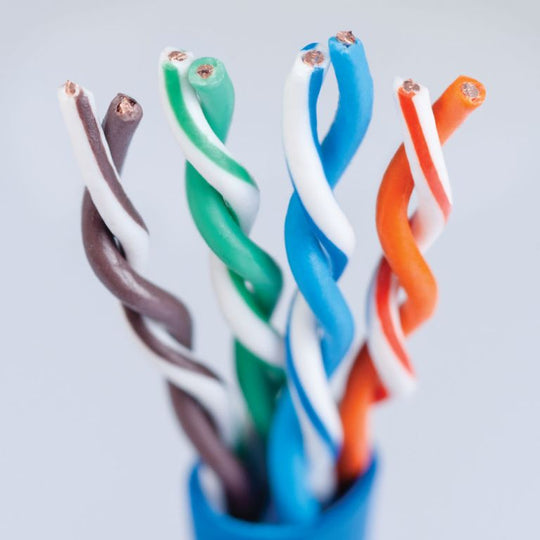

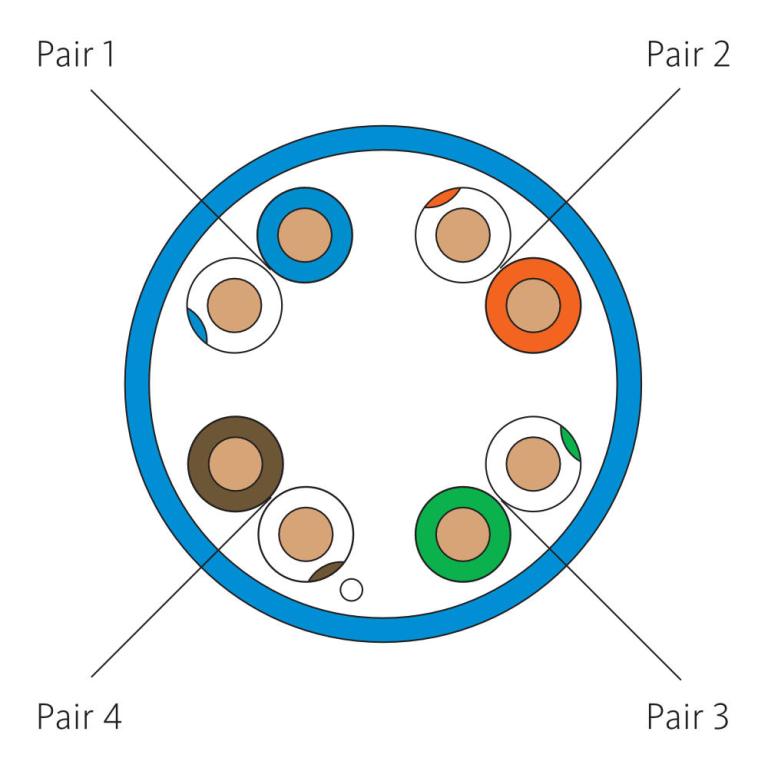

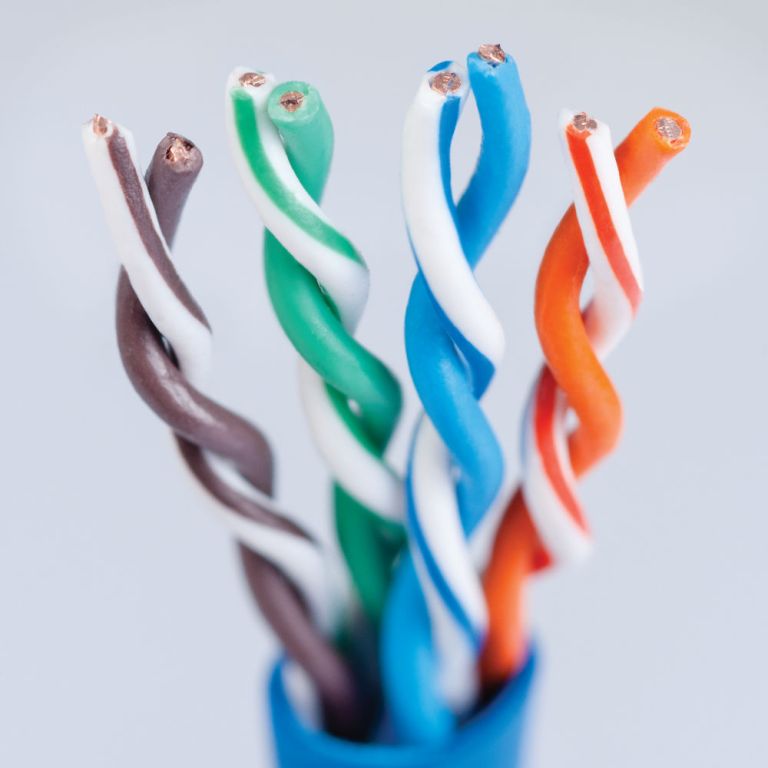

• Wired pairs are vividly colored for quick identification
• Temperature Rating (°F)
• Installation temperature: 32 to 140 Fahrenheit (°F)
• Operating temperature: -4 to 167 Fahrenheit (°F)

Color:

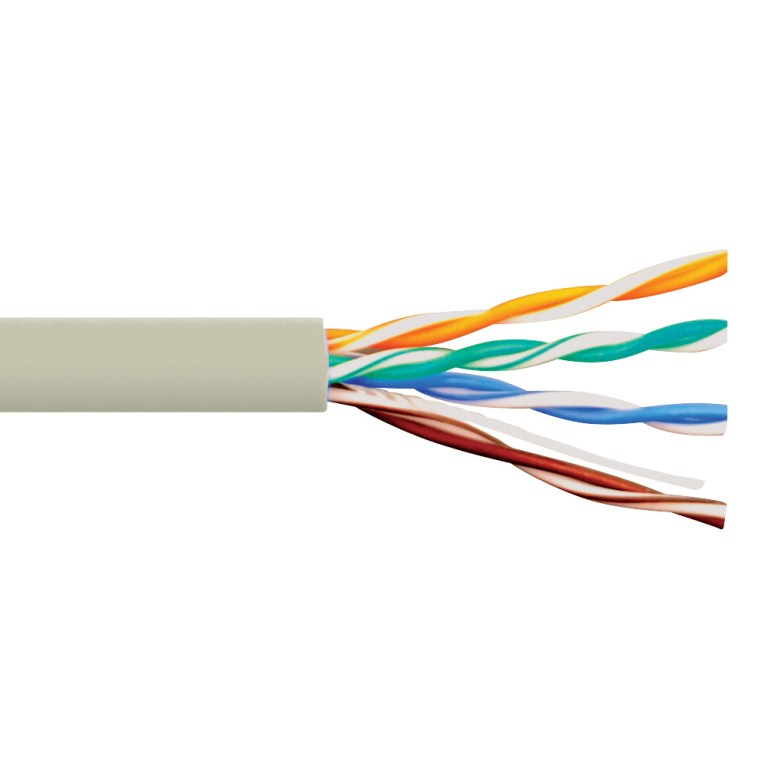

• Color XX: BL-Blue, GR-Green, GY-Gray, WH-White, YL-Yellow
