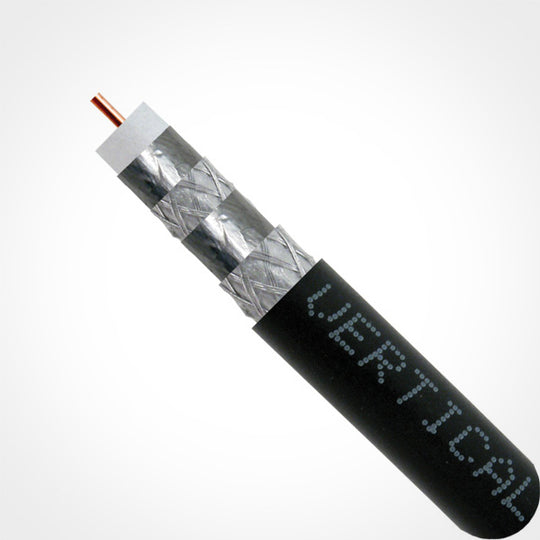

Vertical Cable 107-1952/DB/6Q 1000ft RG-6 Direct Burial Coax Cable - Quad Shield

Vertical Bulk Cable - RG-6 Direct Burial Coax Cable

RG6U 1000ft Direct Burial Outdoor Quad Bulk Coax Cable has been designed to handle the rugged conditions of outdoor applications and expanses. A gel filled polyethylene jacket paired 4 (Quad) layers of foil, or braids, prevents weathering as well as interference that can occur when exposed to outdoor, underground conditions. The outter sheething has been attached to a second coaxial cable of the identical quality for ease of use in multiple situations. 1000 Foot, Quad Shield, Burial Ready, Black

• Manufactured for Rugged Outdoor Applications
• Digital HDTV, CATV, Outdoor TV Antennas, Digital Satellite Installs
• Sweep Tested to 3GHz
• CM, CL2 Rated

• Conductor: Copper Clad Steel
• Conductor Diameter: 1.024mm (18AWG)
• Insulation: Foamed PE
• Insulation Diameter: 4.57mm
• Insulation Color: White

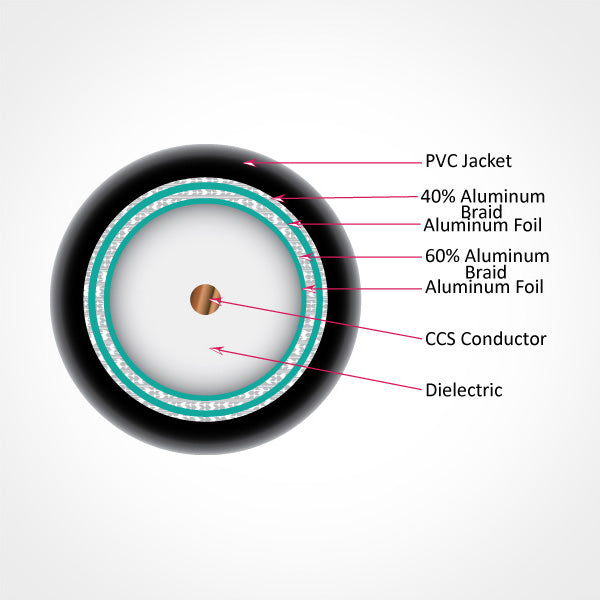

• First Shield: Aluminum/PET Foil Bonded
• Second Shield: Aluminum Wire
• Construction: 0.16x4x16 (60%)
• Third Shield: Aluminum/PET Foil
• Fourth Shield: Aluminum Wire
• Construction: 0.16x3x16 (40%)
• Jacket: Black PVC
• Diameter: 7.6mm
• DC Resistance: ≤120Ω/km
• Nominal Capacitance: 52±2pF/m
• Impedance: 75±3 Ohms
• ETL, RoHS Compliant
• SPEC SHEET

• (1) Wooden Spool 1000ft RG-6 Direct Burial Coax Cable
