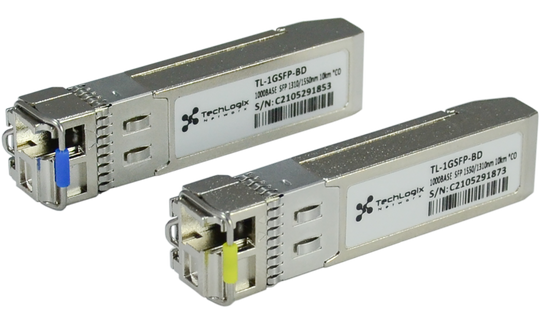

Techlogix Networx 1G BiDi SFP Transceiver Modules (Set) - Simplex Fiber

SKU#: TL-1GSFP-BD

UPC#: 816927025930

60 Day Money Back Guarantee

100% Secure Shopping

3-year-warranty53

3 Year Warranty

SKU#: TL-1GSFP-BD

UPC#:816927025930
$146.54

SKU#: TL-1GSFP-BD

UPC#:816927025930

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • 1G BiDi SFP Transceiver Modules (Set) - Simplex Fiber

    The majority of fiber optic cable installed for audio, video, network and control is two strand (duplex) count or greater. This is because most fiber optic electronics, including SFP modules, segregate send and receive signal transmission onto two separate fiber strands.

    Simplex (or one strand) fiber is typically relegated to telecommunications runs, such as ISP feeds outside of a building. However, from time-to-time simplex fiber finds its way into applications where multistrand is required, either from damaged cable or a previously installed or mis-specified cable.

    The TechLogix TL-1GSFP-BD SFP solves this problem by multiplexing duplex communication onto a simplex cable.

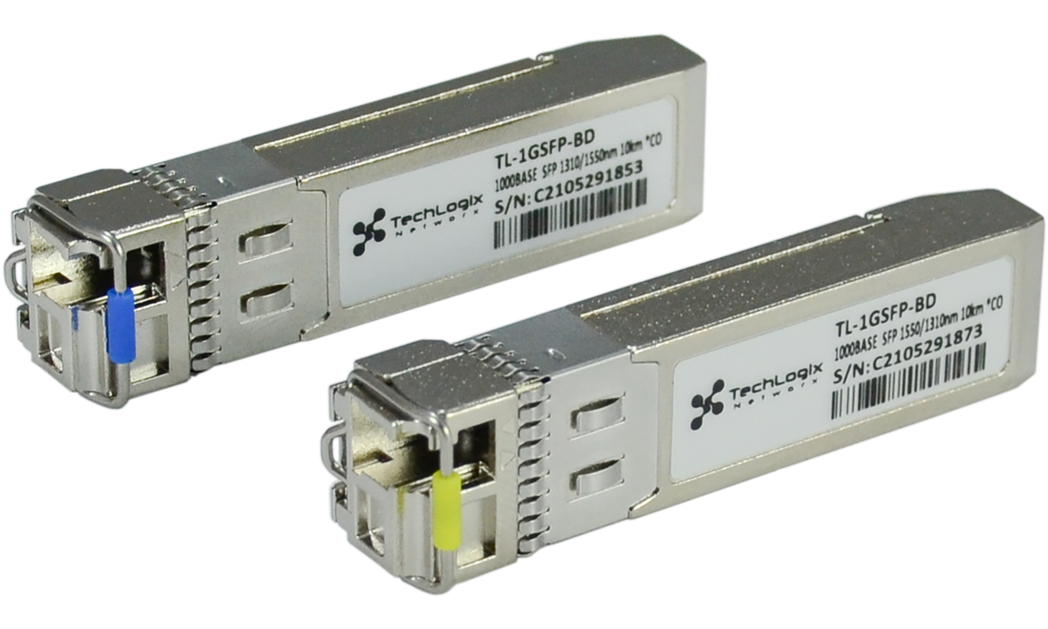

    Each TL-1GSFP-BD includes two matching transceivers that feature a single LC connection. The transceivers must be used in pairs and are compatible with standard 1G network switches, media converters and other 1G-based IP devices.

    For added versatility, the TL-1GSFP-BD is compatible with both single mode and multimode fiber. Single mode supports transmission distances up to 6.2 miles, whereas multimode supports transmission distances up to 492 feet.

  • Features+
    • Sold as a set (matched pair)

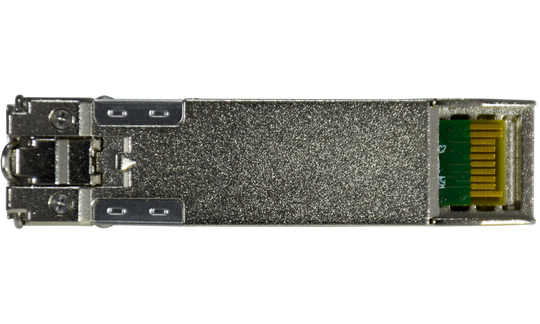

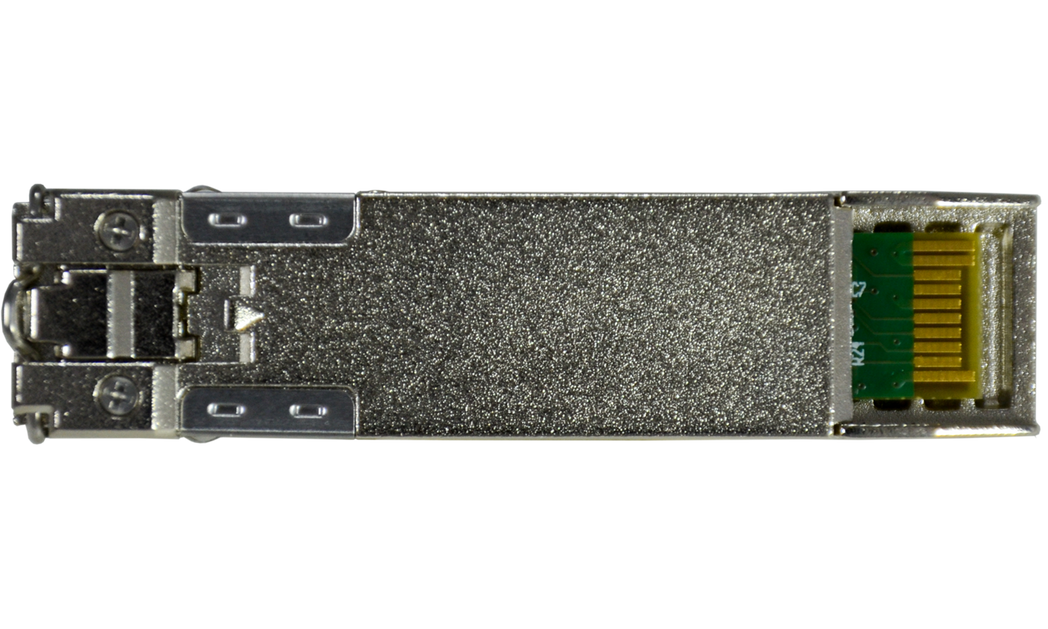

    • Hot-pluggable SFP 20-pin connector
    • Compatible with single mode or multi-mode fiber optic cable
    • Duplex LC connectors
    • 1000Mbps max data rate
    • 10km/6.2 mile max cable distance
    • DOM support (Digital Optical Monitoring)
    • 1310nm/1550nm wavelength
  • Specs+
  • Form Factor SFP
    Connector LC simplex
    Compatibility Universal, Cisco
    Max Data Rate 1000Mbps
    DOM Support Yes
    Media SMF (OS2), MMF (OM3~5)
    Max Cable Distance 10km SMF (6.2mile), 150m MMF (492ft)
    Optical Components Fabry-Perot Resonator (FP BiDi)
    TX Power -9~-3dBm
    Receiver Sensitivity <-23dBm

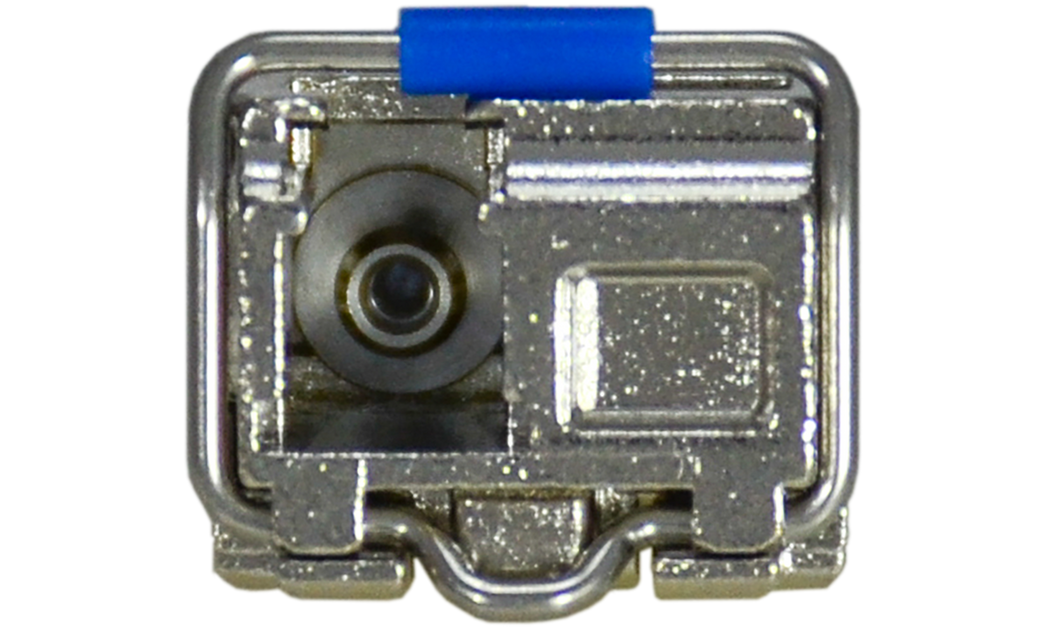

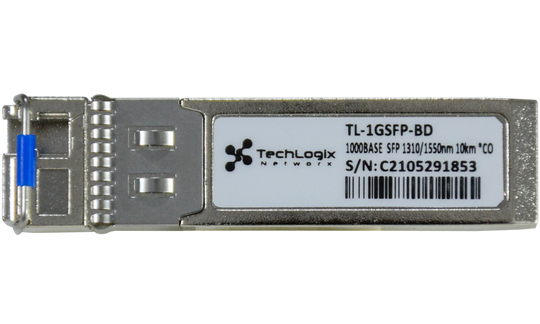

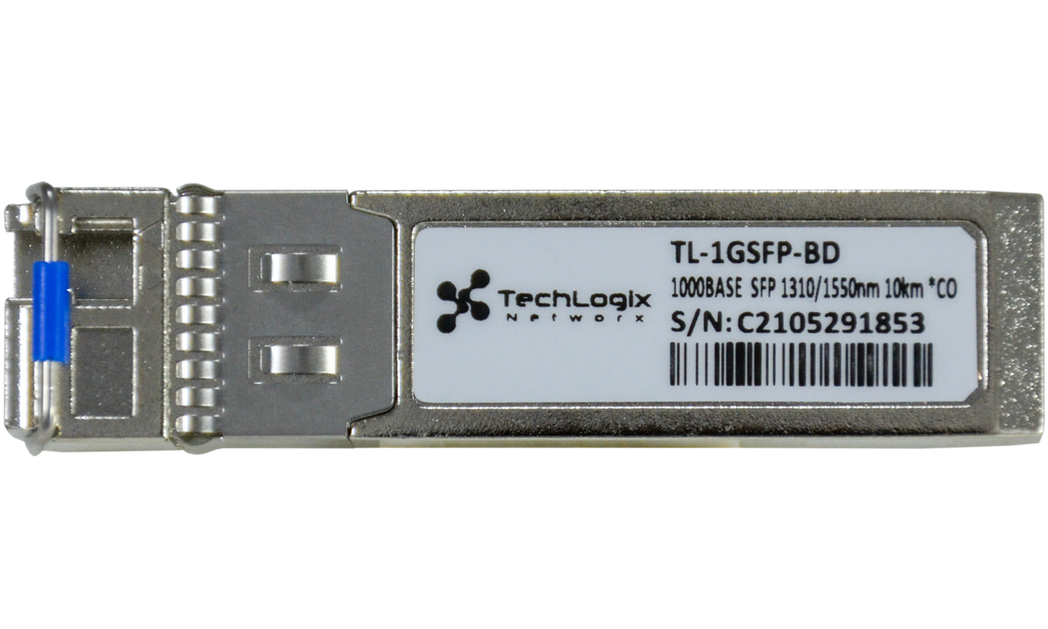

    Wavelength (blue module) 1310nm-TX/1550nm-RX

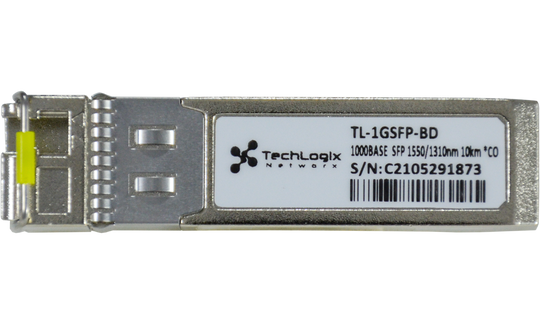

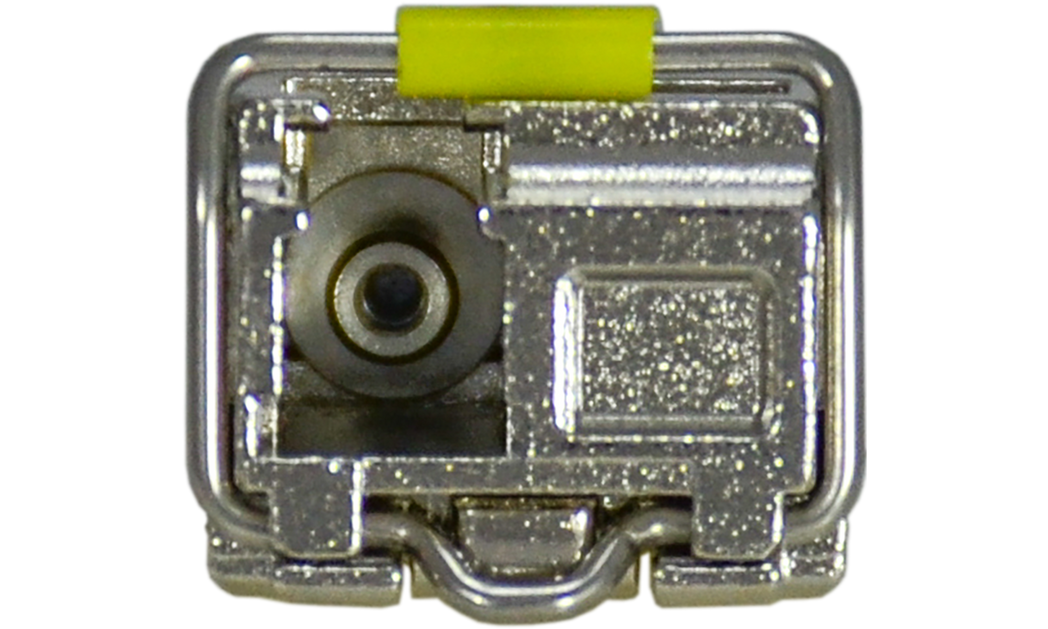

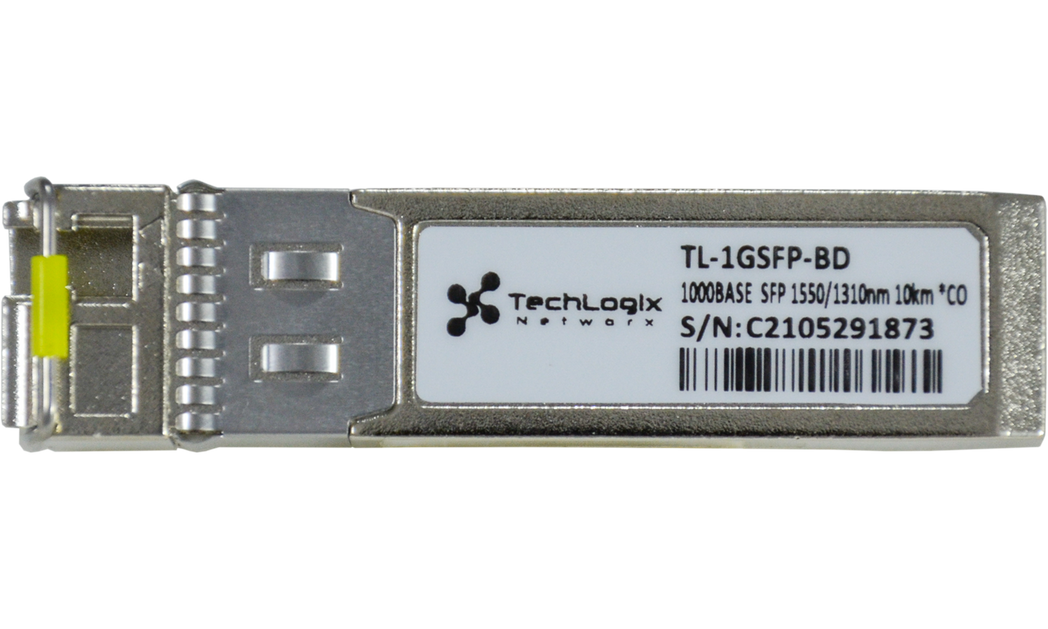

    Wavelength (yellow module) 1550nm-TX/1310nm-RX
    Protocols Fast Ethernet, Gigabit Fibre Channel, MSA Compliant
    Commercial Temperature Range 0 to 70°C (32 to 158°F)
    Certifications ISO 9001, ISO 14001, RoHS, REACH, CE, FCC, RCM, WEEE, EAC
