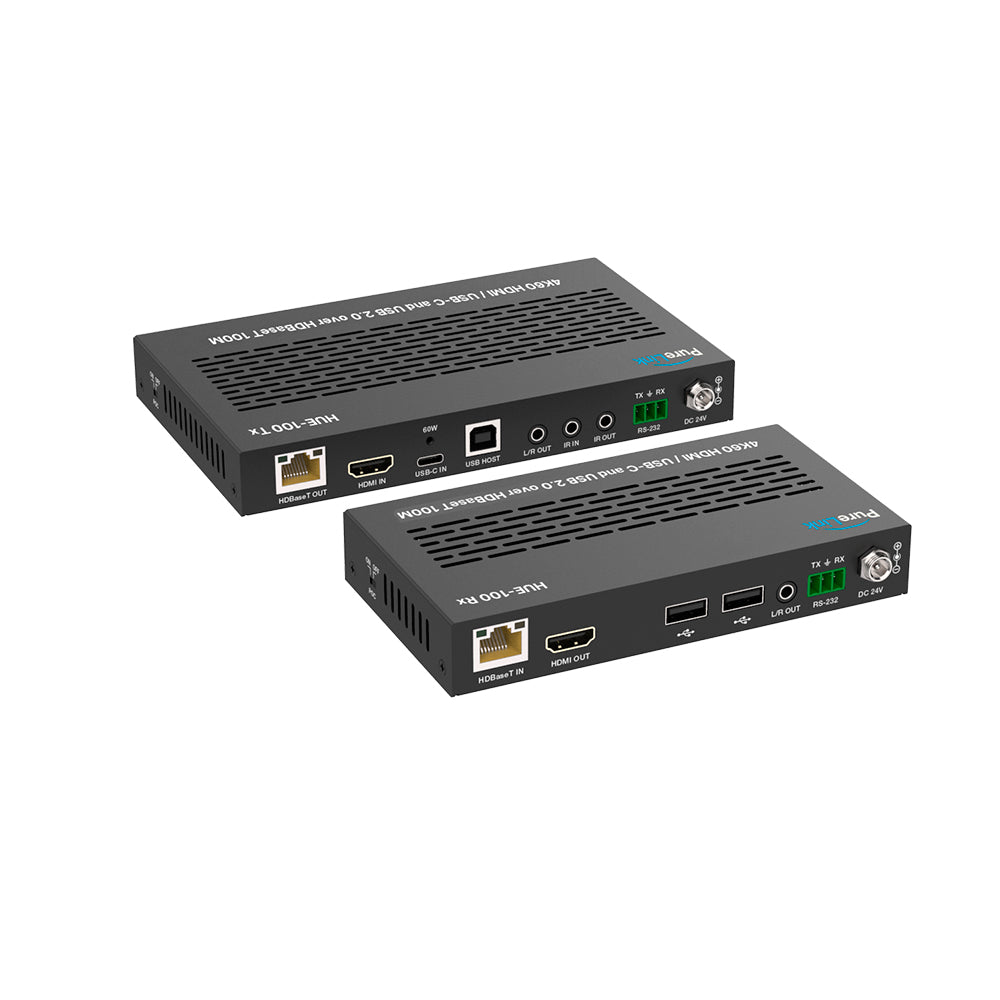

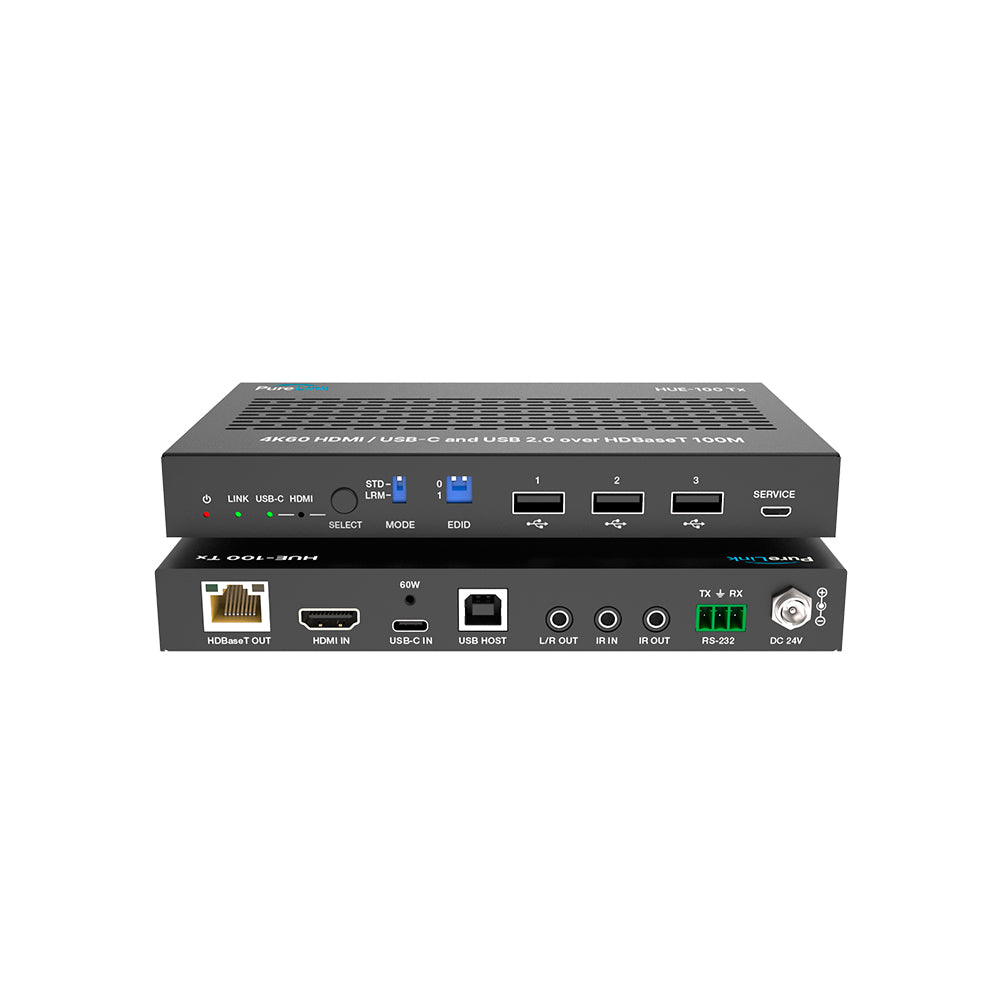

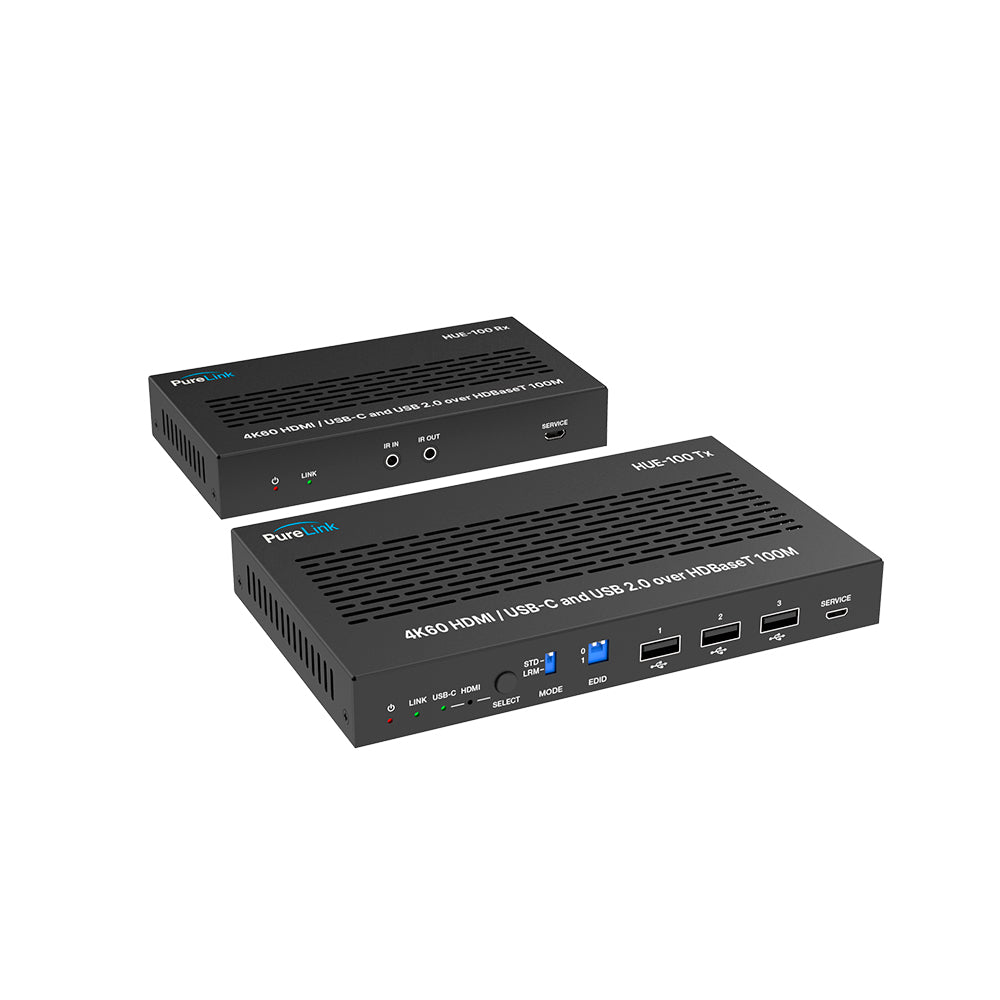

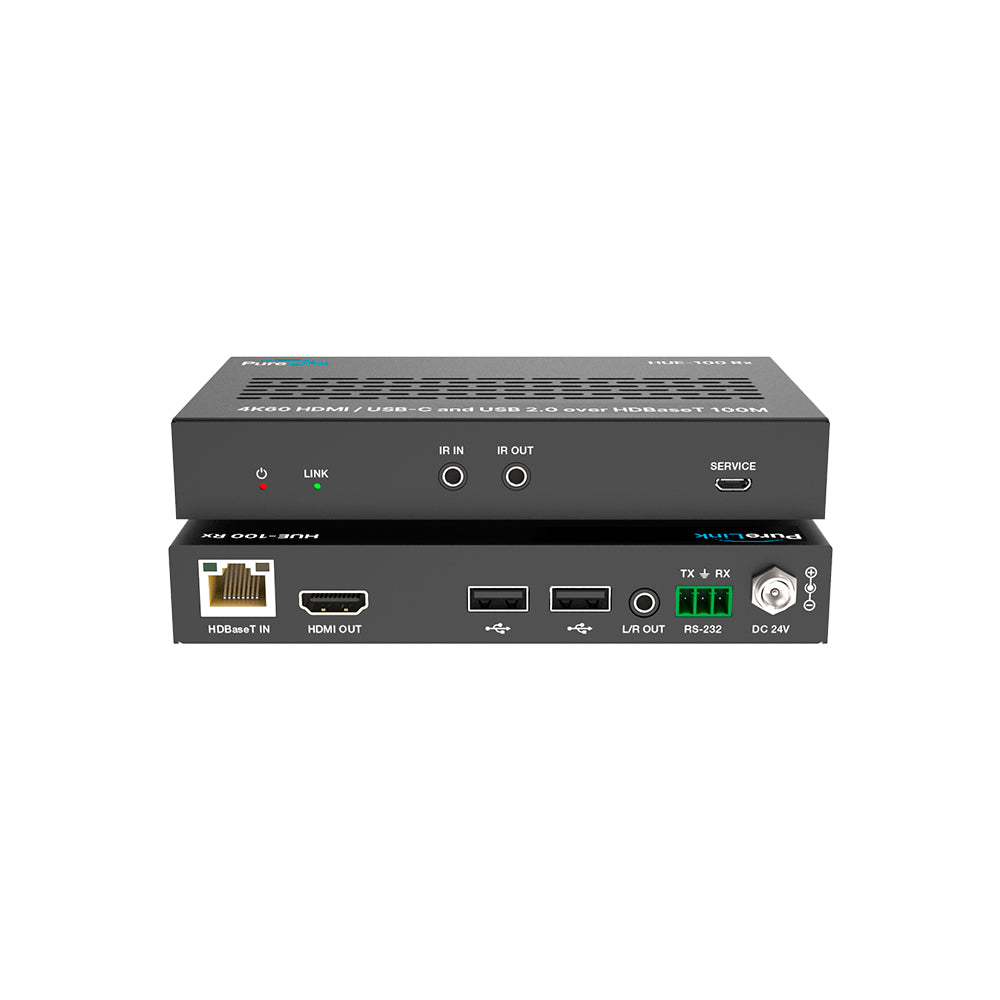

PureLink 4K60 HDMI and USB-C Switch/Extender 100 Meter HDBaseT 3.0
SKU#: HUE-100
UPC#:817705026361
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- HDMI and USB-C Inputs
- Manual or Automatic Input Selection
- API Control of:
- Manual / Auto Input Selection
- EDID Management
- De-embedded Audio Mute / Unmute
- Downscaling
- Resolutions up to 4K/60Hz (4:4:4)
- HDMI 2.0b
- HDR /HDR10/HDR10+
- HDCP 2.3
- USB 2.0, 1.1
- Extends 4K/60Hz up to 328 ft. (100m) and 1080p up to 492 ft. (150m)
- HDBaseT 3.0 Uncompressed Extension
- High Bandwidth Support – Up to 18 Gbps
- USB-C Port Charging up to 60W
- RS-232 Extension
- Bi-directional PoC
- Power Either End from the Other
- Bi-directional IR Extension
- Reviews+
- HDMI and USB-C Inputs
- Manual or Automatic Input Selection
- API Control of:
- Manual / Auto Input Selection
- EDID Management
- De-embedded Audio Mute / Unmute
- Downscaling
- Resolutions up to 4K/60Hz (4:4:4)
- HDMI 2.0b
- HDR /HDR10/HDR10+
- HDCP 2.3
- USB 2.0, 1.1
- Extends 4K/60Hz up to 328 ft. (100m) and 1080p up to 492 ft. (150m)
- HDBaseT 3.0 Uncompressed Extension
- High Bandwidth Support – Up to 18 Gbps
- USB-C Port Charging up to 60W
- RS-232 Extension
- Bi-directional PoC
- Power Either End from the Other
- Bi-directional IR Extension
4K HDMI and USB-C Over HDBaseT 3.0 100 Meter Extension System with Bi-Directional PoC
The HUE-100 HDMI and USB-C HDBaseT 3.0 extension system offers full HDMI 2.0b, HDR/HDR10/HDR10+ (High Dynamic Range) 4K@60Hz 4:4:4 up to 100 meters on CAT6a/7 cable. The HUE-100 can also transport 1080P60 8 bit up to 150 meters over CAT6a/7 cable. Manual or automatic selection of HDMI and USB-C inputs is available on front panel controls and API. User defined EDID and extraction of display EDID are easy operations using the HUE-100simple API.
The HUE-100 provides Dolby Vision, HLG, multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoC – all with zero loss and zero noise. The HUE-100 also supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LCPM. Additionally, the low profile “slim box” enclosure design makes the HUE-100 ideal for limited space installation environments, such as behind flat panel displays and video walls.
4K HDMI and USB-C Over HDBaseT 3.0 100 Meter Extension System with Bi-Directional PoC
The HUE-100 HDMI and USB-C HDBaseT 3.0 extension system offers full HDMI 2.0b, HDR/HDR10/HDR10+ (High Dynamic Range) 4K@60Hz 4:4:4 up to 100 meters on CAT6a/7 cable. The HUE-100 can also transport 1080P60 8 bit up to 150 meters over CAT6a/7 cable. Manual or automatic selection of HDMI and USB-C inputs is available on front panel controls and API. User defined EDID and extraction of display EDID are easy operations using the HUE-100simple API.
The HUE-100 provides Dolby Vision, HLG, multi-channel audio, CEC pass-through, bi-directional RS-232 and IR control, and PoC – all with zero loss and zero noise. The HUE-100 also supports Dolby TrueHD, Dolby Digital Plus and DTS-HD Master Audio plus LCPM. Additionally, the low profile “slim box” enclosure design makes the HUE-100 ideal for limited space installation environments, such as behind flat panel displays and video walls.
