ADDER Link ipeps - IP Engine per Server KVM-over-IP

SKU#: AL-IPEPS

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: AL-IPEPS

UPC#:
$544.50

SKU#: AL-IPEPS

UPC#:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+

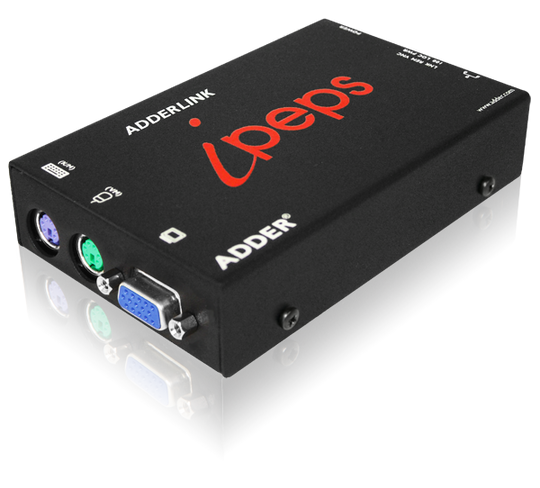

  • ADDER Link ipeps KVM-over-IP - Engine per Server

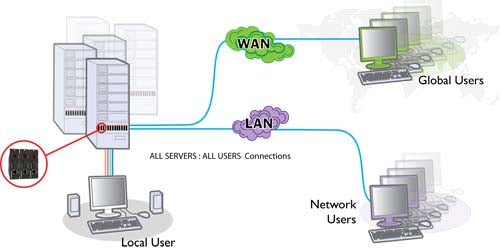

    The ADDERLink® ipeps enables you to remotely access and control your critical computing hardware using your standard IP network. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

    • Regulated access: the unit can be accessed remotely by up to four users at any one time
    • User management: sixteen user profiles can be created with defined access rights
    • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication), with added encryption of RealVNC
    • Compact and efficient: powered by a single USB connection, it takes up'Zero U' on your rack

    Note: This product is only compatible with other Adder branded products

  • Features+
    • Interface powered, optional external PSU available
    • Independent operation gives full control even during boot up, BIOS level or computer crash states
    • USB or PS/2 keyboard and mouse connections
    • Virtual media support (via USB)
    • High performance video
    • Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.
    • 16 user profiles and access data logging
    • Up to 16 units can be rack mounted in 2U of rack space
    • Supports exclusive access mode or up to four simultaneous connections
    • ipeps DA model has feed through port that provides local KVM console access
    • Auto sensing 10/100 Mb Ethernet port
  • Specs+
  • Video modes

    • Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer.

    Hardware compatibility

    • Supports PC, RS/6000, Alpha and SGI computers, Sun and Mac. USB or PS/2 connections supported

    O/S compatibility

    • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.


    ADDER Link ipeps to KVM/computer connection

    • Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)

    Local console (DA model only)

    • Video: HDD15, Keyboard/Mouse: MiniDIN6


    Connections

    • Ethernet: RJ45 10/100 autosensing


    Physical design

    • Compact case, robust metal construction.
    • ipeps 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs.
    • ipeps DA 120mm/4.72 (w), 42mm/1.65 (h), 75mm/2.95 (d), 0.46kg/1.02lbs.
    • 16 or 8 (DA) per 2U. Rack mount kits available (X-RMK-Chassis ), Fascia Plates available MET-IPEPS-DA-FASCIA for AL-iPEPS-DA (order separately), MET-IPEPS-FASCIA for AL IPEPS (included)

    Optional power supply

    • 100-240 VAC 50 - 60Hz


    Operating temperature

    • 0 - 40 deg C / 32 to 104 deg F


    Approvals

    • CE, FCC

    Order codes

    • MET-IPEPS-FASCIA : Single Rack Kit (supplied with product)
    • VKVM-1M: KVM cable set (one set per connected computer, supplied with product )
    • USB converter plugs (supplied with product)

    Additional accessories

    • MET-IPEPS-DA-FASCIA: Dual Rack Kit
    • VKVM-1M; VKVM-2M; VKVM-5M; VKVM-10M: KVM cable set (one set per connected computer, supplied with product )
    • CCSUN-2M; CCSUN-5M; CCSUN-10M: CCSUN Convertor Cable(required to connect Sun computers that use a mini-DIN port to connect their keyboard and mouse)
    • CAB-XSERIES-4WAYPWR: Squid Power Cable (allows up to four IPEPS units to be powered from a single power adapter)
    • PSU-IEC-5VDC-2.5A: Power Adapter plus country specific power cable: Standard version power adapter capable of supplying a single IPEPS units directly or up to two IPEPS
    • using the squid power cable
    • PSU-IEC-5VDC-4AMP: Heavy duty version power adapter capable of supplying up to four IPEPS units using the squid power cable
  • Package Contents+
    • iPeps
    • Rack bracket
    • USB converter plugs
    • KVM cable set
  • Reviews+
  • ADDER Link ipeps KVM-over-IP - Engine per Server

    The ADDERLink® ipeps enables you to remotely access and control your critical computing hardware using your standard IP network. KVM connections are VGA and PS/2. Using RealVNC client software, computers outside the network can be remotely and securely accessed.

    • Regulated access: the unit can be accessed remotely by up to four users at any one time
    • User management: sixteen user profiles can be created with defined access rights
    • In-built security measures: compliant with universal enterprise grade security standards (AES 256 bit encryption and RSA 2048 bit public key authentication), with added encryption of RealVNC
    • Compact and efficient: powered by a single USB connection, it takes up'Zero U' on your rack

    Note: This product is only compatible with other Adder branded products

    • Interface powered, optional external PSU available
    • Independent operation gives full control even during boot up, BIOS level or computer crash states
    • USB or PS/2 keyboard and mouse connections
    • Virtual media support (via USB)
    • High performance video
    • Enterprise grade security (using AES 128 bit encryption and RSA 2048 bit public key authentication) further enhanced by the use of Real VNC that allows for the creation of ciphered user communications.
    • 16 user profiles and access data logging
    • Up to 16 units can be rack mounted in 2U of rack space
    • Supports exclusive access mode or up to four simultaneous connections
    • ipeps DA model has feed through port that provides local KVM console access
    • Auto sensing 10/100 Mb Ethernet port

    Video modes

    • Supports standard PC, Sun and Mac video modes up to resolutions of 1600 x 1200 with scalable viewer.

    Hardware compatibility

    • Supports PC, RS/6000, Alpha and SGI computers, Sun and Mac. USB or PS/2 connections supported

    O/S compatibility

    • All known software and operating systems including Windows (all), DOS, Linux, Unix, BSD, Sun OS, Solaris, Mac OS, NetWare etc.


    ADDER Link ipeps to KVM/computer connection

    • Video: HDD15, Keyboard/Mouse: MiniDIN6 1m 3-in-1 cable supplied (USB converters also included)

    Local console (DA model only)

    • Video: HDD15, Keyboard/Mouse: MiniDIN6


    Connections

    • Ethernet: RJ45 10/100 autosensing


    Physical design

    • Compact case, robust metal construction.
    • ipeps 120mm/4.72 (w), 27mm/1.06 (h), 75mm/2.95 (d), 0.34kg/0.76lbs.
    • ipeps DA 120mm/4.72 (w), 42mm/1.65 (h), 75mm/2.95 (d), 0.46kg/1.02lbs.
    • 16 or 8 (DA) per 2U. Rack mount kits available (X-RMK-Chassis ), Fascia Plates available MET-IPEPS-DA-FASCIA for AL-iPEPS-DA (order separately), MET-IPEPS-FASCIA for AL IPEPS (included)

    Optional power supply

    • 100-240 VAC 50 - 60Hz


    Operating temperature

    • 0 - 40 deg C / 32 to 104 deg F


    Approvals

    • CE, FCC

    Order codes

    • MET-IPEPS-FASCIA : Single Rack Kit (supplied with product)
    • VKVM-1M: KVM cable set (one set per connected computer, supplied with product )
    • USB converter plugs (supplied with product)

    Additional accessories

    • MET-IPEPS-DA-FASCIA: Dual Rack Kit
    • VKVM-1M; VKVM-2M; VKVM-5M; VKVM-10M: KVM cable set (one set per connected computer, supplied with product )
    • CCSUN-2M; CCSUN-5M; CCSUN-10M: CCSUN Convertor Cable(required to connect Sun computers that use a mini-DIN port to connect their keyboard and mouse)
    • CAB-XSERIES-4WAYPWR: Squid Power Cable (allows up to four IPEPS units to be powered from a single power adapter)
    • PSU-IEC-5VDC-2.5A: Power Adapter plus country specific power cable: Standard version power adapter capable of supplying a single IPEPS units directly or up to two IPEPS
    • using the squid power cable
    • PSU-IEC-5VDC-4AMP: Heavy duty version power adapter capable of supplying up to four IPEPS units using the squid power cable
    • iPeps
    • Rack bracket
    • USB converter plugs
    • KVM cable set
