  • ADDER CCS-XB LED Light Module Kit for CCS-PRO4
  • ADDER CCS-XB LED Light Module Kit for CCS-PRO4
  • ADDER CCS-XB LED Light Module Kit for CCS-PRO4

ADDER CCS-XB LED Light Module Kit for CCS-PRO4

SKU#: CCS-XB

UPC#:

60 Day Money Back Guarantee

100% Secure Shopping

2-year-warranty2

2 Year Warranty

SKU#: CCS-XB

UPC#:
$261.25

SKU#: CCS-XB

UPC#:

Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.

Califonia Warning 65

California Prop 65 Warning

×
For CA Residents Only.
California Proposition 65 Warning

Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.

• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.

For further information, please visit www.P65Warnings.ca.gov

  • Description+
  • ADDER CCS-XB LED Light Module Kit for CCS-PRO4

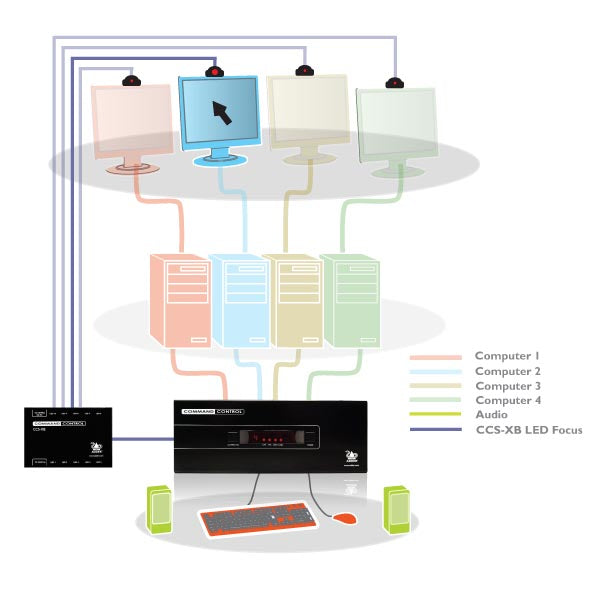

    The CCS-XB illumination module is an accessory which connects to the CCS-PRO4. It gives the users the option to have an LED indicator positioned on each screen to identify which screen you are currently controlling. The color and intensity can be controlled for each screen. A maximum of 10 illumination indicators can be supported.

    Note: This product is only compatible with other Adder branded products

  • Features+
  • Add-on module for use with CCS and Free-Flow. This module controls a set of LED lights which mount onto your screens. The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application. These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility. Each LED module is pre-wired with 3 meters of cable allowing the user to route the module discreetly to the screen. The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.

    Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.

    The CCS-XB is interface powered making installation very simple.

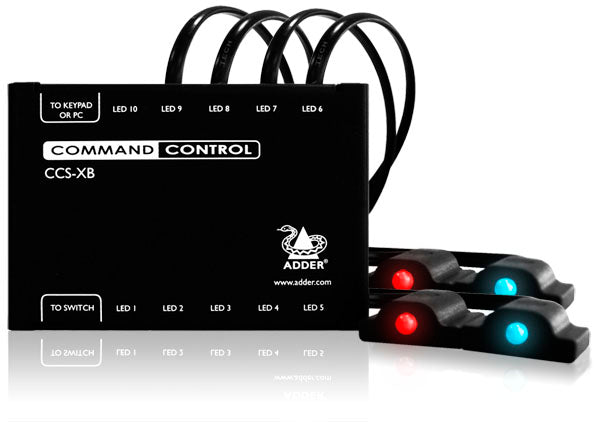

    Each CCS-XB ships with 4 LED modules. Additional modules can be ordered (to a maximum of 10 per unit) using order code: CCS-LED

  • Specs+
  • Hardware compatibility
    For use with CCS4-USB devices with firmware 2.0 or above

    Connection to CCS4:
    10p10c connector via cable VSC46

    Connections to Desk:

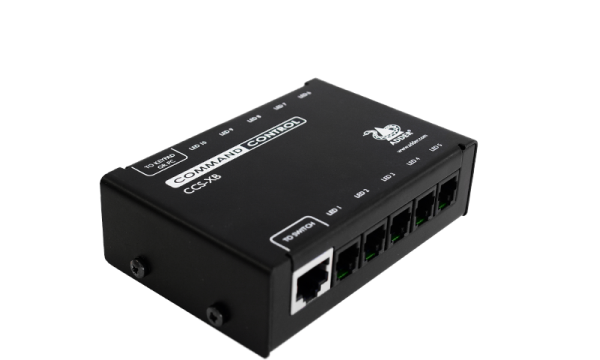

    • 10 x 6P6C connecters for the CCS-LED modules
    • 1 x 10P10C connector for upgrade cable or remote control RC4 4-button switch

    Physical design
    Robust metal construction. 95mm/3.7” (w), 30mm/1.2” (h), 65mm/2.6” (d), 0.22kg/1.65lbs.

    Operating temperature
    0 to 40ºC / 32 to 104ºF

    Approvals
    CE, FCC

  • Package Contents+
    • CCS-XB Controller
    • 4 LED monitor indicators
    • CATx link cable
  • Reviews+
  • ADDER CCS-XB LED Light Module Kit for CCS-PRO4

    The CCS-XB illumination module is an accessory which connects to the CCS-PRO4. It gives the users the option to have an LED indicator positioned on each screen to identify which screen you are currently controlling. The color and intensity can be controlled for each screen. A maximum of 10 illumination indicators can be supported.

    Note: This product is only compatible with other Adder branded products

    Add-on module for use with CCS and Free-Flow. This module controls a set of LED lights which mount onto your screens. The LED's are fully configurable allowing the user to assign a specified color and intensity via the setup application. These units provide loop through support for additional accessories such as the RC4 or RC8 remote control modules for greater flexibility. Each LED module is pre-wired with 3 meters of cable allowing the user to route the module discreetly to the screen. The flexible cable used is of oval profile making it easier to tuck into channeling, wall gaps or any similar room features.

    Each LED is housed in a sturdy molded enclosure and provided with an adhesive pad allowing the module to be fixed onto a screen bezel or other surface as required.

    The CCS-XB is interface powered making installation very simple.

    Each CCS-XB ships with 4 LED modules. Additional modules can be ordered (to a maximum of 10 per unit) using order code: CCS-LED

    Hardware compatibility
    For use with CCS4-USB devices with firmware 2.0 or above

    Connection to CCS4:
    10p10c connector via cable VSC46

    Connections to Desk:

    • 10 x 6P6C connecters for the CCS-LED modules
    • 1 x 10P10C connector for upgrade cable or remote control RC4 4-button switch

    Physical design
    Robust metal construction. 95mm/3.7” (w), 30mm/1.2” (h), 65mm/2.6” (d), 0.22kg/1.65lbs.

    Operating temperature
    0 to 40ºC / 32 to 104ºF

    Approvals
    CE, FCC

    • CCS-XB Controller
    • 4 LED monitor indicators
    • CATx link cable
