HDMI Extender over Cat6 Cable with IR Contractor Multi Pack- 180ft
SKU#: HDMI-SINGLE-5PCK
UPC#:6955361200153
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Features+
- Transmits up to 180ft over a single Cat6 23AWG cable
- 1080p and 3D Support
- Aluminum Alloy Shell
- IR Transmitter/Receiver Included
- Specs+
- Supports Resolutions up to 1080p@50/60Hz
- Supports IR Remote Control 20~60Khz
- Power Consumption: Less Than 2W Each Unit
- Dimensions: 71.6 x 66.6 x 24.8mm (LxWxH)
- HDCP Compliant
- IEEE-568B Standard
- FCC, CE Listed
- RoHS Compliant
- Package Contents+

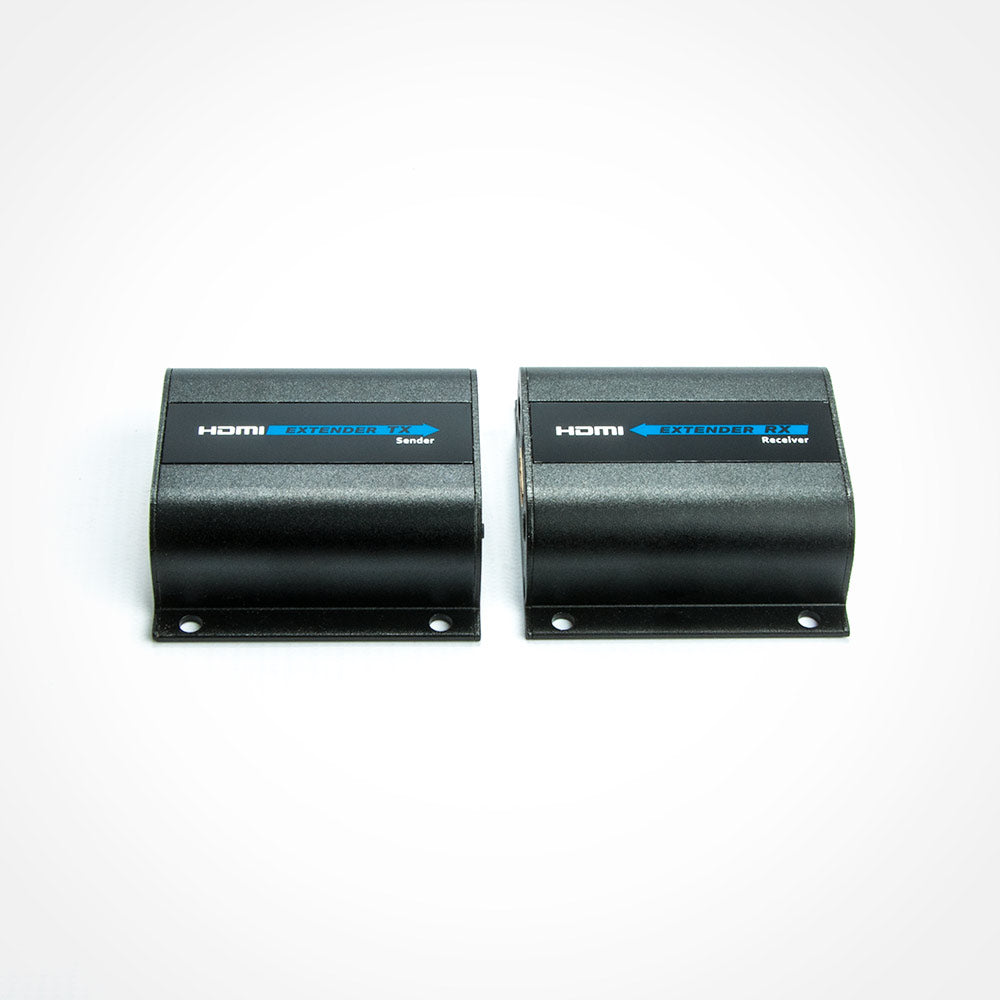

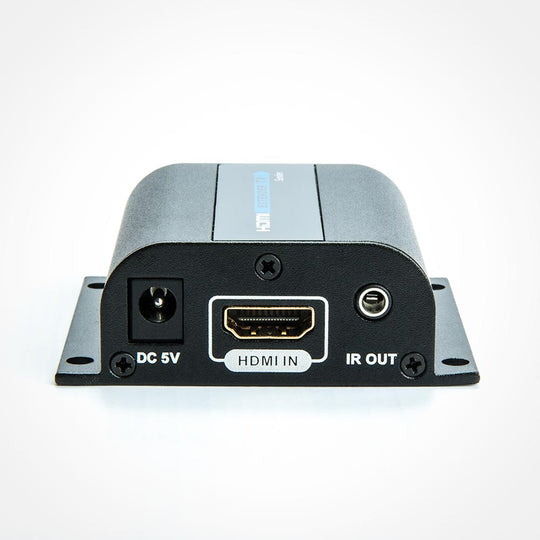

- (1) HDMI to LAN Sender TX
- (1) LAN to HDMI Receiver RX
- (2) DC 5V 1A Power Adapters

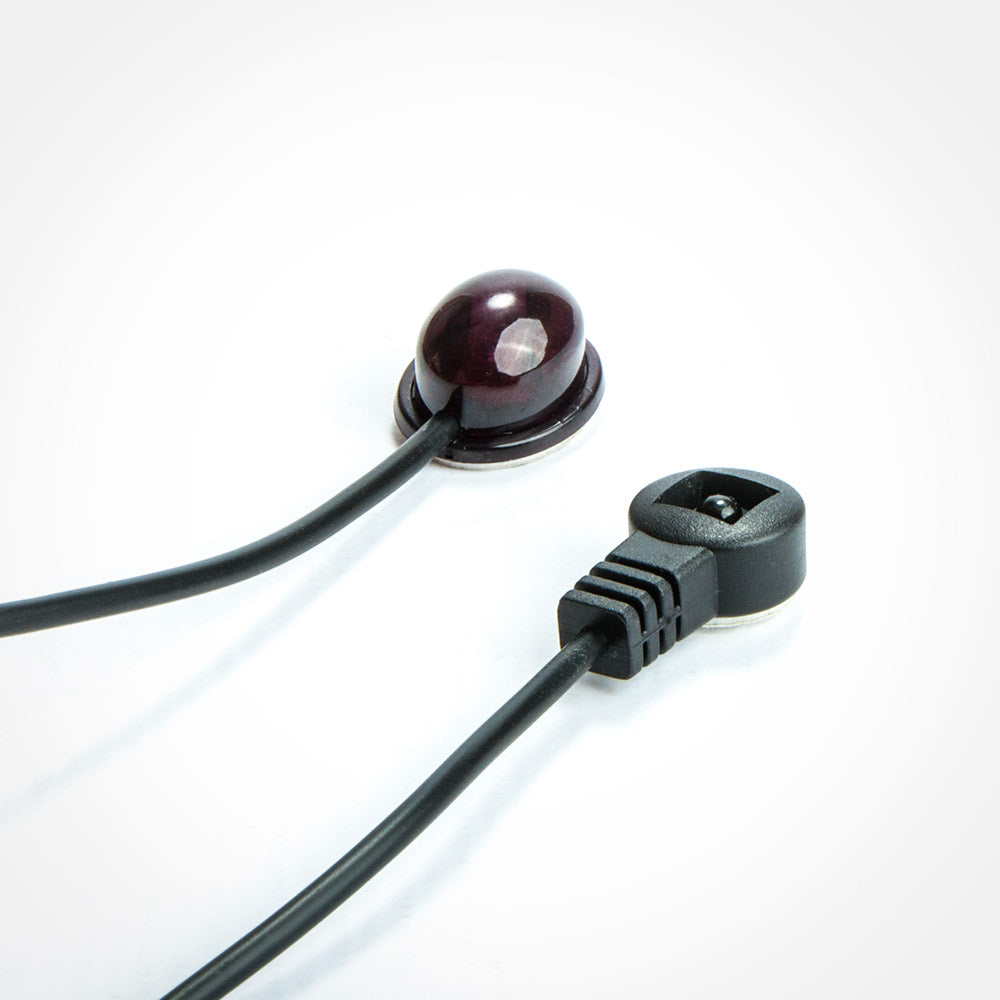

- (1) IR Blaster Extension Cable
- (1) IR Receiver Extension Cable
- (1) User Manual
- Reviews+
- Transmits up to 180ft over a single Cat6 23AWG cable
- 1080p and 3D Support
- Aluminum Alloy Shell
- IR Transmitter/Receiver Included
- Supports Resolutions up to 1080p@50/60Hz
- Supports IR Remote Control 20~60Khz
- Power Consumption: Less Than 2W Each Unit
- Dimensions: 71.6 x 66.6 x 24.8mm (LxWxH)
- HDCP Compliant
- IEEE-568B Standard
- FCC, CE Listed
- RoHS Compliant
- (1) HDMI to LAN Sender TX
- (1) LAN to HDMI Receiver RX
- (2) DC 5V 1A Power Adapters
- (1) IR Blaster Extension Cable
- (1) IR Receiver Extension Cable
- (1) User Manual
HDMI Extender over Cat6 Cable Contractor Pack
Easily and conveniently extend your HD signal up to 180ft using this HDMI extender over the Cat6 network cable. This extender uses a single Category 6 cable to transmit your digital signal, allowing you to surpass the standard 50ft limitations of ordinary HDMI cables. It supports resolutions up to 1080p and is 3D-ready for capable devices. The sleek aluminum alloy shell is both durable and attractive.
Extending HDMI Cables through Cat6 Ethernet Cables
Designed as a solution for installations that require longer HDMI lengths, the HDMI-SINGLE-EXTEND uses Cat6 23AWG Ethernet cables to extend the length of a HDMI signal, with support for both video and audio up to 180ft at 1080p (1920 x 1080) without any loss of quality.
1080p Full HD
With support for resolutions up to 1080p / 60Hz, you're able to view your output in high definition. HDCP support also allows protected content to be effortlessly viewed without issues.
Audio Formats
The HDMI extender supports Dolby Digital Plus, Dolby TrueHD, 7.1 LPCM and DTS Master Audio formats.
Plug and Play Operation
Setting up the HDMI extender is as easy as plugging in the HDMI source on the transmitter end and then plugging in the HDMI display on the receiver end. Plug in the included IR cables on both ends to allow the IR signal to be sent remotely, select the length of Cat6 or higher Ethernet 23AWG cable (up to 180 feet) to plug into the Ethernet port on both ends of the transmitter / receiver, and then plug in the included 5V 1A power adapters on both ends for operation.
For best performance, we recommend the use of Cat6 or higher 23AWG bare copper cables if running at the peak length of 180 feet. In practice, if you're running at distances up to 75ft, using Cat5e / Cat6 24AWG will not be an issue.
HDMI Extender over Cat6 Cable Contractor Pack
Easily and conveniently extend your HD signal up to 180ft using this HDMI extender over the Cat6 network cable. This extender uses a single Category 6 cable to transmit your digital signal, allowing you to surpass the standard 50ft limitations of ordinary HDMI cables. It supports resolutions up to 1080p and is 3D-ready for capable devices. The sleek aluminum alloy shell is both durable and attractive.
Extending HDMI Cables through Cat6 Ethernet Cables
Designed as a solution for installations that require longer HDMI lengths, the HDMI-SINGLE-EXTEND uses Cat6 23AWG Ethernet cables to extend the length of a HDMI signal, with support for both video and audio up to 180ft at 1080p (1920 x 1080) without any loss of quality.
1080p Full HD
With support for resolutions up to 1080p / 60Hz, you're able to view your output in high definition. HDCP support also allows protected content to be effortlessly viewed without issues.
Audio Formats
The HDMI extender supports Dolby Digital Plus, Dolby TrueHD, 7.1 LPCM and DTS Master Audio formats.
Plug and Play Operation
Setting up the HDMI extender is as easy as plugging in the HDMI source on the transmitter end and then plugging in the HDMI display on the receiver end. Plug in the included IR cables on both ends to allow the IR signal to be sent remotely, select the length of Cat6 or higher Ethernet 23AWG cable (up to 180 feet) to plug into the Ethernet port on both ends of the transmitter / receiver, and then plug in the included 5V 1A power adapters on both ends for operation.
For best performance, we recommend the use of Cat6 or higher 23AWG bare copper cables if running at the peak length of 180 feet. In practice, if you're running at distances up to 75ft, using Cat5e / Cat6 24AWG will not be an issue.
