SCP Simply45 Rj45 Pass Through Mod Plugs For 23AWG (Large Od 1.15Mm) Cat6A & Cat6 Utp Cables, Staggered Hi/Lo Wire Alignment, Ul94 V0 Cmp/Cmr/Cm/Lszh-B2Ca To Eca - 100 Pieces
Same Day Shipping likely on orders placed in the next 00 hours 00 minutes 00 seconds.
California Prop 65 Warning
For CA Residents Only.
California Proposition 65 Warning
Proposition 65, officially the Safe Drinking Water and Toxic Enforcement Act of 1986, is a law that requires warnings be provided to California consumers when they might be exposed to chemicals identified by California as causing cancer or reproductive toxicity. The warnings are intended to help California consumers make informed decisions about their exposures to these chemicals from the products they use. The California Office of Environmental Health Hazard Assessment (OEHHA) administers the Proposition 65 program and publishes the listed chemicals, which includes more that 850 chemicals. In August 2016, OEHHA adopted new regulations, effective on August 30, 2018, which change the information required in Proposition 65 warnings.
• WARNING: Some cable, plastic, and metal products may contain chemicals known to the state of CA to cause cancer, birth defects, or other reproductive harm.
For further information, please visit www.P65Warnings.ca.gov
- Description+
- Specs+
- Reviews+

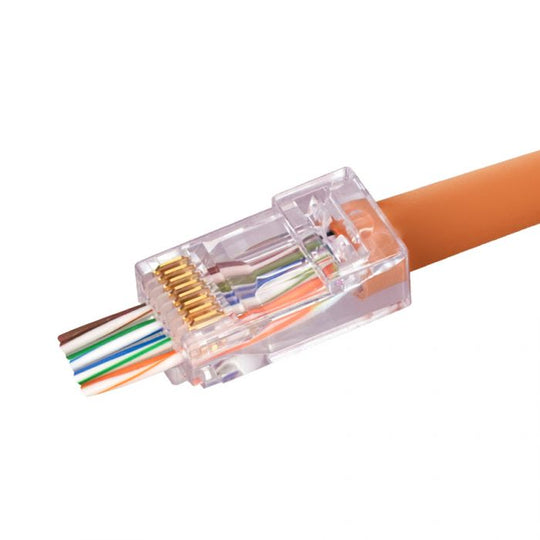

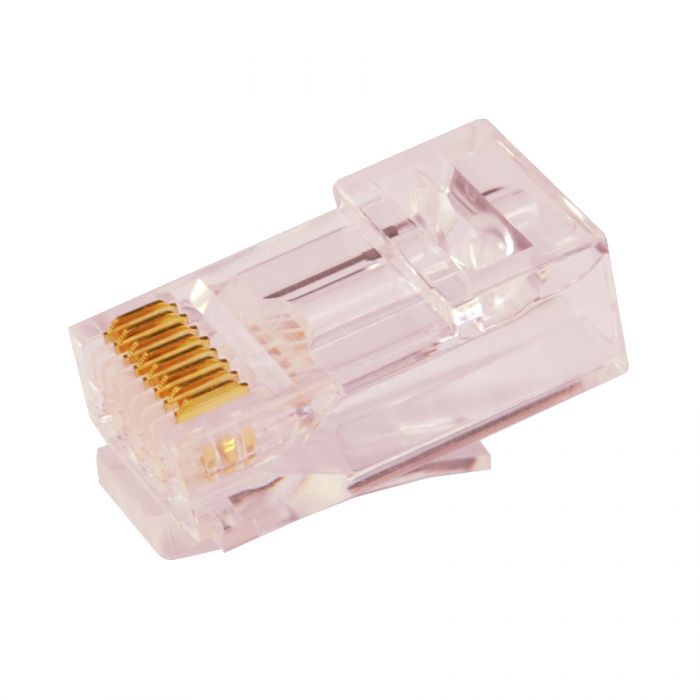

Single Piece Design. The S45-1700 is a single-piece unshielded pass-through RJ45 modular plug for use with unshielded LAN cables. No-load bar required. Supports performance standards: ANSI/TIA 568.2-D for Cat6 and Cat6a; ISO/IEC 11801 Class E and Ea. Supports 10GBaseT performance applications over unshielded twisted pair cables.
Performance: | Meets or Exceeds ANSI/TIA 568-C.2; ISO/IEC 11801 Class D; ANSI/TIA 1096-A; IEC 60603-7 |
Cat6A/6 UTP Wire Cond(s) OD: | 23AWG, Up to 0.043"-0.045" (1.1mm-1.15mm) |
Max Cable Outer Diameter: | 0.291'' (7.4mm) |
Supports PoE/PoH: | Yes |
Cable Fire Resistance Ratings: | CMP Plenum, CMR, CM, CMX, LSZH EN50575:2014 up to B2ca-s1a,d1,a1 |
Flame Autoextinguish: | UL94 V0, IEC 60695-11-10 |
Contact Material: | Phosphor Bronze - .012" thick |
Contact Plating: | Min 50 Micro-Inch Pure Gold - 24 Carat Hard Gold Plate in contact area over 100 Micro-Inch Min Nickel Plating. Exceeds ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
Plug Material: | Polycarbonate |
Plug Tolerances and Dimensions: | Meets ANSI/TIA-1096-A specifications (formerly FCC Part 68) |
Conductor Type(s): | Solid and Stranded |
Operating Temperature: | -40º C to +70º C |
Insertion/Extraction Life: | 2000 Minimum Cycles |
Contact Resistance: | 20 Milli-Ohms max |
Current/Voltage: | 30 VAC/42 VDC at 1.5 Amps |
Compliance: | UL Listed, RoHS, FCC, NEC |
